- - 2. BAS E FR A ME ELEC T R I C A PP ARAT US C O M PON E NT S ( 1 ) 6 5 9 1 0 8 7 1 1 3 2 1 5 1 6 1 6 1 9 1 9 1 7 1 8 1 8 1 7 2 6 2 1 2 3 2 2 2 4 1 5 1 2 5 5 0 5 4 5 5 4 9 5 3 5 6 5 6 5 7 2 0 1 4 3 6 3 8 4 0 3 9 4 3 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00519 BASEFRAME NUT 4
2 #02 400-00535 BASEFRAME NUT(EN) 4
3 SM-6126002-TN SCREW M12 L=60 12
4 WS-1220002-KN SPRING WASHER 12
5 WP-1302500-SC WASHER 12
6 400-00403 ADJUST BOLT 4
7 #02 400-00404 ADJUST BOLT(EN) 4
8 E1044-729-000-A ADJUSTER NUT 36 4
9 E1035-729-000 ADJUSTER FOOT 4
10 SM-6083002-TN SCREW M8 L=30 24
11 400-00418 CLAMP BASE ASSY 1
12 HX-0055700-00 TIE MOUNT (4)
13 SM-4061201-SC SCREW M6 L=12 (4)
14 HX-0015000-0R CABLE CLAMP (3)
15 SL-6042092-TN SCREW M4 L=20 (2)
16 SM-6043002-TN SCREW (1)
17 NM-6040001-SC NUT M4 (3)
18 HX-0029400-00 FIXED BASE (30)
19 ST-4040651-SN SCREW M4 X 6 (30)
20
#01
400-01551 CASTER ASSY 1
21 400-00405 CASTER (4)
22 SL-6103042-TN BOLT (16)
23 WP-1252210-SC WASHER 12.5X25.6X2.2 (16)
24 SL-4041091-SC SCREW M4 L=10 4
25
#01
400-13307 FP PUSHER 12
26
#01
400-13306 FLICTION PLATE 12
27 #01 SM-1030801-SC SCREW M3 L=8 36
28
#01
E6600-729-000 ADJUST FOOT N 4
29 400-50222 BASE PLATE ASSY 1
30 HX-0015000-0R CABLE CLAMP (2.7)
31 400-46554 BASE PLATE FL (1)
32 NM-6100001-SC NUT M10X1.5 (4)
33 WS-1020002-KN SPRING WASHER M10 (4)
34 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
35 400-00491 BASE PLATE FR (1)
36 NM-6100001-SC NUT M10X1.5 (4)
37 WS-1020002-KN SPRING WASHER M10 (4)
38 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
39 400-00492 BASE PLATE R (1)
40 TA-1030402-R0 RUBBER PLUG D=10.3 L=4 2
41 400-49770 CTRL BASE ASM. 1
42 400-46557 CTRL UNIT BASE (1)
43 SL-4040891-SC SCREW M4 L=8 (4)
44 E1038-871-000 PLATEN LOCK CAM SCREW (3)
45 400-01555 INPUT TERMINAL ASSY 1
46 CM-2001000-01 PE MARK LABEL (1)
47 HK-0694900-0A BLOCK TERMINAL (1)
48 HK-0694900-00 BLOCK TERMINAL (1)
49 HK-0694500-10 BLOCK TERMINAL (3)
50 400-00530 CARRIER RAIL 75 (1)
51 SL-4040891-SC SCREW M4 L=8 (2)
52 HK-0691900-0B BLOCK TERMINAL (2)
53 100-04109 GROUND MARK (2)
54 400-01556 SMEMA BR ASSY 1
55
#02
400-15596 SMEMA BR ASSY(EN) 1
56 SL-4030881-SC SCREW M3 L=8 (4)
57 E9378-729-0A0 SMEMA CABLE (L) ASM. (1)
58 400-00497 I F PANEL L (1)
59 HK-0429901-4A CAP (1)
60 SL-6061292-TN SCREW (2)
61 401-35754 I/F PANEL R ASM JX-300LED 1
62 401-00370 MTC I/F PANEL R 70C ASM (1)
63 E9221-729-0A0 PWR ON LIGHT ASM. (1)
64 400-44522 USB RELAY CABLE (2)
65 E1026-729-000 SMEMA LIGHT ANGLE L (1)
66 SL-6030892-TN SCREW M3 L=8 (8)
67 SL-4030881-SC SCREW M3 L=8 (4)
68 HK-0651200-80 MODULAR KAPLA (1)
69 HX-0032600-0B BUSH (1)
70 400-02334 SMEMA CABLE (R) ASM (1)
71 400-46602 IF PANEL R (1)
72 SL-6061292-TN SCREW (4)
73 400-46640 USB BRACKET (1)
74 400-46641 USB BOX (1)
75 401-07154 CLOSE LABEL (1)
76
#01
NM-6080001-SC NUT M8X1.25 12
77 400-52570 BASE RUBBER 2
78 NM-6080002-SC NUT M8 12
79 HX-0018800-0F CORD BUSH 1
80
#02
HX-0057900-00 PERFECT ROCK 1
81 HN-0015500-00 CORE 2
82
#01
SM-6082502-TN BOLT 12
83
#02
HK-0429901-4A CAP 1
84 #02 HX-0066000-00 DUST COVER 1
85
#02
HX-0066700-00 DUST COVER 2
86
#02
HN-0013300-0A CORE 1
87
#02
HN-0015500-00 CORE 1
88
#02
HN-0014900-0A CLAMP FILTER 2
- -
2. BASE FRAME ELECTRIC APPARATUS COMPONENTS (1)
6
5
9
1 0
8
7
1 1
3
2
1 5
1 6
1 6
1 9
1 9
1 7
1 8
1 8
1 7
2 6
2 1
2 3
2 2
2 4
1 5
1
2 5
5 0
5 4
5 5
4 9
5 3
5 6
5 6
5 7
2 0
1 4
3 6
3 8 4 0
3 9 4 3
3 7
3 1
2 9 3 2
3 0 3 5
3 4 4 1
3 3 4 2
2 7 2 8
4 7
4 5
1 3
4
1 2
2 5
5 2
5 1
4 8
4 6
4 6
4 6
4 4
5 9
5 8
- -

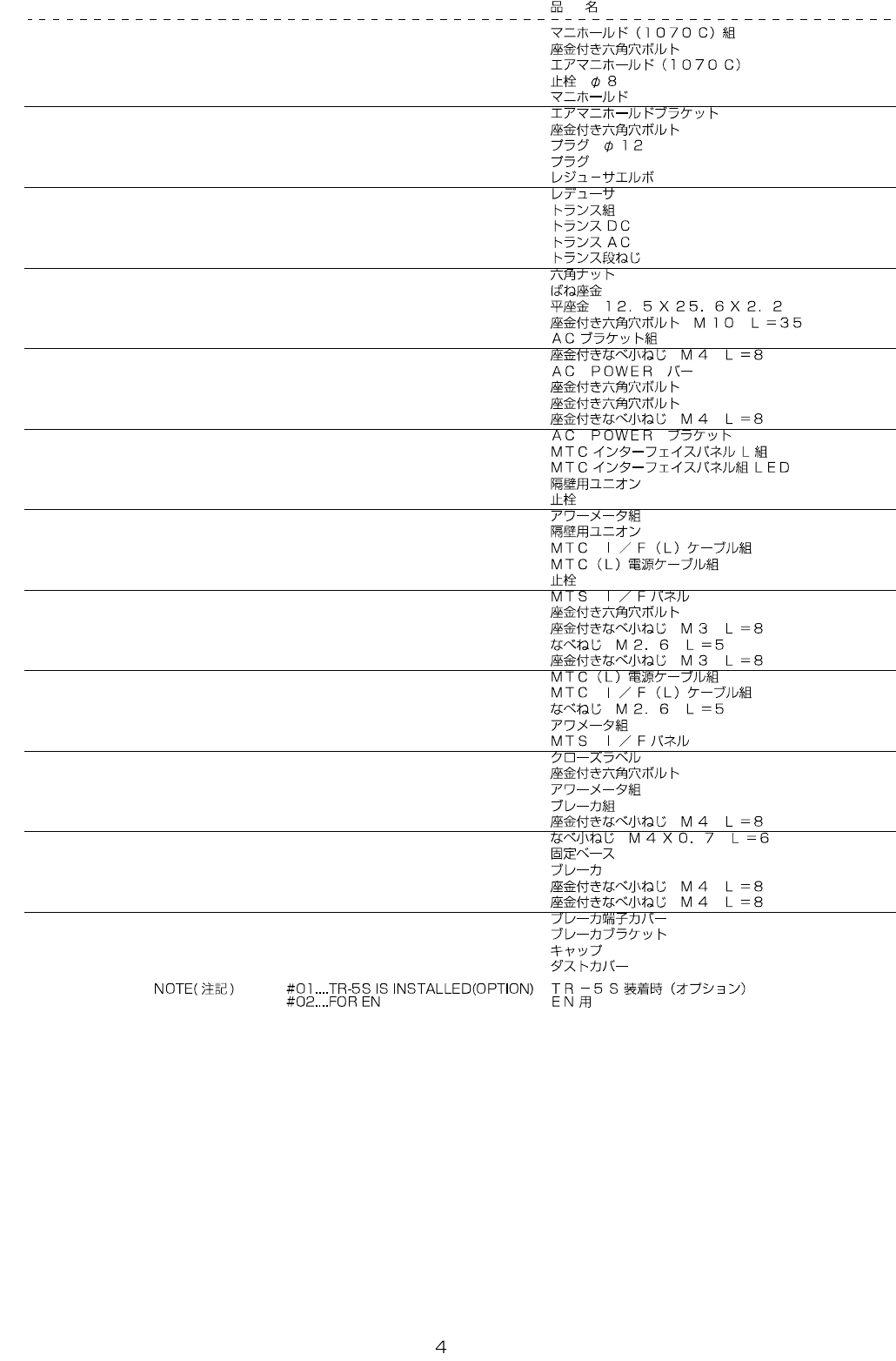

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-74094 MANIHOLD(1070C) ASSY 1
2 SL-6052092-TN SCREW (2)
3 400-74095 AIR MANIFOLD UNIT(1070C) (1)
4 E2618-760-000 CAP (1)
5 PJ-3091200-03 MANIFOLD (1)
6 400-00549 AIR MANIFOLD BRACKET (1)
7 SL-6043092-TN BOLT (2)
8 PJ-0200000-03 PLUG ROUND 12 (1)
9 PX-9500070-00 PLUG (3)
10 PJ-3040600-01 ELBOW (3)
11 PJ-3010600-03 REDUCER (1)
12 400-01561 TRANSFORMAR ASSY 1
13 400-40378 TRANSFORMER(PSU) (1)
14 400-40379 TRANSFORMER(SERVO) (1)
15 400-00450 TRANS SCREW (4)
16 NM-6120001-SC NUT M12 (4)
17 WS-1220002-KN SPRING WASHER (4)
18 WP-1252210-SC WASHER 12.5X25.6X2.2 (4)
19 SL-6103542-TN SCREW M10 L=35 (4)
20 400-01562 AC BR ASSY 1
21 SL-4040891-SC SCREW M4 L=8 (2)
22 400-00487 AC POWER BAR (2)
23 SL-6051292-TN BOLT (2)
24 SL-6061292-TN SCREW (2)
25 SL-4040891-TN SCREW M4 L=8 (2)
26 400-00483 AC POWER BRACKET (1)
27 400-01558 MTC IF PANEL L ASSY 1
28
#01
401-37211 MTS IF PANEL ASM LED 1
29
#01
PJ-2300062-00 UNION (1)
30
#01
PX-9500010-00 PLUG (1)
31 400-02115 HOURMETER ASM. (1)
32 PJ-2300062-00 UNION (1)
33 400-02104 MTC I/F(L) CABLE ASM (1)
34 400-02062 MTC POWER WIRE L ASM (1)
35 PX-9500010-00 PLUG (1)
36 400-00499 MTS I/F PANEL (1)
37 SL-6061292-TN SCREW (2)
38 SL-4030881-SC SCREW M3 L=8 (4)
39 SM-4860501-SB SCREW M2.5 L=5 (2)
40
#01
SL-4030881-SC SCREW M3 L=8 (4)
41
#01
400-02062 MTC POWER WIRE L ASM (1)
42
#01
400-02104 MTC I/F(L) CABLE ASM (1)
43
#01
SM-4860501-SB SCREW M2.5 L=5 (2)
44 400-74093 HOURMETER ASM 1
45 400-00499 MTS I/F PANEL (1)
46 401-07154 CLOSE LABEL (1)
47 SL-6061292-TN SCREW (1)
48 400-02115 HOURMETER ASM (1)
49 400-01554 BREAKER ASSY 1
50 SL-4040891-SC SCREW M4 L=8 (3)
51 SM-4040601-SC SCREW M4X0.7 L=6 (1)
52 HX-0029400-00 FIXED BASE (1)
53 HA-0053200-00 CIRCUIT PROTECTOR (1)
54 SL-4040891-SC SCREW M4 L=8 (2)
55 SL-4040891-SC SCREW M4 L=8 (4)
56 HX-0053200-10 CIRCUIT PROTECTOR COVER (1)
57 400-00489 BRAKER BRACKET (1)
58
#02
HK-0429900-7A CAP 1
59
#02
HK-0528905-0B DUST COVER 1
