- - 43.T R AY STATIO N R UNIT 5 4 2 6 2 5 2 6 6 6 5 7 0 7 3 5 9 7 0 5 4 5 8 5 7 4 9 6 1 6 0 5 5 6 8 6 4 5 6 6 3 5 3 6 7 7 4 5 0 7 2 7 1 6 9 2 1 3 7 3 7 2 3 3 4 3 6 3 5 2 4 1 2 3 3 1 7 1 7 2 5 1 7 1 3 2 0 B A 2 4 3 3 2 …
- -

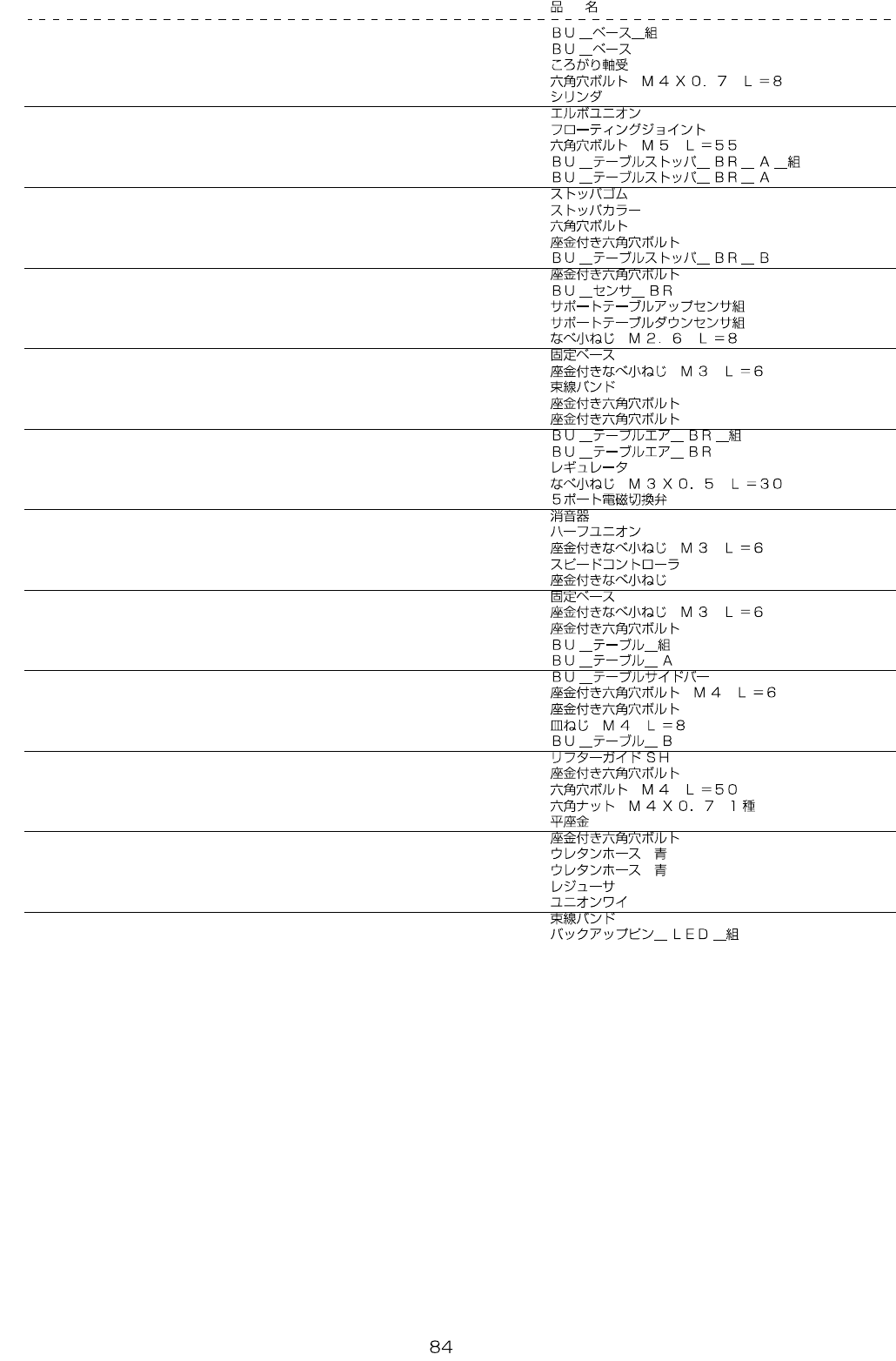

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-36315 BU_BASE_ASM 1
2 401-36302 BU_BASE (1)
3 SB-8160005-C0 BEARING (2)
4 SM-6040802-TN SCREW (8)
5 400-78535 CYLINDER (1)
6 PJ-3040405-04 ELBOW UNION (2)
7 400-78534 FLOATING JOINT (1)
8 SM-6055552-TN BOLT M5 L=55 (4)
9 401-36316 BU_TABLE_STOPPER_BR_A_ASM (2)
10 401-36306 BU_TABLE_STOPPER_BR_A (1)
11 E2778-721-000 STOPPER RUBBER (1)
12 E2779-721-000 STOPPER COLLAR (2)
13 SM-6030802-TN SCREW (2)
14 SL-6040892-TN BOLT (4)
15 401-36307 BU_TABLE_STOPPER_BR_B (2)
16 SL-6040892-TN BOLT (6)
17 401-36308 BU_SENSOR_BR (1)
18 401-36115 SUPPORT TABLE UP SENS ASM (1)
19 401-36117 SUPPORT TABLE DOWN SENS ASM (1)
20 SM-4860801-SC SCREW M2.6 L=8 (2)
21 HX-0029400-00 FIXED BASE (1)
22 SL-4030691-SC SCREW M3 L=6 (1)
23 EA-9500B01-00 CABLE BAND (1)
24 SL-6040892-TN BOLT (2)
25 SL-6082092-TN BOLT 4
26 401-36314 BU_TABLE_AIR_BR_ASM 1
27 401-36309 BU_TABLE_AIR_BR (1)
28 PF-0200040-00 REGULATOR (1)
29 SM-4033001-SC SCREW M3 L=30 (2)
30 PV-1502060-A0 5 PORT MAGNETIC TRANSFER VALVE (1)
31 PX-0505010-00 SILENCER (2)
32 PJ-3010405-05 HALF UNION (1)
33 SL-4030691-SC SCREW M3 L=6 (2)
34 PC-0124010-00 SPEED CONTROLLER (2)
35 SL-4031491-SC SCREW M3X14 (2)
36 HX-0029400-00 FIXED BASE (3)
37 SL-4030691-SC SCREW M3 L=6 (3)
38 SL-6041092-TN SCREW 2
39 401-36317 BU_TABLE_ASM 1
40 401-36303 BU_TABLE_A (1)
41 401-36305 BU_TABLE_SIDE_BAR (2)
42 SL-6040692-TN SCREW M4 L=6 (8)
43 SL-6040642-TN BOLT (4)
44 SM-1040852-TP DISH SCREW (2)
45 401-36304 BU_TABLE_B (1)
46 400-78532 LIFTER GUIDE SH (2)
47 SL-6061292-TN SCREW (2)
48 SM-6045052-TN (4)
49 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
50 WP-0450816-SC WASHER (4)
51 SL-6061292-TN SCREW 1
52 BT-0400251-EA TUBE HOSE, BLUE 1.7
53 BT-0600400-EC TUBE HOSE, BLUE 0.08
54 PJ-3010400-01 REDUCER 1
55 PJ-3080600-03 Y UNION 1
56 EA-9500B01-00 CABLE BAND 3
57 401-38011 BACK_UP_PIN_LED_ASM 16
- -
43.TRAY STATION R UNIT
5
4
2
6 2
5 2
6 6
6 5
7 0
7 3
5 9
7 0
5 4
5 8
5 7
4 9
6 1
6 0
5 5
6 8
6 4
5 6
6 3
5 3
6 7
7 4
5 0
7 2
7 1
6 9
2 1
3 7
3 7
2 3
3 4
3 6
3 5
2 4
1 2
3 3
1 7
1 7
2 5
1 7
1 3
2 0
B
A
2 4
3 3
2 7
2 8
B
2 9
2 9
3 0
3 7
2 2
1 7
1 6
1 7
1 8
1 4
A
2 6
2 8
3 2
2 7
2 6
3 1
2 9
2 9
3 7
1 5
2 5
8 5
8 4
8 3
8 6
8 8
8 7
8 6
8 2
8 9
9 0
9 1
9 2
9 3
7 7
1 9
1 9
1 9
1 9
1 9
1 9
1 9
1 9
7 8
7 9
8 0
8 1
1
1 0
8
7
1 1
9
3
5 1
3 8
6
7 5
7 6
4 1
4 0
5 1
3 9
4 8
4 4
4 2
4 3
4 5
4 6
4 7
4 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00577 BANK SUPPORTER R UNIT 1
2 400-00568 BANK SUPPORTER RL COMB. (1)
3 SL-6063092-TN SCREW M6 L=30 (4)
4 SM-9063503-SE SCREW M6 L=35 (2)
5 NM-6060001-SC NUT M6X1 TYPE1 (2)
6 400-00569 BANK SUPPORTER RR COMB. (1)
7 400-00555 BANK LOCK BOLT (2)
8 400-00556 BANK LOCK NUT (2)
9 SM-6105502-TN SCREW M10 L=55 (2)
10 WP-1052001-SC WASHER 10 (2)
11 WS-1020002-KN SPRING WASHER M10 (2)
12 401-37740 SAFETY COVER R OP ASM 1
13 E1318-715-000 SAFTY COVER HINGE (2)
14 NM-6040001-SC NUT M4X0.7 TYPE1 (8)
15 400-80490 KEY_SCREW (2)
16 SL-6051092-TN SCREW M5 L=10 (2)
17 SL-6061242-TN SCREW M6 L=12 (12)
18 WP-0641601-SC WASHER M6 (8)
19 WP-0850002-SC WASHER 8.5X18X1.6 (8)
20 400-46576 SAFETY COVER FRAME R (1)
21 400-46579 SCW PLATE R (1)
22 NM-3060810-SF NUT M6 (4)
23 400-46608 KNOB (1)
24 401-10173 GAS_SPRING_B (2)
25 400-43523 GS BRACKET C (2)
26 400-43524 COVER HINGE GUIDE (2)
27 400-43527 COVER HINGE BRACKET (2)
28 E3065-729-000 SHAFT LABEL (2)
29 400-43528 GUIDE PIN (4)
30 400-43529 PIPE HANDLE (1)
31 400-43530 COVER HINGE L (1)
32 400-43531 COVER HINGE R (1)
33 E1422-729-000 GS BRACKET A (2)
34 400-50445 CAUTION SEAL (1)
35 400-50446 SEAL (1)
36 400-51621 CHIP BOX NOTICE LABEL G1 (1)
37 400-38381 STEP SCREW (2)
38 SL-3061232-TN SCREW (4)
39 400-56924 SAFETY COVER STOPPER (1)
40 WP-0430801-SC WASHER M4 (1)
41 SM-6042002-TN BOLT (1)
42 400-01464 STOPPER SUPPORT (1)
43 400-49671 COVER CUSHION (1)
44 SM-4030601-SC SCREW M3 X 6 (1)
45 SL-6041092-TN SCREW (2)
46 SM-0040601-SC SCREW M4X0.7 L=6 (4)
47 CM-3009001-05 LABEL (2)
48 CM-3002000-E6 LABEL (1)
49 401-35997 COVER RUR(OP)ASM 1
50 WP-0430801-SC WASHER M4 (1)
51 WP-0550836-SC WASHER 5.5X12X0.8 (1)
52 400-46566 COVER RUR (1)
53 400-01452 COPLANARITY COVER A (1)
54 400-01453 SAFETY SWITCH BRACKET (1)
55 400-01464 STOPPER SUPPORT (1)
56 400-46625 SWITCH PANEL R (1)
57 400-01956 OPERATION SW PCB ASM (1)
58 NM-6040001-SC NUT M4X0.7 TYPE1 (4)
59 400-02254 COVER OPEN SW CABLE ASM (1)
60 400-49671 COVER CUSHION (1)
61 SM-4030601-SC SCREW M3X0.5 L=6 (1)
62 WP-0430801-SC WASHER M4 (4)
63 NM-6040001-SC NUT M4X0.7 TYPE1 (2)
64 E1326-715-000 EMERGENCY SEAL (1)
65 HX-0032600-0B GROMMET (1)
66 HX-0032600-0H GROMMET (1)
67 HX-0032600-00 GROMMET (1)
68 HX-0032600-0A GROMMET (6)
69 HX-0035400-0D SPACER (4)
70 NM-3040520-SF FLANGE NUT M4 (4)
71 SL-4030681-SC SCREW M3 L=6 (4)
72 SL-6041092-TN SCREW M4 L=10 (2)
73 SL-6041642-TN SCREW M4 L=16 (2)
74 SM-6042002-TN SCREW (1)
75 400-02206 R-EMG SWITCH CABLE ASM (1)
76 400-56924 SAFETY COVER STOPPER (1)
77 SL-6082592-TN SCREW M8 L=25 4
78 WP-0841601-SC WASHER M8 4
79 WS-0820002-KN SPRING WASHER M8 4
80 NM-6080003-SC NUT M8X1.25 TYPE3 4
81 SL-4040891-SC SCREW M4X8 4
82 400-85744 TRAY_HOLDER_ASSY 12
83 E7709-700-000 TRAY HOLDER (1)
84 B2626-372-000 SPRING (1)
85 E7307-700-000 CLAMP PIN (1)
86 400-76382 SLIDE WASHER (2)
87 WP-0531001-SC WASHER M5 (1)
88 RE-0400000-K0 E-RING 4 (1)
89 SM-6031002-TN SCREW M3 L=10 4
90 WS-0310002-KN SPRING WASHER M3 4
91 E7303-715-000 TH GUIDE 4
92 401-36019 TS_BASE 1
93 401-36300 TS_BASE_SUPPORT 1
