G -S162-02 1004-003 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE BP-2 BP-2 list-1 151 6301340012 BREAKER 1 -Q201 803BP-210-151 4S230093 152 6301340029 EM-CONT ACTOR 1 -K48 803BP-210-152 4S2101 17 153 6301241…
G -S162-02
0805-001
BP-2 illust-1
架台下
XY
サーボ電源部
C UNDERFRAME XY SERVO
POWER SUPPLY SECTION C
Fig. BP-2 200V
電源３
200V Power Supply 3
162
171
181
.
180
181
.
180
181
.
180
182
182
185
184
183
153
152
168
165
170
161
172
159
158
167
166
157
170
170
182
185
184
183
185
184
183
164
151
163
170
170
169
170
170
185
184
183
161
173
179
179
156
155
177
.
178
G -S162-02
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BP-2
BP-2 list-1
151 6301340012 BREAKER 1 -Q201 803BP-210-151 4S230093
152 6301340029 EM-CONTACTOR 1 -K48 803BP-210-152 4S210117
153 6301241586 COMP,CR 1 803BP-210-153 4F400025
155 6301510545 CORD 1
803D-A211190-A153
4W203823
156 6301510552 CORD 1
803D-A211190-A154
4W203824
157 6301705309 CIRCUIT PROTECTOR 1 803BP-210-157 4S250388
158 6301340074 ACCESSORY,WIRING 1 803BP-210-158 23N30652
159 6301340081 ACCESSORY,WIRING 1 803BP-210-159 23N30653
161 6300911725 ACCESSORY,WIRING 2 803BP-210-161 23N30499
162 6301406244 TERMINAL 1 803BP-210-162 4J320244
163 6301340012 BREAKER 1 -Q203 803BP-210-163 4S230093
164 6301340142 CIRCUIT PROTECTOR 1 -Q204 803BP-210-164 4S250324
165 6300492194 EM-CONTACTOR 1 -K28 803BP-210-165 4S210045
166 6301705316 CIRCUIT PROTECTOR 2 -Q222,-Q223
803BP-210-166 4S250389
167 6301340067 ACCESSORY,WIRING 3 803BP-210-167 23N30651
168 6300769166 COMP,CR 3 803BP-210-168 4F400008
169 6300492194 EM-CONTACTOR 2 -K40,-K50
803BP-210-169 4S210045
170 6300911749 BRACKET,WIRING 7 803BP-210-170 23N10027
171 6301406183 BRACKET 1 803BP-210-051 211FA180
172 6301464640 TERMINAL 1 803BP-210-172 4J320255
173 4230252109 FUSE 250V 6.3A 1 F042 803BP-210-173 4S300023
177 6300635423 RELAY 1
803D-A211190-A001-12
4S200086
178 6300635430 SOCKET 1
803D-A211190-A001-13
4J120099
179 6300911749 BRACKET,WIRING 2
803D-A211190-A251
23N10027
180 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
181 4111416705 WASHER SPR 5 4 SW5 221H0287
182 6300010220 WASHER 4 BW5 221H0005
183 4111131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
184 4110081706 WASHER SPR 4 10 SW4 F 221H0283
185 4111192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
GXH-1S
G -S162-02
G -S162-02
0805-001

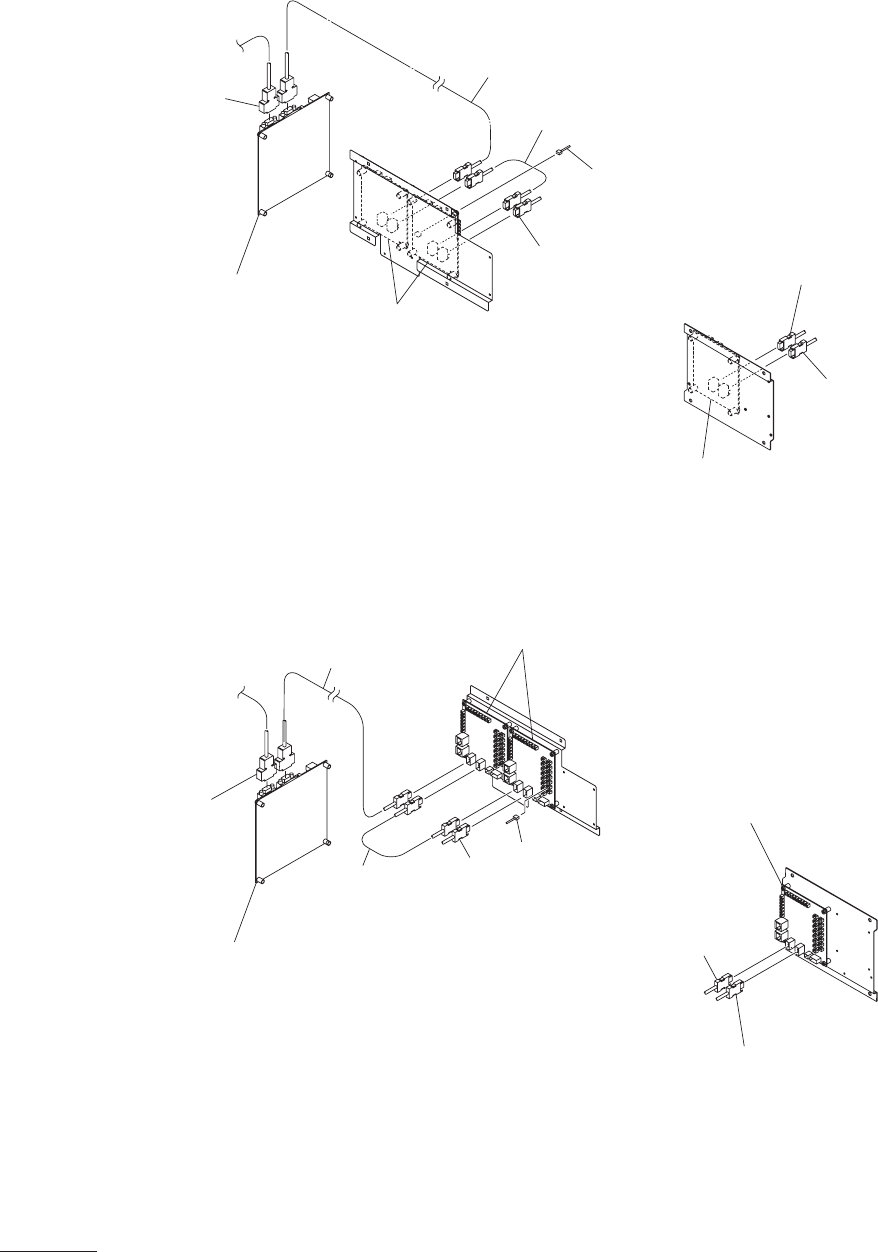

D-4 illust-1
部品認識部
RECOGNITION SECTION
Fig. D-4
ケーブル
Cable
X0710
X0711
X0801
X0802
X0901
X0902
X0710
X0711
X0801
X0802
X0901
X0902
X0943
X0943
X0901
X0902
X0901
X0902
363
364
See Fig. B-1
Key No.70
See Fig. B-1
Key No.70
See Fig. FB-2
Key No.182
See Fig. FB-2
Key No.182
See Fig. D-2
Key No.161
See Fig. D-2
Key No.161
See Fig. D-2
Key No.161
See Fig. D-2
Key No.161
371
381
372
See Fig. FB-2
Key No.188
364
363
379
381
378
See Fig. FB-2
Key No.188
