G -S162-03 0805-001 BM-2 illust-1 架台下 XY サーボ電源部 A UNDERFRAME XY SERVO POWER SUPPL Y SECTION A Fig. BM-2 200V 電源１ 200V Power Supply 1 164 151 163 170 195 194 193 170 161 171 190 . 191 190 . 191 190 . 191 192 162 161 169 1…
MEMO
G -S162-03
0805-001
BM-2 illust-1
架台下
XY
サーボ電源部

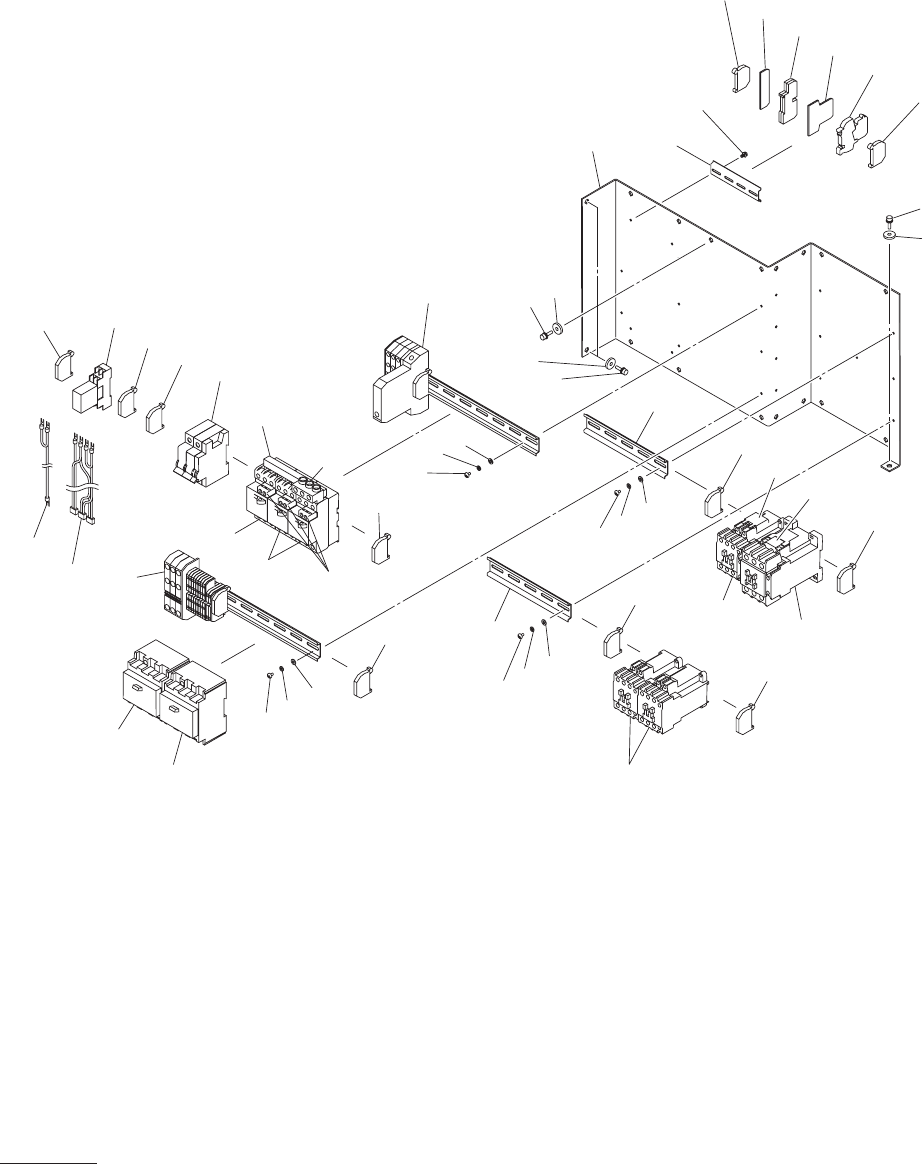

A UNDERFRAME XY SERVO
POWER SUPPLY SECTION A
Fig. BM-2 200V
電源１
200V Power Supply 1
164
151
163
170
195
194
193
170
161
171
190
.
191
190
.
191
190
.
191
192
162
161
169
152
165
168
153
158
159
167
157
166
192
192
195
194
193
195
194
193
195
194
193
170
170
170
170
170
193
.
194
.
195
184
.
186
172
.
173
181
179
185
179
187
180
.
183
179
179
155
156
177
.
178
G -S162-03
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BM-2
BM-2 list-1
151 6301340012 BREAKER 1 -Q201 829BM-010-151 4S230093
152 6301340029 EM-CONTACTOR 1 -K33 829BM-010-152 4S210117
153 6301241586 COMP,CR 1 829BM-010-153 4F400025
155 6301510545 CORD 1
829D-A010420-A153
4W203823
156 6301510552 CORD 1
829D-A010420-A154
4W203824
157 6301705309 CIRCUIT PROTECTOR 1 -Q221 829BM-010-157 4S250388
158 6301340074 ACCESSORY,WIRING 1 829BM-010-158 23N30652
159 6301340081 ACCESSORY,WIRING 1 829BM-010-159 23N30653
161 6300911725 ACCESSORY,WIRING 2 829BM-010-161 23N30499
162 6301354019 TERMINAL 1 829BM-010-162 4J320228
163 6301340012 BREAKER 1 -Q203 829BM-010-163 4S230093
164 6301340142 CIRCUIT PROTECTOR 1 -Q204 829BM-010-164 4S250324
165 6300492194 EM-CONTACTOR 1 -K28 829BM-010-165 4S210045
166 6301705316 CIRCUIT PROTECTOR 2 -Q222,-Q223
829BM-010-166 4S250389
167 6301340067 ACCESSORY,WIRING 3 829BM-010-167 23N30651
168 6300769166 COMP,CR 1 829BM-010-168 4F400008
169 6300492194 EM-CONTACTOR 2 -K40,-K50
829BM-010-169 4S210045
170 6300911749 BRACKET,WIRING 7 829BM-010-170 23N10027
171 6301337142 BRACKET 1 829BM-010-051 211F9342
172 6301464640 TERMINAL 1 829BM-010-172 4J320255
173 4230252109 FUSE 250V 6.3A 1 F042 829BM-010-173 4S300023
177 6300635423 RELAY 1
829D-A010420-A001-12
4S200086
178 6300635430 SOCKET 1
829D-A010420-A001-13
4J120099
179 6300911749 BRACKET,WIRING 2
829D-A010420-A251
23N10027
179 6300911749 BRACKET,WIRING 2 829BM-010-179 23N10027
180 6301262864 FUSE HOLDER 1 829BM-010-180 4J200033
181 6301262871 ACCESSORY,WIRING 1 829BM-010-181 23N30605
183 4230228302 FUSE 250V 5A 1 F041 829BM-010-183 4S300024
184 6301270302 TERMINAL 2 829BM-010-184 4J320187
185 6301270296 ACCESSORY,WIRING 1 829BM-010-185 23N30612
186 6300969917 ACCESSORY,WIRING 1 829BM-010-186 23N30524
187 6300911718 ACCESSORY,WIRING 1 829BM-010-187 23N30498
190 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
191 4111416705 WASHER SPR 5 4 SW5 221H0287
192 6300010220 WASHER 4 BW5 221H0005
193 4111131400 SCR PAN 4X6 12 M4X6 PAN 221E0509
194 4110081706 WASHER SPR 4 12 SW4 F 221H0283
195 4111192104 WASHER V 4X9X0.8 12 FW4 F 221H0314
GXH-1JS
