MEMO
G -S162-04
1004-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301555508 COVER 4 863DD-100-001 211AB832
2 6301555522 COVER 4 863DD-100-002 211AB833
5 6301557441 COVER 2 863DD-100-005 211AB847
6 6301557458 COVER 2 863DD-100-006 211AB848
8 6301555140 COVER 2 863DD-100-008 211AB827
10 6301597676 COVER 2 863DD-100-010 211AC345
11 6301379067 BLOCK 2
845D-A100130-A009
211G4137
12 6301379098 PLATE 2
845D-A100130-A010
211DA675
13 6301379074 PLATE 2
845D-A100130-A011
211DA673
14 6301536637 PLATE 2 863DD-100-014 211DC527
14 6301403236 PLATE 2
845D-A100130-A012
211DB023
15 6301536644 PLATE 2 863DD-100-015 211DC528
16 6301579566 BASE 2 863DD-100-056 210A2890
17 6301597874 FRAME 2 863DD-100-057 210B4226
25 6301546049 BRACKET 2 863DD-100-025 211FC026
26 6301584096 BRACKET 2 863DD-100-026 211FC606
27 6301576220 BRACKET 2 863DD-100-027 211FC517
28 6301576251 BRACKET 2 863DD-100-028 211FC518
30 6300569346 GREASE NIPPLE 4 863DD-100-240 226B0032
32 6301604893 SUPPORT 2 863DD-100-072 211K3458
40 6301570099 GUIDE,LINEAR 2 863DD-100-210 222L0884
41 6301260068 NAME PLATE,INDEX 2 863DD-100-231 6P460124
42 6301372723 BOLT,HEX-SCT
124
863DD-100-232 221A0346
45 6301582030 BLOCK 2 863DD-100-235 211G5403
46 6301582047 BLOCK 2 863DD-100-236 211G5404
47 6301316512 PIPE FITTINGS 2
845D-A100130-A004
225F0612
48 6300041002 PIPE FITTINGS 2
845D-A100130-A006
225F0141
49 6301366906 GUIDE 2 863DD-100-049 212A2219
50 6300007497 BOLT,HEX-SCT 32 M3X4 863DD-100-250 221A0004
51 6300007503 BOLT,HEX-SCT 8 12 M3X6 863DD-100-251 221A0005
52 6300007510 BOLT,HEX-SCT 6 M3X8 863DD-100-252 221A0006
53 6300007619 BOLT,HEX-SCT 24 M4X8 863DD-100-253 221A0016
54 6300007527 BOLT,HEX-SCT 4 M3X10 221A0007
56 6300007732 BOLT,HEX-SCT 8 M5X8 863DD-100-256 221A0028
60 4110022600 SCR FLT 3X6 12 M3X6FLT 221D0216
63 4111413902 WASHER V 3X7X0.5 14 22 863DD-100-263 221H0312
64 4111414008 WASHER V 4X9X0.8 8 863DD-100-264 221H0315
68 4111407901 SCR TRS 3X4 4 863DD-100-268 221E0528
69 4110511708 SCR TRS 4X6 16 863DD-100-269 221E0532
70 4111408007 SCR TRS 5X6 16 863DD-100-270 221E0536
73 4111412806 WASHER SPR 3 14 22 863DD-100-273 221H0281
74 4111412905 WASHER SPR 4 8 863DD-100-274 221H0284
CU-G300L
G -S162-04
DD-1
DD-1 list-1
MEMO
G -S162-04
0805-001

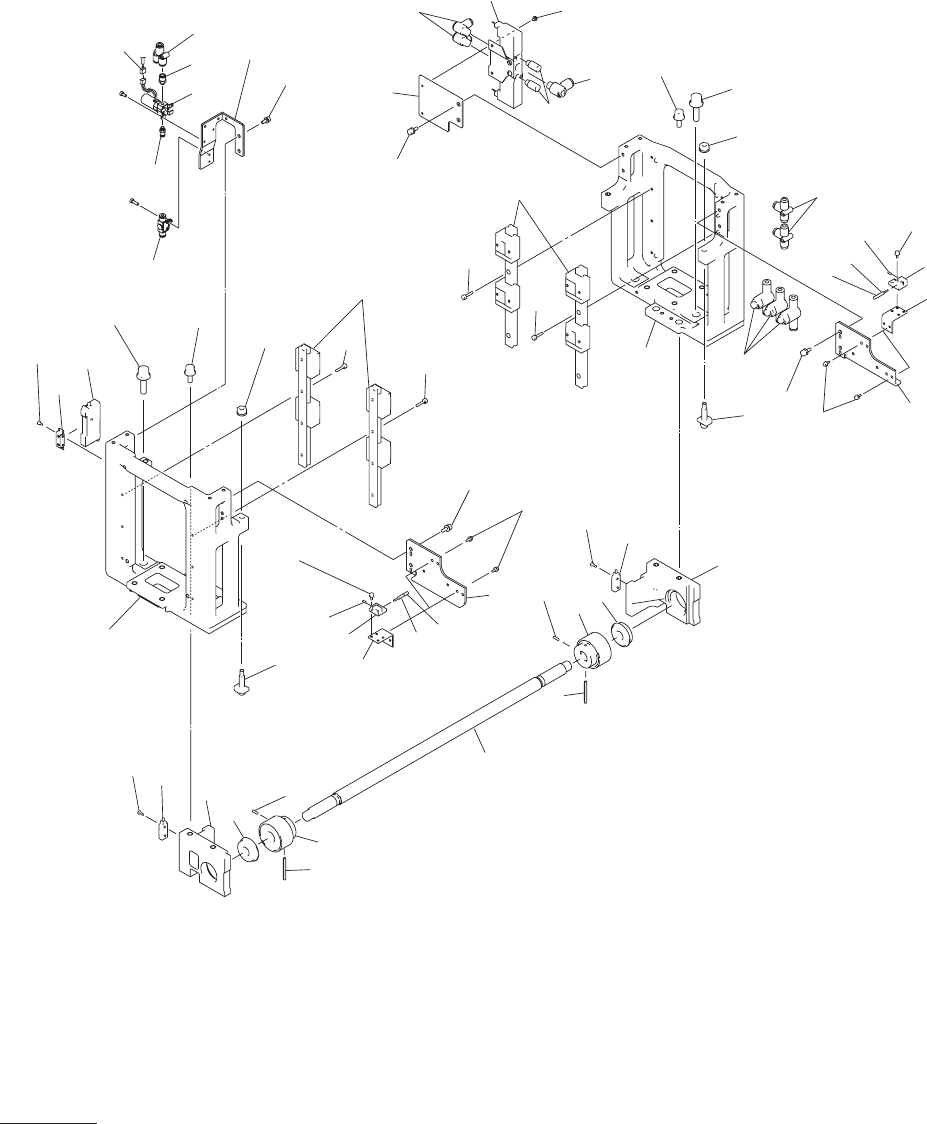

J-1 illust-1
位置決め部
POSITIONING SECTION
Fig. J-1
ベース部
1,4
Base Section 1,4
30
28
26
27
29
8
39
72
71
.
53
.
1
31
34
57
55
.
75
.
76
54
.
73
.
74
3
13
49
68
48
45
65
67
15
35
52
52
61
.
69
.
70
64
32
5
7
53
.
71
.
72
61
.
69
.
70
45
65
67
49
68
14
48
3
2
35
52
52
53
.
71
.
72
16
38
41
42
40
57
.
58
.
59
55
.
75
.
76
54
.
73
.
74
43
44
32
6
5
21
53
.
71
.
72
61
.
69
.
70
61
.
69
.
70
64
20
33
33
56
.
60
56
.
60
BLOCK1
