Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
94
4.7.4. Steps for create a new file

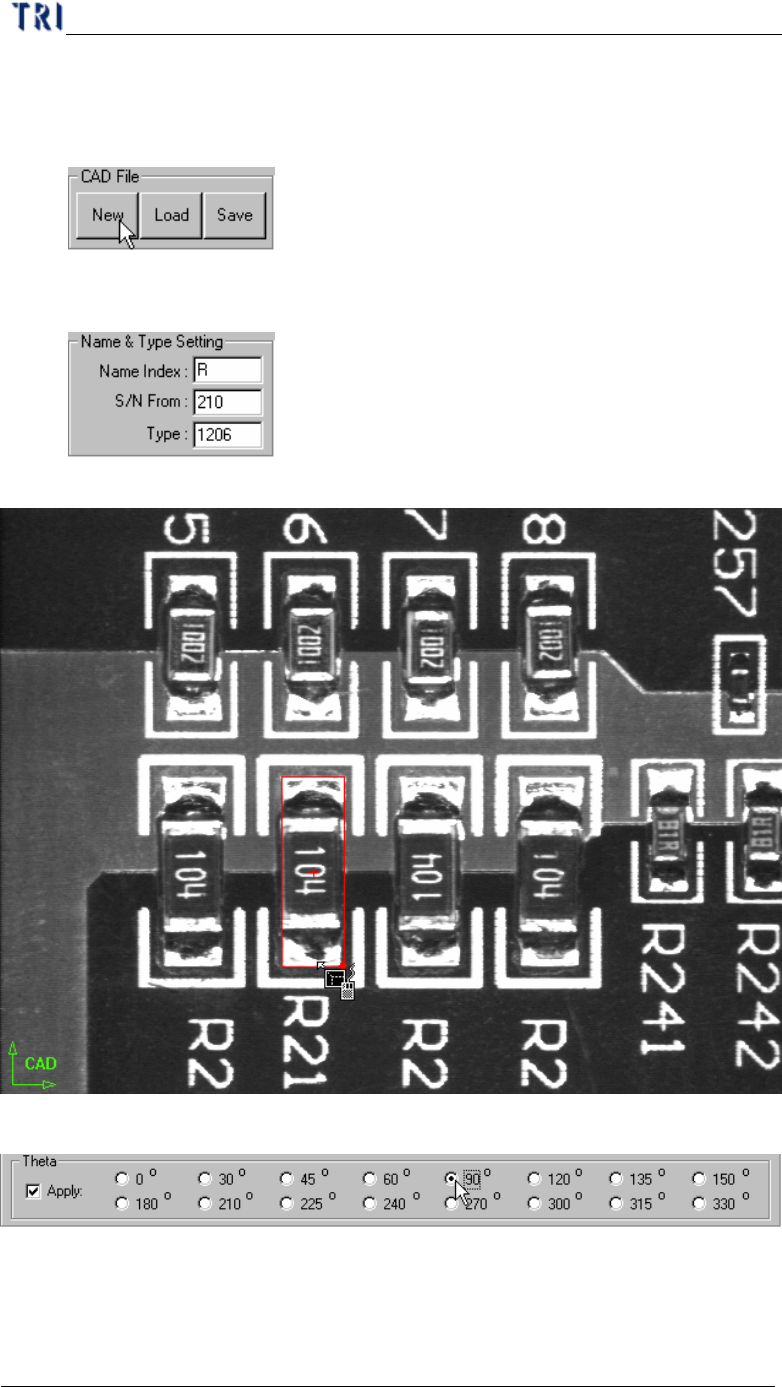

Step1. Press [CAD File/New] to create a new file.
Step2. Move the camera and use selecting tool then press to set the origin.
Step3. Input data at [Name&Type Setting] field
Step4. Move selecting tools to the component center.
Step5. Check [Apply] and select an angle.
Step6. Select [T/B Side]
Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
95

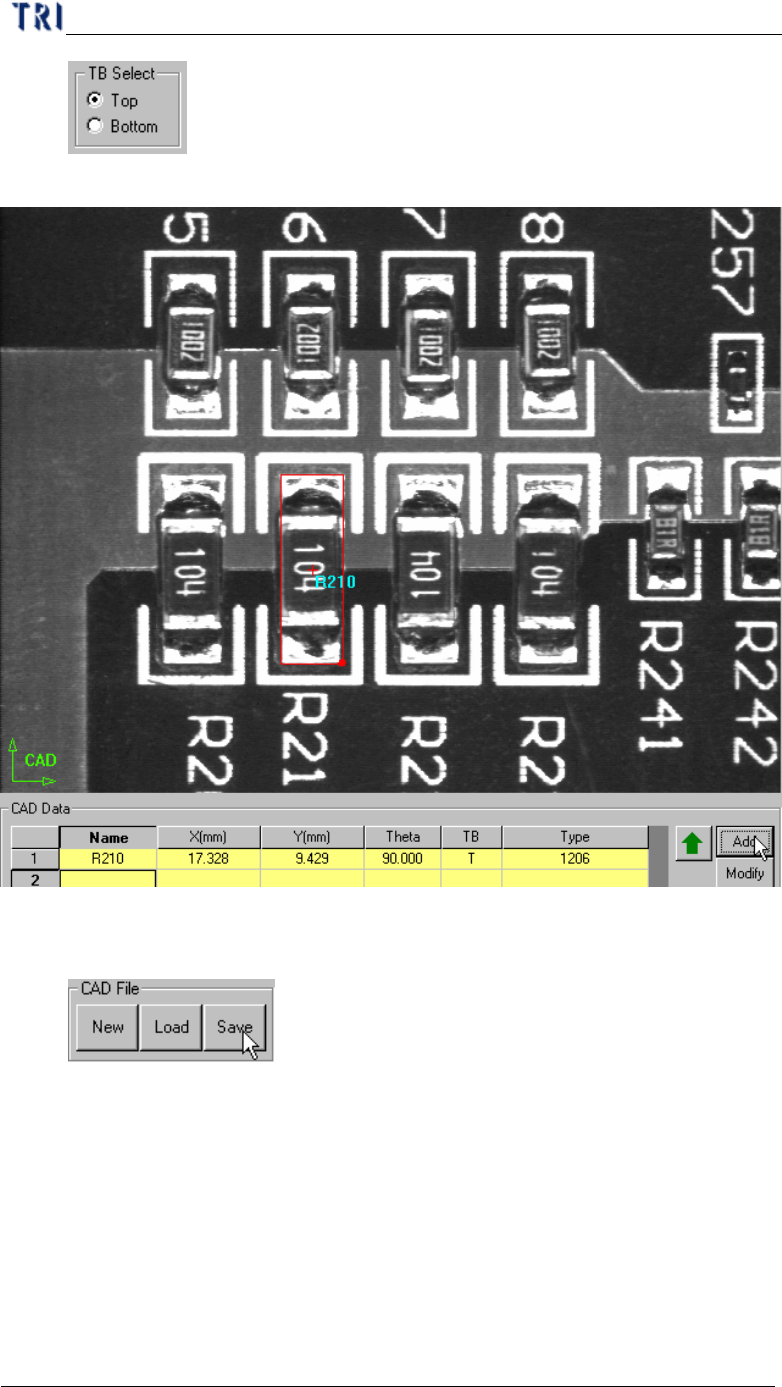

Step7. Press [CAD Data/Add] to create the component data.
Step8. Add other components.

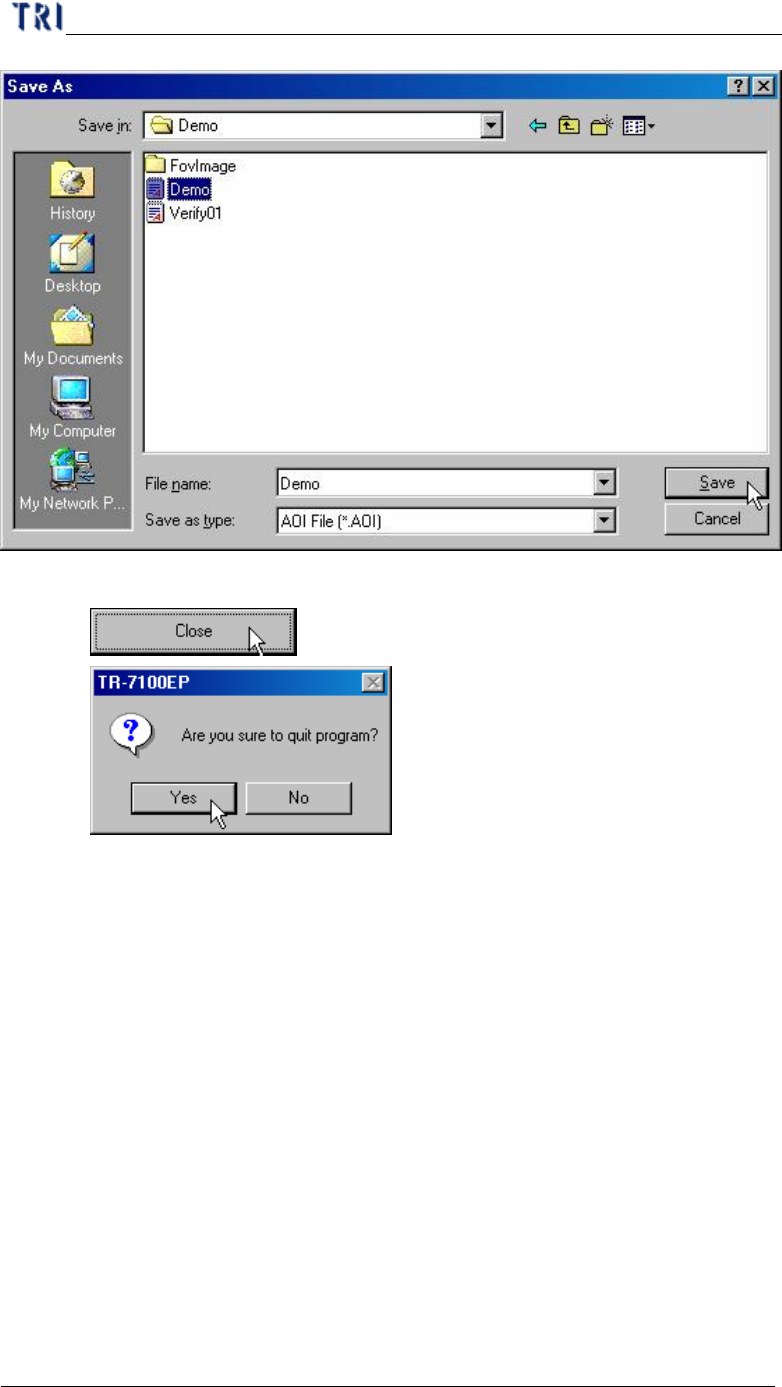

Step9. Press [CAD File/Save] to save AOI file.
Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
96
Step10. Press [Close] to close the Non-Cad dialog.
4.7.5. Edit an existing AOI File
Step1. Press [CAD File/Load] to open a file.
Step2. Use [By Component] to set origin.
