Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
109

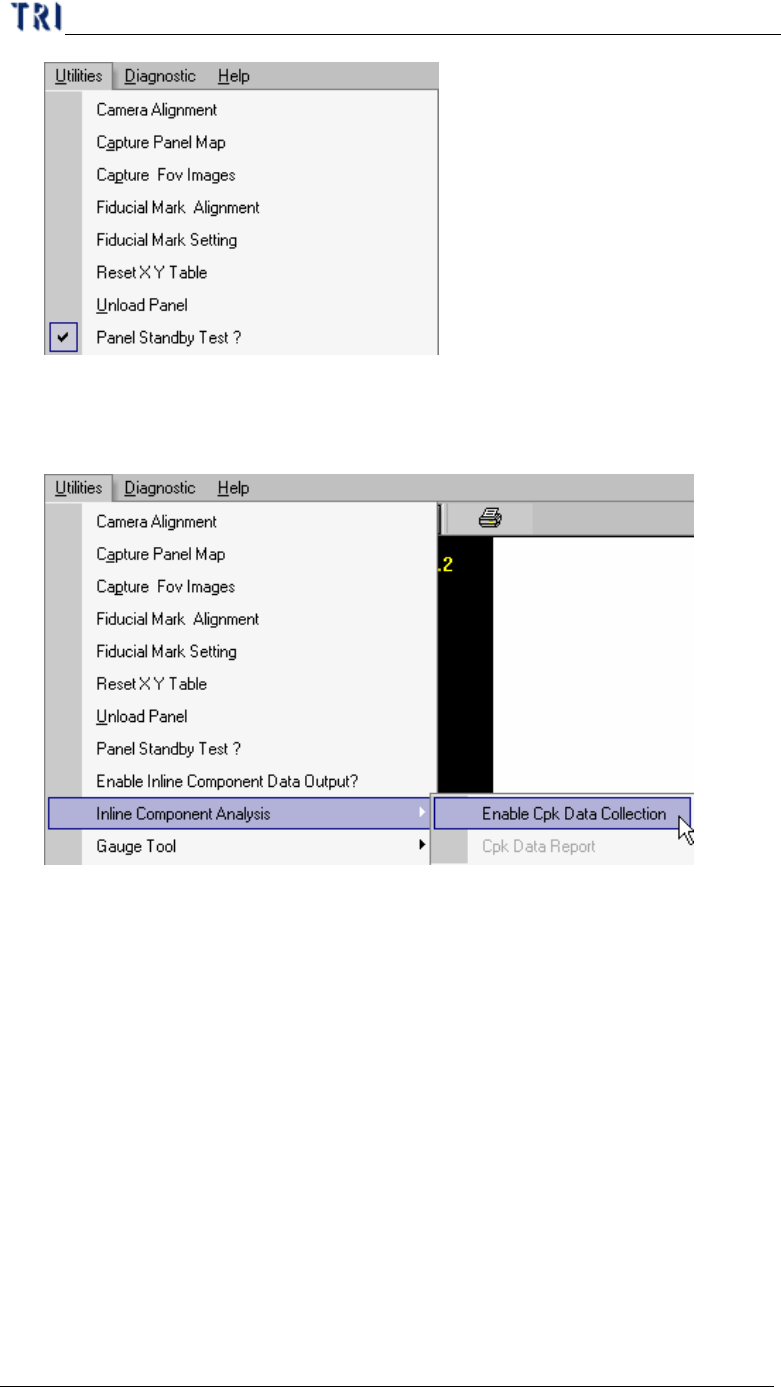

7.9. Inline Component Analysis
l You can collect inspection result and review result on machine.
7.9.1. Enable Cpk Data Collection
l When you select the item the following window will present. You can select the
collection rule here.
Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
110
n X-Shift、Y-shift、Theta– Presents the horizontal shift and vertical shift and
the rotated angle separately.
n High, Low – The upper and lower limit for the testing result. When the
result is laid in this range, it can be included in calculating.
n USL–The upper spec limit for calculating Cpk index.
n LSL–The lower spec limit for calculating Cpk index.
n CpkSpec–The tolerance for Cpk. It is normal when Cpk is greater than this
value; it’s abnormal when Cpk is smaller than this value.
n Never–Not to output automatically.
n By Inspection Time–Outputs data according to the assigned time
interval.(unit: hours)
n By Inspection Times–Outputs data according to the assigned number of
inspected counts.
7.9.2. Cpk Data Report
l You can review the data you collect before.
Chapter 2 Manual Bar introduce
TR7500 USER MANUAL
111
Change to
enable
l Cpk format
n You can click on the field title to sequence the data according to the value.
n The yellow means that the component is abnormal. (The Cpk value is lower
than CpkSpc)
n Every field is explained as follows:
Name Component name
Type Component type
