Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
136

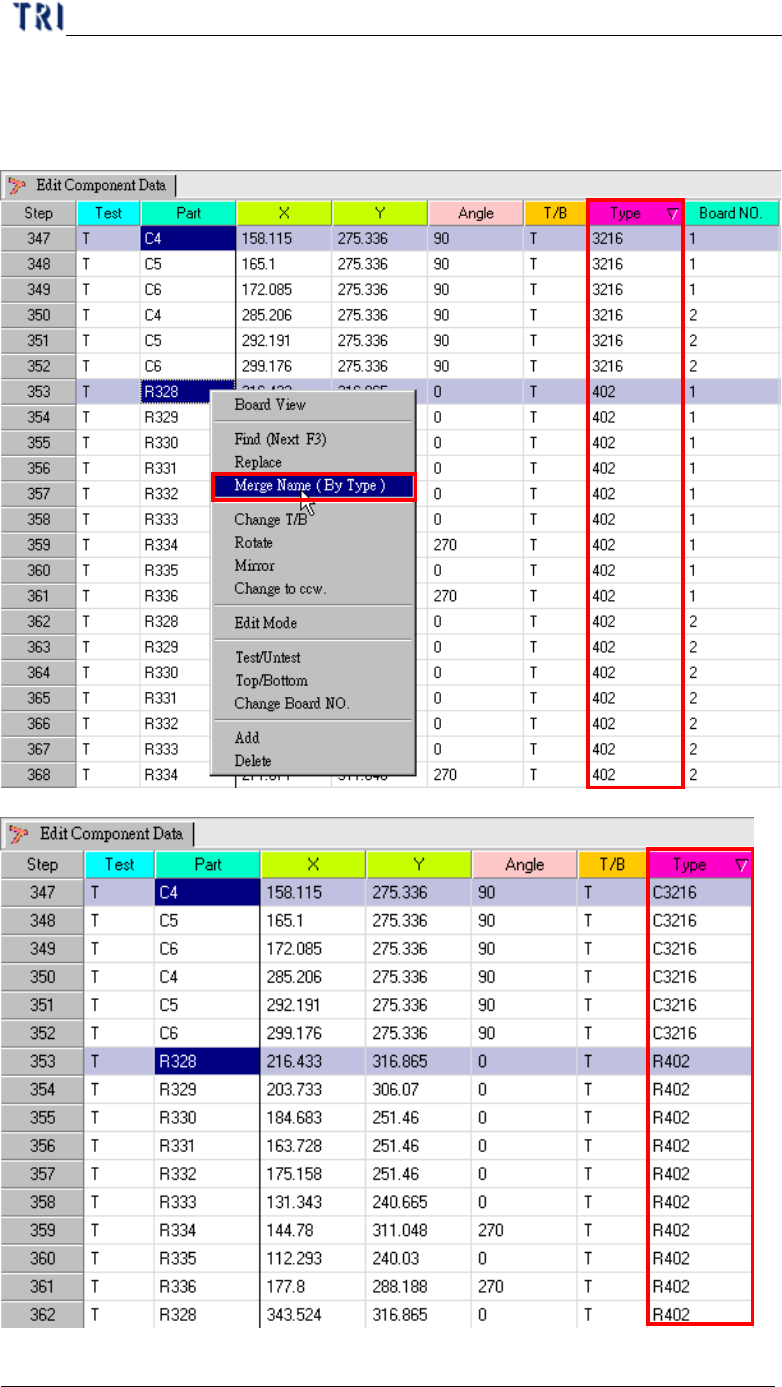

Original Type
Modified Type
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
137

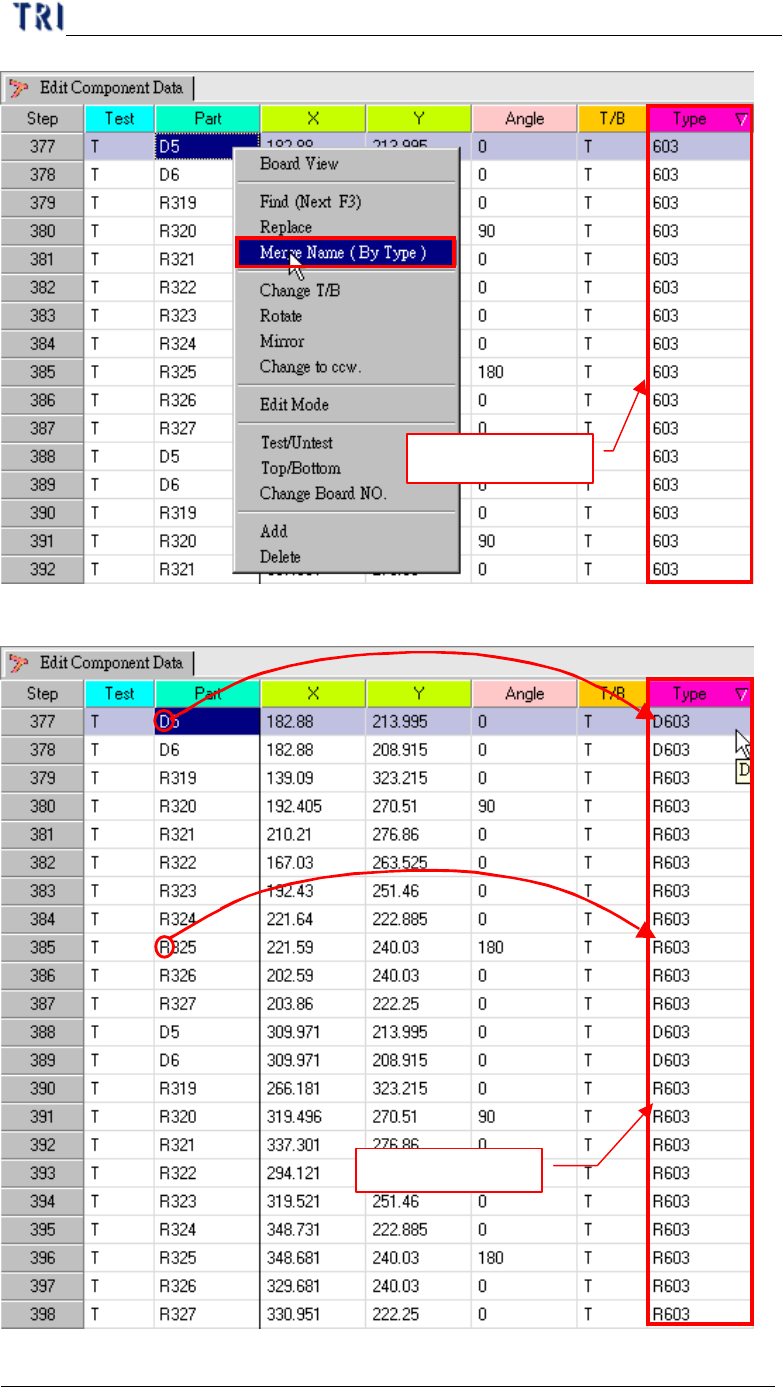

l Merge several types: You also can select more than one component to by using
“Ctrl” to merge names.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
138

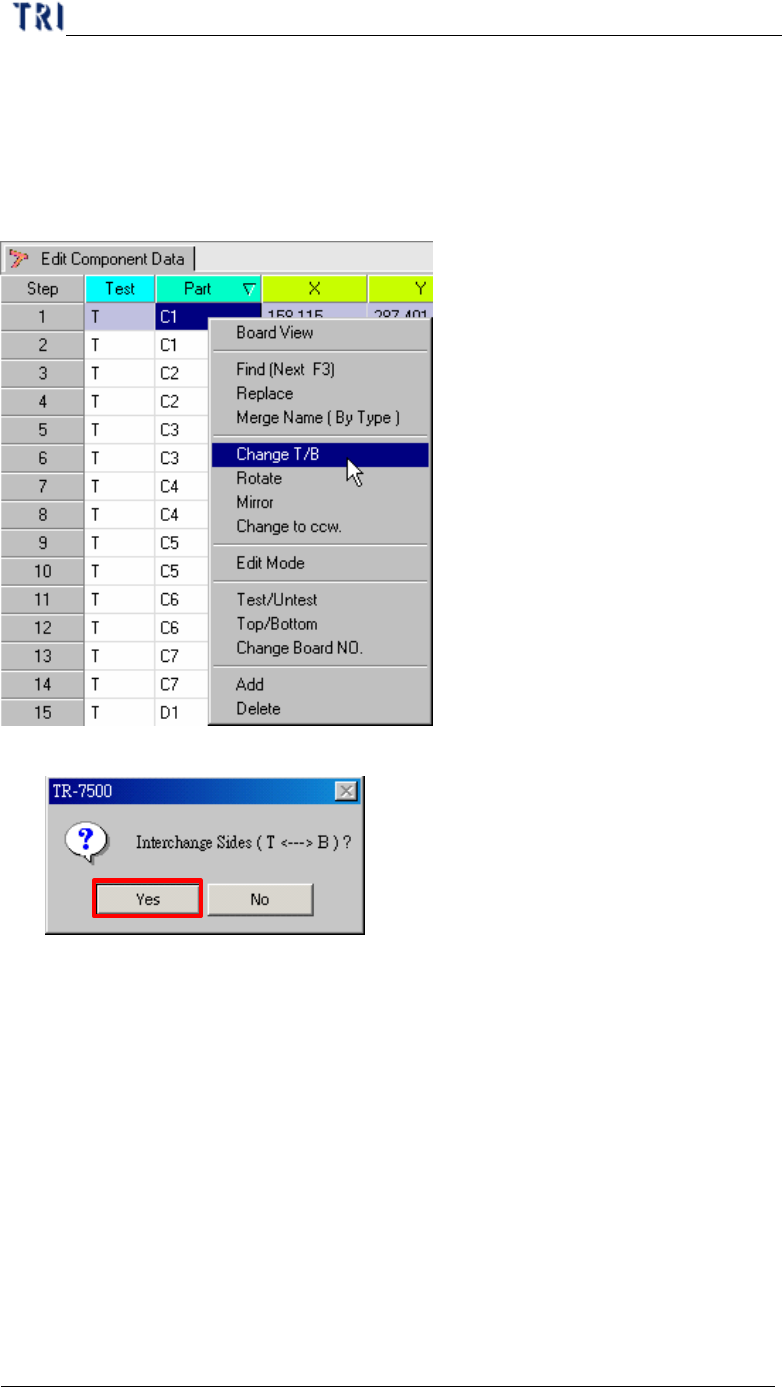

2.5. Change T/B
l Change the entire component of board from top side to bottom side and bottom
side to top side.
l The double confirm message window.
2.6. Rotate
l Rotate the board angle to specific degree (must in 0 ~ 360 degree).
