Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
140
l Select LeftRight or TopBottom mirror way
l After mirroring system will change top side to bottom side and bottom side to
top side automatically. You have to select “Change T/B” if need.
2.8. Change to CCW
l The rotate direction system defined is counterclockwise. If the definition of angle
in original CAD is clockwise, you must change the direction by this function.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
141
l Display the double confirm message window.

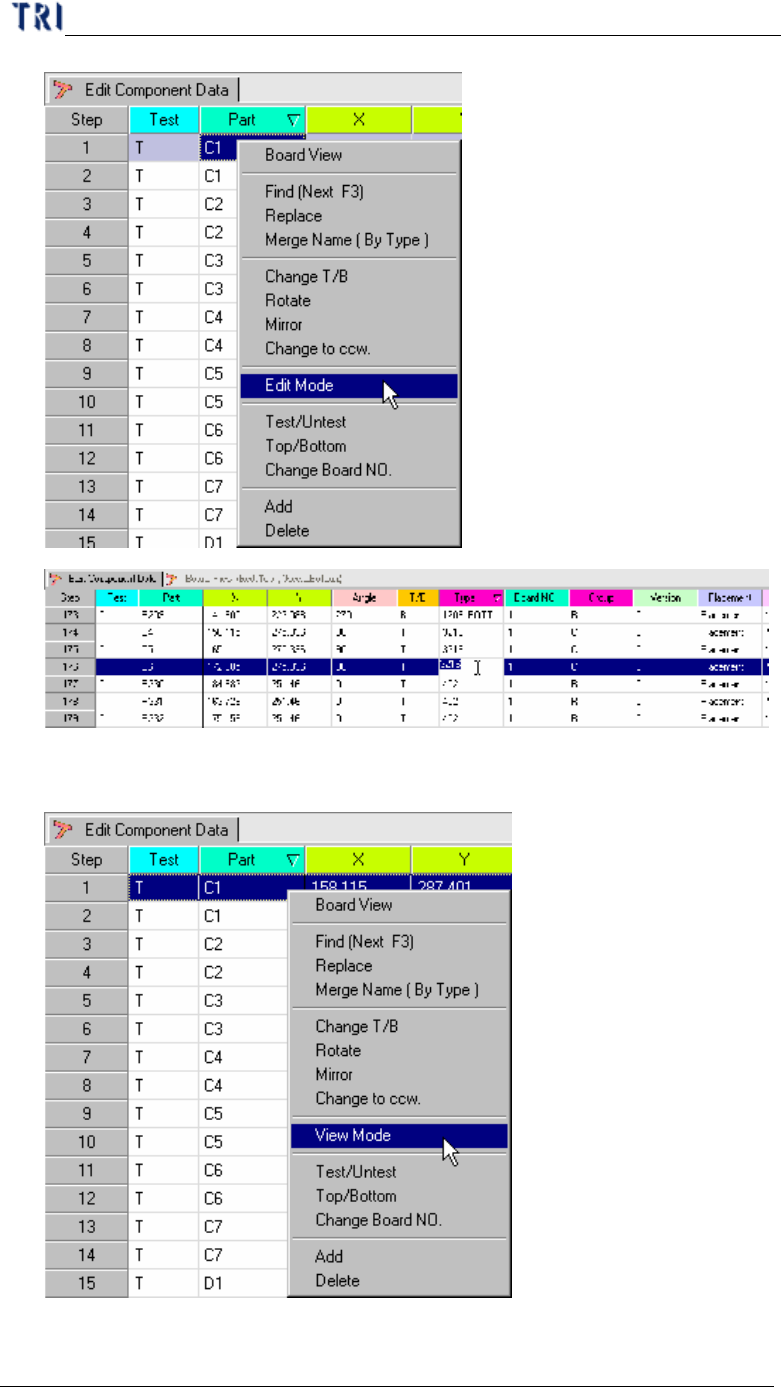

2.9. Edit Mode
l Change the AOI table from view mode to edit mode. The information of
components can be changed except Test, Part, T/B or Board NO.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
142
l Click the “View Mode” go back to the view mode that the data do not be
changed.
