Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
167
10.2.1. Align
l The function can align all selected boxes by assigned direction. [Align Top] for
example, Press [Top] then all selected boxes will move to the upper side of all
boxes.
10.2.2. Link
l You can assign windows that are parents and children to link. Since some kinds
of inspection windows don’t have ability of position such as void and pin
window, they have to link with other windows that have ability to position such
as Missing, Lead and Align. Subsidiary windows linked with parents will move
with parents in inspection.
l System has automatically linked windows that should be linked together when
they are created at the same time with [Add All Windows] function.

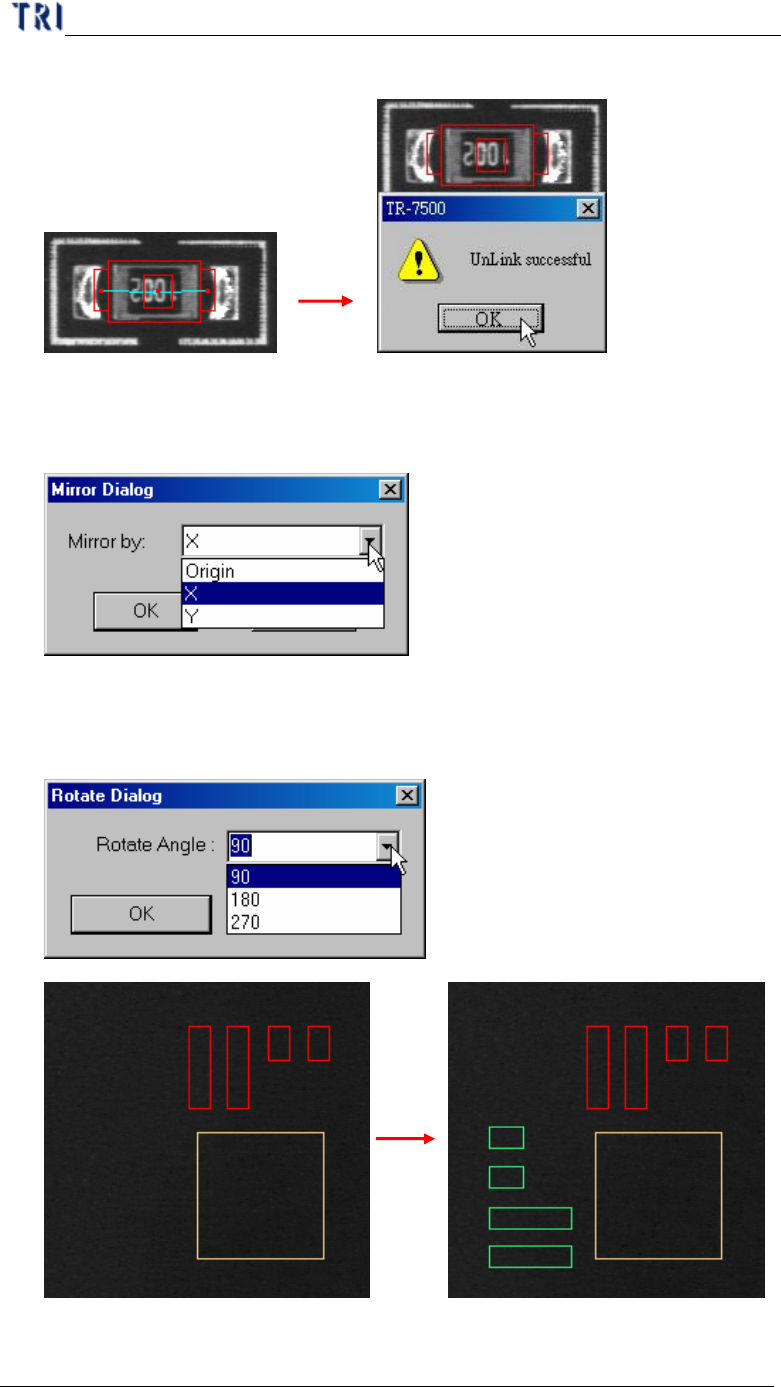

10.2.3. Unlink
l You can press [Unlink] to break the link between windows.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
168
10.2.4. Mirror
l Map and copy the inspection boxes by X direction, Y direction or the origin.
10.2.5. Rotate Copy
l Rotate and copy the inspection boxes by assigned degree.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
169

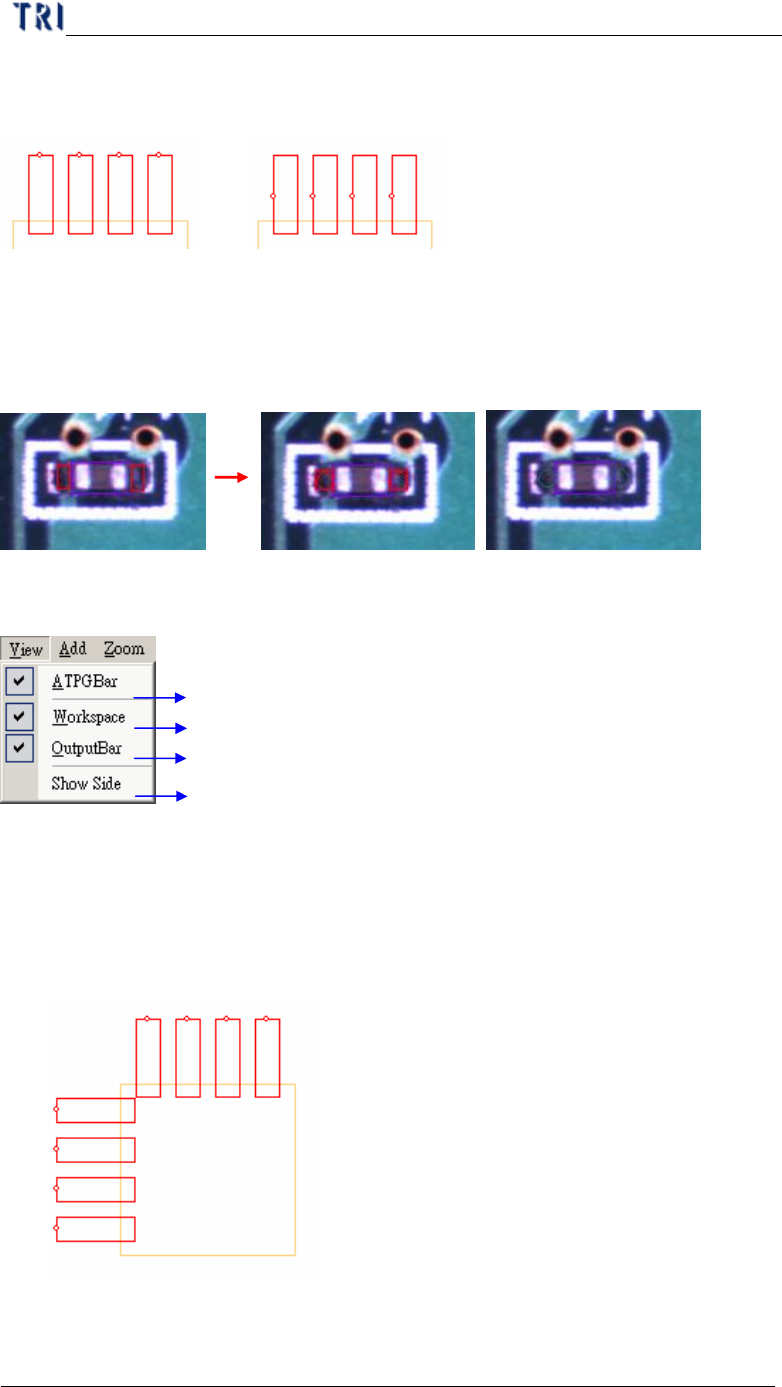

10.2.6. Rotate Side
l Rotate the pin direction with 90 degrees of counterclockwise for clicking once.
10.2.7. Change Shape
l The function is to change the window shape from square to circle or from circle
to square. It only works for [Void] or [Solder] window.
10.3. View
Displays the ATPG bar or not
Displays the work space or not
Displays the output bar or not
Displays the pin direction or not
10.3.1. Show Side
l Show directionality of the pins with small circle. The correct direction is shown
as the following. If the direction is wrong, you have to select [Edit/Rotate Side]
to change the direction.
10.4. Add
