Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
169
10.2.6. Rotate Side
l Rotate the pin direction with 90 degrees of counterclockwise for clicking once.
10.2.7. Change Shape
l The function is to change the window shape from square to circle or from circle
to square. It only works for [Void] or [Solder] window.
10.3. View
Displays the ATPG bar or not
Displays the work space or not
Displays the output bar or not
Displays the pin direction or not
10.3.1. Show Side
l Show directionality of the pins with small circle. The correct direction is shown
as the following. If the direction is wrong, you have to select [Edit/Rotate Side]
to change the direction.

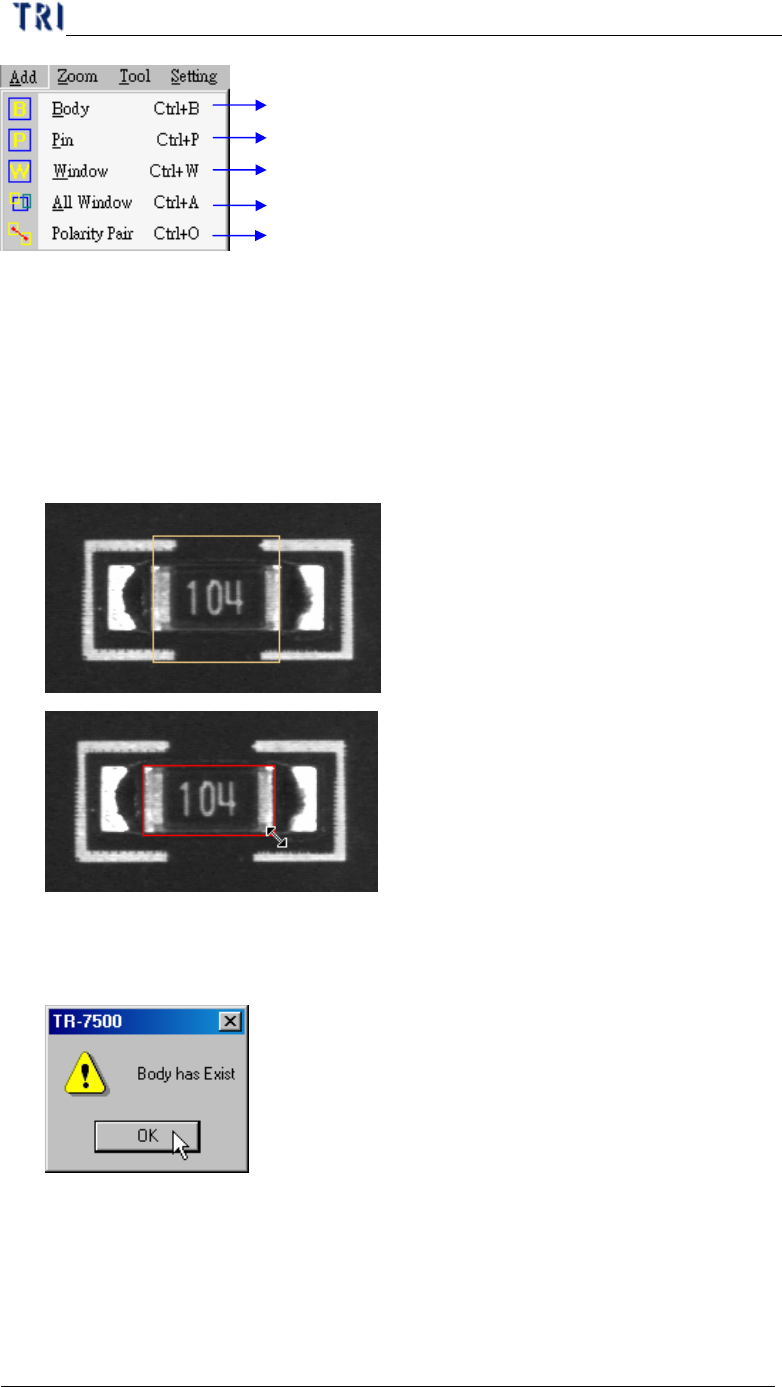

10.4. Add
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
170
Add body box by mouse drag
Add Pin box by mouse drag
Add inspection property box by mouse drag
Auto add inspection boxes
Auto add polarity pair inspection box
10.4.1. Body
l The system will get the size and position of components by the body box.
Creating body box also can help for editing library.
l Press [Body] and system will create a yellow and square body box. You should
adjust the size of body box by clicking and dragging mouse and move the
position to the component center by [Motion Control] dialog.
l There is only one body window for one component. If the body has existed and
you also press [Body] the following window will be appeared. You should press
[OK].
10.4.2. Pin
l The system will get the size, position and number of IC pins by the pin box.
Creating pin box also can help for editing library.
l You can click and drag by mouse to create a pin box after pressing [Pin]. The
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
171
initial position of clicking must be at the same side with IC pin against body
window because system judges the position of IC pin by initial clicking. If you
create a pin at left side of body then move it to top side, the system will make
mistakes later.
l You can adjust the size and position to match the IC lead.
l If you select 2 pins and press [Pin], the following dialog will be appeared. You
can input total number of pins and press [OK]. The system will create the pins by
interpolation. When you check [Auto middle] the all pins will move against the
middle of body.
10.4.3. Window
l You can click and drag by mouse to create a pin box after pressing [Window].
Then move the window to correct position.
