Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
173
l A pair of windows will be created after click on [Polarity Pair]. You should move
them to different position with variation of gray level. System will show polarity
fail if the gray level of two windows is reverse.
10.5. Zoom
Magnified the component inspection box outline
Reduced the component inspection box outline
10.5.1. Zoom In
l It will show the enlarged windows by drawing frame after press [Zoom In]. The
windows enlarge10% when press [Zoom In] once.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
174
10.5.2. Zoom Out
l It will show the reduced windows by drawing frame after press [Zoom Out]. The
windows reduce 10% when press [Zoom Out] once.
10.6. Tool
Specify secondary name to primary name
If you to do zoom in or zoom out, you can do this back to original size
Suit component type size full all library view frame
Move view to component type center
Capture images to offline editor

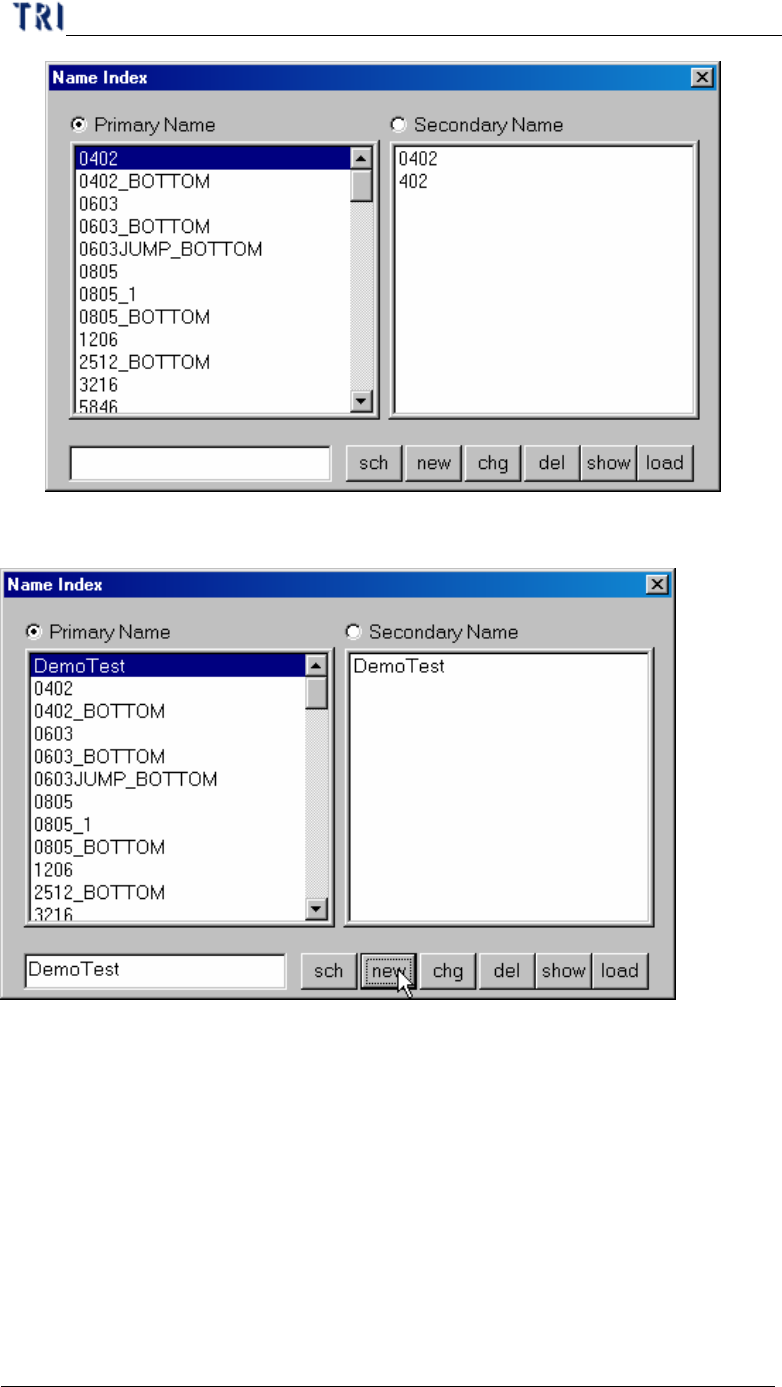

10.6.1. Name Index
l Specify second name for index that the component has same model type but not
same name.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
175
n Sch – Search the index name.
n New – Creating the primary or secondary index name.
