Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
178

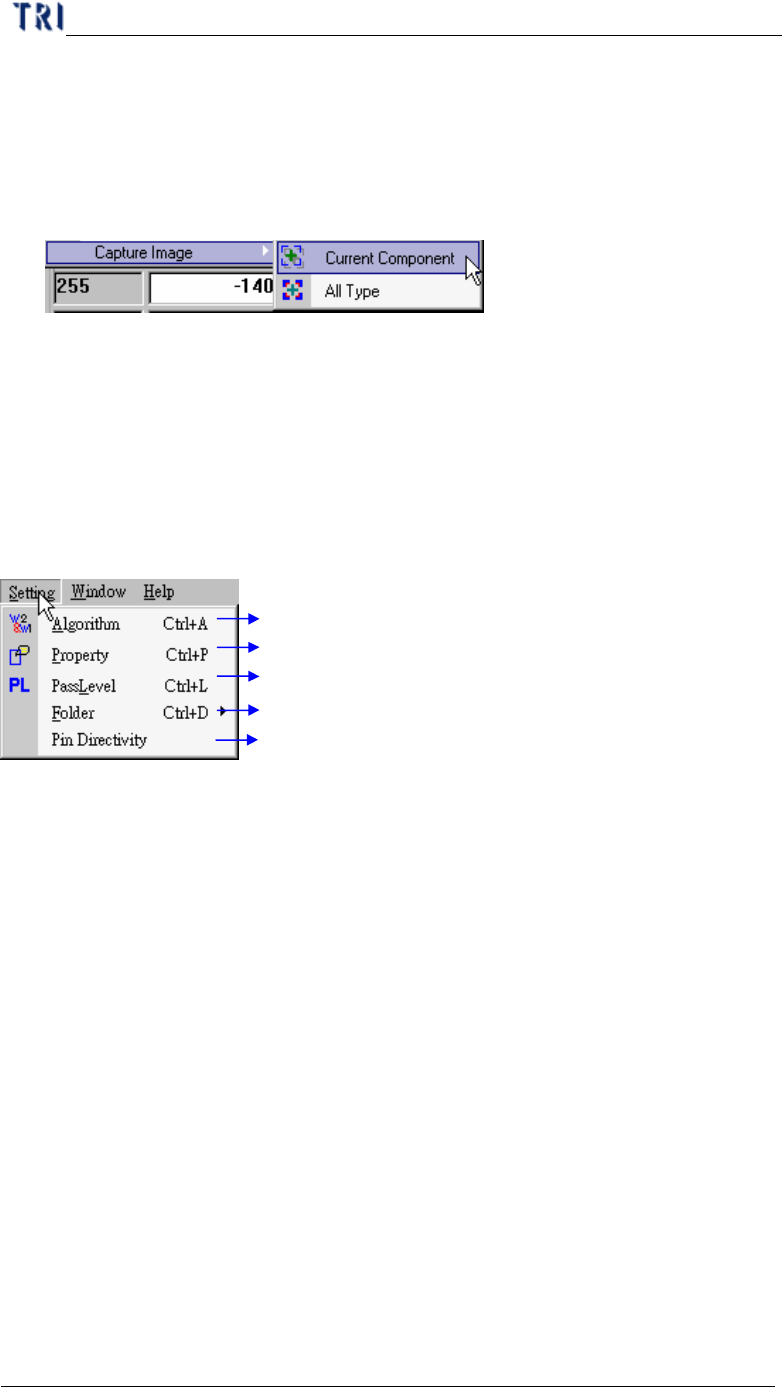

10.6.5. Capture Image
l Capture images for offline editor to edit project. System will create a new folder
named as [OfflineImage] in the folder that project file is in. The images are
named by its type and component name.
l Current Component – Just capture the component that you edit now. There are
total 2 images will be captured, captured by top camera with [ToplightA] and
[ToplightB].
l All Type – For all types capture the first component (ranked by name) the 2
images explained before.
10.7. Setting
Set Algorithm
Set Property
Set Pass level
Set the director of library
Set the rule of directivity for IC pins
10.7.1. Algorithm
l Set algorithm for different inspection boxes in the component.
10.7.1.1 All functions
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
179

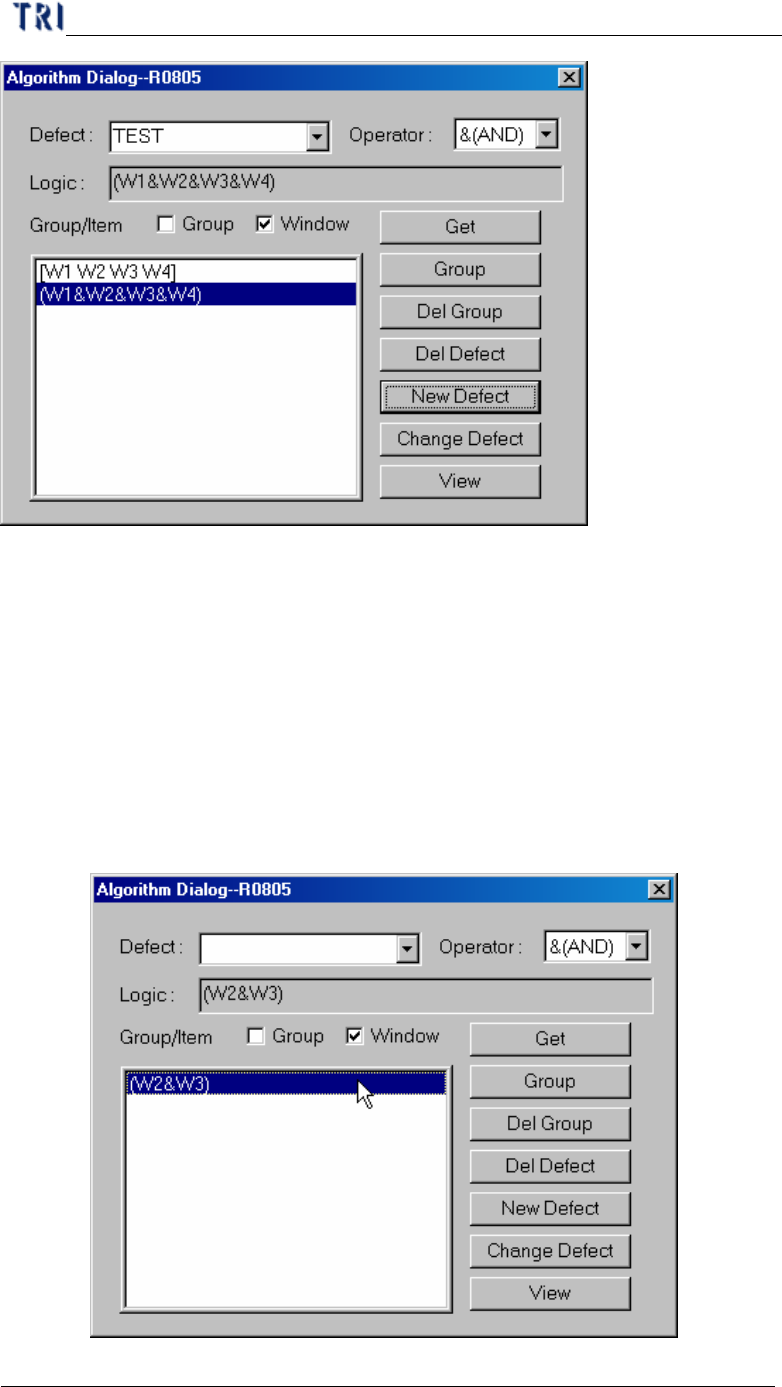

l Defect – The output inspection defect name.
l Operator – The defect logic operation operator. There are three options in
this field, [&(AND)], [|(OR)] and [^(XOR)].
n &(AND)– Show pass if all of the selected windows are passed.
n |(OR)– Show pass if one of the selected window is passed.
n ^(XOR)– Show pass if the pair of selected windows are not with the
same result.
l Logic – Setting the logic operation formula. Double click on the list window
and the formula will be moved to [Logic] field.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
180
l Group/Item – Selection the logical operation with Group (logical formula)
or current FOV inspection box.
l Get – Getting the inspection boxes name for logic operation.
n Get one inspection window.
n Get several inspection windows at the same time.
