Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
186

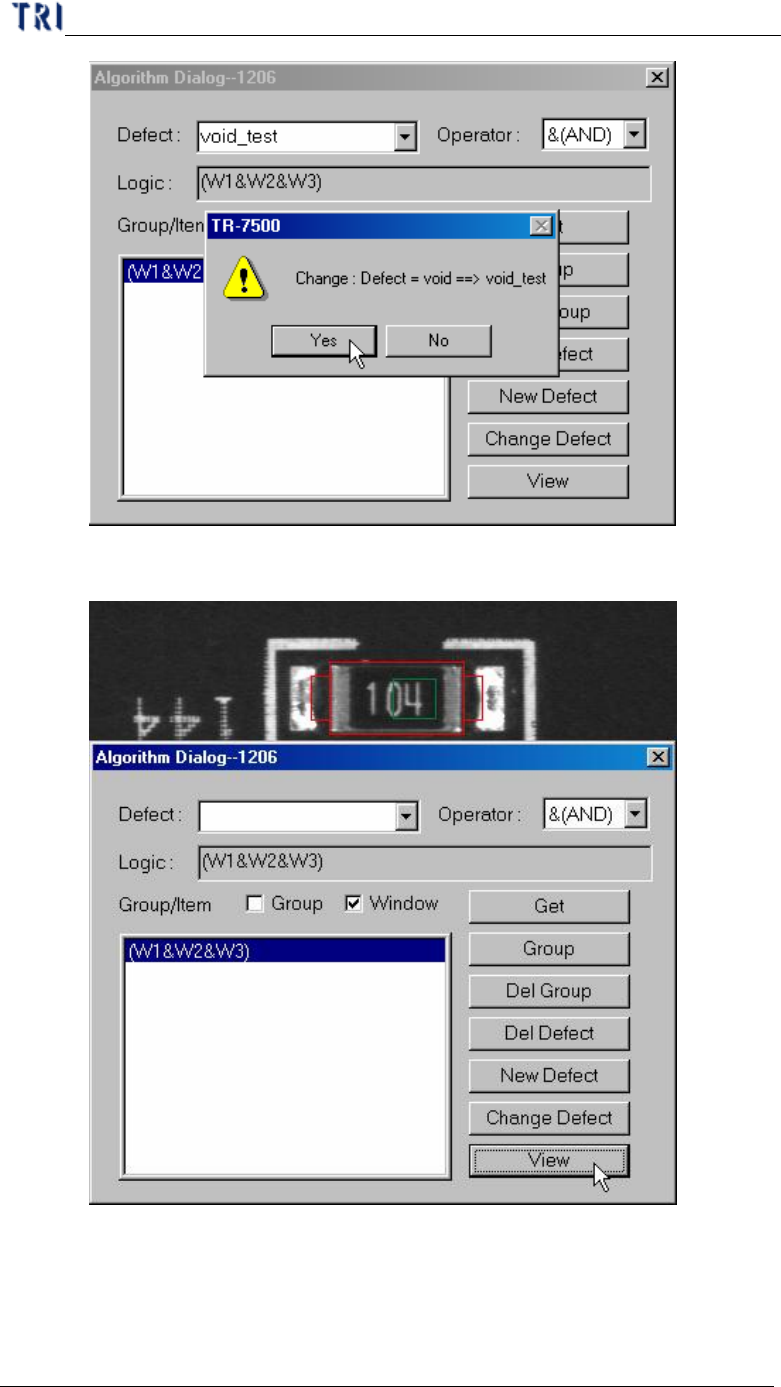

l View – Display the inspection box for the defect formula.
10.7.1.2 Procedure of setting logic
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
187
Step1. Select the inspection boxes that you want to set logic on. (You
may press [Ctrl] on keyboard and click on the boxes to select
them.)
Step2. After selecting an [Operator], checking [Window] and pressing
[Group], the inspection boxes will be composed by the specified
Operator and be listed on the window below.
Step3. Double click on the formula that is listed on the window and the
formula will be copied on [Logic] field.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
188
Step4. Give the new logic setting a name, and input it in [Defect] field.
Then press [New Defect] to create the new logic.
Step5. When the logic contains an inspection box that is belonging to an
IC lead, the system will ask you if you want to copy the same
logic to the other leads. You can select Yes or No according to the
situation.
