Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
222

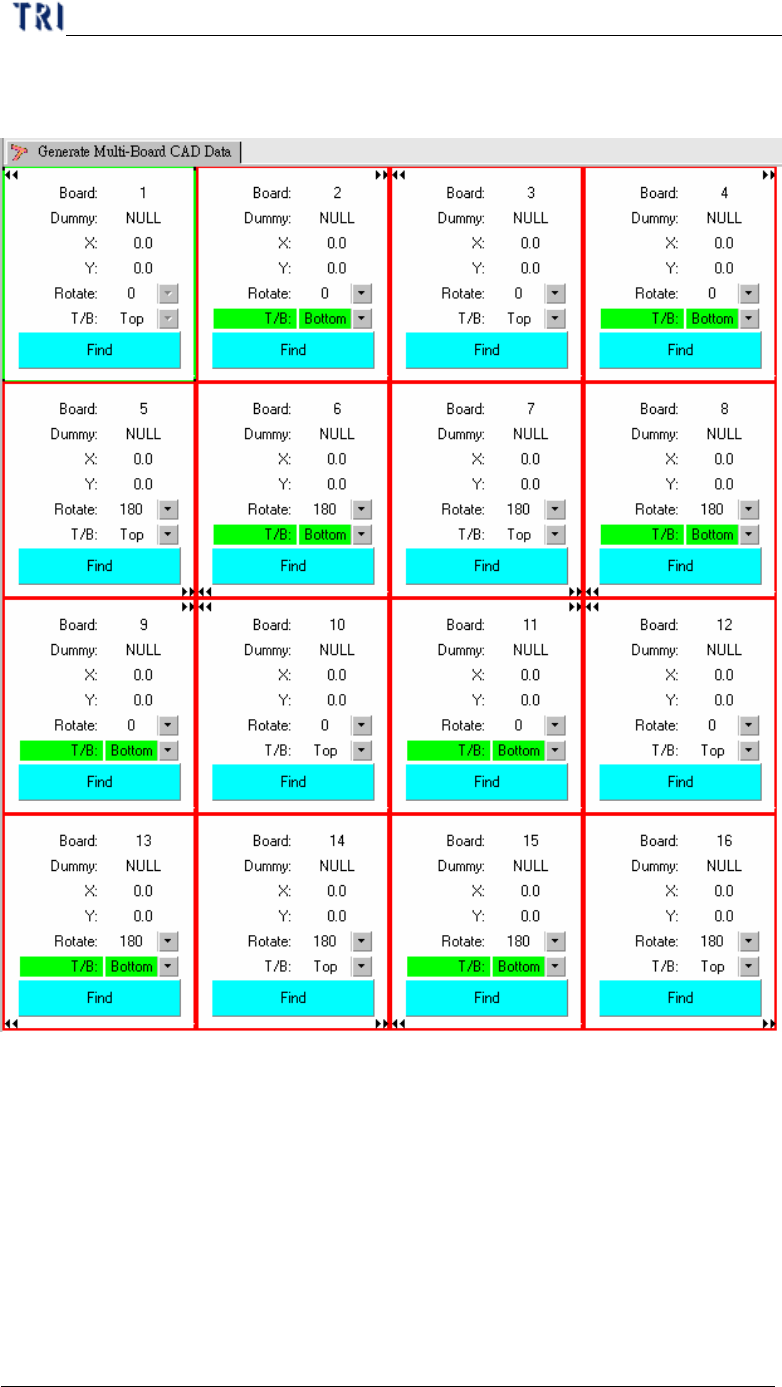

12.3. Example for Multi-boards with different side and angle

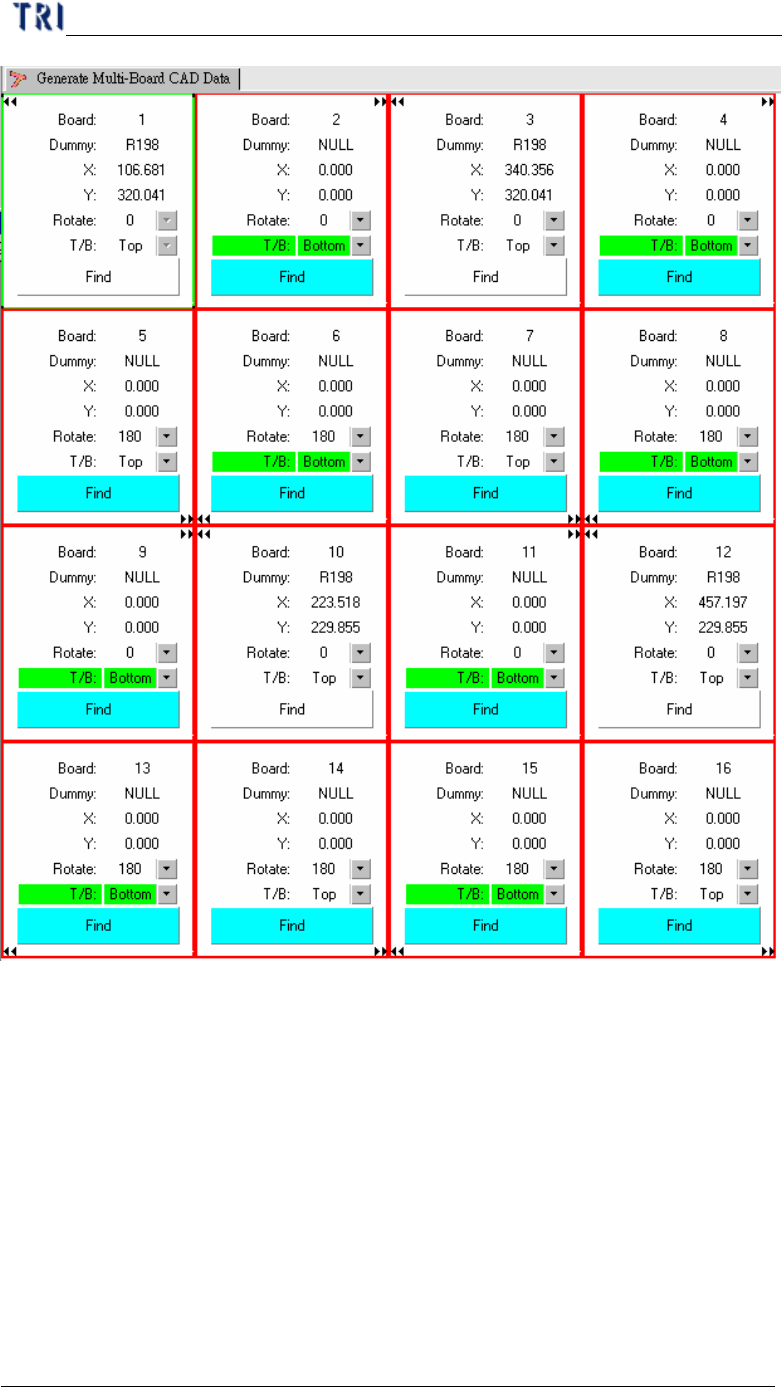

Step1. First set the dummy point for Board 1 and Board 12. Then Board 3 and Board
10 will be created automatically.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
223

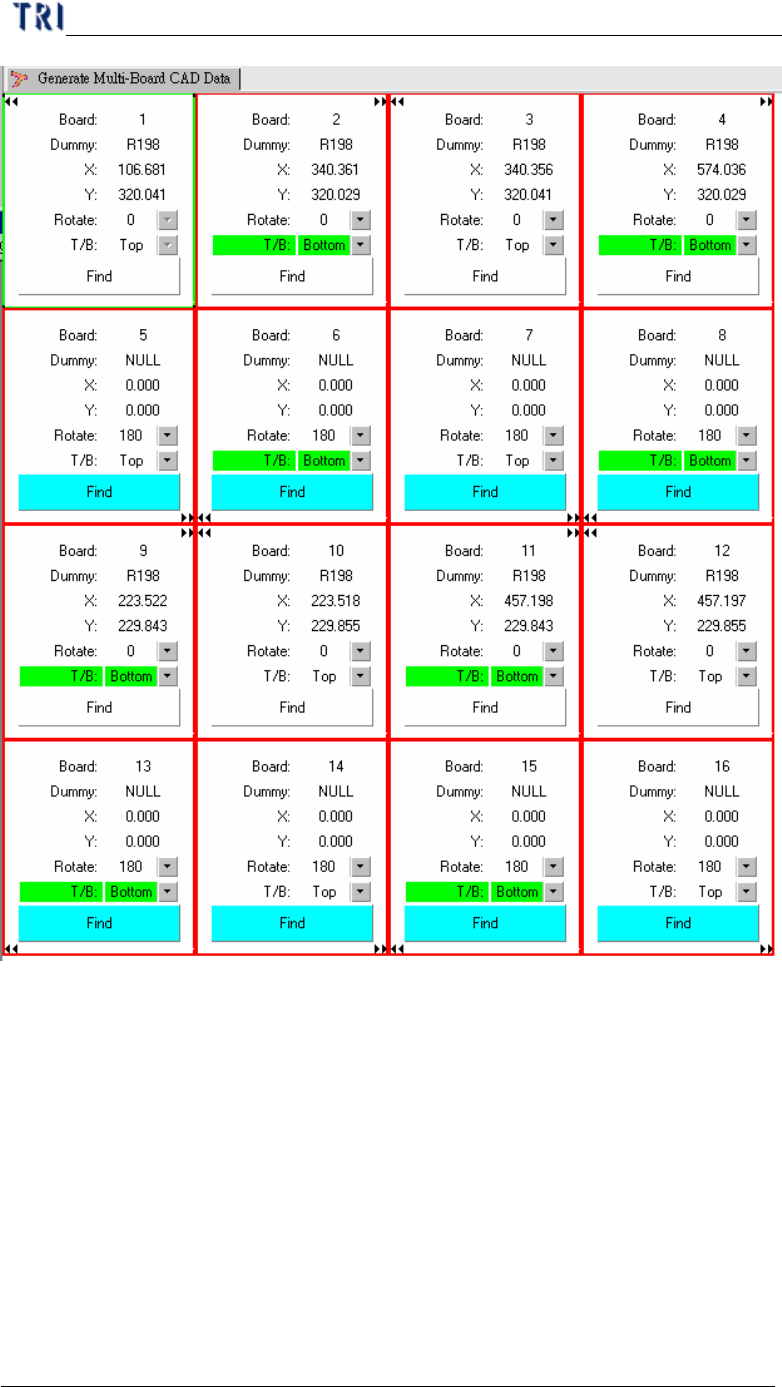

Step2. Set the dummy point of Board 2 then the data of Board 4, Board 9 and Board
11 will be created automatically.
Chapter 3 AOI ATPG Function instruction
TR7500 USER MANUAL
224
Step3. Set the dummy point of Board 5 then the data of Board 7, Board 14 and Board
16 will be created automatically.
