Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
17

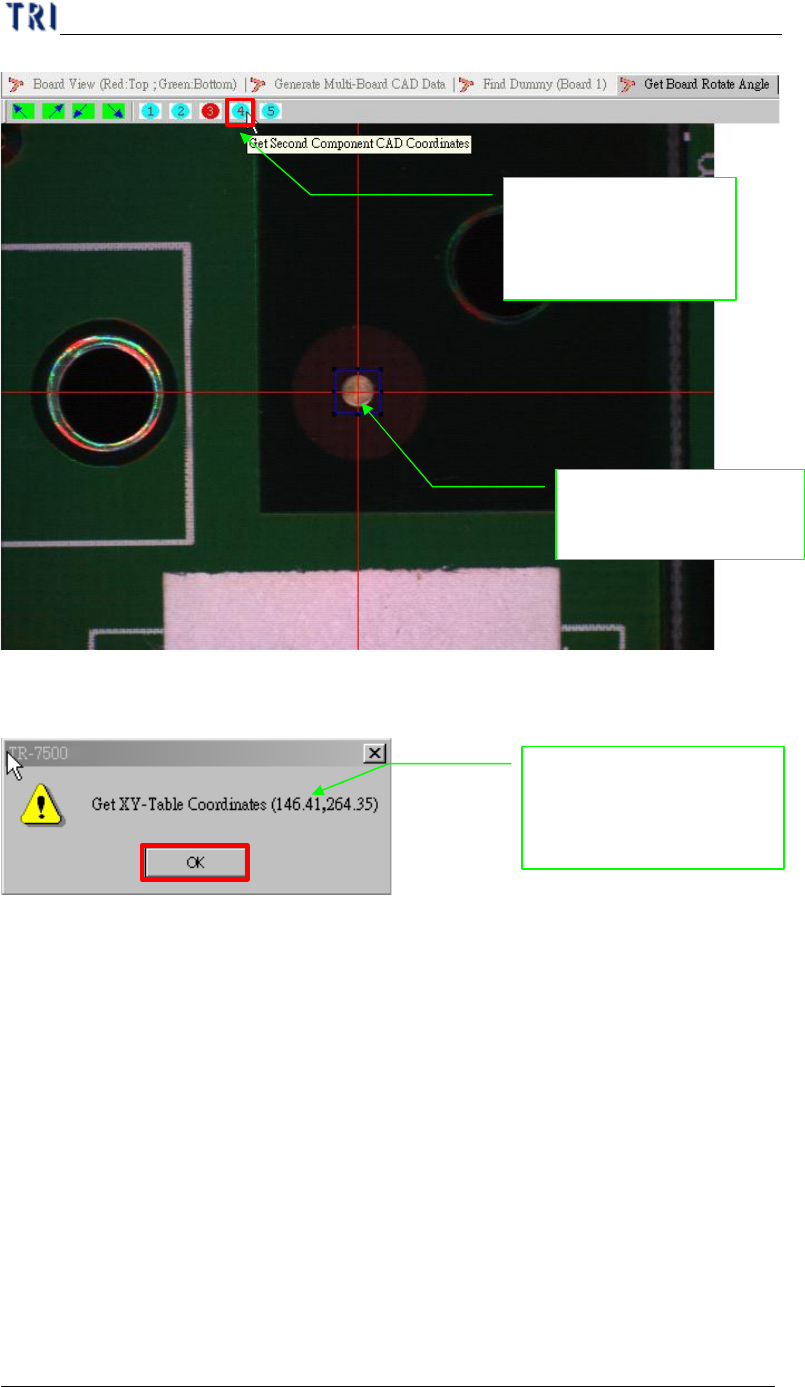

(12) Display get XY table coordinate.
(13) Finish the board rotation angle detection.
2. Moving camera to
center of the component
System show the double
confirm message for
record the position
1. Push the button and
record the component
position
Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
18

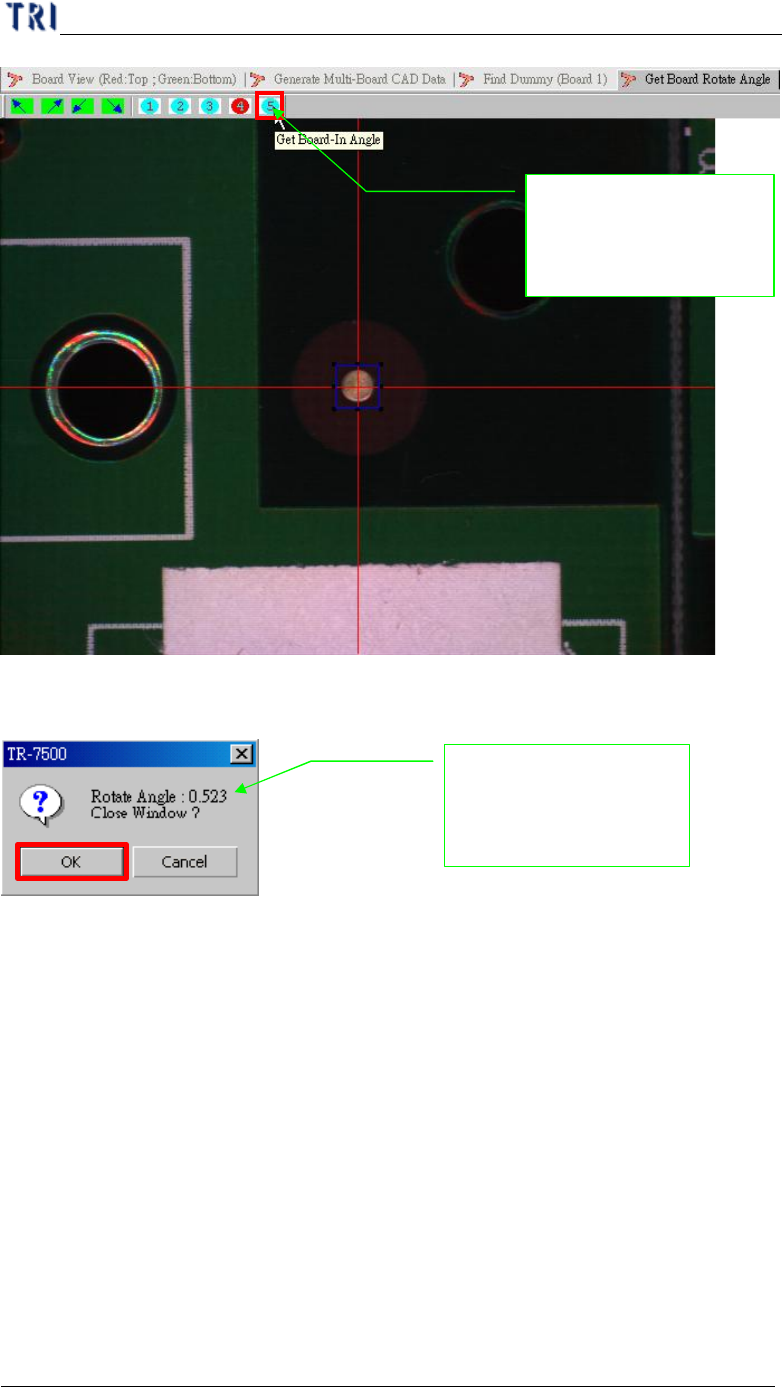

(14) Display detection rotation angle result.
4.4. Find Dummy Component Position
l Find the gap between board and board in the multi-board.
(1) Setting board 1 reference component position.
Display result for angle
calculation and
memorization the value
Push the button finish
and calculate the board
angle
Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
19
(2) Input reference component name. You can select any component on board 1.
(3) Moving camera to center of the component.
Inputs the board 1
reference component for
position finds
Setting board 1
reference CAD
component position
