Chapter 4 Train dialog function
TR7500 USER MANUAL
246

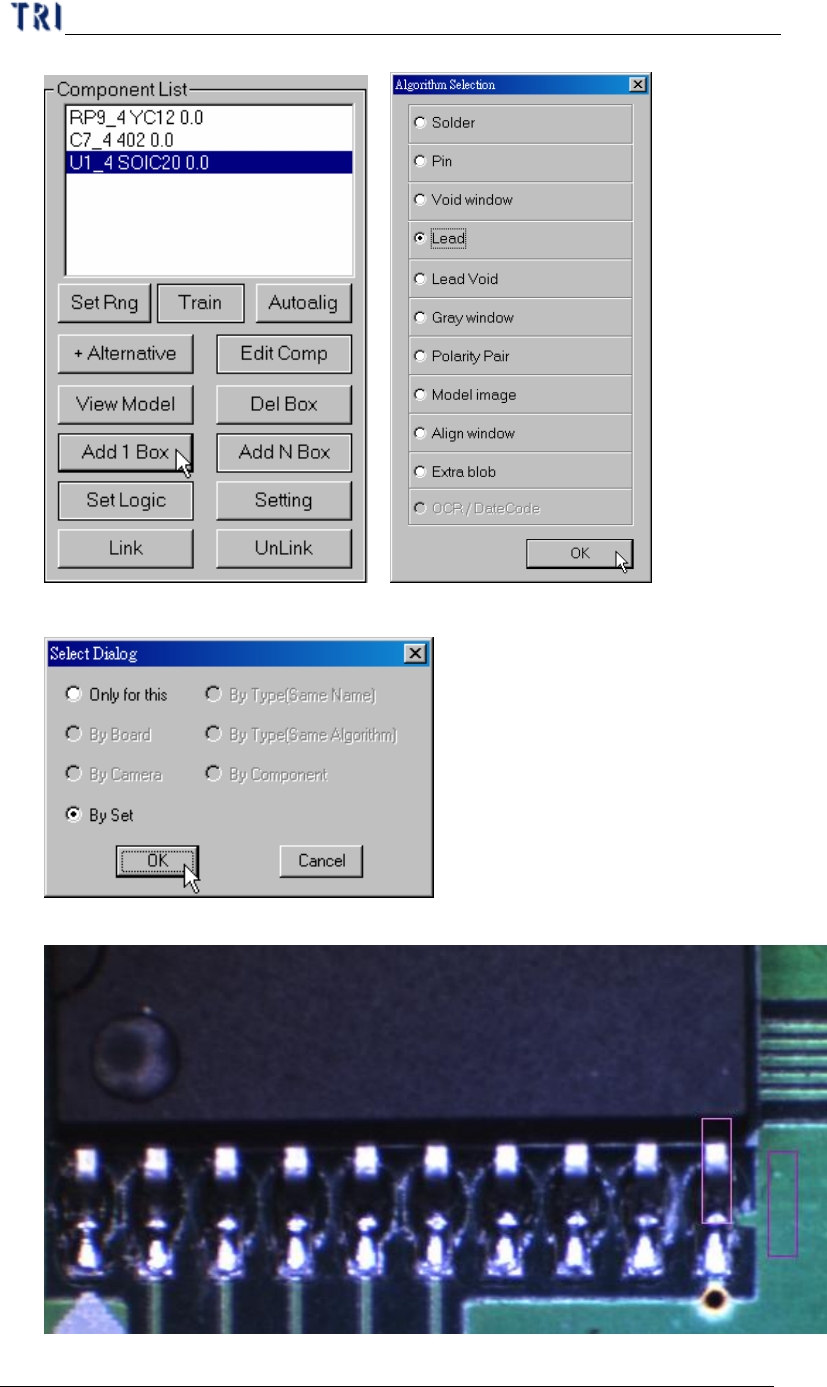

Step3. Select the rules to apply the setting.
Step4. Finish adding an inspection box.
Chapter 4 Train dialog function
TR7500 USER MANUAL
247

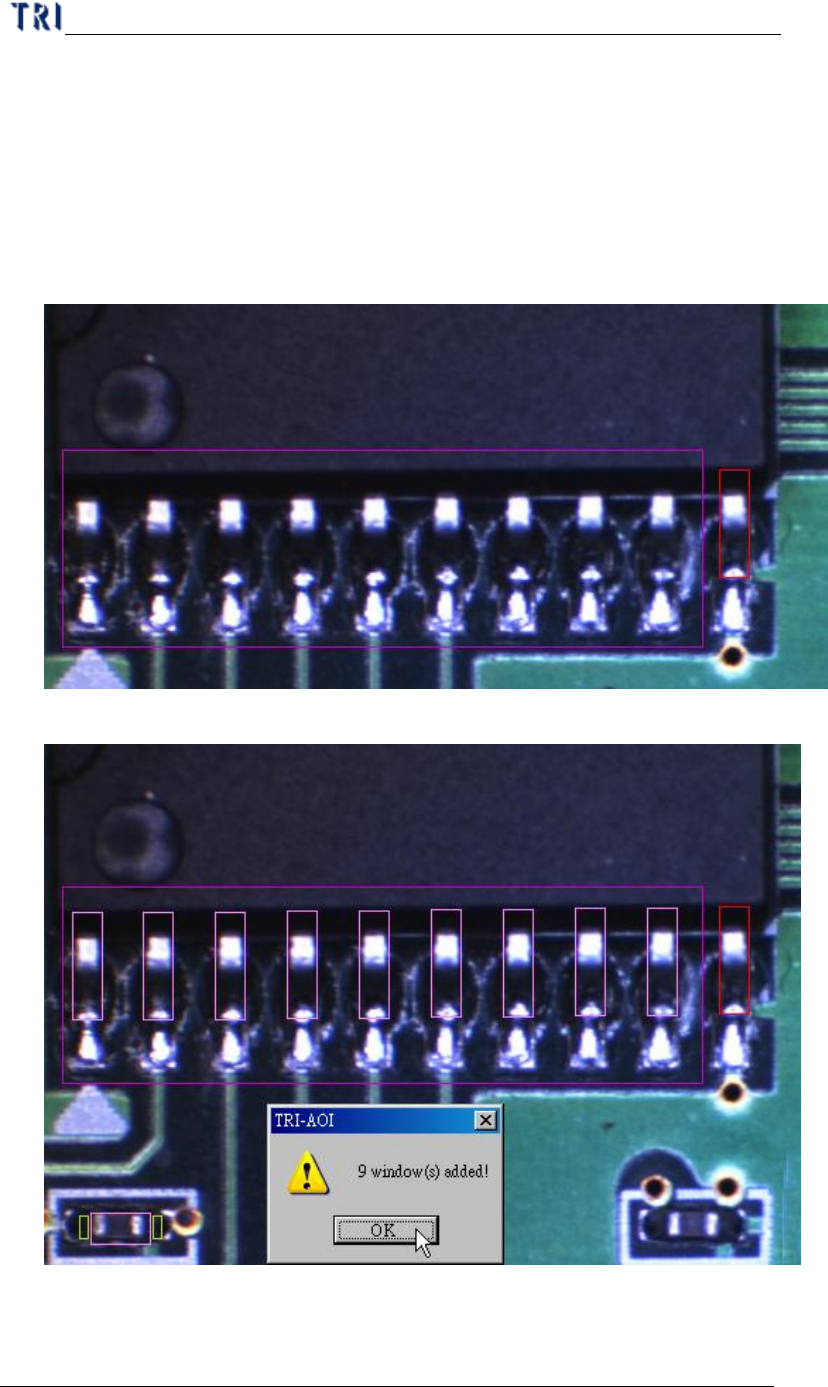

6.2.9. Add N Box
l Select a box first as the standard image and the system will search in the
multi-function window to find the similar image and add inspection boxes.
l Setting Steps
Step1. Select an inspection box as the standard and adjust the multi-function
window to cover the objective area.
Step2. Press [Add N Box] to finish the setting.

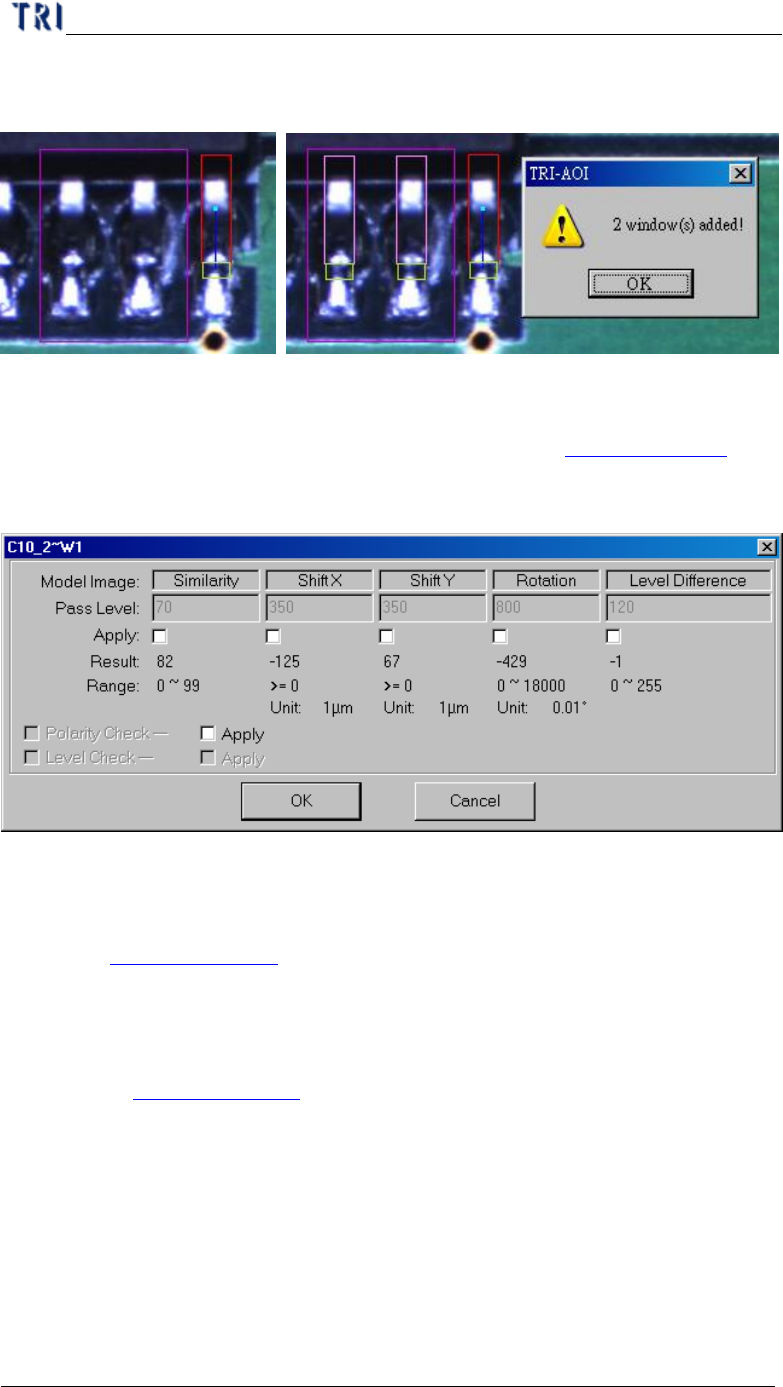

l Create the other linked boxes in the meanwhile – If there are some inspection
Chapter 4 Train dialog function
TR7500 USER MANUAL
248
boxes that is linked with the objective boxes, the linked boxes will be created at
the same time.
6.2.10. Set Logic
l Set the Logic between windows. See more about logic in Chapter 3 10.7.1. .
6.2.11. Setting
l Set the pass level for selected inspection window.
6.2.12. Link
l You can assign windows that are parents and children to link. See more about
link in Chapter 3 10.2.2.
6.2.13. UnLink
l You can press [Unlink] to break the link between windows. See more about
unlink in Chapter 3 10.2.3.
6.3. New Comp & Reset Win.
6.3.1. New Comp.
l Add a new component in the project and the component data add in AOI file too.
l Setting steps
Step1. Move multi-function window to the center of the component.
Step2. Press [New Comp.] button. You should input each information except X
