Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
19
(2) Input reference component name. You can select any component on board 1.
(3) Moving camera to center of the component.
Inputs the board 1
reference component for
position finds
Setting board 1
reference CAD
component position
Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
20

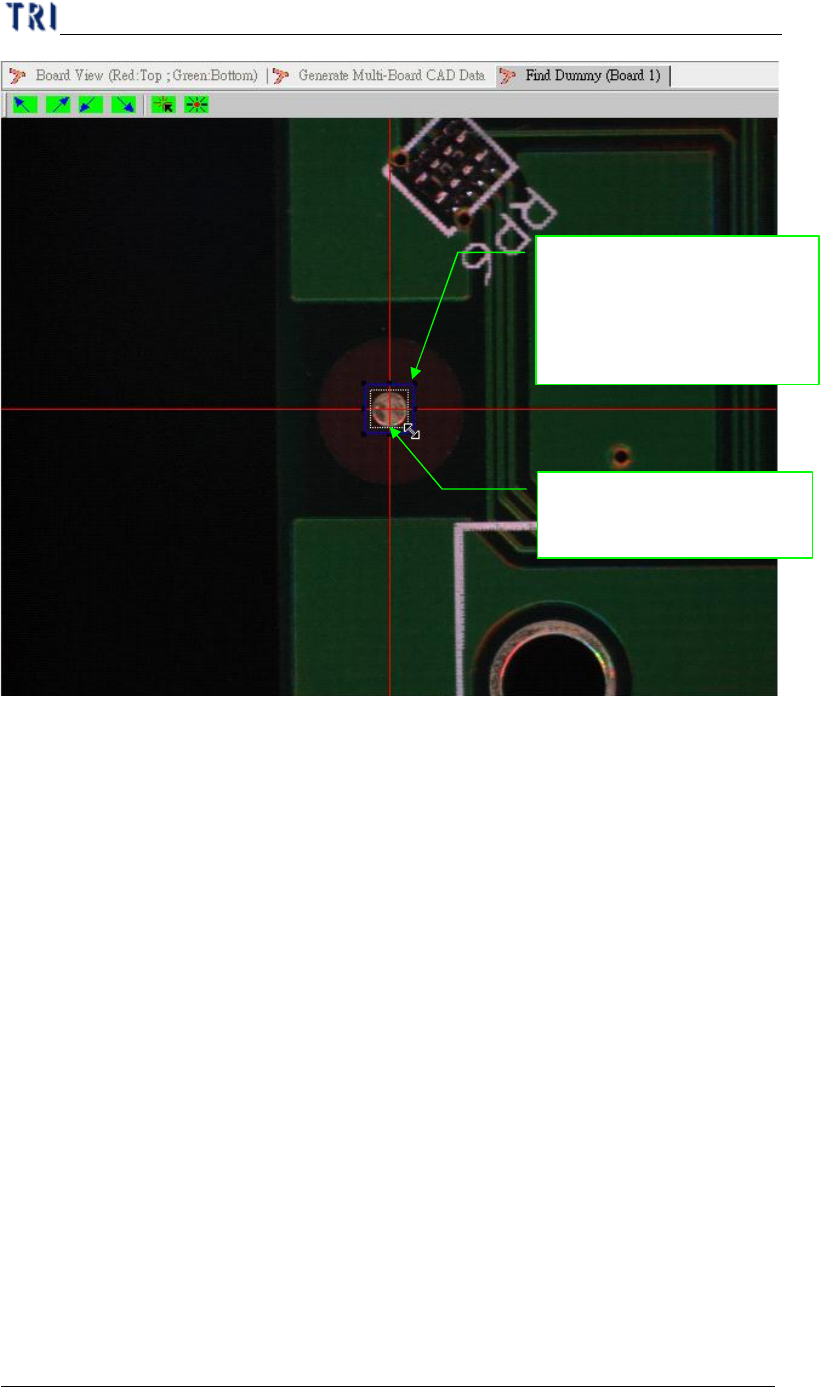

(4) Getting the component coordinate in XY table.
1. Adjust the blue frame for
assistant user’s adjustment;
pad can near the center
closely
2. Moving camera to
center of the component
Chapter 1 AOI Standard Project Creation
TR7500 USER MANUAL
21

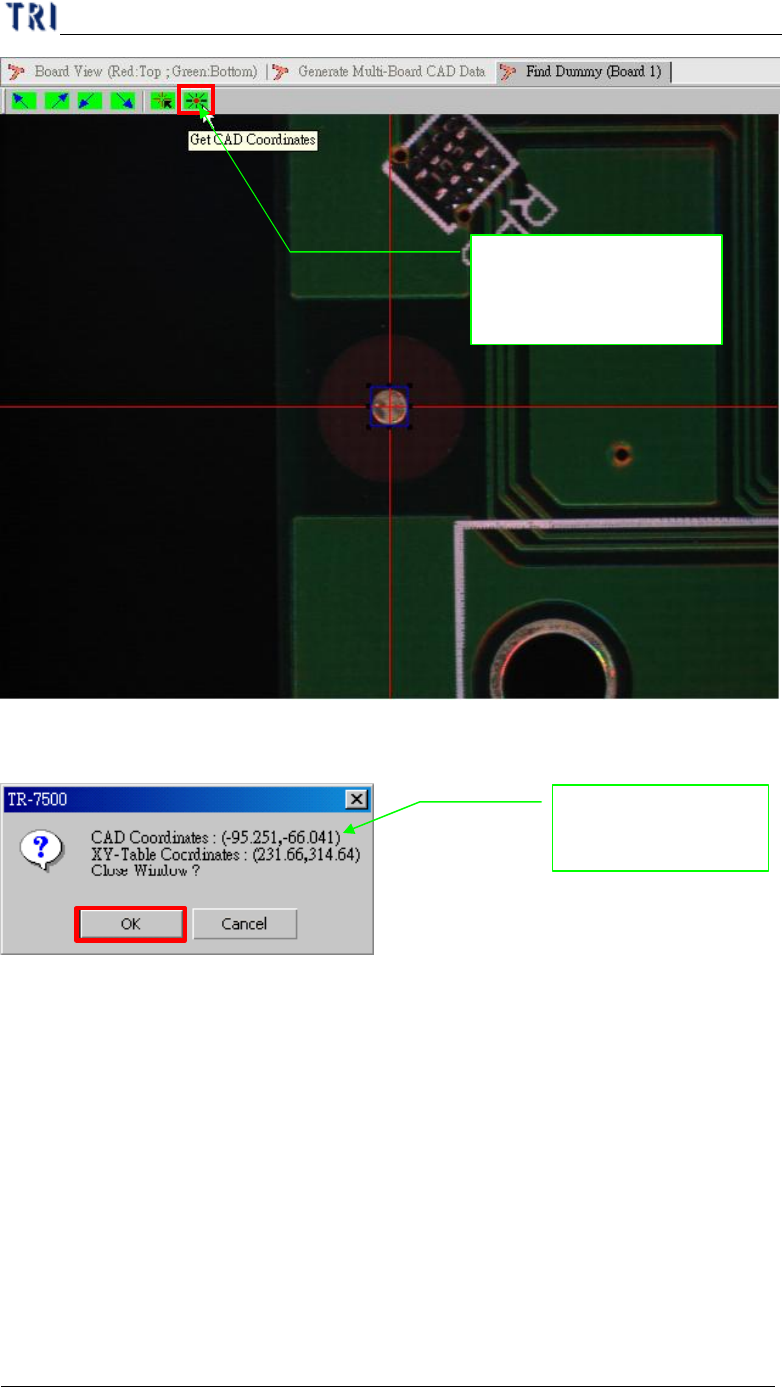

(5) Display the CAD & XY table coordinate.
(6) Display board 1 result.
Getting the CAD with
the XY table
relationship for position
System shows the
position relationship
