Chapter 1 AOI Standard Project Creation

TR7500 USER MANUAL

8. FOV Generate

(1) Setting the best FOV distribution rule for AOI inspection.

There are three functions for FOV generation. More check boxes you select,

it will take more time in generation process. The three functions are:

a. Locating IC pin first– It will take fewer FOVs to merge with IC pin

windows, including LEAD and SOLDER.

b. Auto Locating in Y-direction– FOV location will be shifted in Y direction

if it’s necessary.

c. Windows auto separated by cutting– If a inspection window group is cut,

it will separate into two groups.

(2) Warning message for auto place inspection FOV.

(3) Creating the panel FOV image.

(4) If the gap between multi-boards and there are components laid on the edge of the

board, the distance of FOVs will be too closed. The system has to slow down the

speed to keep generating FOVs following multi-board rule and the following

window shows up. You have following three choices to select.

Chapter 1 AOI Standard Project Creation

TR7500 USER MANUAL

a. Selecting [OK] means scanning and inspecting the panel with the lower

speed that system suggests. The FOV will be arranged originally, but the

inspection time will be longer.

b. Selecting [Cancel] means scanning and inspecting the panel with the

original speed, but the arrangement of FOVs will be set as a panel. That is

you can’t apply the parameters [by set] in project.

c. Review the Library of the component that is laid on the edge. Try to reduce

the size of inspection box and see if the problem will be solved.

(5) Warning message for auto place inspection FOV.

(6) Creating the panel FOV image.

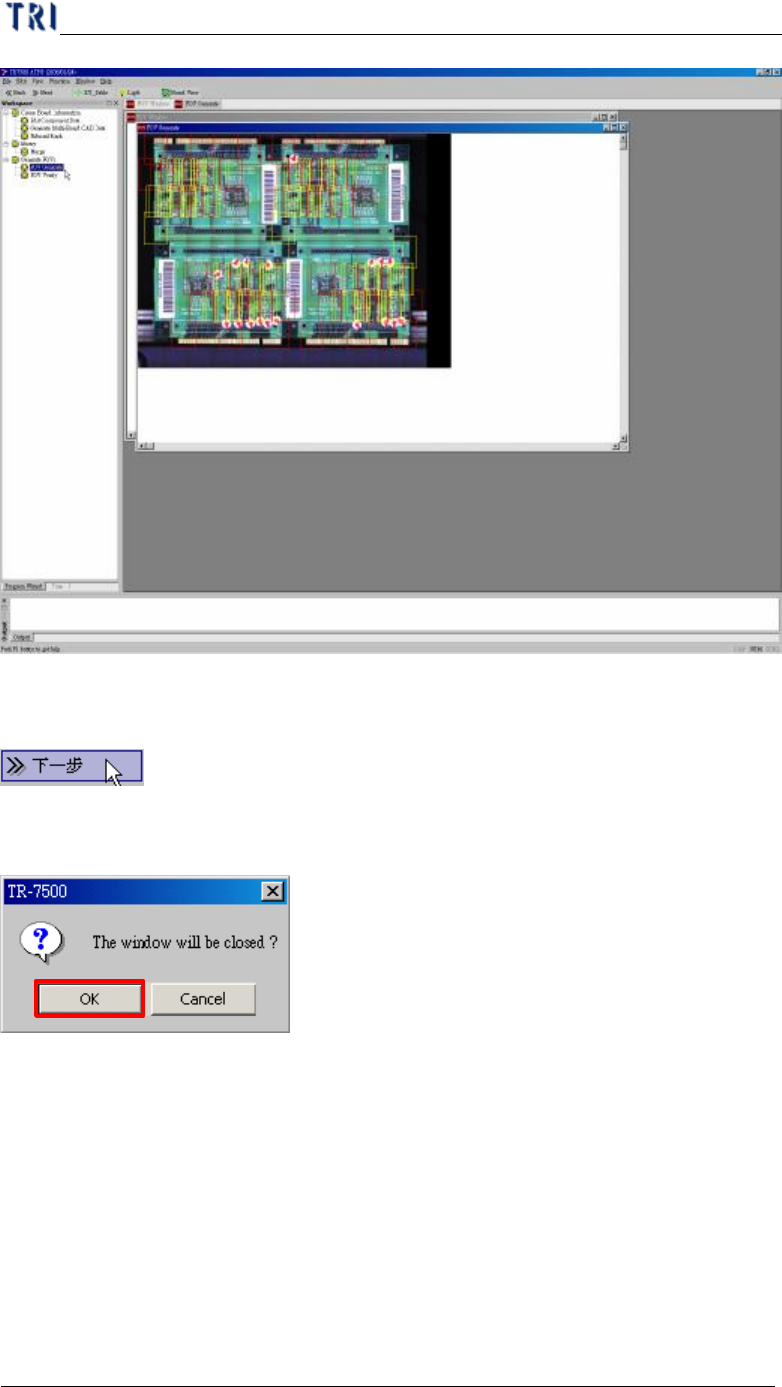

(7) Display the every FOVs’ position in the panel.

Chapter 1 AOI Standard Project Creation

TR7500 USER MANUAL

(8) Go to next step.

(9) Warning message for close the windows.

9. FOV Verify

(1) Click the next button and go to next FOV verify process.
