Communication and Control
Board type recognition Reading the Board IDs out of the EEPROM
Student Guide SIPLACE D4 (FSE)
Communication and Control EN 09/2006
98
4.4.2.1 Read out the Board type ID via the menu Gripper
X Switch off the machine.
X Connect the service laptop to the machine CAN bus at PA1 and/or PA2.
Make sure that the cable to channel 1 is connected to PA 1 and that the transceiver is connected to
channel 2 of the Kvaser Card or switch off the query for the transceiver at channel 2 in the
Advanced
Subsystem Configuration
menu.
X Switch on the machine
X Start the
Caccia
software and check the machine configuration in
Caccia
.
X This can be opened by double-clicking on the
Subsystem control center
Press on the
Get Versions
button . All available subsystems will be shown with their firmware versions
and their CAN IDs.
X Choose the head processor according the gantry e.g. gantry 1
X Open the
GSM
folder.

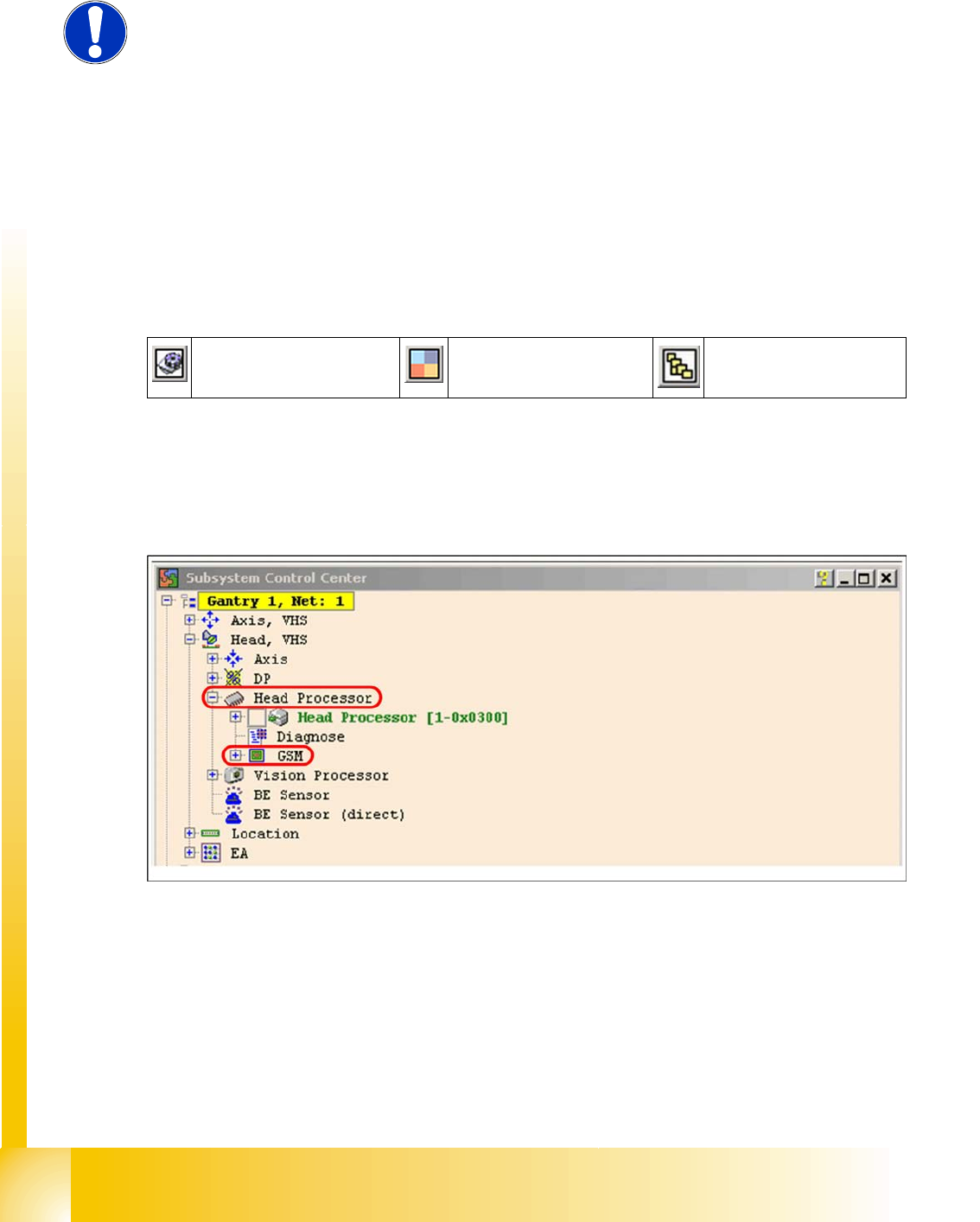

4.4 - 5: Subsystem control center
X Double-click on
Gripper
and the following dialog box will open:
NOTE:
When you want to be read out the board type ID‘s via the menu gripper, the
BIOS and application-software have to downloaded on the TQM module.
Reading out is currently only possible via the
Gripper
menu. to write the ID‘s
on the EEPROM you need CAN Bus commands.
Subsystem control center Machine configuration
window
Advanced
Subsystem Configuration
Communication and Control
Reading the Board IDs out of the EEPROM Board type recognition
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Communication and Control
99
4.4 - 6: Dialog head processor gripper
X Select the board to be
checked
and click on the
Get EEPROM button.
4.4 - 7: Head interface board type recognition ID 01
X The ID will appear in the
memory cell
12, the ID 01 for the head interface C500.
Communication and Control
Board type recognition Reading the Board IDs out of the EEPROM
Student Guide SIPLACE D4 (FSE)
Communication and Control EN 09/2006
100

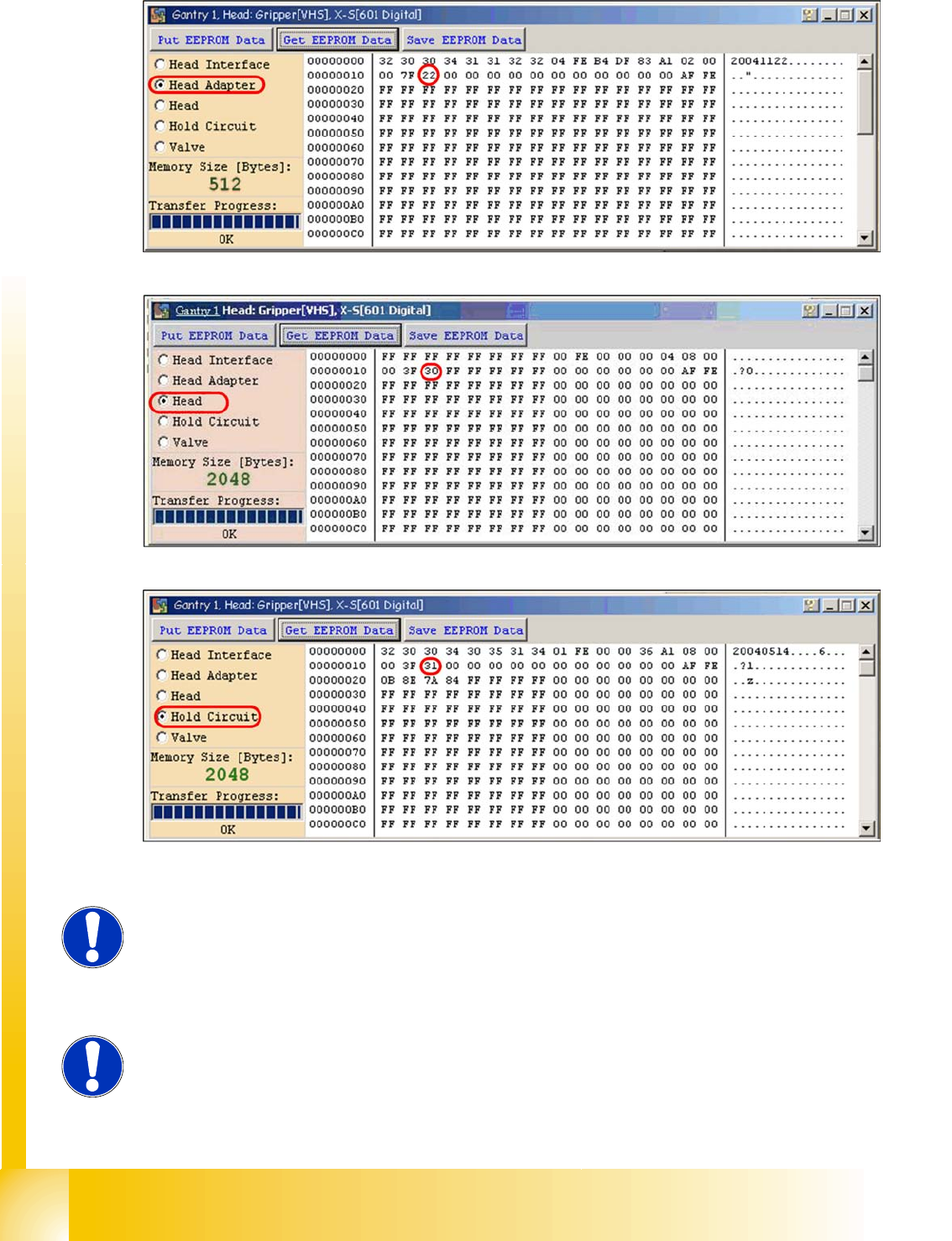

4.4 - 8: Head adapter board type recognition ID 22 for the C&P20 head
4.4 - 9: C&P20 board ID 30
4.4 - 10: C&P20 board ID 31 vacuum sensor, hold circuit
Device number ID 01 vacuum generator digital
NOTE:
The vacuum generator digital (C&P20) and thevacuum generator analog (Twin
head) don‘t have a board type ID. In the memory space on the EEPROM stays
00.
NOTE:
Both vacuum generators will be recognized via a device number. This
assembly ID is at storage location 14 in the EEPROM.
