Axis dynamic Check dynamic X-axis Axis control gantry Student Guide SIPLACE D4 (FSE) EN 09/2006 Axis dynamic 157 7.4.2.2 Measurement Setup with SA T Box 7.4 - 6: Measurement setup with SAT box ATTENTION: When checking th…
Axis dynamic
Axis control gantry Check dynamic X-axis
Student Guide SIPLACE D4 (FSE)
Axis dynamic EN 09/2006
156

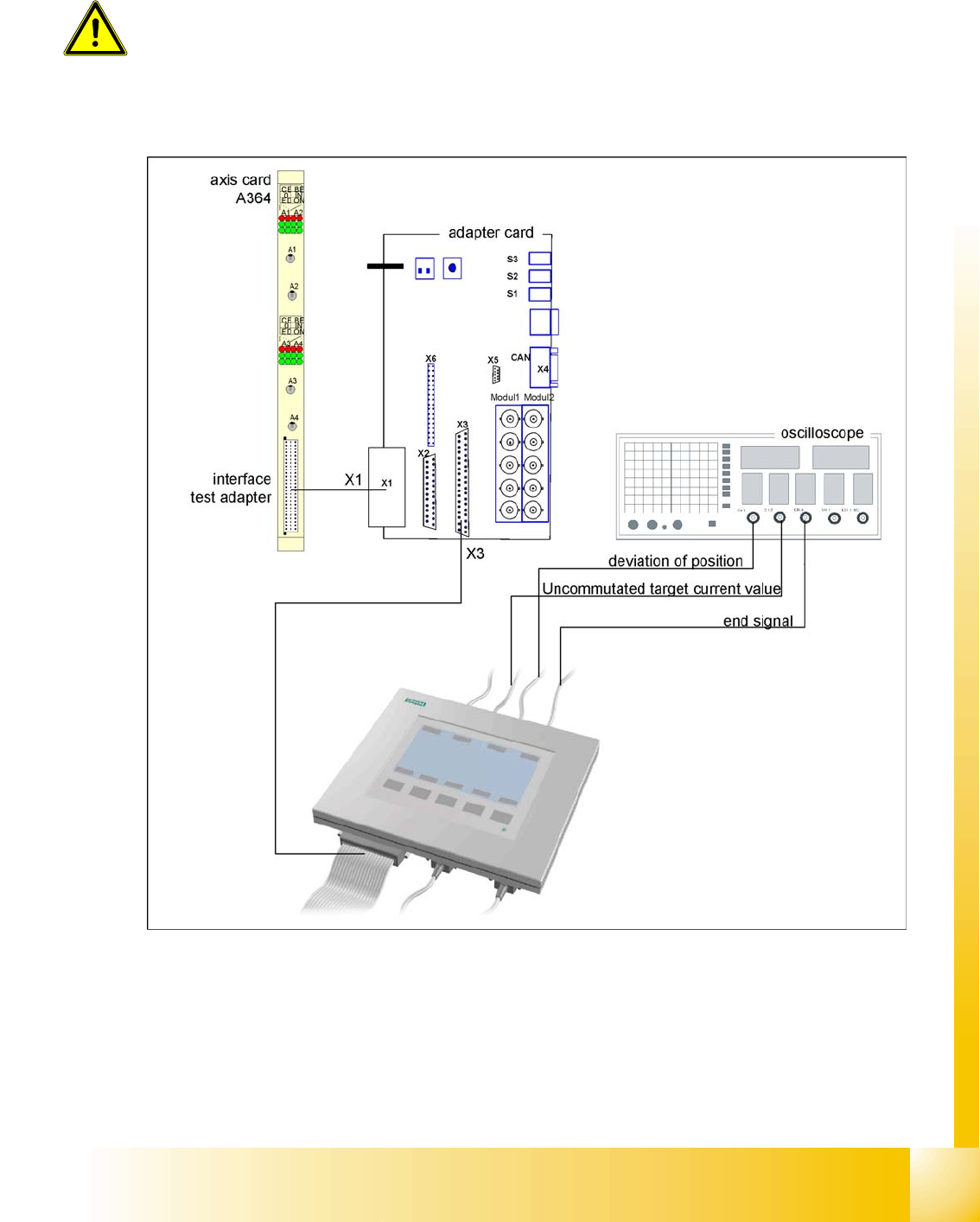

7.4.2.1 Test setup with axis testbox
7.4 - 5: Test setup with axis testbox
Additional connection at channel 4 could be the actual position = target position signal from trigger
m1/2 of the adapter board or the speed signal Vreg (Vnom.).
NOTE:
Use an RC - filter to record the "uncommutated motor current target value"
(current signal).
Axis dynamic
Check dynamic X-axis Axis control gantry
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Axis dynamic
157
7.4.2.2 Measurement Setup with SAT Box
7.4 - 6: Measurement setup with SAT box
ATTENTION:
When checking the dynamics, it may be sufficient if you check the travel times
and overshoot behavior of the axis with the SIPLACE axis tester display and the
values in the settings tables.
However, when checking for errors, you will need to use a suitable oscilloscope
for the dynamic analysis.
Axis dynamic
Axis control gantry Check dynamic X-axis
Student Guide SIPLACE D4 (FSE)
Axis dynamic EN 09/2006
158
7.4.2.3 X-axis Travel Profiles for C&P12
7.4.2.4 X-axis Travel Time Table
Legend:
1. Current signal
2. Speed – signal Vreg (Vnominal)
3. Deviation of position
4. End signal
Distance: 15mm = 15000 Digit
Time: 56 +/-5ms
X-axis gantry axis with DLM2 (C&P12)
Distance / Digit Time / ms Tolerance /ms
500 32 +/-5
1000 34 +/-5
2000 38 +/-5
5000 45 +/-5
15000 56 +/-5
20000 63 +/-5
50000 87 +/-10
100000 114 +/-10
200000 162 +/-10
300000 205 +/-15
