Axis dynamic Axis control C&P head axes Axis control Star Axis S tudent Guide SIPLACE D4 (FSE) Axis dynamic EN 09/2006 164 7.5.3 Axis control St ar Axis The star axis is d riven via a 3- phase AC step ping motor with…
Axis dynamic
Track signals head axes Axis control C&P head axes
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Axis dynamic
163

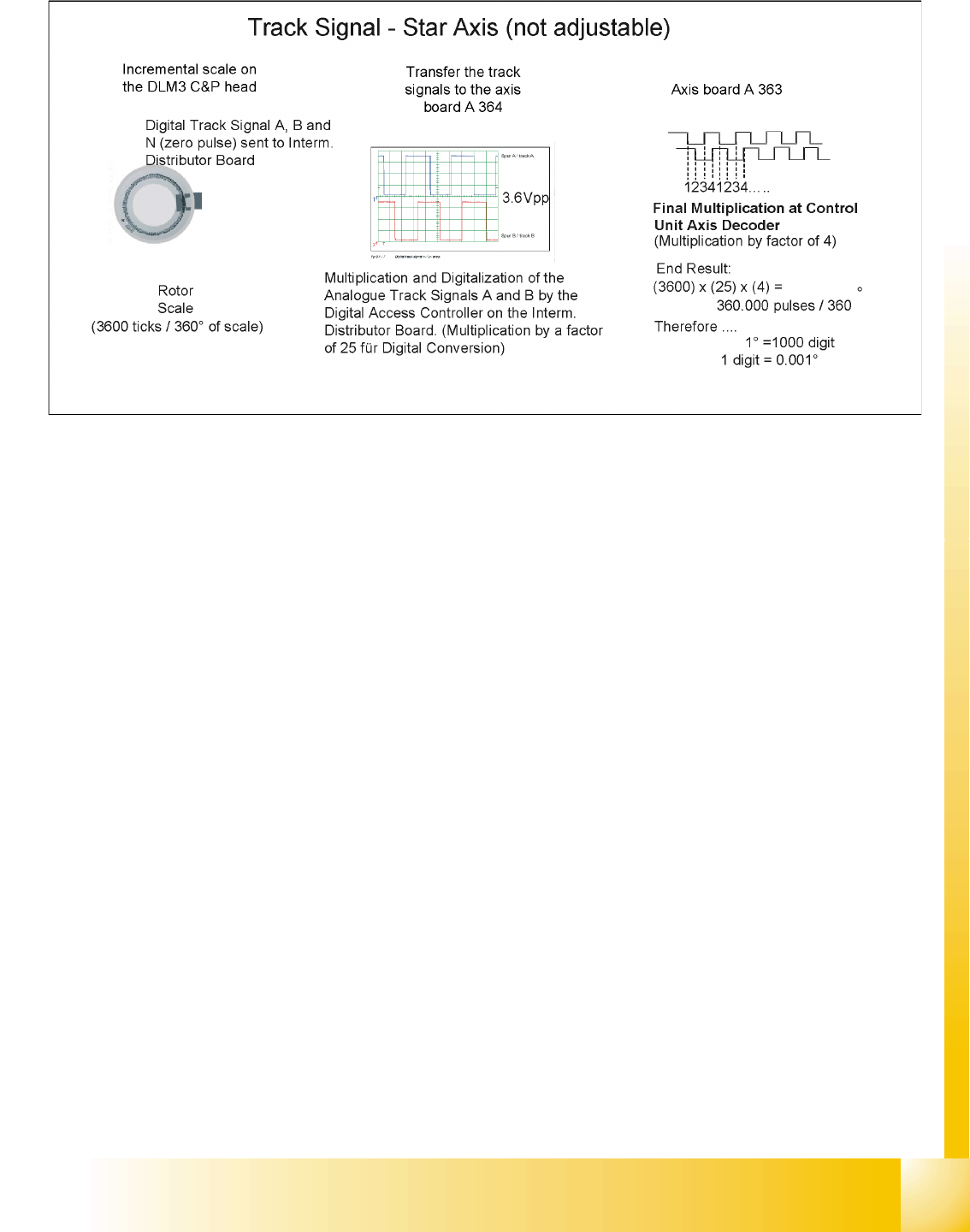

7.5.2.3 Preparing Track Signals for Control of Star Axis (Example)
Axis dynamic
Axis control C&P head axes Axis control Star Axis
Student Guide SIPLACE D4 (FSE)
Axis dynamic EN 09/2006
164
7.5.3 Axis control Star Axis
The star axis is driven via a 3-phase AC stepping
motor with an intermediate circuit voltage of 150 V.
The activation is via two track signals (phase shift
120°) from the processor of the A364 I
target "W"
and
I
-target "U"
. The third phase is calculated
automatically.

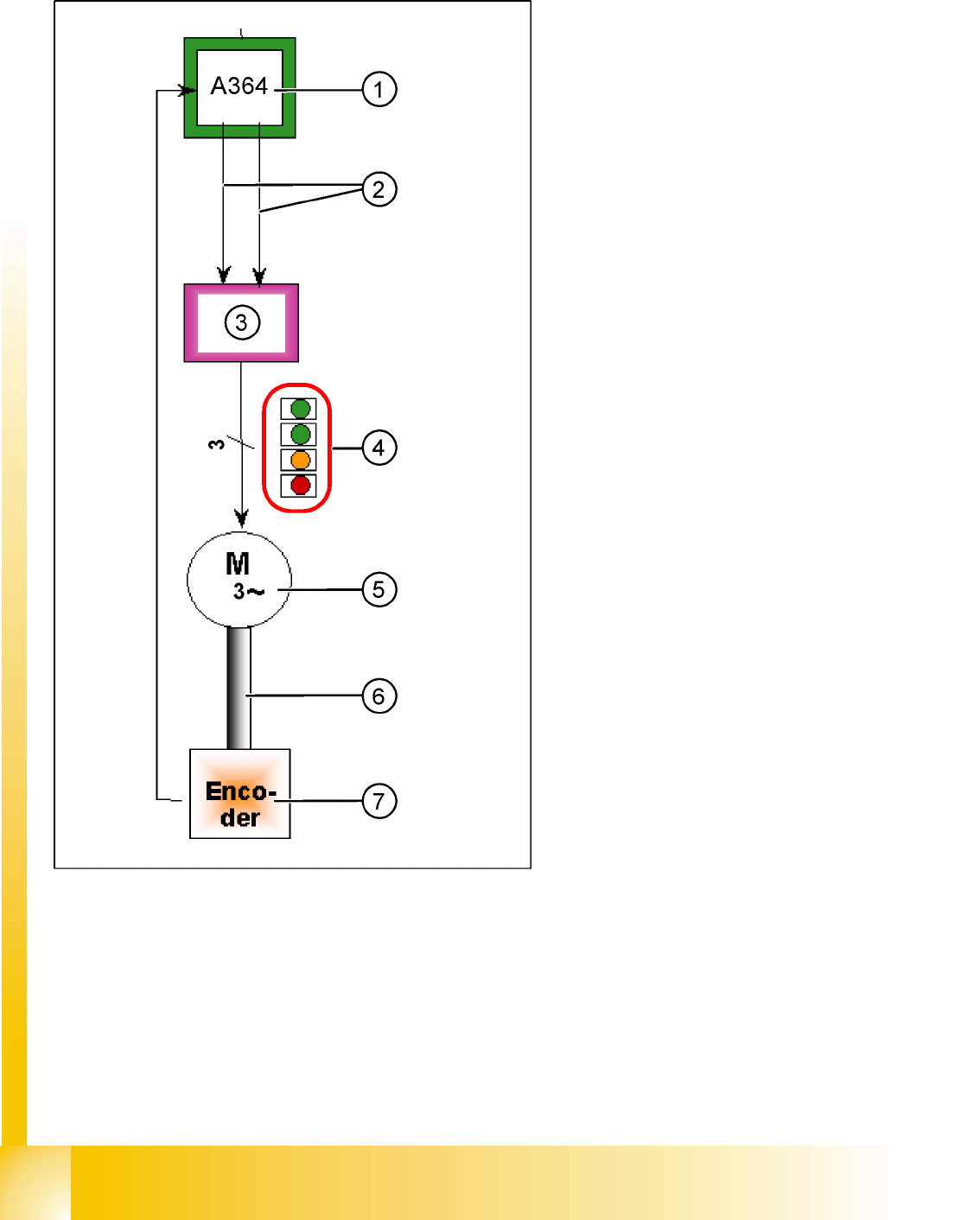

Legend:
1. Axis board A364
2. Control signals I
target
"W" and Itarget
"U"
3. Servo amplifier
4. LED‘s on Servo board:
– Power supply ON
– Servo enable, it the enable signal from the
axis board.
– Display R.M.S. current limiter shorter than
2,5 s.
– Error: Overvoltage, overcurrent,
overtemperature or nominal current
overshoot longer than 2.5 sec.
5. 3 Phase AC motor.
6. Between the motor and the incremental
encoder exist a fixed mechanical combination.
7. Incremental encoder: transmit the exact
position of the axis The track signals are the
only feedback signals for the axes.
The servo board controls the motor directly.
Axis dynamic
Axis control Star Axis Axis control C&P head axes
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Axis dynamic
165
7.5.3.1 Check the star axis dynamics.
NOTE:
For detailed notes to check the axis dynamic, please use the "Adjustment
manual".
NOTE:
Before adjusting the axes, ensure that the machine has reached its operating
temperature. Switch the machine on at least 30 minutes before you begin work.
