Axis dynamic
Axis control Dp-Axis Axis control C&P head axes
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Axis dynamic
173
C&P-Head - signal for DP-axis, 3600 digits
Legend:
1. Current signal: 200mV/Div
2. Control signal Vnom.
3. Deviation of position 500mV/Div
4. End signal
Time basis: 10ms/Div
Positioning time: approx. 46 ms +/-3 ms
Path: 3600 digits
Gantry
Overview
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Gantry
173
8Gantry
8.1 Overview
The gantries of the SIPLACE D machines each consist of an X and a Y axis. The Y-axis is driven by a
linear motor with integrated temperature sensor. The X axis is driven by a three-phase servo motor,
equipped with an integrated temperature sensor, and a belt. When viewed from the direction of transport,
the Y motors move from the right to the left side in positive counting direction and the X motors move
from the input conveyor to the output conveyer in positive counting direction. The placement heads are
mounted on the head plates of the respective X axis.
8.1 - 1: Position of gantries in D4 machines
Legend
1 Gantry 1 in placement area 1 7 PCB camera under the X-axis (here: gantry 4)
2 Gantry 2 in placement area 2 8 Y-motor, primary part – linear motor
(here: gantry 4)
3 Gantry 3 in placement area 2 9 Y-motor, secondary part – magnets
(here: gantry 4)
4 Gantry 4 in placement area 1 10 X motor (here: gantry 4)
5 X-axis (here: gantry 1) 11 Belt for X motor (here: gantry 4)
6 Y-axis (here: gantry 1) T Transport direction
Gantry
Overview Mechanical Structure of X and Y Axes
Student Guide SIPLACE D4 (FSE)
Gantry EN 09/2006
174
8.1.1 Mechanical Structure of X and Y Axes

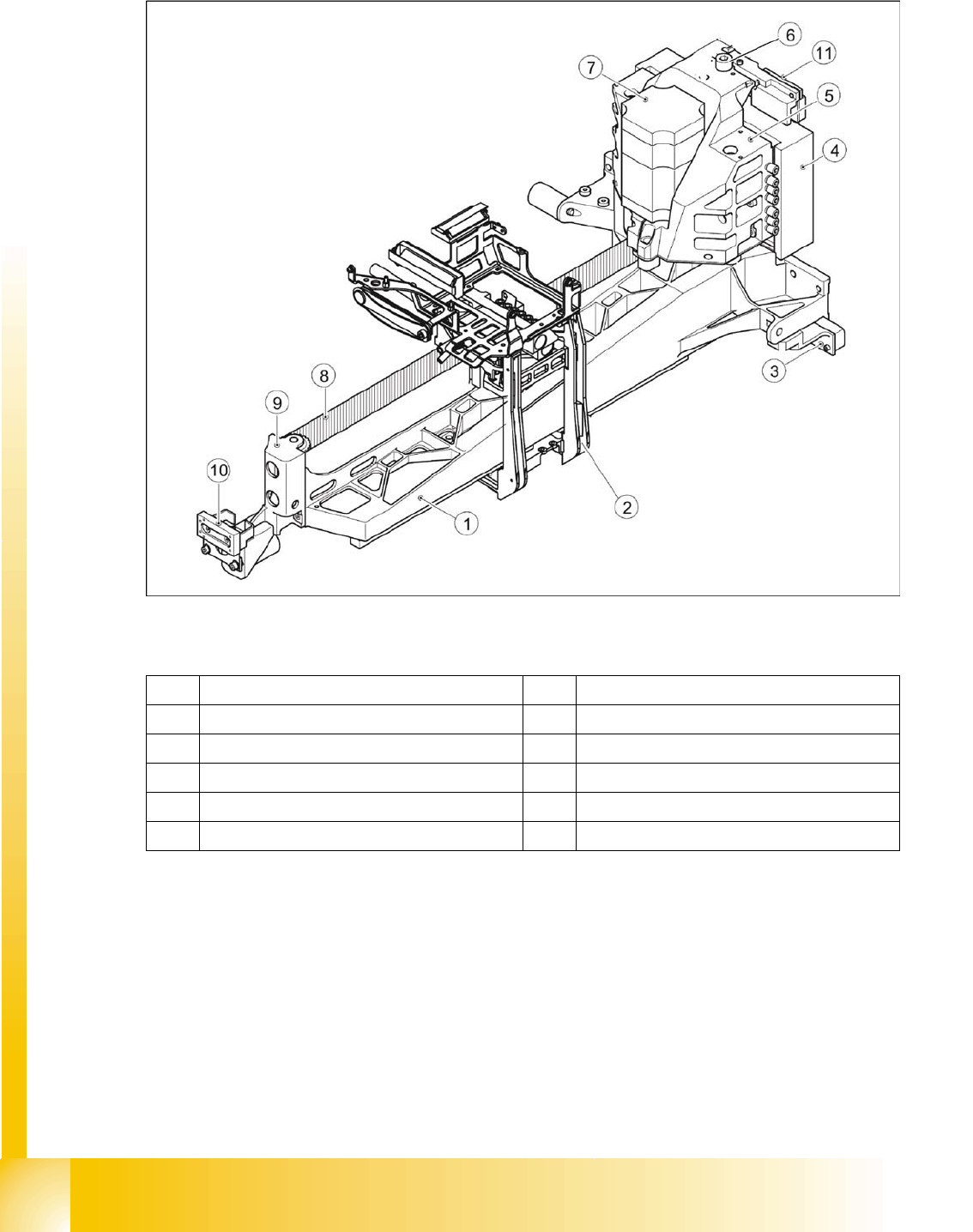

8.1 - 2: Mechanical structure of gantries – part 1
Legend
1 Precision-cast gantry 7 X motor unit
2 Head mount 8 Toothed belt
3 Read unit for Y-axis incremental scale 9 Deflection unit
4 Primary part Y-linear motor 10 Y-axis brake, external
5 Motor bracket 11 Y-axis brake, internal
6 Thrust bearing
