Operational Safety
Warning labels W201, W203, W204 and W210 on the machine Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
19
2.2 - 2: Warning labels W203, W204 and W210 on the placement system - part 2
W203, article no. 03009342-01
W204, article no. 03009343-01
W210, article no. 03009350-01
2.2.1.1 Warning label W201
WARNING:
Do not use abrasive cleaners or solvents for cleaning warning labels.
Replace any damaged or illegible warning labels.
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on the operator being
familiar with the user manual and safety instructions and putting them
into effect.
Article no. 03009338-01 (quantity per machine: 1)
Operational Safety
Warning labels Warning labels W201, W203, W204 and W210 on the machine
Student Guide SIPLACE D4 (FSE)
Operational Safety EN 09/2006
20
2.2.1.2 Warning label W203
2.2.1.3 Warning label W204
2.2.1.4 Warning label W210
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
Article no. 03009342-01 (quantity per machine: 4)
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms and hands.
Do not reach into the machine while it is running
Article no. 03009343-01 (quantity per machine: 8)
Warning label on the emergency stop button
Article no. 03009350-01 (quantity per machine: 2)
Operational Safety
Warning label W202 on the gantries Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
21
2.2.2 Warning label W202 on the gantries

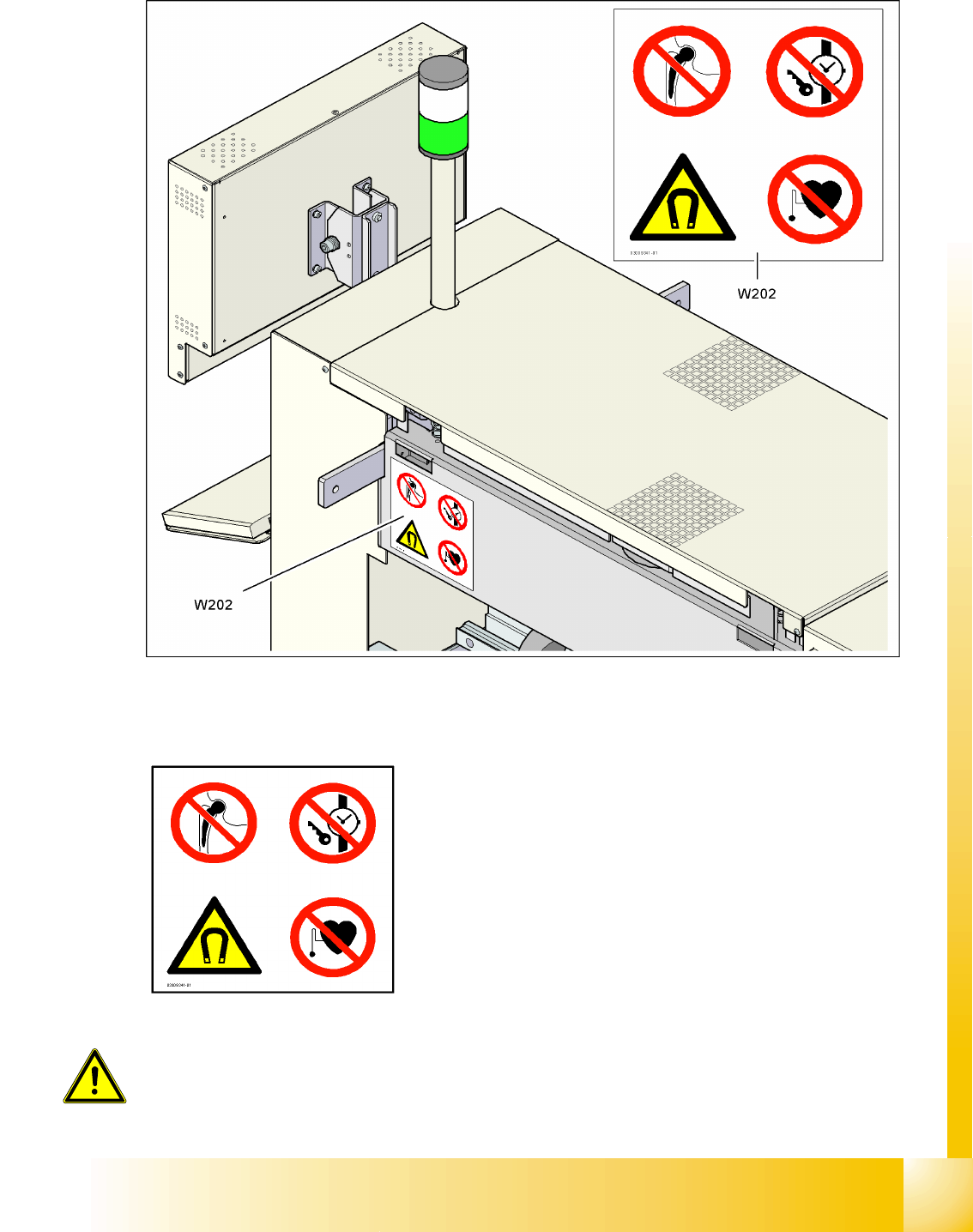

2.2 - 3: Warning label W202 on the gantries
W202, article no. 03009341-01
W202, in fig. , article no. 03009341-01
(quantity per X2 machine: 6, X3 machine: 7, X4 machine: 8)
WARNING:
Powerful permanent magnetic fields inside the machine
