Operational Safety Warning labels Warning label W205 on the tape cutter S tudent Guide SIPLACE D4 (FSE) Operational Safety EN 09/2006 24 2.2.3.5 W arning Label W205 on the Cross Bar Below the T ape Cutter 2.2 - 4: Warnin…
Operational Safety
Warning label W205 on the tape cutter Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
23
2.2.3.2 Warning label W205 on the underside of the component trolley docking unit (HF-series)
2.2.3.3 Warning label W205 on the used tape chute (HF-series)
2.2.3.4 Warning label W205 on the used tape chute (X-series)
Warning label W205 on the bottom of the tape cutter
Warning label W205 on the used tape chute
(Component trolley feed device, HF-series)
NOTE:
The position of the used tape chute is shown in Section 2.2.3.5 Warning Label
W205 on the Cross Bar Below the Tape Cutter [J 24] .
Warning label W205 on the used tape chute
(Component trolley feed device, X-series)
NOTE:
The position of the used tape chute is shown in Section 2.2.3.5 Warning Label
W205 on the Cross Bar Below the Tape Cutter [J 24] .
Operational Safety
Warning labels Warning label W205 on the tape cutter
Student Guide SIPLACE D4 (FSE)
Operational Safety EN 09/2006
24
2.2.3.5 Warning Label W205 on the Cross Bar Below the Tape Cutter
2.2 - 4: Warning label W205 on the cross bar below the tape cutter
Legend
W205, article no. 03009344-01 on the cross bars (quantity per machine: 4)
1 Cross bar 3 Empty tape duct
2 Tape cutter 4 Used tape chute
Operational Safety
Warning strips on the used tape channel Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
25

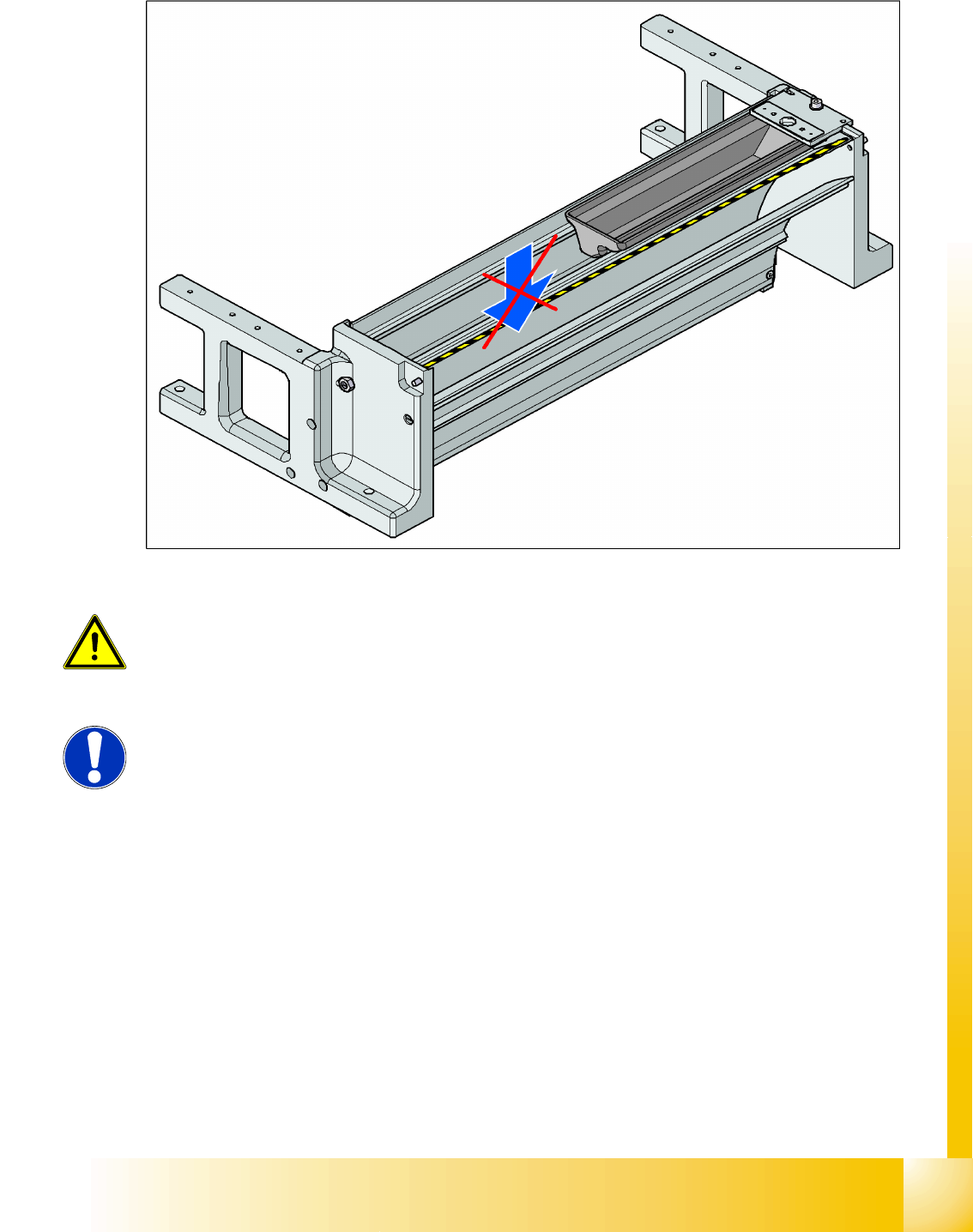

2.2.4 Warning strips on the used tape channel
2.2 - 5: Warning strips on the used tape channel
WARNING:
Never reach into the opening in the used tape channel.
NOTE:
The position of the empty tape duct is shown in Section 2.2.3.5 Warning Label
W205 on the Cross Bar Below the Tape Cutter [J 24] .
