Component handling
Docking and Undocking the CO Changeover Table Overview
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Component handling
237
10.1.4 Docking and Undocking the CO Changeover Table
Undocking the CO trolley
X Click in the
MAIN VIEW
menu, on the
STOP PROCESSING PCB icon.
.
The board currently being processed will be finished. After processing of this board has been
completed, the icons for the menu functions will be enabled.
X Click on the
SINGLE FUNCTIONS GANTRY
.
X Select
GANTRY FUNCTIONS.
.
X In this menu, click on the
GO TO SETUP POSITION
.
All placement heads are moved over the board conveyor, so that they can not be damaged during
CO trolley changeover.
X Open the protective hood above the required gantry.
X Open the cover flaps above the height adjustment button for the CO table plate.
X Press the button until the CO table plate has reached its end (top) position.
X Disconnect the CO trolley supply cable from the socket at the station.

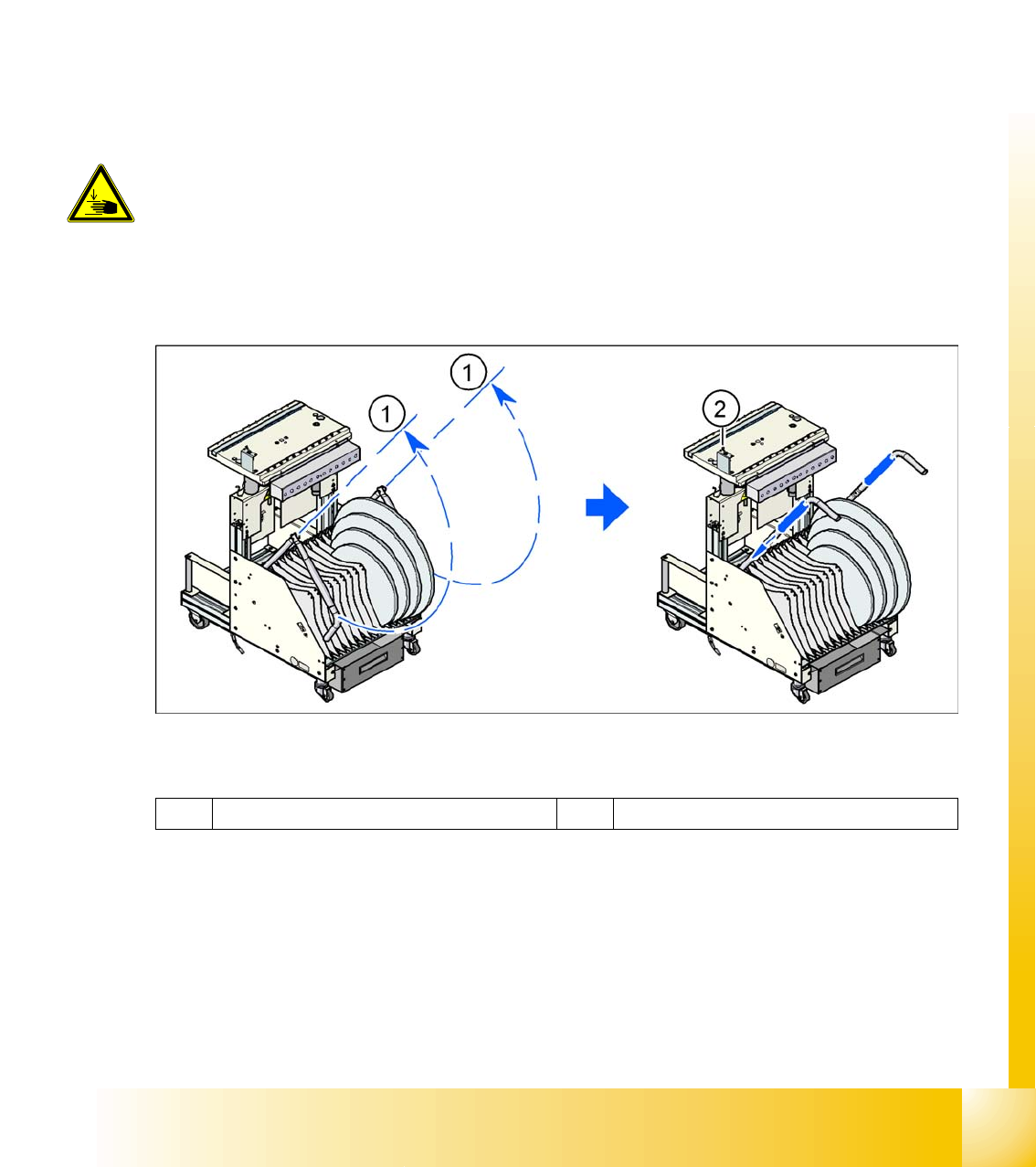

X Swivel both handles upwards (1).
10.1 - 2: CO trolley - swivel handles upwards
Legend
X Use both hands to pull the CO trolley out of the machine.
X Press the button to lower the CO table (2).
DANGER:
When raising the CO table, never reach into the gap between the feeder
modules and the empty tape duct.
1 Handle 2 Switch for lowering the CO table
Component handling
Overview Docking and Undocking the CO Changeover Table
Student Guide SIPLACE D4 (FSE)
Component handling EN 09/2006
238
Docking the CO trolley
X Check that the contact surface for the CO table plate is clean.
X Carefully move the CO trolley into the machine.
X Plug the CO trolley connection cable into the socket on the machine.
X Open the cover flap above the height adjustment button for the CO table.
X Press the button until the CO table plate has reached its end (top) position.
X Carefully move the CO trolley into the machine, until it reaches the end stop.
X Check whether the centering holes in the CO table plate are exactly positioned above the centering
pins of the machine.
X Press the button to lower the CO table plate.
X Make sure that the centering pins engage with the centering holes in the CO table plate and that the
CO table plate has been lowered properly.
X Close the cover flap over the button.
X Close the protective hood.
X Start the machine by pressing the start button.

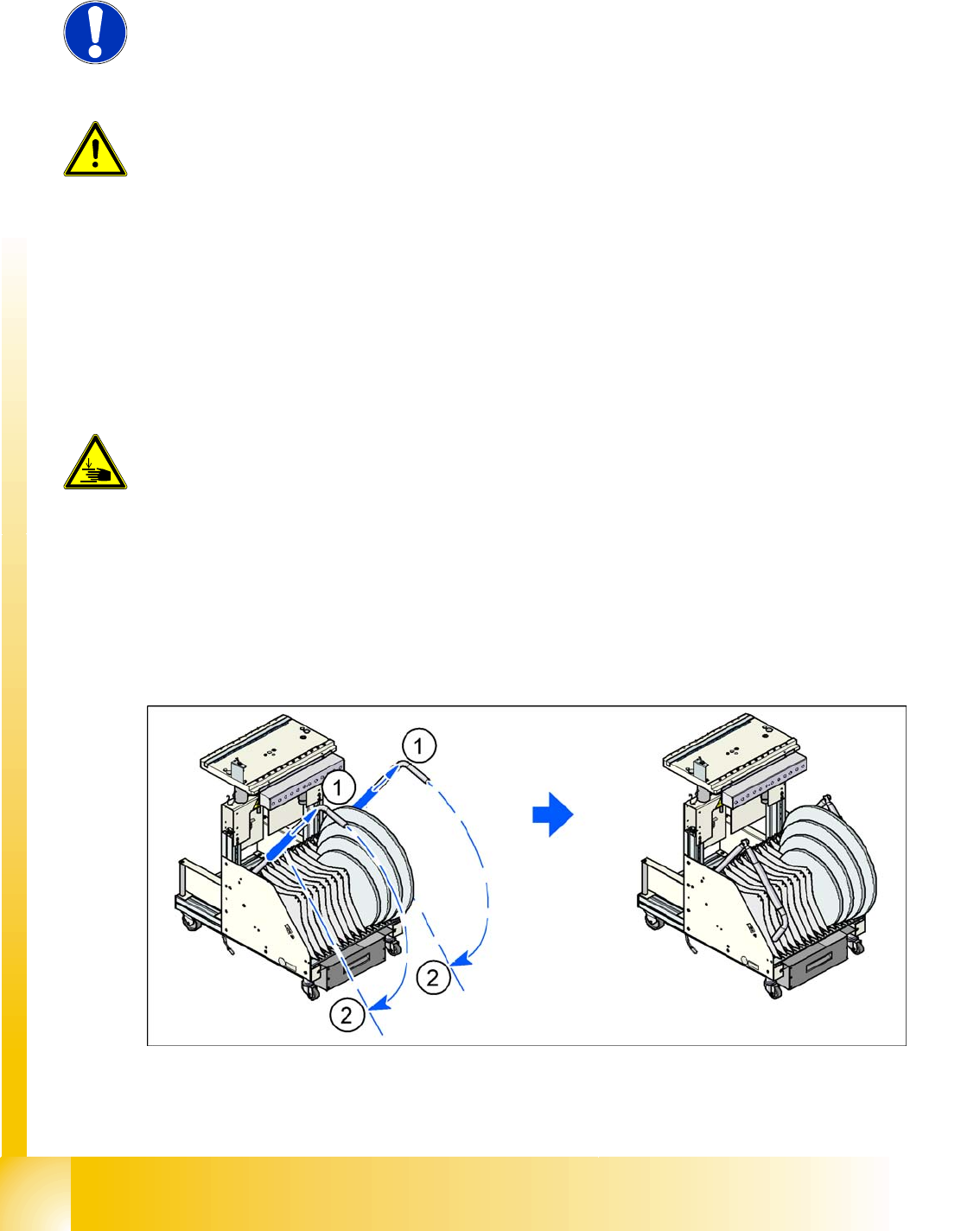

X Push the tube (1) over and up on both handles and swing the handles downwards (2).
10.1 - 3: CO trolley - swivel handles downwards
NOTE:
Shorten the tapes at the front end of the S feeder modules to about 3 cms,
before you dock the CO trolley.
CAUTION:
Check that the placement head is outside the CO trolley travel range.
DANGER:
When lowering the CO table, never reach into the gap between the feeder
modules and the empty tape duct.
Component handling
Docking and Undocking the CO Changeover Table Overview
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Component handling
239
Legend
Safety instructions for moving the component trolley
See also:
J 10.1 Overview [J 233]
1 Push tube over and up 2 Swing handles downwards
WARNING:
To prevent accidents, ALWAYS follow the rules listed below when you move the
component trolley.
X Always hold the handles with both hands when you want to move the
component trolley.
X Remember that a component trolley with the full complement of feeder
modules can tip over sideways or forward on gradients of 20 or more.
X Make sure that the surface on which the trolley is moved has a significantly
smaller gradient.
X Be careful not to collide with obstacles. The trolley could tip forward if it is
traveling fast enough.
