Operational Safety
Warning strips on the used tape channel Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
25
2.2.4 Warning strips on the used tape channel
2.2 - 5: Warning strips on the used tape channel
WARNING:
Never reach into the opening in the used tape channel.
NOTE:
The position of the empty tape duct is shown in Section 2.2.3.5 Warning Label
W205 on the Cross Bar Below the Tape Cutter [J 24] .
Operational Safety
Warning labels Warning label W206 and W1 on the power supply unit
Student Guide SIPLACE D4 (FSE)
Operational Safety EN 09/2006
26

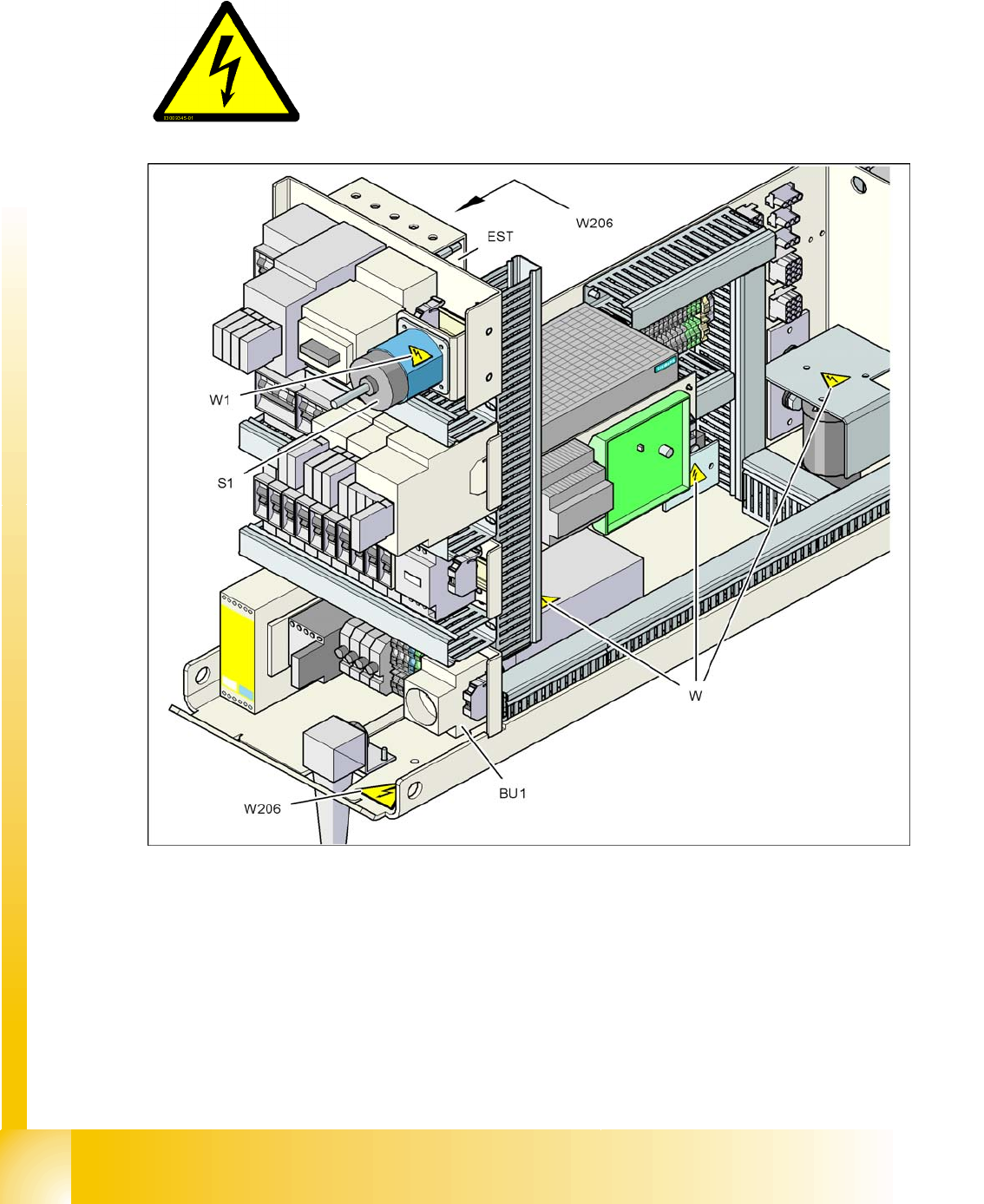

2.2.5 Warning label W206 and W1 on the power supply unit
2.2 - 6: Warning label W206 and W1 on the power supply unit
W206, article no. 03009345-01
W, warning label on the line filter and on the covers of the rectifier and electrolytic capacitor
W1, warning label on the main switch Q1
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
Article no. 03009345-01 (quantity per machine: 2) and W1
Operational Safety
Warning label W on the cover over the main power supply for the servo amplifier Warning labels
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Operational Safety
27

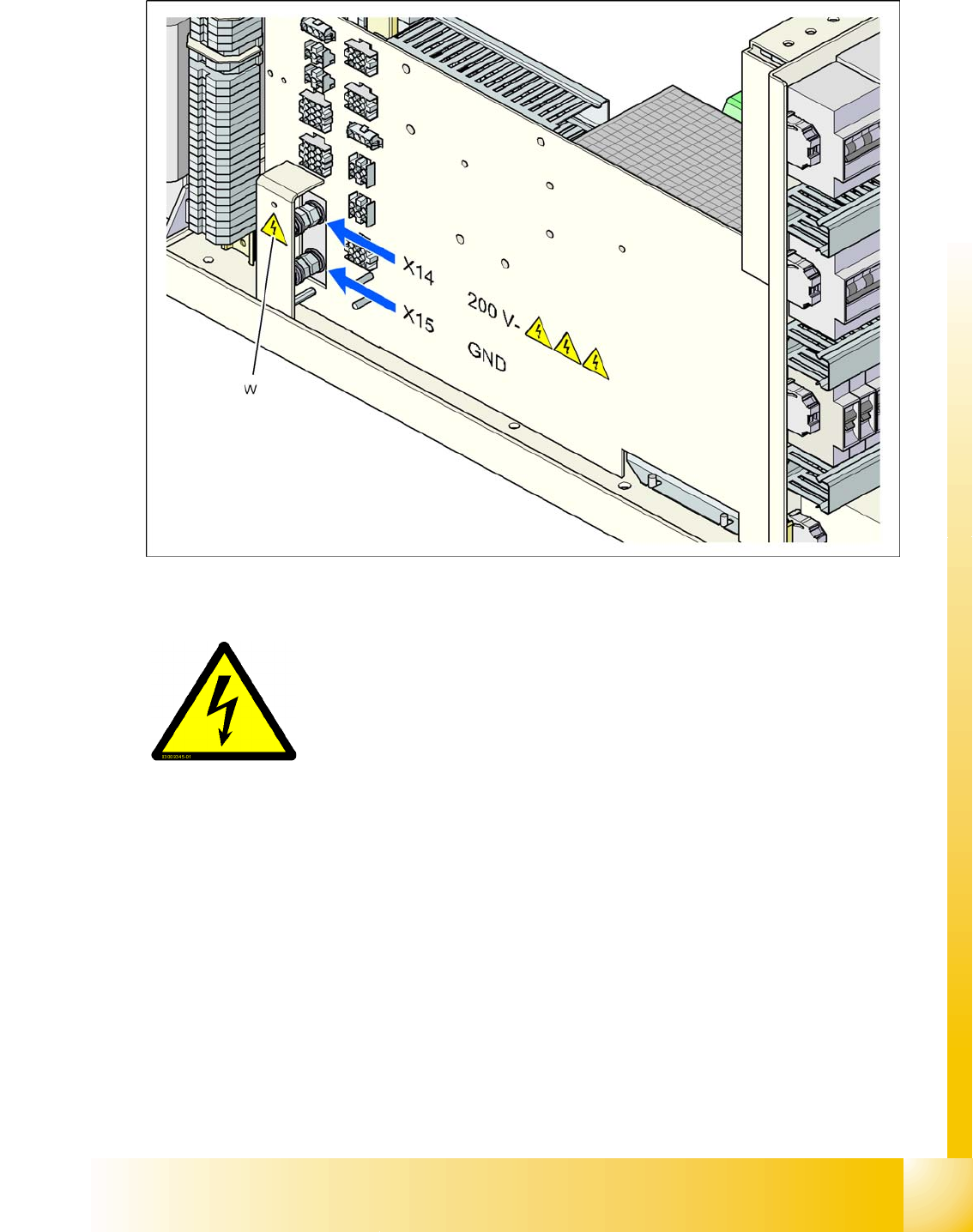

2.2.6 Warning label W on the cover over the main power supply for the servo amplifier
2.2 - 7: Warning label W on the cover over the main power supply for the servo amplifier
(quantity per power supply: 8)
