Modular conveyor
Description of the functions Overview of Flexible Single Conveyor
Student Guide SIPLACE D4 (FSE)
Modular conveyor EN 09/2006
256

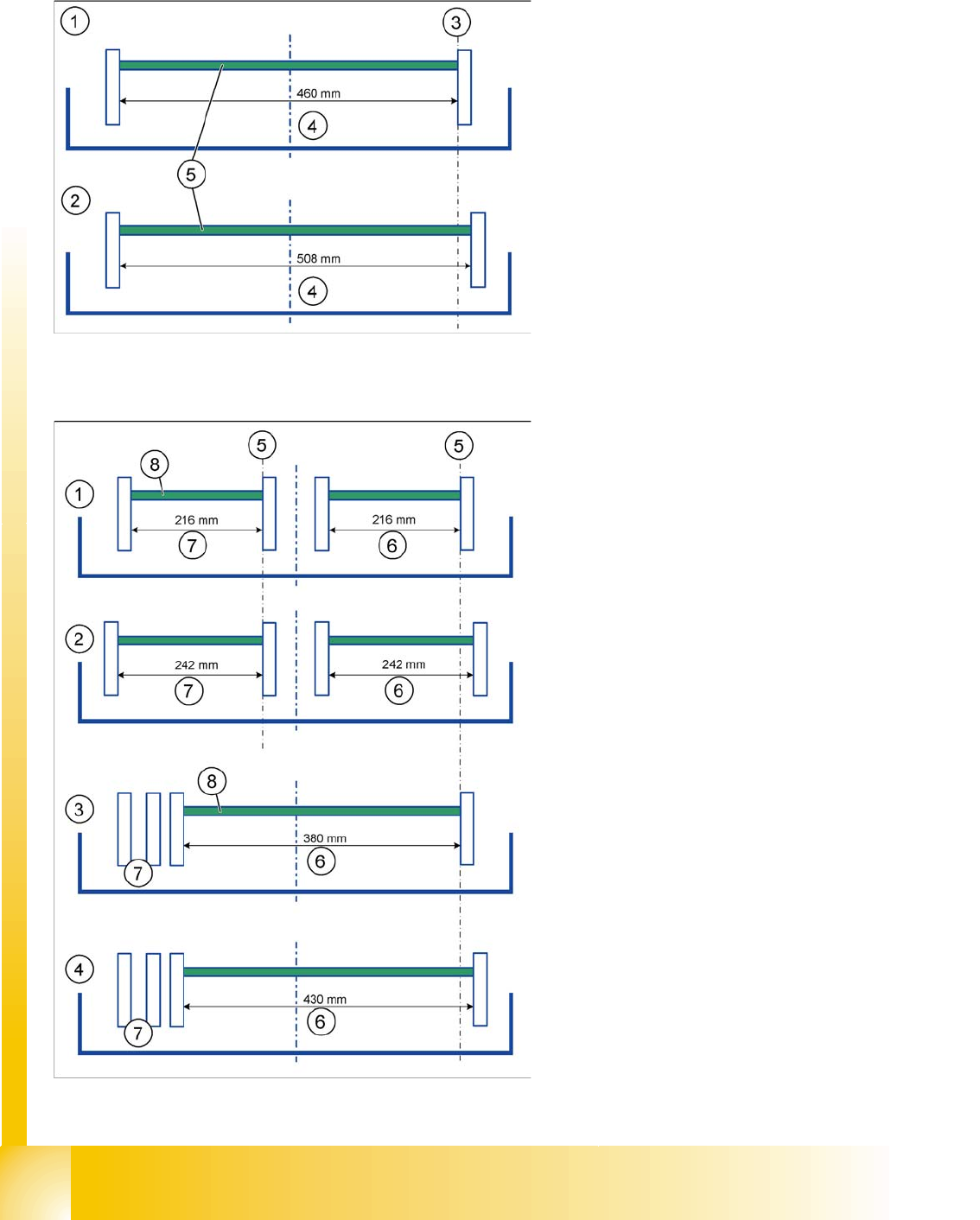

11.1.13 Overview of Flexible Single Conveyor
11.1.14 Overview of Flexible Dual Conveyor
Legend:
1. Single conveyor "Standard", max. width
1 x 460 mm
2. Single conveyor "excess width", max. width
1 x 508 mm
3. Fixed conveyor side on right
4. Lane 1
5. Board
Legend:
1. Dual conveyor "Standard", max. width 2 x 216
mm
2. Dual conveyor "excess width", max. width 2
x 242 mm
3. Dual conveyor "Widened" - "Standard", max.
width 1 x 380 mm
4. Dual conveyor "Widened" - "excess width",
max. width 1 x 430 mm
5. Fixed conveyor side on right
6. Lane 1
7. Lane 2
8. Board
Modular conveyor
Technical data - single conveyor Technical data
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Modular conveyor
257
11.2 Technical data
11.2.1 Technical data - single conveyor
Fixed conveyor side Right (standard), left (optional)
Max. component height 6 mm for the C&P12
PCB format (LxW) 50mm x 50 mm up to 368 mm x 460 mm
Long board up to 610 mm (24"), (option)
PCB thickness 0.3 mm to 4.5 mm
Max. PCB warpage upwards: 6 mm - board thickness
downwards: 0.3 mm + PCB thickness
Clearance on board underside max. 40 mm
PCB transport height 830 mm ±15 mm (Standard)
900mm ±15mm (Option)
930 mm±15 mm (Option)
950 mm ±15 mm (Option SMEMA)
Type of interface SMEMA (Standard)
SIEMENS (Option)
PCB weight 3 kg
Component-free PCB handling edge 3mm
PCB changeover time 2.5 s
Ink spot recognition possible
Automatic width adjustment possible
Modular conveyor
Technical data Technical data - dual conveyor
Student Guide SIPLACE D4 (FSE)
Modular conveyor EN 09/2006
258
11.2.2 Technical data - dual conveyor
Fixed conveyor side Right (standard), left (optional)
Max. component height 6 mm for the C&P12
PCB format(LxW) 50mm x 50 mm up to 368 mm x 216 mm
2" x 2" to 18" x 8.5"
Long board up to 610 mm (24"), (option)
PCB thickness 0.3 mm to 4.5 mm
Max. PCB warpage upwards: 6 mm - board thickness
downwards: 0.3 mm + PCB thickness
Clearance on board underside max. 40 mm
PCB transport height 830 mm ±15 mm (Standard)
900mm ±15mm (Option)
930 mm±15 mm (Option)
950 mm ±15 mm (Option SMEMA)
Type of interface SMEMA (Standard)
SIEMENS (Option)
PCB weight 3 kg
Component-free PCB handling edge 3mm
PCB changeover time 2.5 s
Conveyor mode synchronous or asynchronous
Components on each conveyor same or different
PCB width on each conveyor same or different
Ink spot recognition synchronous: not possible, asynchronous:
possible
Automatic width adjustment possible
