Modular conveyor Conveyor Settings Setting the fixed conveyor side (single and dual conveyor) S tudent Guide SIPLACE D4 (FSE) Modular conveyor EN 09/2006 262 1 1.3.2.1 Widening the Convey or (Flexible Dual Conveyor for S…

Modular conveyor

Setting the fixed conveyor side (single and dual conveyor) Conveyor Settings

Student Guide SIPLACE D4 (FSE)

EN 09/2006 Modular conveyor

261

11.3.2 Setting the fixed conveyor side (single and dual conveyor)

Two requirements for changing the fixed conveyor sides:

 Conveyor - excess width– moves the fixed conveyor side 34 mm outwards

 Widened conveyor – moves the conveyor sides of the 2nd conveyor to the limit switch

Single conveyor mode (D-Series up to 380 mm/HF, X lines up to 450 mm)

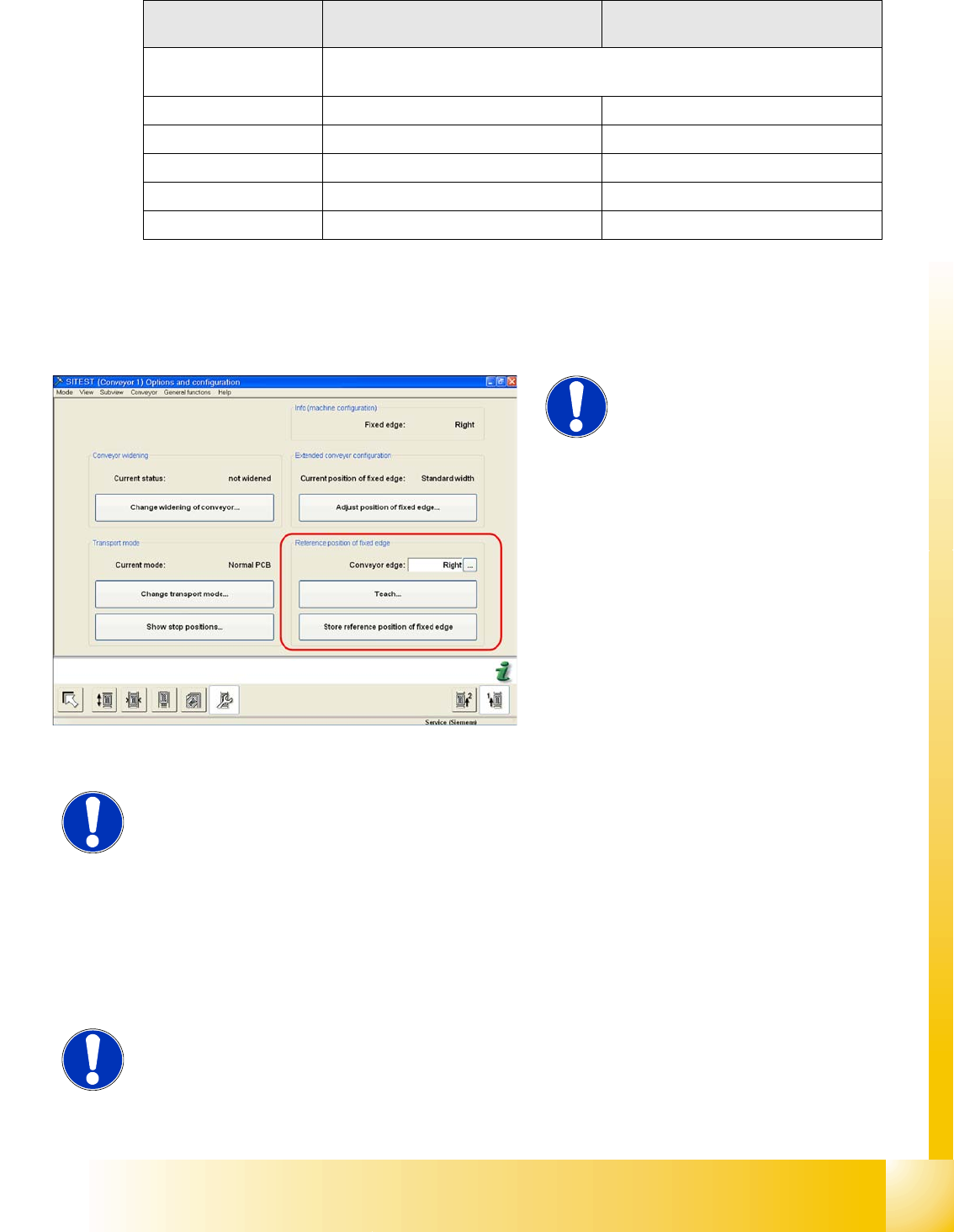

Belt tension for lane 1

(Single and dual conveyor)

for lane 2

(dual conveyor)

Belt tension for the width

adjustment

24 Hz +/-2 Hz

Eingabeband 170 Hz +/-10 Hz 170 Hz +/-14 Hz

Placement area 1 70 Hz +/-7 Hz 77 Hz +/-7 Hz

Intermediate conveyor 147 Hz +/-9 Hz 118 Hz +/-9 Hz

Placement area 2 70 Hz +/-7 Hz 77 Hz +/-7 Hz

Ausgabeband 170 Hz +/-10 Hz 170 Hz +/-14 Hz

Settings for the belt tension

NOTE:

This menu is protected with the

Siemens Service password.

 The fixed conveyor side can be set in SITEST

if required.

 If the position of the fixed conveyor side which

has been taught is saved, these values will be

used for the function

Move all conveyor ed-

ges to standard position

The default values will be overwritten and will

need to be retaught.

 If these dimensions are incorrectly set on the

single or dual conveyor, the PCB reference

corner may be moved, leading to fiducial

errors during placement.

NOTE:

In the SR/MC station SW, the fixed conveyor side of all lanes can be adjusted

in the conveyor firmware (flexible). However, this may only be set with the

SITEST software.

NOTE:

In the D-Series machines, you need to remove the clamping rings on the fixed

conveyor side in advance.

Modular conveyor

Conveyor Settings Setting the fixed conveyor side (single and dual conveyor)

Student Guide SIPLACE D4 (FSE)

Modular conveyor EN 09/2006

262

11.3.2.1 Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)

X Select

Option and configuration

from the SITEST conveyor menu and then click on

Widen

conveyor

to widen the conveyor.

X The conveyor sides of the 2ndconveyor lane (right side fixed (lane 1 left side fixed)) are moved to

the limits.

X The SITEST SW ask for connecting the lifting tables.

Widening the board conveyor (from its standard width) allows you to use boards up to 380 mm wide.

Widening the board conveyor from the mode "Widened" to the mode "excess width" allows you to place

boards up to a width of 430 mm.

11.3 - 2: Setting the "fixed conveyor side" in SIPLACE D-Series

NOTE:

The fixed conveyor side should be adjusted only with the SITEST software and

the width adjustment devices. This ensures that the conveyor runs straight.

Modular conveyor

Setting the fixed conveyor side (single and dual conveyor) Conveyor Settings

Student Guide SIPLACE D4 (FSE)

EN 09/2006 Modular conveyor

263

11.3.2.2 Connecting the Dual Conveyor Lifting Tables

X Remove the lifting table plate on conveyor lane 2 in PA1 and on lane 1 in PA2.

X Loosen the lockscrew(s) (4) and use a screwdriver to push the hexagonal circlip over the shaft on

lifting table 1.

X Do this for lifting tables in all placement areas. (lifting tables in the PA’s 180° turned.)

X Configure the new conveyor mode in SIPLACE Pro

11.3.2.3 Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode

X Select the SITEST conveyor menu "Option and configuration" and then click on

Widen conveyor

to set the standard conveyor mode.

X The flexible conveyor side of conveyor 1 (right side fixed (track 1 left side fix)) is moved to a small

conveyor width.

X The SITEST SW ask to disconnect the lifting tables - Do so-.

X The SITEST SW will now use the conveyor control SW to move the fixed side of conveyor 2 (right

side is fixed (lane 1 left side fixed)) back to its standard position. Check the distances between the

two fixed conveyor lanes. (see Section 11.4.2.1 Widening the Conveyor (Flexible Dual Conveyor for

Single Conveyor Mode) [J 268]).

X Now adjust conveyor width of both tracks to desired values.

NOTE:

This option is only a mechanical function when you use the dual conveyor as

an single conveyor. The two lifting tables move parallel when they are

connected.

 The drive shaft (1) is connected to the piston

rod of the pneumatic cylinder. This shaft

couple the second lifting table of the dual

conveyor. The lifting table drive shaft also has

an additional rod with a hexagonal circlip.

They secure the sleeve shaft in the desired

position.

 Direction of transport (2)

 Direction (3) in which the hollow shaft from

lifting table 2 (1 in PA 2) is to be moved to lifting

table 1 (2 in PA 2).

 Lock screws (4)

NOTE:

When converting the dual conveyor to a single conveyor (flexible dual conveyor,

connect the lifting tables when requested to do so by SITEST (we recommend

doing this without compressed air supply to the lifting table).

This function is supported by SIPLACE Pro.
