11.4 Conveyor Control
11.4.1 Jumper Settings for Conveyor Control TSP 301
11.4 - 1: Jumper positions for conveyor control 301
Modular conveyor
Jumper Settings for Conveyor Control TSP 301 Conveyor Control
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Modular conveyor
277
Legend

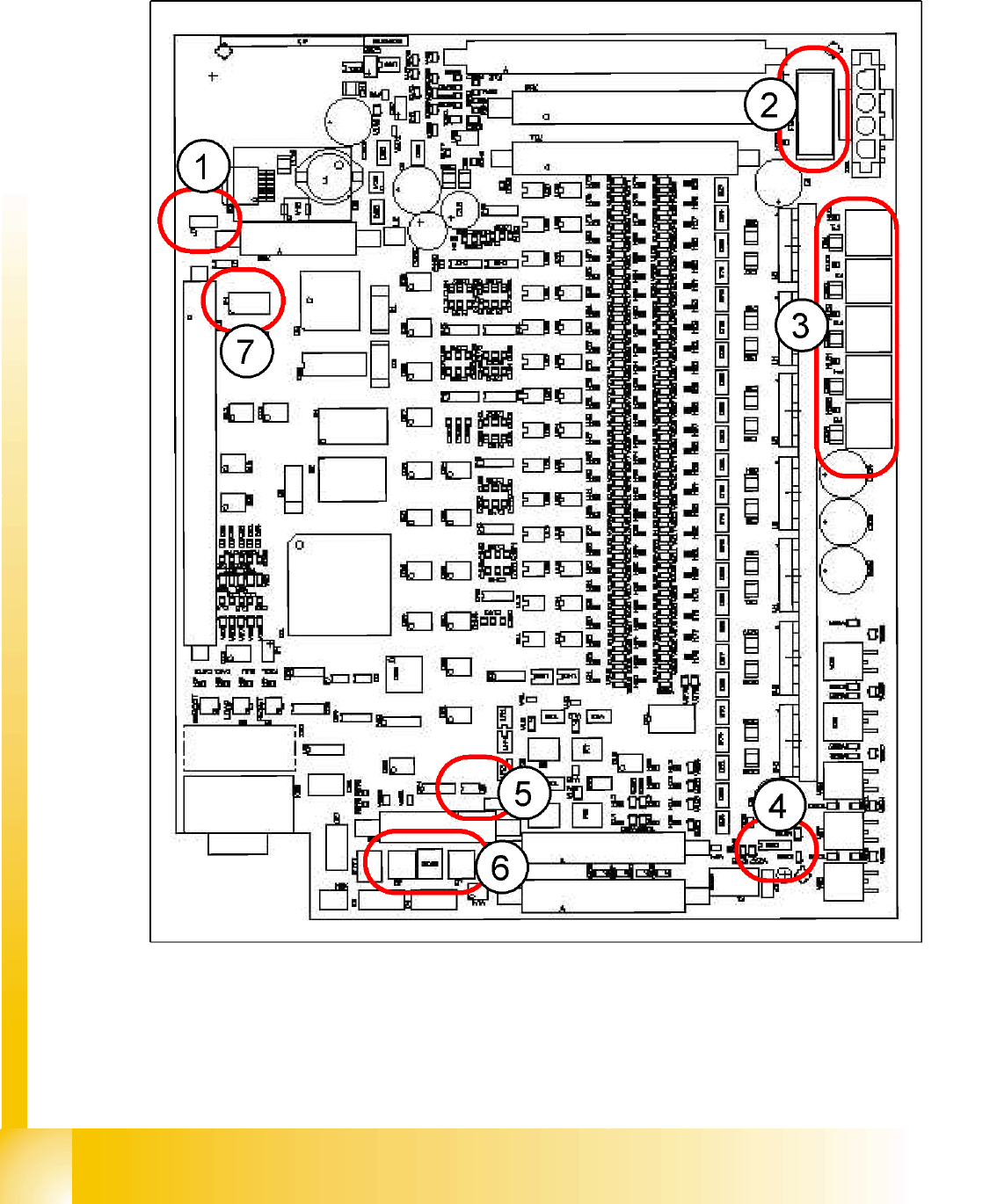

1 J7 CAN bus 1 terminating resistor 5 J6 CAN bus 2 terminating resistor (not used)
2 F6 Main Fuse TSP 301 6 J2, J1 successor/predecessor station
3 F1 - F5 Fuses for the conveyor motors 7 S4 DIL switch
4 J3 interference loop
Legend:
J1 predecessor station
J2 successor station
J3 interference loop
J6 CAN bus 2 terminating resistor (not used)
J7 CAN bus 1 terminating resistor
Legend:

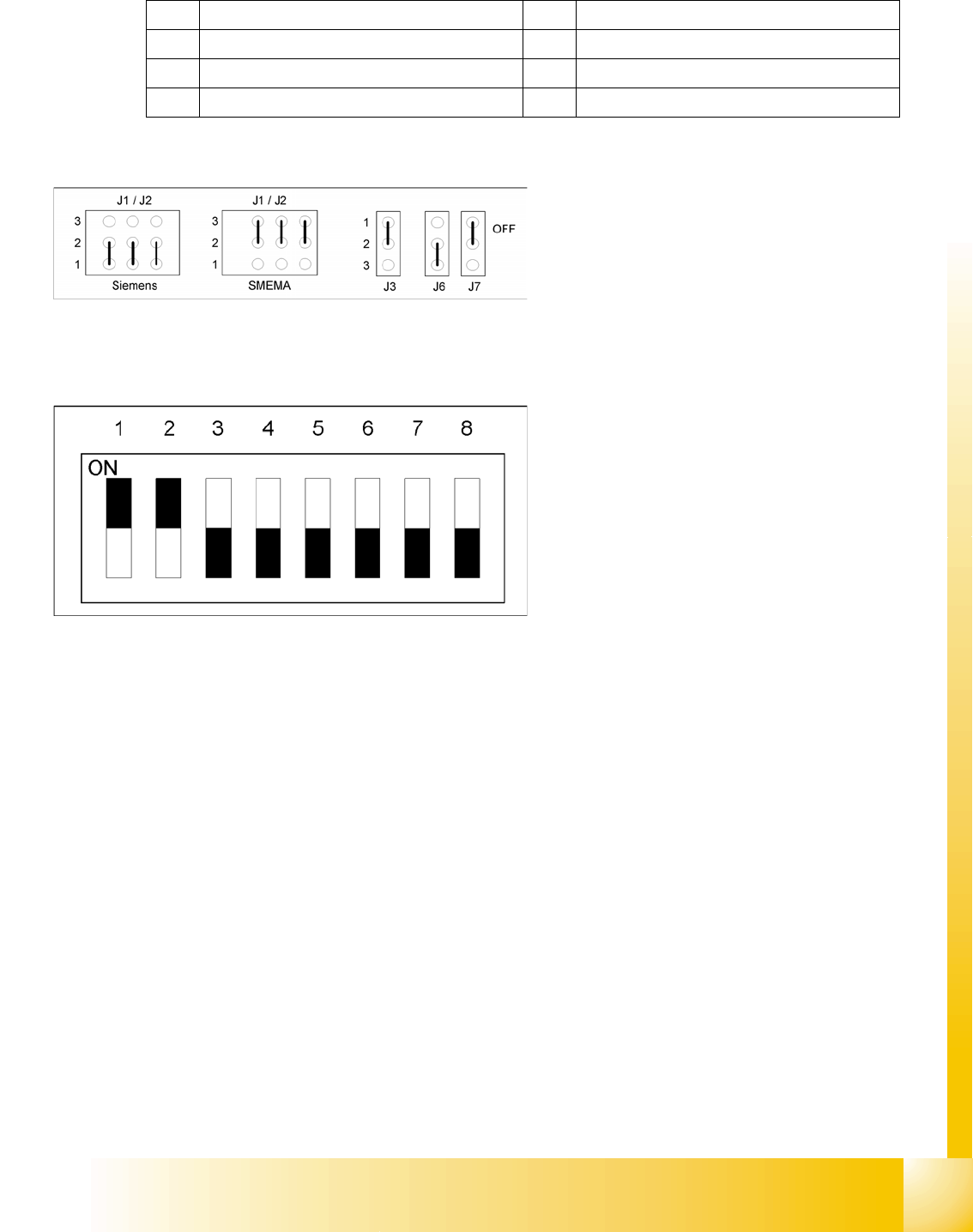

1-2: This DIP switch sets the hardware ID 5 for
the SIPLACE D machine conveyors.
3: . (This DIP switch is for disabling/enabling
the clamping sensor.)
4-8: .
Modular conveyor
Conveyor Control Transport control board TSP 301 with Siemens interface(Option)
Student Guide SIPLACE D4 (FSE)
Modular conveyor EN 09/2006
278
11.4.2 Transport control board TSP 301 with Siemens interface(Option)
WARNING: Destruction of the TSP
board!
The 10 pin Locking clip plug of
SMEMA connections must be
disconnected from the TSP 301!
Application: no modification.
Following modification are necessary for using the
Siemens interface:
X JumperJ1 / J2: need to be moved (see
following diagram).
X Disconnect the connector X3 and X4 on the
TSP 301!
X Connect the Siemens interface cable on the
connector X1 and X2.
Legend:
1. 10-pin plug for SMEMA interface
X3: predecessor station
X4: successor station
2. Connection for Siemens interface
X1: predecessor station
X2: successor station
