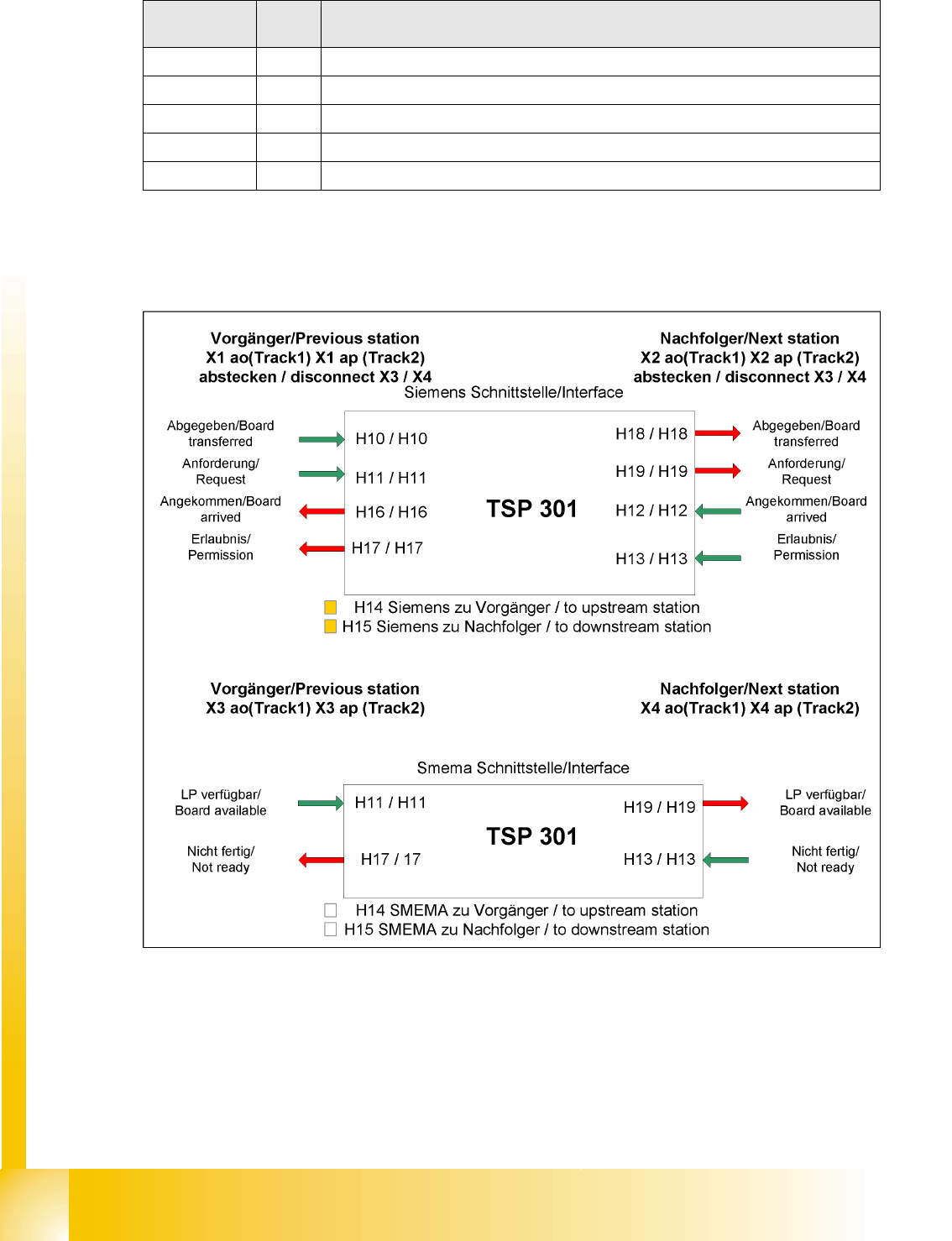

11.4.5 Siemens/SMEMA TSP 301 interface description
11.4 - 2: TSP 301 interface
H95 Out Option plug, placement area 2: Output 1
H96 Out Option plug, placement area 2: Output 2
H97 Out Option plug, placement area 2: Output 3
H98(ao) Out Barcode reader, track 1: Start signal
H99(ao) Out Barcode reader, track 2: Start signal
Display
/Display
I / O LED assignment
Modular conveyor
Siemens/SMEMA TSP 301 interface description Conveyor Control
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Modular conveyor
283
Sitest
Starting/Terminating the Test Program Overview SITEST
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Sitest
281
12 Sitest
12.1 Overview SITEST
SITEST is a program for testing the various functions of individual assemblies in the SIPLACE machines.
Overview of SITEST functions
General SITEST functions
Functions for machine settings
Functions for setting the dynamics of the axes
Calibration functions
Mapping functions
You can execute these functions using SITEST. You will find information on how to do this and details
on the interfaces in this chapter, software instruction for Sitest and by using the online Help function while
working with SITEST. In addition, you will find a number of practical examples described in the online
Help system.
12.1.1 Starting/Terminating the Test Program
12.1.1.1 Starting
X Click on the in the main menu of the SIPLACE user interface. SITEST will be started.
X The main view of the user interface of the test program will appear on the screen shortly afterwards.
WARNING:
The SITEST test program may only be used by SIEMENS AG staff or specially
trained customer personnel. Improper use of this test program will result in
severe damage to the machine and will pose a hazard to the operating
personnel.
X Confirm this message with
YES
.
