Sitest
Starting/Terminating the Test Program Overview SITEST
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Sitest
281
12 Sitest
12.1 Overview SITEST
SITEST is a program for testing the various functions of individual assemblies in the SIPLACE machines.
Overview of SITEST functions
General SITEST functions
Functions for machine settings
Functions for setting the dynamics of the axes
Calibration functions
Mapping functions
You can execute these functions using SITEST. You will find information on how to do this and details
on the interfaces in this chapter, software instruction for Sitest and by using the online Help function while
working with SITEST. In addition, you will find a number of practical examples described in the online
Help system.
12.1.1 Starting/Terminating the Test Program
12.1.1.1 Starting
X Click on the in the main menu of the SIPLACE user interface. SITEST will be started.
X The main view of the user interface of the test program will appear on the screen shortly afterwards.
WARNING:
The SITEST test program may only be used by SIEMENS AG staff or specially
trained customer personnel. Improper use of this test program will result in
severe damage to the machine and will pose a hazard to the operating
personnel.

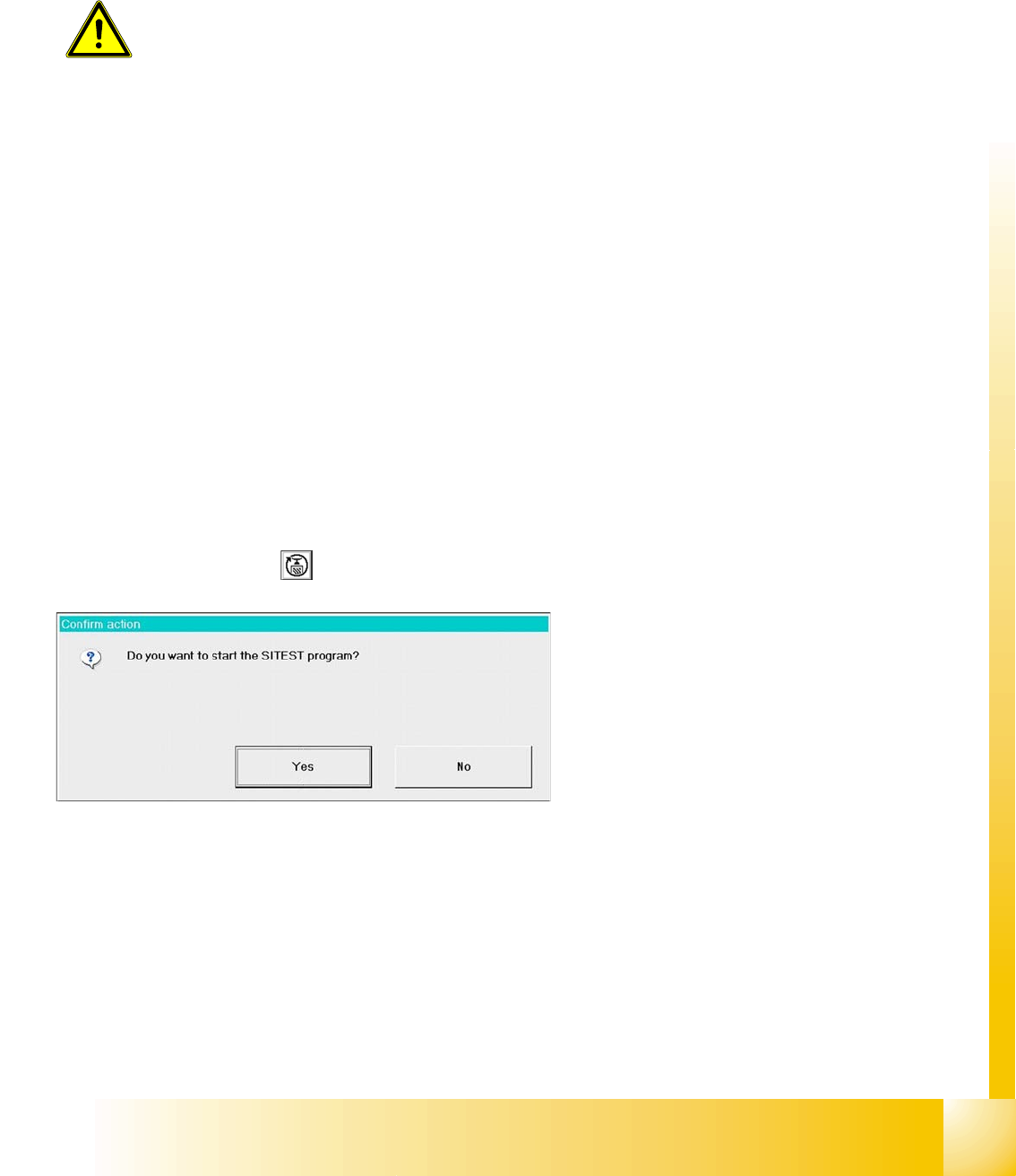

X Confirm this message with
YES
.
Sitest
Overview SITEST Starting/Terminating the Test Program
Student Guide SIPLACE D4 (FSE)
Sitest EN 09/2006
282
12.1.1.2 Terminating
There are three ways of properly terminating the test program, i.e. either
Via the
Mode
menu and the menu item Exit,
or via the
ESC
button or by proceeding as follows:
X In the main view, click on the .
NOTE:
The
ESC
button is the only option which closes SITEST from every window.
NOTE:
If newly determined or edited machine data have not been saved yet, an
appropriate message will be displayed before exiting the program prompting
you to save the data (see example below).
X Click on
YES
to save the data and exit
SITEST or click on
No
if you do not want to
save the data. The following dialog will be
shown:
X Click on
YES
. SITEST will be closed.
