12.3.10.2 Function Firmware download
X Select
Settings
from the SITEST menu and then
Firmware
Download
.

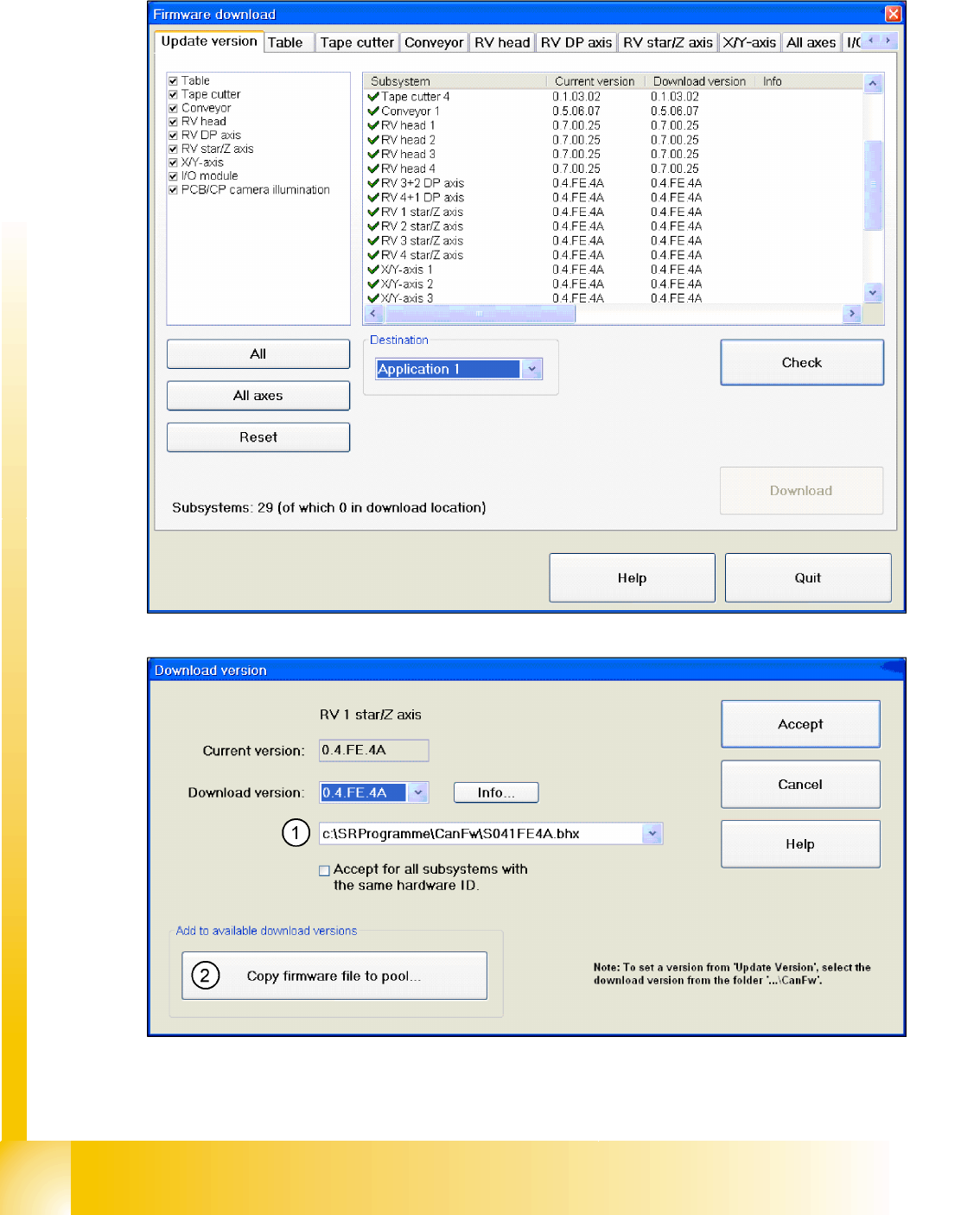

12.3 - 7: Overview of firmware download
12.3 - 8: Firmware download
In the Can FW folder there are all current Firmware versions of all axes, tables etc.
Sitest
New function in the Sitest program Basic description of all calibration steps
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Sitest
307
Legend
1. The system checks this folder, to see whether there is a newer version of the firmware for the
respective axis, table etc.. If there exist a new firmware version, this new version will be offered and
could be downloaded for example to the star- axis.
2. You can also copy a new firmware version manually into the CAN FW folder. Click on the
Copy firm-
ware file to pool
. An Explorer menu will open, in which you can directly copy the new firmware
version from a USB stick etc. into the CAN FW folder. This one inserted by you is now present in the
selection menu (see (1)).
12.3.10.3 Head Modularity for SIPLACE D4
X Select
Settings
from the SITEST menu and then
Head exchange
.
12.3.10.3.1 Head data
12.3 - 9: Head modularity - head data
Legend
1. Select and set the relevant head type for the head replacement.
2. Select and set the relevant camera type for the selected head type or head replacement.
3. Shows the data for the head installed. The current BIOS and application version, the head type and
the camera type of the installed head.
Sitest
Basic description of all calibration steps New function in the Sitest program
Student Guide SIPLACE D4 (FSE)
Sitest EN 09/2006
308
12.3.10.3.2 Axis data
12.3 - 10: Head modularity - axis data
Legend
1. This is where the axis data (Z and star axes) can be written from the head EPROM to the machine
data. You can also write the Z and star axis data from the machine data to the head EPROM.
