Overview
General Overview of Assemblies Configuration SIPLACE D4
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
42
3.2 General Overview of Assemblies

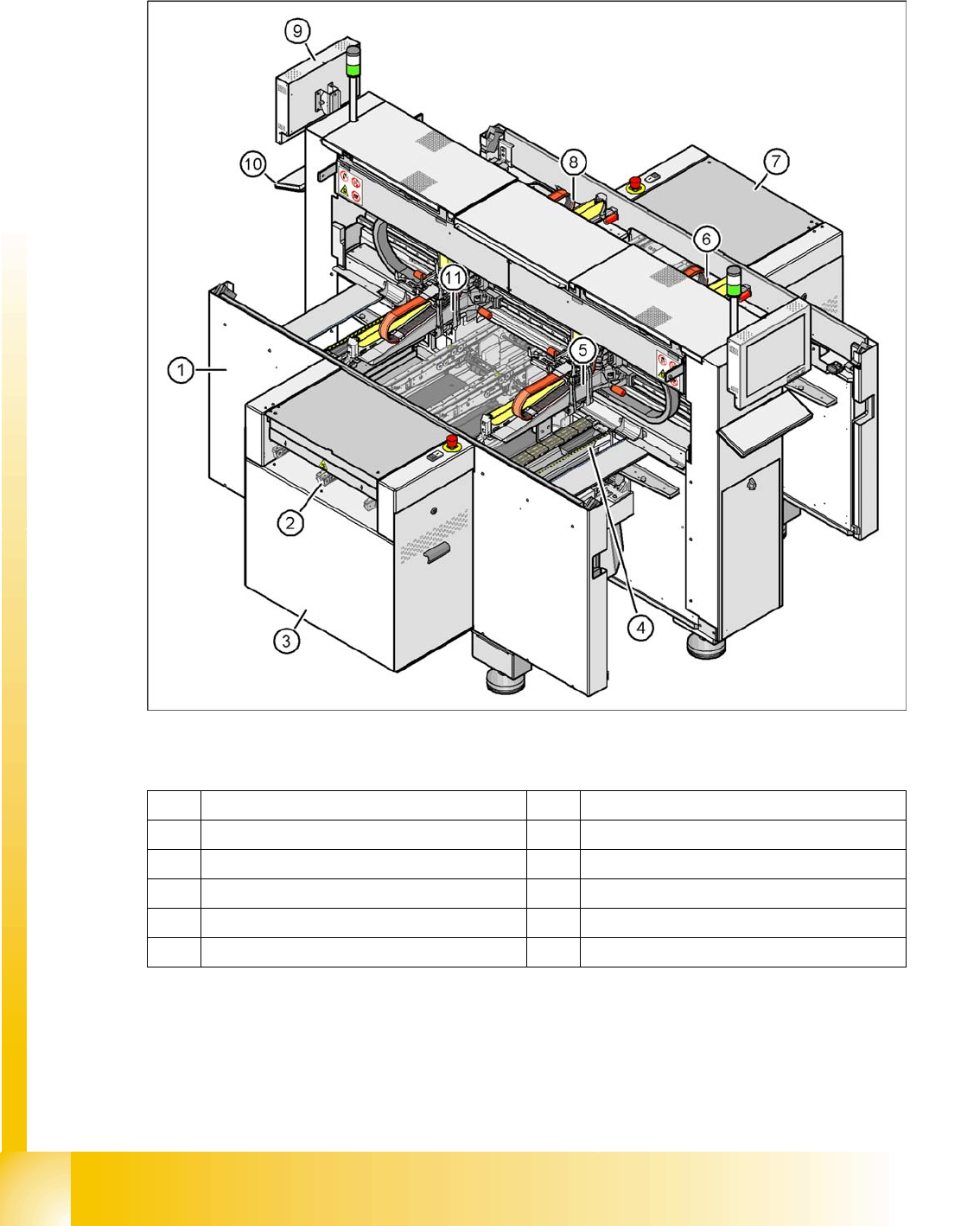

3.2 - 1: Overview of the modules
Legend
1 Machine frame 7 Extension kit on the PCB output side
2 PCB conveyor (flexible dual conveyor) 8 Gantry 3
3 Extension kit on the PCB input side 9 Monitor (2x)
4 Tape cutter , empty tape duct (4x) 10 Keyboard (2x)
5 Gantry 1 11 Gantry 4
6 Gantry 2
Overview
Sectors General Overview of Assemblies
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Overview
43
3.2.1 Sectors
Sector 1:
Transport control CC 301
CAN interface CAN Bus baudrate 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 1
Vision DC/DC converter illumination digital camera gantry 1 - 4 (03002280-02)
Terminal X100 power supply
Pneumatic switch for CO table 1
Sector 2:
CAN I/O module 2 with CAN interface 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 2
2x fuse 24 V
Relay K1 station – compressed air shutoff
Terminal X200 power supply
Pneumatic switch for CO table 2
Sector 3:
CAN interface CAN Bus baudrate 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 3
Terminal X300 power supply
Pneumatic switch for CO table 1

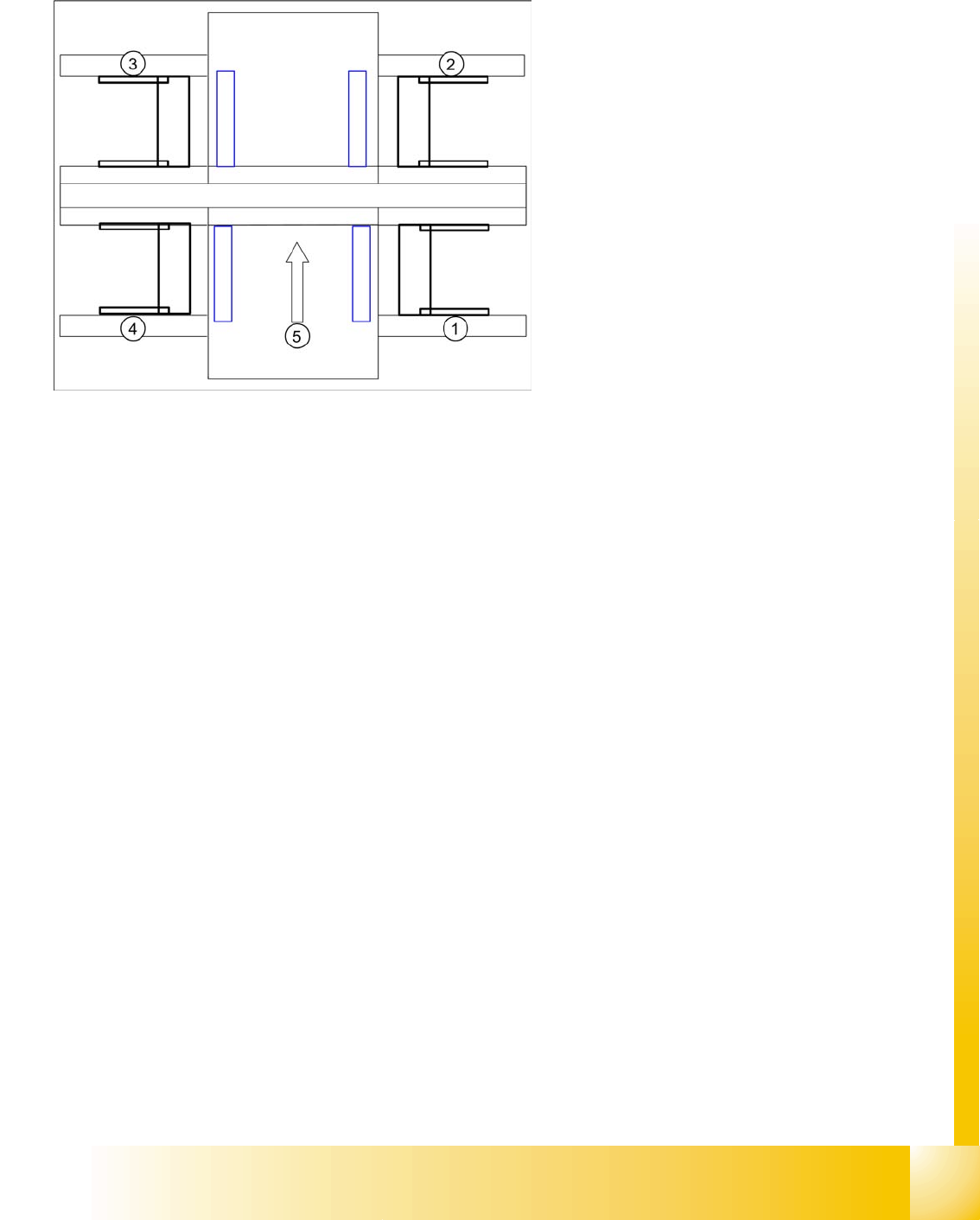

Legend:
1. Sector 1
2. Sector 2
3. Sector 3
4. Sector 4
5. Transport direction
Overview
General Overview of Assemblies Axis Unit and Computer Unit
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
44
Sector 4:
CAN I/O module 2 with CAN interface 500 KBit/s for S tables
Assembly A3 CAN terminating resistor for S table location 4
2x fuse 24 V
Terminal X400 power supply
Pneumatic switch for CO table 1
3.2.2 Axis Unit and Computer Unit
Axis unit 1 – installation set on the PCB input side:
Servo board X, Y, star, Z, DP for PA1
3x Axis board A364
2x power supply 5 V/15 A, +/-15 V
Computer unit
Box PC with CD-ROM drive (SR, SIPLACE Vision)
Micro Box PC (MC)
Multiplexer
USB hub
Axis unit 2 – installation set on the PCB output side:
Servo board X, Y, star, Z, DP for PA2
3x Axis board A364
2x power supply 5 V/15 A, +/-15 V
Ballast circuit

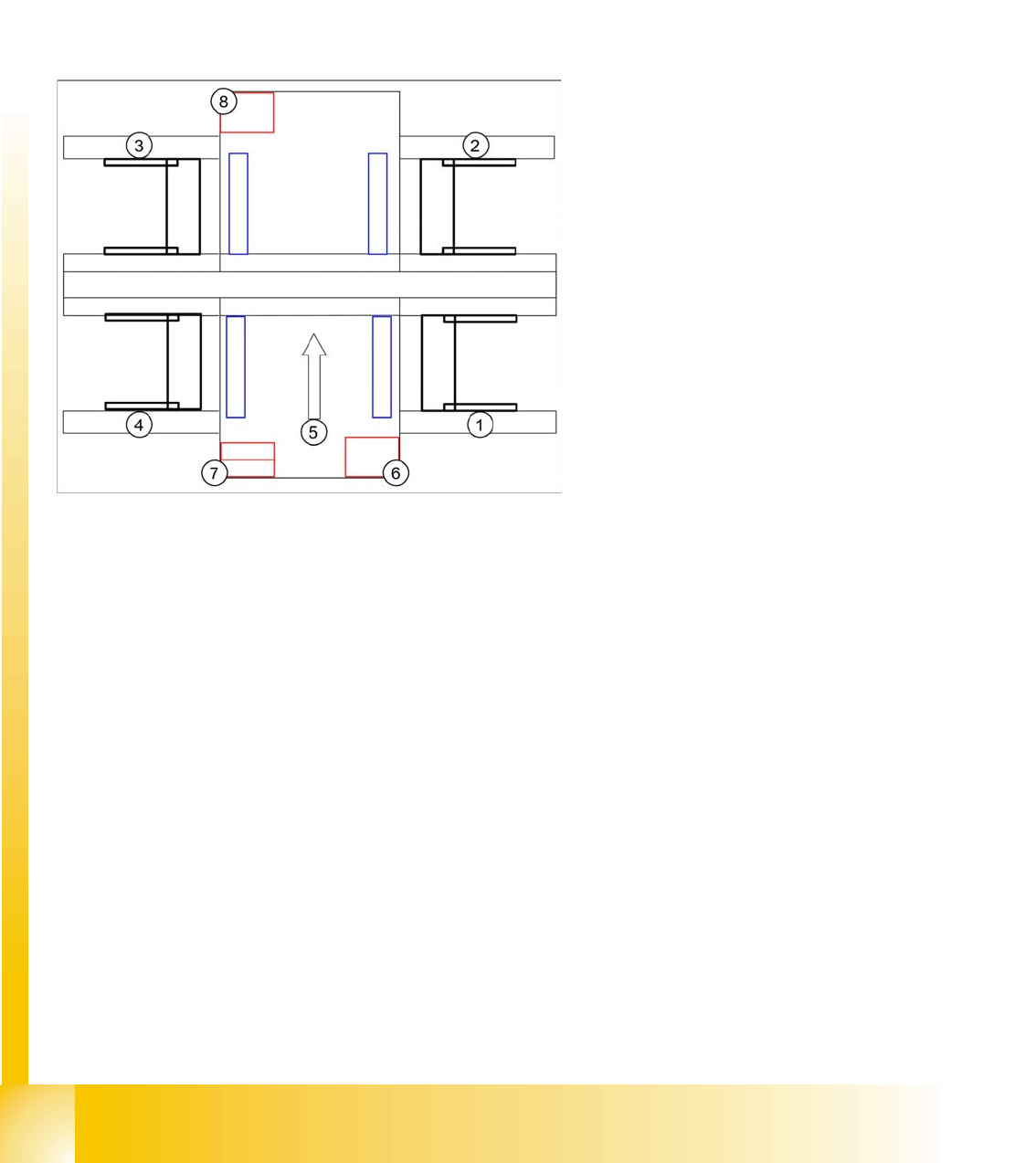

1. Sector 1
2. Sector 2
3. Sector 3
4. Sector 4
5. Transport direction
6. Axis unit 1
7. Computer unit
8. Axis unit 2
