Overview

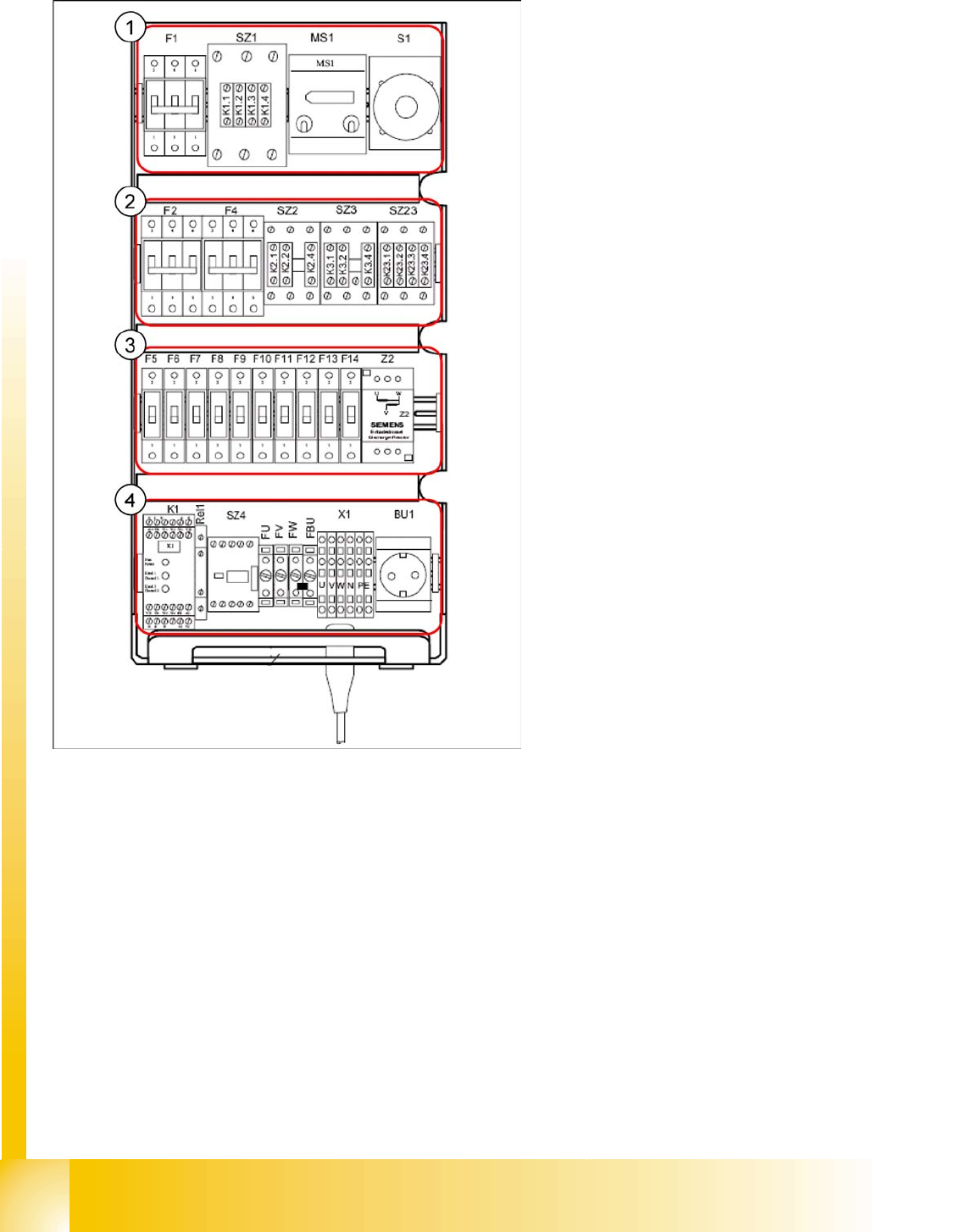

General Overview of Assemblies Power Supply Unit
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
50
Legend:
1. F1: 3x 230 V AC
SZ1: main contactor
MS1: Motor protection switch
S1: main switch
2. F2: 220 V AC for 5 V power supply
F4: 3x 140 VAC X/Y axes
SZ2,SZ3, SZ23: auxiliary contactors U,V,W for
X/Y servos
3. F5: 150 V DC star axis servo
F6: 40 V DC Z/DP axis servo
F7: 40 V DC CO table
F8: 40 V DC PCB handling (conveyor)
F9: 8 V DC CO table
F10: 48 V DC Vision illumination
F11: 24 V DC terminal strip distributor 2/4
F12: 24 V DC Microbox PC (MC)/control "ON"
(K1)
F13: 24 V DC Box PC (SR)/axis unit 1/2
F14: 24 V DC conveyor control (CC 301)/
monitors
Z2: discharge inductor
4. K1: protective contactor combination
Relay1: control ON - button
SZ4: control ON - software
FU: fuse 6.3 AT 220 VAC to GND
FV: fuse 6.3 AT 220 VAC to GND
FW: fuse 6.3 AT 220 VAC to GND
FBU: fuse 6.3 AT 220 VAC to GND
X1: feed in - terminal strip
BU1: service socket
Overview
Changeover Table Components General Overview of Assemblies
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Overview
51
3.2.5 Changeover Table Components
3.2.5.1 Setting the Height of the CO Table
The CO table can be manually set to the following PCB transport heights
830 mm PCB transport height
900 mm PCB transport height
930 mm PCB transport height
950 mm PCB transport height
Legend:
1. CO table location 1
2. CO table location 2
3. CO table location 3
4. CO table location 4
5. Transport direction
6. The button for docking and undocking the CO
changeover tables is located under the feeder
cover flap of each CO table
7. Switch to lower the table after undocking
Legend:
1. Feeder table plate
2. Communication unit
3. Tape container
4. Waste container for tape cuttings
Overview
General Overview of Assemblies Changeover Table Components
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
52
3.2.5.2 Overview of S-Feeder
Description: 9 different feeders are enough to process tapes with widths from 8 to 88 mm. The tape reels
on the feeder are taken up by the CO trolley tape container. The cutter then cuts up the empty tape
automatically. SIPLACE feeders are known for their short cycle times and highly accurate pickup
positions.
These feeders can also be used in other SIPLACE placement machines.
In addition to the tape feeders, bulkcase feeders, linear feeders, surftape feeders, Dipflux modules, CO
reject conveyors and manual trays can also be used. To protect the operators, unoccupied locations can
be equipped with so-called dummy modules.
3.2 - 6: Overview of standard feeders
