Overview
General Overview of Assemblies Gantry
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
54
3.2.6.2 Structure of the X axis

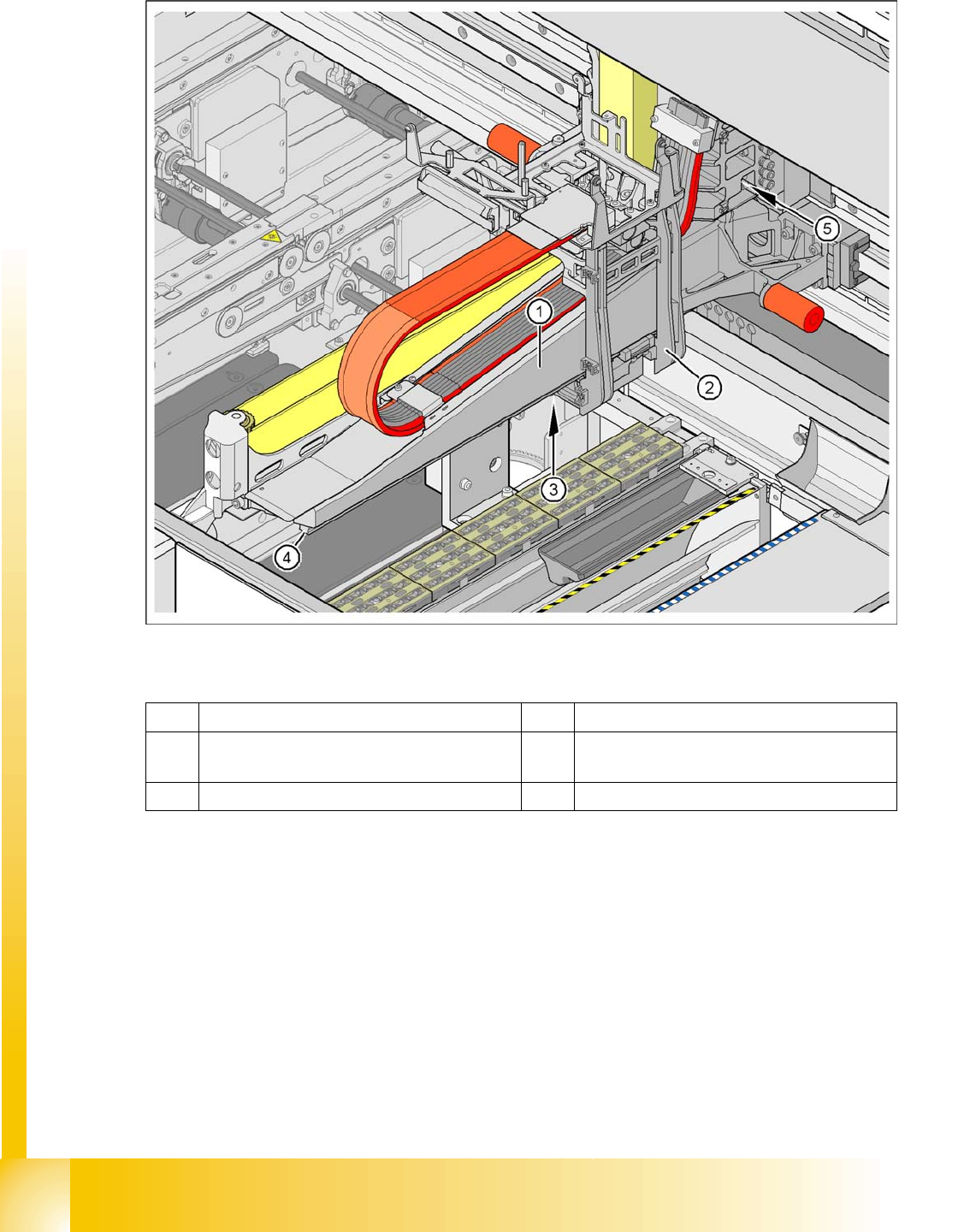

3.2 - 7: X-axis construction
Legend
The following modules are installed on the head holder:
PCB camera
Gantry head distributor
Vision board
16 bit processor board (TQ module)
Incremental encoder
C&P12
1 Gantry arm 4 X-axis guidance system
2 Head holder 5 Three-phase current servo motor with toothed
belt
3 Linear measuring system
Overview
Gantry General Overview of Assemblies
Student Guide SIPLACE D4 (FSE)
EN 09/2006 Overview
55
3.2.6.2.4 X-Axis Technical Data
3.2.6.3 Structure of the Y axis

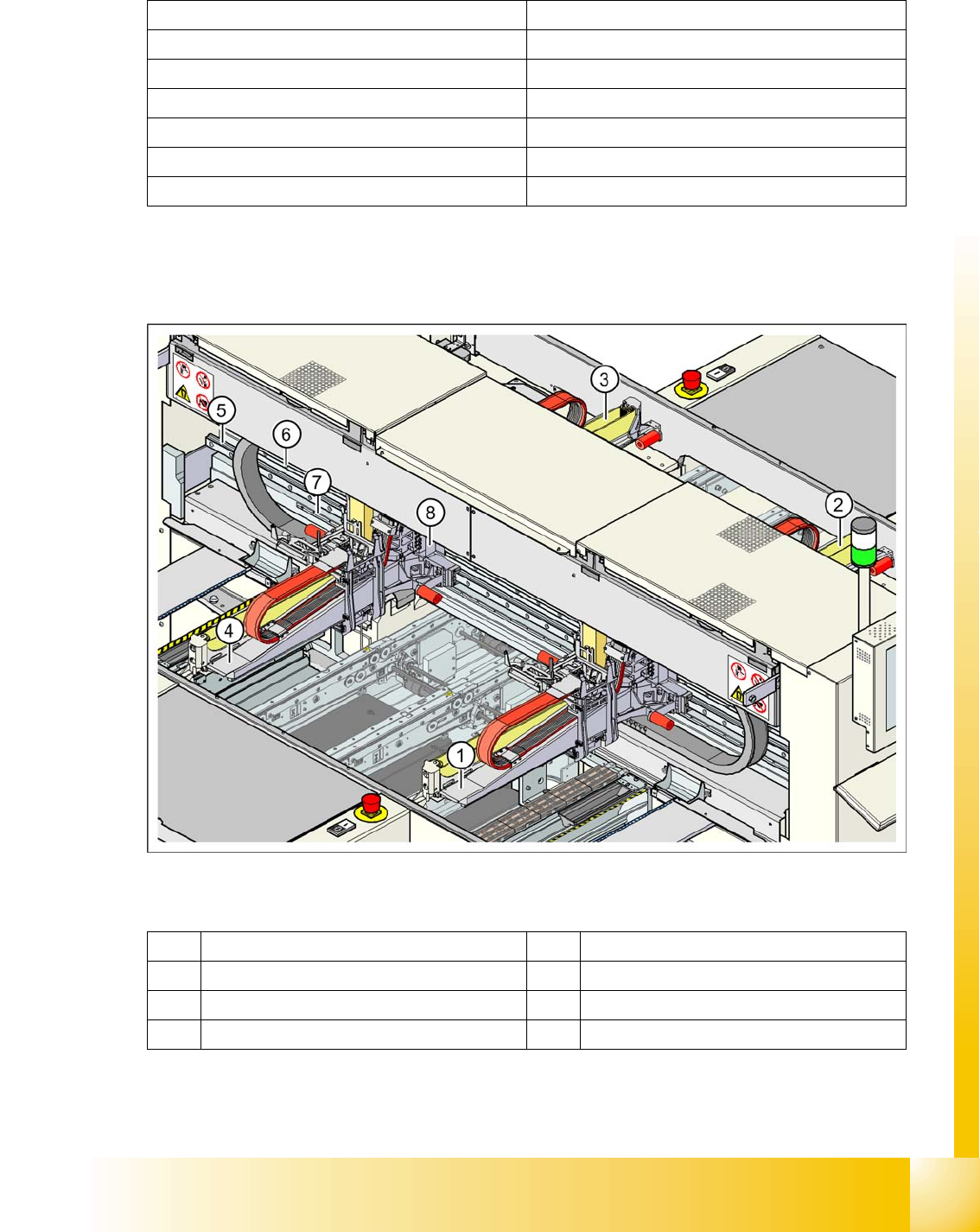

3.2 - 8: Y-axis construction
Legend
Drive Three-phase current servo motor/toothed belt
Maximum speed 2.5 m/sec.
Traversing path 375 mm
Distance measuring system Incremental scale
Measurement length 400 mm
Scale length 420 m
Resolution 1 µm
1 Gantry 1 5 Guide system
2 Gantry 2 6 Linear motor secondary part
3 Gantry 3 7 Measuring system
4 Gantry 4 8 Linear motor primary part
Overview
General Overview of Assemblies Gantry
Student Guide SIPLACE D4 (FSE)
Overview EN 09/2006
56
3.2.6.3.5 Y-Axis Technical Data
Drive Direct, linear motor
Maximum speed 2.5 m/sec.
Travel path of gantries, calculated from the center of
the machine
Gantry 1 - 688.5 mm
Gantry 2 - 768.5 mm
Gantry 3 - 688.5 mm
Gantry 4 - 768.5 mm
Distance measuring system Incremental scale
Scale length 1530 mm
Resolution 1 µm
