PCB Libraries Presents:
What is New in IPC-7351C
• Local Fiducials have been used only on fine pitch QFP and BGA
Land Patterns
• Fine pitch QFP = Less than 25 mil (0.635 mm) pitch
• Fine pitch BGA = Less than 32 mil (0.8 mm) pitch
• Future Local Fiducial sizes will be:
• Level A (Most) = 40 mil (1.0 mm) with 80 mil (2.0 mm) solder mask & keep-out
• Level B (Nominal) = 30 mil (0.75 mm) with 60 (1.5 mm) solder mask & keep-out
• Level C (Least) = 20 mil (0.5 mm) with 40 mil (1.0 mm) solder mask & keep-out
3-Tier Local Fiducials
PCB Libraries Presents:
What is New in IPC-7351C

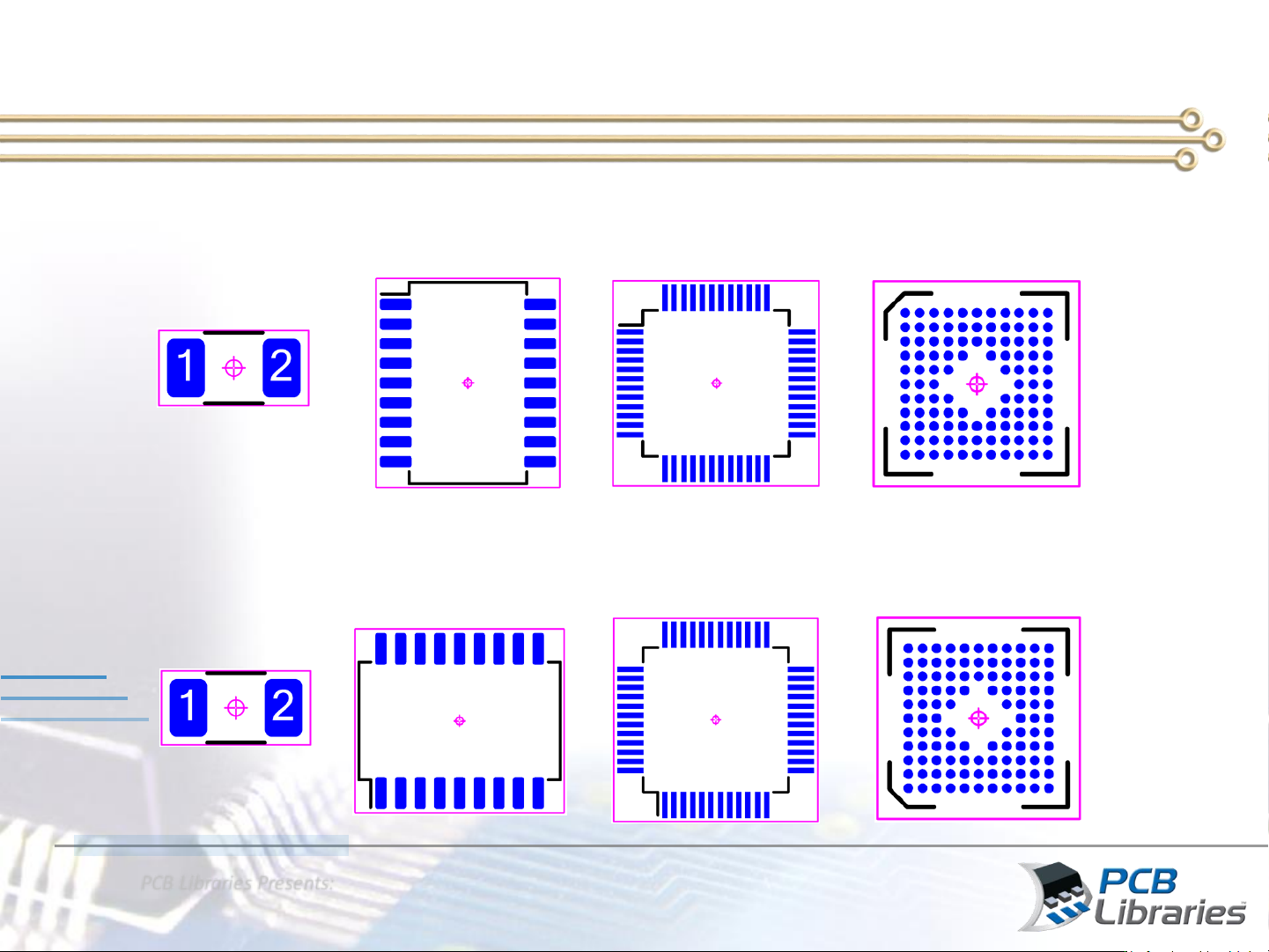

Zero Orientation with Pin 1 in Upper Left Corner Introduced
in 2007 in the IPC-7351A Publication – IPC-7351C “Level A”
Zero Orientation with Pin 1 in Lower Left Corner Introduced
in 2009 in the IEC 61188-7 publication – IPC-7351C “Level B”
Zero Component Orientation – Levels A & B
PCB Libraries Presents:
What is New in IPC-7351C

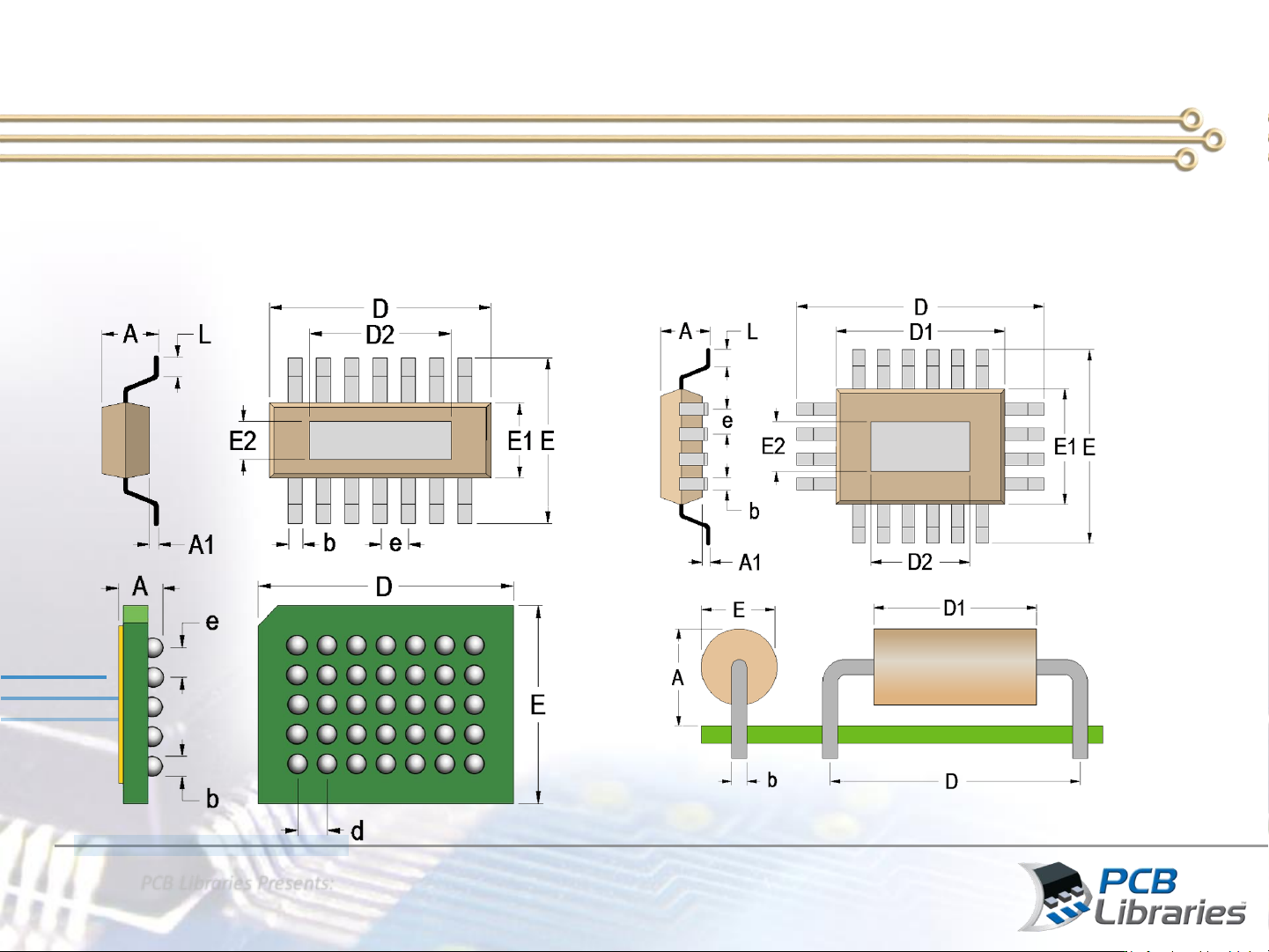

EIA Component Dimensions vs: JEDEC
Dimensional Letters
EIA & JEDEC
