700 & 400 Series Dispensing Components

400 Series Disposable Dispensing Components

The 400 Series disposable syringes and components are available in a variety of styles to meet a wide range of applications.

Sold in bulk packages only.

Syringe Barrels

Barrels are molded from polypropylene.

Standard style is Luer lock. Luer slip and

taper tip styles are also available,

however minimum quantity, lead time

and pricing considerations apply. In

Natural color only (for black and amber

refer to page 4).

Part No. Description

F401L-1 400 Syringe Barrel 1cc Luer Slip

403LL-1 400 Syringe Barrel 3cc Luer Lock

406LL-1 400 Syringe Barrel 6cc Luer Lock

410LL-1 400 Syringe Barrel 10cc Luer Lock

435LL-1 400 Syringe Barrel 35cc Luer Lock

460LL-1 400 Syringe Barrel 60cc Luer Lock

Plungers

Part No. Description

403L-4 3cc Plunger

406L-4 6cc Plunger

410L-4 10cc Plunger

435L-4 35cc Plunger

460L-4 60cc Plunger

Stoppers

Rubber stoppers listed are not lubricated. For

lubricated stoppers add -LUB to the part number.

Part No. Description

401L-2 1cc Rubber Stopper, Manual

403L-2 3cc Rubber Stopper, Manual

406L-2 6cc Rubber Stopper, Manual

410L-2 10cc Rubber Stopper, Manual

435L-2 35cc Rubber Stopper, Manual

403L-7 3cc Plastic Wiper Stopper, Manual

406L-7 6cc Plastic Wiper Stopper, Manual

410L-7 10cc Plastic Wiper Stopper, Manual

435L-7 35cc Plastic Wiper Stopper, Manual

401L-2 1cc Rubber Stopper, Air Powered

403L-2 3cc Rubber Stopper, Air Powered

406L-8 6cc Rubber Stopper, Air Powered

410L-8 10cc Rubber Stopper, Air Powered

435L-8 35cc Rubber Stopper, Air Powered

403L-9 3cc Plastic Wiper Stopper, Air Powered

406L-9 6cc Plastic Wiper Stopper, Air Powered

410L-9 10cc Plastic Wiper Stopper, Air Powered

435L-9 35cc Plastic Wiper Stopper, Air Powered

460L-9 60cc Plastic Wiper Stopper, Air Powered

Manual Plungers and Pistons

for 700 Series Syringe Barrels

The new manual syringe assemblies provide simple and quick

dispensing solutions without the need for compressed air. Molded

from Polypropylene resin, manual plungers are compatible with a

wide range of dispensing fluids. Pistons are made from thermoplastic

rubber and are available dry or with lubrication. Sold in packs of 50.

Part No. Description

030004PPK 700 Manual Plunger, 3cc

030002MPK 700 Manual Piston Rubber, 3cc

7030002M-LUBPK 700 Manual Piston Rubber, Lub, 3cc

7050004PPK 700 Manual Plunger, 5cc

7050002MPK 700 Manual Piston Rubber, 5cc

050002M-LUBPK 700 Manual Piston Rubber,Lub, 5cc

100004PPK 700 Manual Plunger, 10cc

7100002MPK 700 Manual Piston Rubber, 10cc

7100002M-LUBPK 700 Manual Piston Rubber, Lub, 10cc

7300004PPK 700 Manual Plunger, 30cc

7300002MPK 700 Manual Piston Rubber, 30cc

7300002M-LUBPK 700 Manual Piston Rubber, Lub, 30cc

See pages 4 and 5 for syringes and tip caps

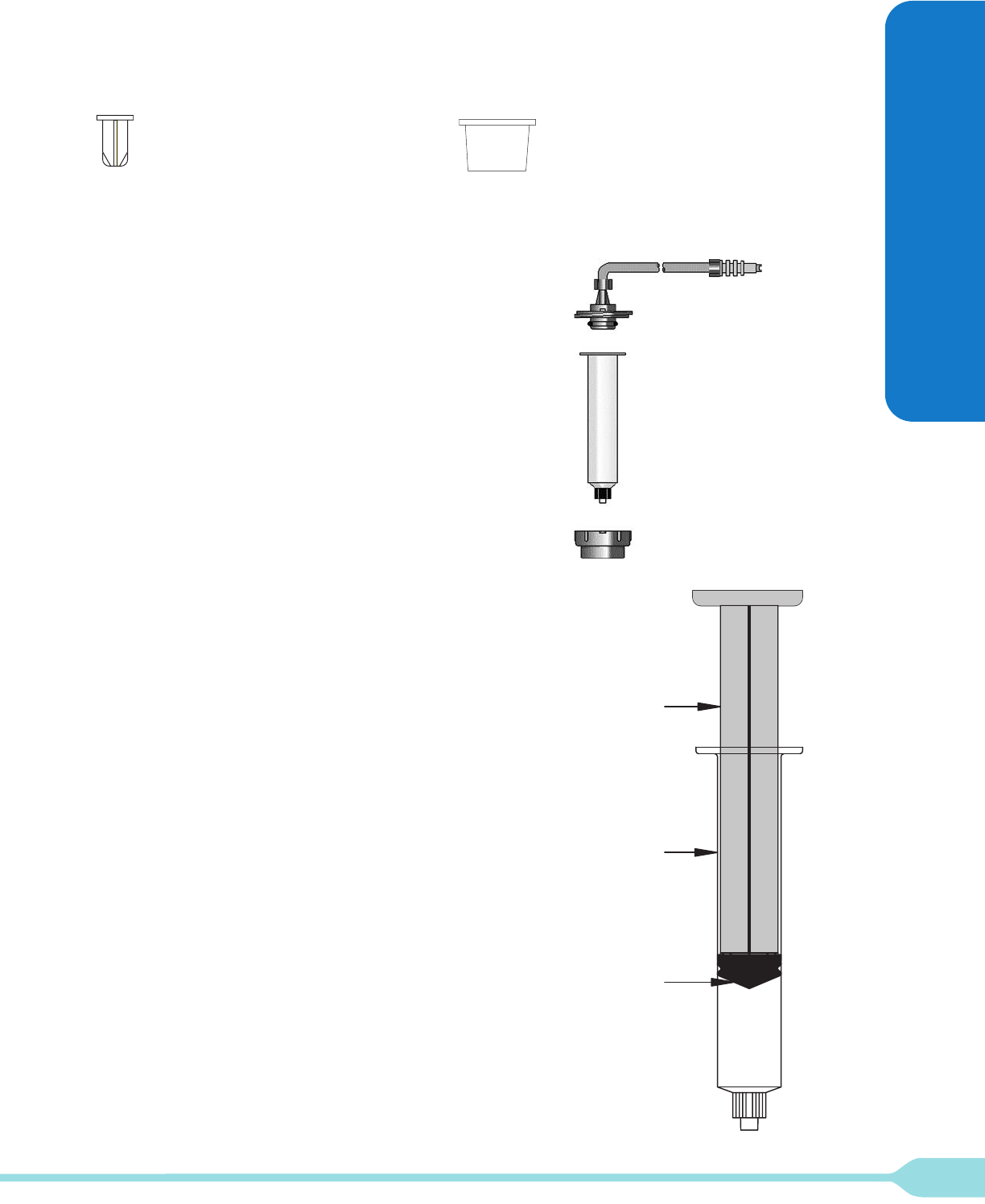

400 Series Manual Syringe Components

PLUNGER

SYRINGE BARREL

STOPPER

400 Series Disposable Dispensing Components

The 400 Series disposable syringes and components are available in a variety of styles to meet a wide range of applications.

Sold in bulk packages only.

Tip Caps

art No. Description

15LL Luer Lock Tip Cap

15LL-B Black Luer Lock Tip Cap

End Caps

Part No. Description

S5 6cc End Cap

S7 10cc End Cap

Receiver Head Assemblies

The connecting link between time/pressure controllers and syringe

assemblies, Receiver Head Assemblies provide a safe connection

between receiver head and syringe barrel for accident proof dispensing.

Receiver Head Assemblies come with no tubing (-R), 3 feet of tubing (-3)

or 6 feet of tubing (-6).

400 Series Receiver Head Assemblies

Part No. Size

00-250-3, -6 or -R 1cc

00-350-3, -6 or -R 3cc

900-550-3, -6 or -R 6cc

900-650-3, -6 or -R 10cc

00-950-3, -6 or -R 35cc

900-1150-3, -6 or -R 60cc

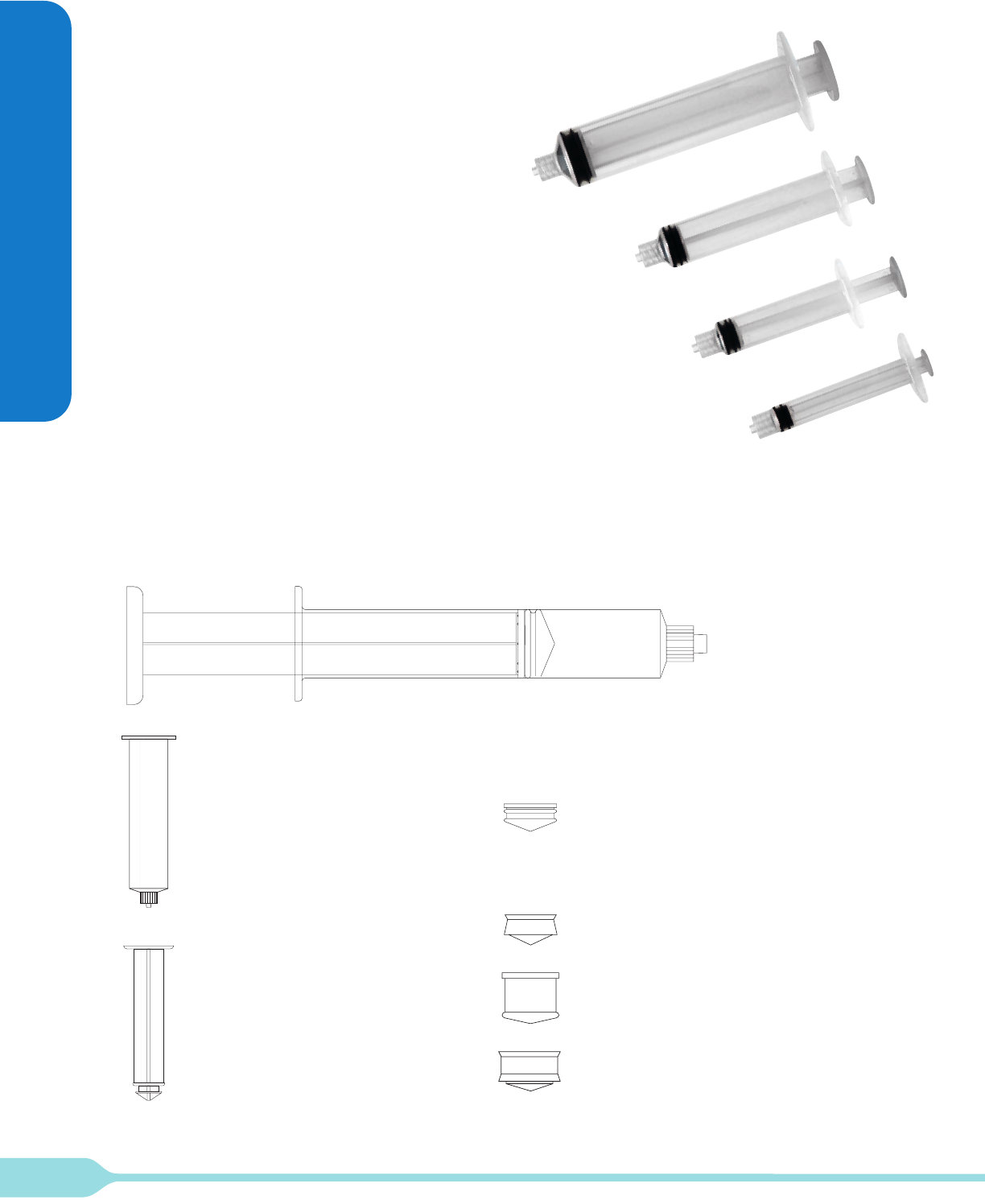

400 Series Manual Syringe Components

Syringe barrels and plungers are molded from polypropylene; stoppers are molded from

polyethylene (-7) or thermoplastic rubber (-2). Plunger locks to the stopper for smooth,

controlled manual dispensing. Use of a tip cap will seal the delivery end of the syringe

barrel when not dispensing.

Manual Syringes with Rubber Stoppers

Barrels and plungers are molded from polypropylene. Stoppers are molded from

thermoplastic rubber.

Size Syringe Stopper Plunger

3cc 403LL-1 403L-2 403L-4

6cc 406LL-1 406L-2 406L-4

10cc 410LL-1 410L-2 410L-4

35cc 435LL-1 435L-2 435L-4

Manual Syringes with Plastic Stoppers

Barrels and plungers are molded from polypropylene. Stoppers are molded from

polyethylene for better chemical compatibility.

Size Syringe Stopper Plunger

3cc 403LL-1 403L-7 403L-4

6cc 406LL-1 406L-7 406L-4

10cc 410LL-1 410L-7 410L-4

35cc 435LL-1 435L-7 435L-4

Dispensing Tips

Luer Lock

Single

Thread

Molded Hub

Locking

Insert

Stainless Steel

Cannula

TS Series

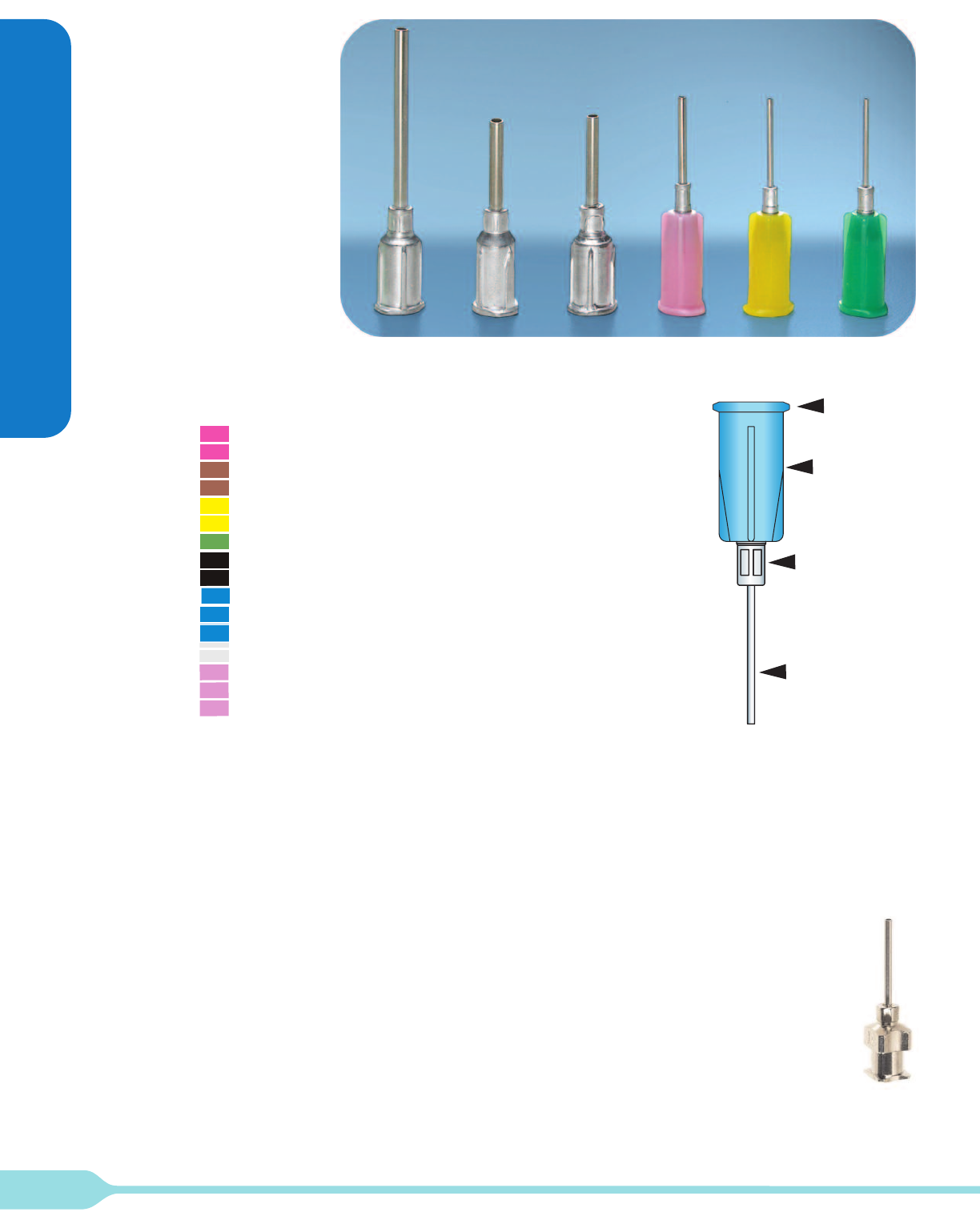

Dispensing Tips

The TS Series Dispensing Tips offer a

variety of dispensing performance and

flexibility options. Stainless steel

tubing is cut to precise lengths and

ground to be burr-free. Cut tubing is

crimped into aluminum locking insert,

then molded into polyethylene hubs.

Molded hub colors correspond to

gauge size. All TS Series tips secure

to Techcon Systems syringe barrels

and correspond to the Luer lock

specification.

Part Number International Gauge I.D. I.D. Length Length

Hub Color (inches) (mm) (inches) (mm)

TS18-1/2-1000 Pink 18 0.033 0.838 0.5 12.7

S18-1-1000 Pink 18 0.033 0.838 1.0 25.4

TS19-1/2-1000 Brown 19 0.028 0.711 0.5 12.7

S19-1-1000 Brown 19 0.028 0.711 1.0 25.4

TS20-1/2-1000 Yellow 20 0.024 0.609 0.5 12.7

TS20-1-1000 Yellow 20 0.024 0.609 1.0 25.4

TS21-1/2-1000 Green 21 0.020 0.508 0.5 12.7

TS22-1/2-1000 Black 22 0.016 0.406 0.5 12.7

TS22-1-1000 Black 22 0.016 0.406 1.0 25.4

TS23-1/4-1000 Blue 23 0.013 0.330 0.25 6.35

TS23-1/2-1000 Blue 23 0.013 0.330 0.5 12.7

TS25-1/2-1000 Blue 25 0.010 0.254 0.5 12.7

TS27-1/4-1000 Grey 27 0.008 0.203 0.25 6.35

TS30-1/4-1000 Lavender 30 0.006 0.152 0.25 6.35

TS30-5/16-1000 Lavender 30 0.006 0.152 0.31 7.94

TS30-1/2-1000 Lavender 30 0.006 0.152 0.5 12.7

TS-M Metal Dispensing Tips

This series consists of a stainless steel cannula and

aluminium hub. Sold in bulk quantity of 500.

Part Number Gauge Length Length

(inches) (mm)

TS14-1/2M-500 14 0.5 12.7

TS14-1M-500 14 1.0 25.4

TS14-2M-500 14 2.0 50.8

TS15-1/2M-500 15 0.5 12.7

TS15-1M-500 15 1.0 25.4

TS15-1-1/2M-500 15 1.5 38.1

TS16-1M-500 16 1.0 25.4

TS-SS Metal Dispensing Tips

High precision and tolerance for use in automated applications. With stainless steel

cannula and nickel plated brass hub. Length of 1/2" (12.7mm). Sold in packs of 12.

Part Number Gauge I.D. (inches) I.D. (mm)

TS12SS-1/2PK 12 0.087 2.21

TS13SS-1/2PK 13 0.077 1.95

TS14SS-1/2PK 14 0.061 1.54

TS15SS-1/2PK 15 0.056 1.43

TS16SS-1/2PK 16 0.048 1.22

TS17SS-1/2PK 17 0.044 1.11

TS18SS-1/2PK 18 0.033 0.83

TS19SS-1/2PK 19 0.028 0.72

TS20SS-1/2PK 20 0.024 0.62

TS21SS-1/2PK 21 0.021 0.54

TS22SS-1/2PK 22 0.017 0.42

TS23SS-1/2PK 23 0.013 0.34

TS25SS-1/2PK 25 0.011 0.27

TS26SS-1/2PK 26 0.010 0.25

TS27SS-1/2PK 27 0.008 0.21

TS28SS-1/2PK 28 0.007 0.17
