400 Series Manual Syringe Components

PLUNGER

SYRINGE BARREL

STOPPER

400 Series Disposable Dispensing Components

The 400 Series disposable syringes and components are available in a variety of styles to meet a wide range of applications.

Sold in bulk packages only.

Tip Caps

art No. Description

15LL Luer Lock Tip Cap

15LL-B Black Luer Lock Tip Cap

End Caps

Part No. Description

S5 6cc End Cap

S7 10cc End Cap

Receiver Head Assemblies

The connecting link between time/pressure controllers and syringe

assemblies, Receiver Head Assemblies provide a safe connection

between receiver head and syringe barrel for accident proof dispensing.

Receiver Head Assemblies come with no tubing (-R), 3 feet of tubing (-3)

or 6 feet of tubing (-6).

400 Series Receiver Head Assemblies

Part No. Size

00-250-3, -6 or -R 1cc

00-350-3, -6 or -R 3cc

900-550-3, -6 or -R 6cc

900-650-3, -6 or -R 10cc

00-950-3, -6 or -R 35cc

900-1150-3, -6 or -R 60cc

400 Series Manual Syringe Components

Syringe barrels and plungers are molded from polypropylene; stoppers are molded from

polyethylene (-7) or thermoplastic rubber (-2). Plunger locks to the stopper for smooth,

controlled manual dispensing. Use of a tip cap will seal the delivery end of the syringe

barrel when not dispensing.

Manual Syringes with Rubber Stoppers

Barrels and plungers are molded from polypropylene. Stoppers are molded from

thermoplastic rubber.

Size Syringe Stopper Plunger

3cc 403LL-1 403L-2 403L-4

6cc 406LL-1 406L-2 406L-4

10cc 410LL-1 410L-2 410L-4

35cc 435LL-1 435L-2 435L-4

Manual Syringes with Plastic Stoppers

Barrels and plungers are molded from polypropylene. Stoppers are molded from

polyethylene for better chemical compatibility.

Size Syringe Stopper Plunger

3cc 403LL-1 403L-7 403L-4

6cc 406LL-1 406L-7 406L-4

10cc 410LL-1 410L-7 410L-4

35cc 435LL-1 435L-7 435L-4

Dispensing Tips

Luer Lock

Single

Thread

Molded Hub

Locking

Insert

Stainless Steel

Cannula

TS Series

Dispensing Tips

The TS Series Dispensing Tips offer a

variety of dispensing performance and

flexibility options. Stainless steel

tubing is cut to precise lengths and

ground to be burr-free. Cut tubing is

crimped into aluminum locking insert,

then molded into polyethylene hubs.

Molded hub colors correspond to

gauge size. All TS Series tips secure

to Techcon Systems syringe barrels

and correspond to the Luer lock

specification.

Part Number International Gauge I.D. I.D. Length Length

Hub Color (inches) (mm) (inches) (mm)

TS18-1/2-1000 Pink 18 0.033 0.838 0.5 12.7

S18-1-1000 Pink 18 0.033 0.838 1.0 25.4

TS19-1/2-1000 Brown 19 0.028 0.711 0.5 12.7

S19-1-1000 Brown 19 0.028 0.711 1.0 25.4

TS20-1/2-1000 Yellow 20 0.024 0.609 0.5 12.7

TS20-1-1000 Yellow 20 0.024 0.609 1.0 25.4

TS21-1/2-1000 Green 21 0.020 0.508 0.5 12.7

TS22-1/2-1000 Black 22 0.016 0.406 0.5 12.7

TS22-1-1000 Black 22 0.016 0.406 1.0 25.4

TS23-1/4-1000 Blue 23 0.013 0.330 0.25 6.35

TS23-1/2-1000 Blue 23 0.013 0.330 0.5 12.7

TS25-1/2-1000 Blue 25 0.010 0.254 0.5 12.7

TS27-1/4-1000 Grey 27 0.008 0.203 0.25 6.35

TS30-1/4-1000 Lavender 30 0.006 0.152 0.25 6.35

TS30-5/16-1000 Lavender 30 0.006 0.152 0.31 7.94

TS30-1/2-1000 Lavender 30 0.006 0.152 0.5 12.7

TS-M Metal Dispensing Tips

This series consists of a stainless steel cannula and

aluminium hub. Sold in bulk quantity of 500.

Part Number Gauge Length Length

(inches) (mm)

TS14-1/2M-500 14 0.5 12.7

TS14-1M-500 14 1.0 25.4

TS14-2M-500 14 2.0 50.8

TS15-1/2M-500 15 0.5 12.7

TS15-1M-500 15 1.0 25.4

TS15-1-1/2M-500 15 1.5 38.1

TS16-1M-500 16 1.0 25.4

TS-SS Metal Dispensing Tips

High precision and tolerance for use in automated applications. With stainless steel

cannula and nickel plated brass hub. Length of 1/2" (12.7mm). Sold in packs of 12.

Part Number Gauge I.D. (inches) I.D. (mm)

TS12SS-1/2PK 12 0.087 2.21

TS13SS-1/2PK 13 0.077 1.95

TS14SS-1/2PK 14 0.061 1.54

TS15SS-1/2PK 15 0.056 1.43

TS16SS-1/2PK 16 0.048 1.22

TS17SS-1/2PK 17 0.044 1.11

TS18SS-1/2PK 18 0.033 0.83

TS19SS-1/2PK 19 0.028 0.72

TS20SS-1/2PK 20 0.024 0.62

TS21SS-1/2PK 21 0.021 0.54

TS22SS-1/2PK 22 0.017 0.42

TS23SS-1/2PK 23 0.013 0.34

TS25SS-1/2PK 25 0.011 0.27

TS26SS-1/2PK 26 0.010 0.25

TS27SS-1/2PK 27 0.008 0.21

TS28SS-1/2PK 28 0.007 0.17

Dispensing Tips

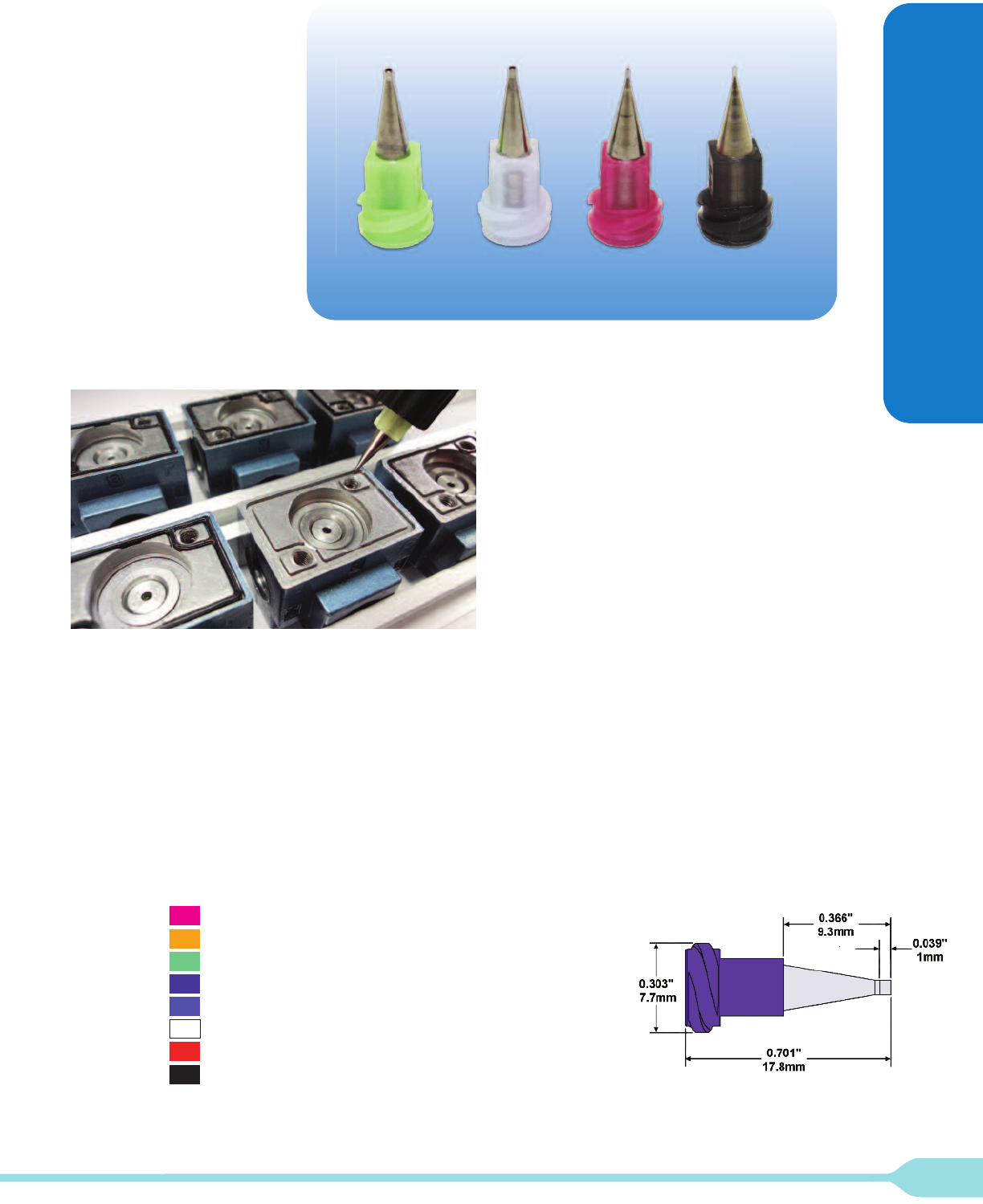

MT Series

Dispensing Tips

The MT Series precision metal

tapered tips deliver the best in high

fluid flow rates, which are ideal for

high speed dispensing, at a fraction of

the cost of comparable precision tips,

in the market. The smooth internal

conical fluid flow path increases

performance, reduces clogging and

back pressure allowing for higher flow

rates.

Part Number Hub Color Gauge I.D. I.D. OD OD

(mm) ( inches) (mm) ( inches)

MT18-PBN Pink 18 1.019 0.040 1.260 0.050

MT19-PBN Orange 19 0.839 0.033 1.079 0.042

MT20-PBN Green 20 0.661 0.026 0.899 0.035

MT21-PBN Blue 21 0.590 0.023 0.830 0.033

MT23-PBN Purple 23 0.544 0.021 0.655 0.026

MT25-PBN White 25 0.417 0.016 0.528 0.021

MT27-PBN Red 27 0.315 0.012 0.426 0.017

MT30-PBN Black 30 0.214 0.008 0.325 0.013

The Phosphor-Bronze metal construction, with Electroless Nickel, plating

makes the MT Series ideal for use in robotic applications or whenever

precision counts. The thin walled design at the tip enhances dispensing

accuracy while at the same time reduces fluid tailing and stringing.

Available from 18 to 30 gauge, the MT Series tips are color coded for

easy identification. Sold individually.

Key Features:

• Smooth internal fluid path:

- Reduces turbulent fluid flow

- Reduces back pressure

- Increases fluid flow rates.

- Reduces air entrapment and fluid dripping

• Metal construction:

- Provides accurate positioning

- Ideal for automatic dispensing applications

• Thin walls – Reduces fluid tailing and stringing

• Clog resistant – ideal for filled fluids
