10
Dispensing Tips
Luer Lock
Single
Thread
Molded Hub
Locking
Insert
Stainless Steel
Cannula
TS Series
Dispensing Tips
The TS Series Dispensing Tips offer a
variety of dispensing performance and
flexibility options. Stainless steel
tubing is cut to precise lengths and
ground to be burr-free. Cut tubing is
crimped into aluminum locking insert,
then molded into polyethylene hubs.
Molded hub colors correspond to
gauge size. All TS Series tips secure
to Techcon Systems syringe barrels
and correspond to the Luer lock
specification.
Part Number International Gauge I.D. I.D. Length Length
Hub Color (inches) (mm) (inches) (mm)
TS18-1/2-1000 Pink 18 0.033 0.838 0.5 12.7
T
S18-1-1000 Pink 18 0.033 0.838 1.0 25.4
TS19-1/2-1000 Brown 19 0.028 0.711 0.5 12.7
T
S19-1-1000 Brown 19 0.028 0.711 1.0 25.4
TS20-1/2-1000 Yellow 20 0.024 0.609 0.5 12.7
TS20-1-1000 Yellow 20 0.024 0.609 1.0 25.4
TS21-1/2-1000 Green 21 0.020 0.508 0.5 12.7
TS22-1/2-1000 Black 22 0.016 0.406 0.5 12.7
TS22-1-1000 Black 22 0.016 0.406 1.0 25.4
TS23-1/4-1000 Blue 23 0.013 0.330 0.25 6.35
TS23-1/2-1000 Blue 23 0.013 0.330 0.5 12.7
TS25-1/2-1000 Blue 25 0.010 0.254 0.5 12.7
TS27-1/4-1000 Grey 27 0.008 0.203 0.25 6.35
TS30-1/4-1000 Lavender 30 0.006 0.152 0.25 6.35
TS30-5/16-1000 Lavender 30 0.006 0.152 0.31 7.94
TS30-1/2-1000 Lavender 30 0.006 0.152 0.5 12.7
TS-M Metal Dispensing Tips
This series consists of a stainless steel cannula and
aluminium hub. Sold in bulk quantity of 500.
Part Number Gauge Length Length
(inches) (mm)
TS14-1/2M-500 14 0.5 12.7
TS14-1M-500 14 1.0 25.4
TS14-2M-500 14 2.0 50.8
TS15-1/2M-500 15 0.5 12.7
TS15-1M-500 15 1.0 25.4
TS15-1-1/2M-500 15 1.5 38.1
TS16-1M-500 16 1.0 25.4
TS-SS Metal Dispensing Tips
High precision and tolerance for use in automated applications. With stainless steel
cannula and nickel plated brass hub. Length of 1/2" (12.7mm). Sold in packs of 12.
Part Number Gauge I.D. (inches) I.D. (mm)
TS12SS-1/2PK 12 0.087 2.21
TS13SS-1/2PK 13 0.077 1.95
TS14SS-1/2PK 14 0.061 1.54
TS15SS-1/2PK 15 0.056 1.43
TS16SS-1/2PK 16 0.048 1.22
TS17SS-1/2PK 17 0.044 1.11
TS18SS-1/2PK 18 0.033 0.83
TS19SS-1/2PK 19 0.028 0.72
TS20SS-1/2PK 20 0.024 0.62
TS21SS-1/2PK 21 0.021 0.54
TS22SS-1/2PK 22 0.017 0.42
TS23SS-1/2PK 23 0.013 0.34
TS25SS-1/2PK 25 0.011 0.27
TS26SS-1/2PK 26 0.010 0.25
TS27SS-1/2PK 27 0.008 0.21
TS28SS-1/2PK 28 0.007 0.17
11
Dispensing Tips
MT Series
Dispensing Tips
The MT Series precision metal
tapered tips deliver the best in high
fluid flow rates, which are ideal for
high speed dispensing, at a fraction of
the cost of comparable precision tips,
in the market. The smooth internal
conical fluid flow path increases
performance, reduces clogging and
back pressure allowing for higher flow
rates.
Part Number Hub Color Gauge I.D. I.D. OD OD
(mm) ( inches) (mm) ( inches)
MT18-PBN Pink 18 1.019 0.040 1.260 0.050
MT19-PBN Orange 19 0.839 0.033 1.079 0.042
MT20-PBN Green 20 0.661 0.026 0.899 0.035
MT21-PBN Blue 21 0.590 0.023 0.830 0.033
MT23-PBN Purple 23 0.544 0.021 0.655 0.026
MT25-PBN White 25 0.417 0.016 0.528 0.021
MT27-PBN Red 27 0.315 0.012 0.426 0.017
MT30-PBN Black 30 0.214 0.008 0.325 0.013
The Phosphor-Bronze metal construction, with Electroless Nickel, plating
makes the MT Series ideal for use in robotic applications or whenever
precision counts. The thin walled design at the tip enhances dispensing
accuracy while at the same time reduces fluid tailing and stringing.
Available from 18 to 30 gauge, the MT Series tips are color coded for
easy identification. Sold individually.
Key Features:
• Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping
• Metal construction:
- Provides accurate positioning
- Ideal for automatic dispensing applications
• Thin walls – Reduces fluid tailing and stringing
• Clog resistant – ideal for filled fluids
Bench-Top Dispensing Robot
Key Features:
• Easy to program and simple to operate
• Programmable interface via teach pendant
• Fast, increase productivity
• Compatible with all Techcon Systems syringes, valves
and Jet dispensing systems.
• Suitable for wide range of fluid dispensing applications
• Rugged and reliable construction
• Small footprint
• Available in 3 platforms, from 200mm to 400mm
12

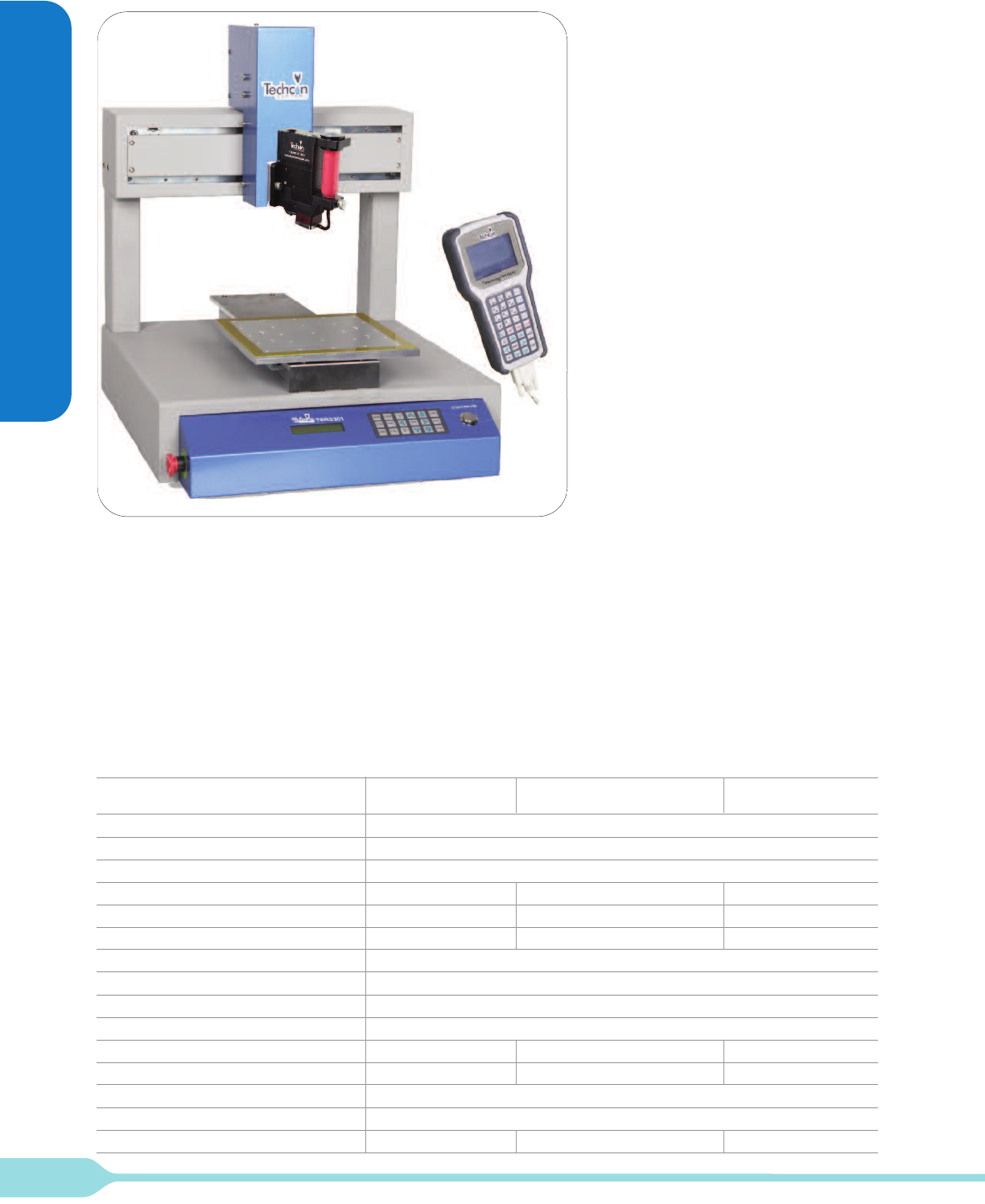

TSR2301 with TS9200D
Teaching Pendant
Bench-Top Dispensing Robot
Techcon Systems bench-top dispensing robots are easy to
program, simple to operate and compatible with all valve types
and controllers. These versatile dispensing platforms deliver
consistent, high performance dispensing results, at an affordable
price.
Designed and configured specifically for fluid dispensing
applications, Techcon Systems robots provide total control over
fluid placement, from beads, arcs and circles to repeated timed
dots. Programming is simple via teach pendant.
From a general assembly manufacturer looking to automate an
existing dispensing application to an engineer designing a
production process from scratch, Techcon Systems dispensing
robots offers unsurpassed value in automated precision fluid
dispensing.
The bench-top dispensing robot series are available in 3
platforms:
TSR2201: 200mm X 200mm working area
TSR2301: 300mm X 300mm working area
TSR2401: 400mm X 400mm working area
Typical Applications:
• Dispense dots of solder paste
• Form-in-place gasket
• Filling
• Potting
• Encapsulation
• Bonding
• Coating
Specifications:
TSR2201 TSR2301 TSR2401
Power Supply 100V ~ 240V AC
Power Consumption 80W
Number of Controllable Axis 3 axis
Moving Range X axis 200mm 300mm 400mm
Y axis 200mm 300mm 400mm
Z axis 100mm 100mm 100mm
Speed Range X/Y axis 0.1～600 mm/sec
Z axis 0.1～200 mm/sec
Repeatability Accuracy X/Y/Z axis 0.02mm
Resolution X/Y/Z axis 0.01mm
Loading Weight Base 5 Kg 7 Kg 7 Kg
Head 4 Kg 4 Kg 4 Kg
Working Ambient Temperature 0～40℃
Relative Humidity 20% - 90% (no condensation)
Dimension (W×D×H) 303x377x521 mm 418×513×521 mm 518×613×521 mm
Accessories:
Light Beam safety cover for each model is
available:
• TSR2200-SC = Safety cover for TSR2201
• TSR2300-SC = Safety cover for TSR2301
• TSR2400-SC = Safety cover for TSR2401
