Bench-Top Dispensing Robot

Key Features:

• Easy to program and simple to operate

• Programmable interface via teach pendant

• Fast, increase productivity

• Compatible with all Techcon Systems syringes, valves

and Jet dispensing systems.

• Suitable for wide range of fluid dispensing applications

• Rugged and reliable construction

• Small footprint

• Available in 3 platforms, from 200mm to 400mm

TSR2301 with TS9200D

Teaching Pendant

Bench-Top Dispensing Robot

Techcon Systems bench-top dispensing robots are easy to

program, simple to operate and compatible with all valve types

and controllers. These versatile dispensing platforms deliver

consistent, high performance dispensing results, at an affordable

price.

Designed and configured specifically for fluid dispensing

applications, Techcon Systems robots provide total control over

fluid placement, from beads, arcs and circles to repeated timed

dots. Programming is simple via teach pendant.

From a general assembly manufacturer looking to automate an

existing dispensing application to an engineer designing a

production process from scratch, Techcon Systems dispensing

robots offers unsurpassed value in automated precision fluid

dispensing.

The bench-top dispensing robot series are available in 3

platforms:

TSR2201: 200mm X 200mm working area

TSR2301: 300mm X 300mm working area

TSR2401: 400mm X 400mm working area

Typical Applications:

• Dispense dots of solder paste

• Form-in-place gasket

• Filling

• Potting

• Encapsulation

• Bonding

• Coating

Specifications:

TSR2201 TSR2301 TSR2401

Power Supply 100V ~ 240V AC

Power Consumption 80W

Number of Controllable Axis 3 axis

Moving Range X axis 200mm 300mm 400mm

Y axis 200mm 300mm 400mm

Z axis 100mm 100mm 100mm

Speed Range X/Y axis 0.1～600 mm/sec

Z axis 0.1～200 mm/sec

Repeatability Accuracy X/Y/Z axis 0.02mm

Resolution X/Y/Z axis 0.01mm

Loading Weight Base 5 Kg 7 Kg 7 Kg

Head 4 Kg 4 Kg 4 Kg

Working Ambient Temperature 0～40℃

Relative Humidity 20% - 90% (no condensation)

Dimension (W×D×H) 303x377x521 mm 418×513×521 mm 518×613×521 mm

Accessories:

Light Beam safety cover for each model is

available:

• TSR2200-SC = Safety cover for TSR2201

• TSR2300-SC = Safety cover for TSR2301

• TSR2400-SC = Safety cover for TSR2401

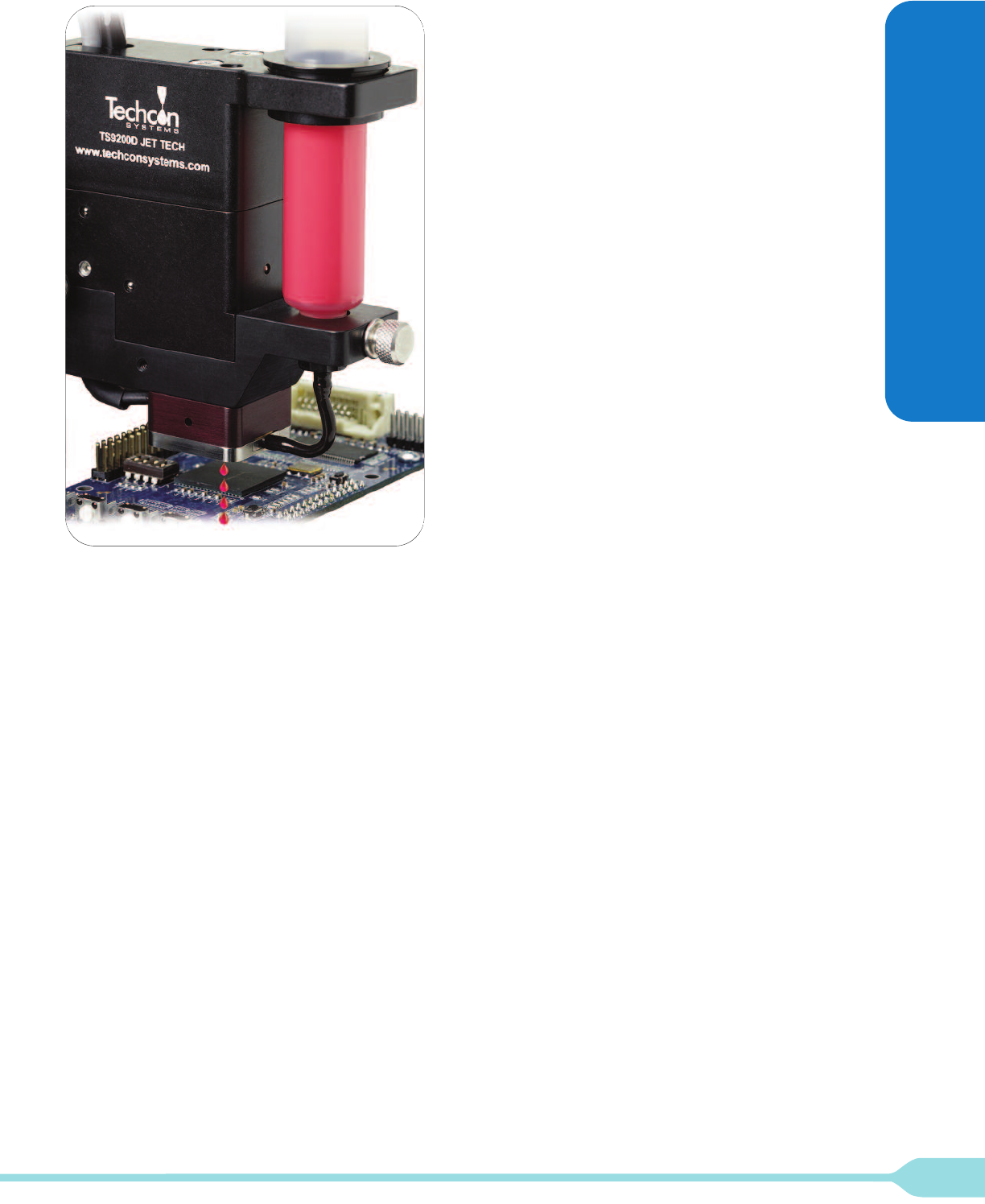

TS9200D Series Jet Tech

The TS9200D Jet Tech is a non-contact dispense valve capable of

jetting fluid viscosities to 400,000 Cps. Jet Tech offers a fast jetting

action producing hundreds of precise droplets in less than one second.

The main feature of the valve is a single, easily replaceable diaphragm

to eliminate dynamic fluid seals found in other jet valves. No longer is it

necessary to disassemble, clean and replace worn seals, which

translates into saving time and money. The diaphragm also allows fast

cycle rates because of its very small mass. There is no large sliding

valve system that slows down the process. With this novel diaphragm

design, the energy needed to eject a drop can be adjusted providing a

wider process window.

It’s Fast – 300 drops/sec continuous duty. 50% increase in throughput

over conventional Jet valves.

It’s Simple to Clean – only 2 parts contact the fluid. Conventional Jet

valves can have as many as 8 parts requiring cleaning. With only two

parts to clean, cleaning the TS9200D takes only minutes and there is no

need to remove the Jet valve from the robot. A diaphragm and nozzle

plate can be installed immediately without the need to carefully calibrate

the Jet valve saving valuable production time and no special off-line

cleaner is required.

It’s Capable – the TS9200D generates a very high drop velocity allowing

a wide range of fluids and applications. In addition, the drop velocity can

be easily changed to help fine tune the process and achieve a high

process capability and wide process window.

It’s Cool – the advanced electronic drive provides power when required

and reduces power when idle. The internal air flow cools the Jet body

so it runs cool even during high-speed, continuous operation. The

integral nozzle heater heats only the fluid in the nozzle plate and is

thermally isolated from the jet body.

It’s Easy to Integrate – In combination with the standalone TS920

controller, a single trigger line is all that is needed to be dispensing

complex dispensing programs.

Typical Applications:

The TS9000D Jet Tech can be used in wide range of

applications. Some examples of processes and applications are:

• Jetting silver epoxies for die bonding processes

• Jetting silicone phosphor in the LED assembly process

• Jetting under-fill in micro-electronic package applications on

PCBA

• Jetting micro dots of UV adhesive in medical device

applications

Jet Valve System Specifications:

Size Width: 50.8mm (2.00'')

Size Depth: 93.8mm (3.69'')

Size Height: 88.9mm (3.50'')

Weight : 348g (0.77lb)

Speed: Up to 300Hz Continuous Duty

Syringe Capacity: 5, 10, 30 and 55cc

Minimum Shot Size: 10nl

Viscosity Range: 1 to 400K Cps.

Fluid Pressure: 40 psi (2.76bar)

Jet Pressure: 35psi to 70psi (2.41 to 4.8bar)

Operating Temperature: 10 to 50°C

Key Features:

• Non contact Jetting technology

• Accurate and precise dispensing

• High speed, up 300 drops/sec

• Repeatable drop size as small as 10 nl

• Jet fluid up to 400K Cps.

• No fluid seals to clean or replace

• Integral heater with minimal fluid heated

• Quick and simple setup

• Low total cost of ownership

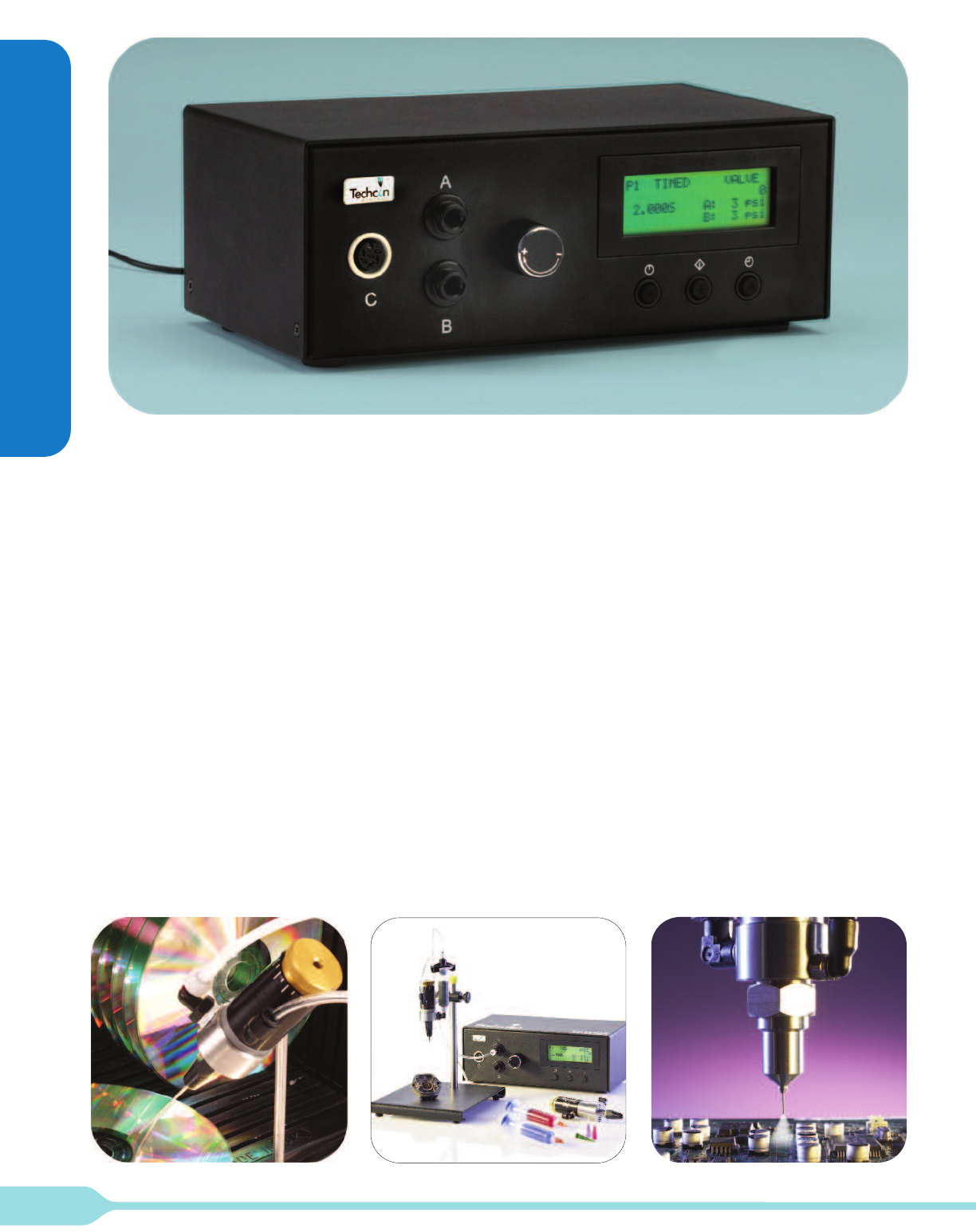

TS500R Digital Controller

TS500R Multi-Purpose Digital Controller

Cost-Effective and Productivity-Focused Multi-Purpose Digital Controller

The TS500R is the first of its type in the industry and is capable of controlling all of Techcon Systems valve series including:

Pneumatic Valves, Spray Valves and Rotary Auger Valves.

With a universal power supply, it is a fully ‘plug and play’ system and can be used immediately, anywhere in the world, with its

accompanying tools and accessories. This system uses a highly responsive air pressure management system, coupled with a digital

timing circuit and display, to provide consistent, repeatable control of all types of valves.

Key Features:

• Universal power supply with snap-on plug

• Clear 20 x 4 segments LCD display

• Classic “Rack Mount” rectangular design

• Digital timing from 0.008-60.000 seconds

• Digital pressure display in “psi” and “bar”

• +/- 0.001% Repeat timing tolerances

• 10 Programmable memories

• Adjustable low pressure alarm setting

• Controls all Pneumatic, Spray and Rotary

Auger Valves (inc. Encoder Motor Valves)

Specifications:

Cabinet Dimensions: 10.0"W x 7.5"D x 4.0"H (254mm x 191mm x 102mm)

Weight: 5.8 lb. (2.6 kg)

Cycle Rate: 900 cycle/minute

Timing Range: 0.008-60.000 seconds

Timing Repeat Tolerances: +/- 0.001%

AC Adaptor Input Voltage: 100-240 V

AC Input Frequency: 50-60 Hz

Cycle Mode: Timed Mode, Teach Mode, Purge Mode

Meets or exceeds: CE, TUV-GS and NRTL

Warranty: 2 years
