TS5000 Rotary Microvalve

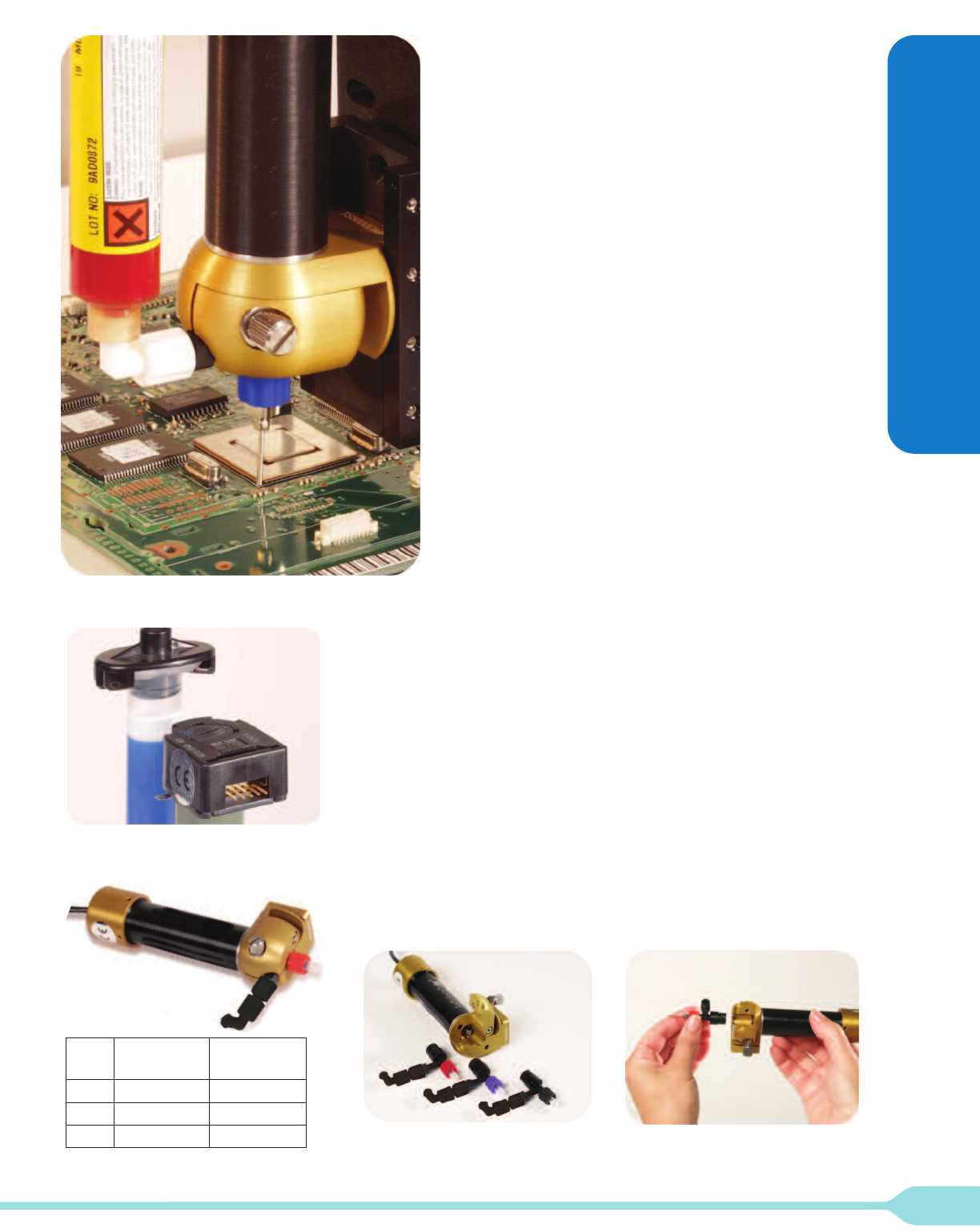

TS5000DMP - performing underfill.

Optional encoder motors are available for

closed loop feed back requirement.

TS5000DMP Right hand opening.

Left and front door opening

also available.

TS5000 Disposable path available in

3 different pitches, and with 3 different

rotating Luer collars.

Disposable Path

Material

Rotating Luer

Collars

6 Pitch

DMP6-10 DMP6R-10

8 Pitch

DMP8-10 DMP8R-10

16 Pitch

DMP16-10 DMP16R-10

Sold in packs of 10.

TS5000DMP Rotary Microvalve

The Rotary Valves use a rotary feed screw (auger) to dispense fluid with

a positive displacement action, allowing for ultra-precise control of the

dispensing process. The unique design ensures that material is

constantly present at the feed screw inlet, while the controlled rotation of

the feed screw moves the material from the feed to the discharge point.

Discrete control of the forward and reverse rotations of the feed screw

controls the amounts of material discharged.

The unique DMP (Disposable Material Path) Valve (TS5000DMP) offers

a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of

Delrin

. The DMP Valve has a hinged doorway that opens easily so the

disposable auger can be removed and replaced within seconds, while

the line is still in operation, significantly reducing downtime and waste.

The choice of left, right or center hinge openings makes the valve

suitable for mounting on most automated systems.

Typical Applications:

Solder paste, die attach, surface mount adhesive, chip encapsulation,

dam writing, two-part epoxy, UV adhesive.

Key Features:

• Precise and consistent shot sizes

• Motor reverse capability

• Field replaceable wetted parts

• Adjustable dispense rate

• Closed-loop motor control with encoder feedback (encoder version)

TS5000DMP

Length: 5.88" (149mm)

Width: 3.56" (90mm)

Weight: 0.77 lb. (350 g)

Wetted Parts: Delrin

, Viton

, Nylon

Max Fluid Pressure: 30 psi (2.1 bar)

Material Inlet: Female Luer Lock

Material Outlet: Male Luer Lock

Mounting: 1.0" (25.4mm) Wide Channel

Recommended

Viscosity Range: 30K - 1300K cps

TS7000 (IMP) Rotary Valve

TS7000IMP- solar cell tabbing

Valves:

PART NUMBER DESCRIPTION

TS7000-32 IMP Rotary Valve, 32-Pitch

TS7000-16 IMP Rotary Valve, 16-Pitch

TS7000-8 IMP Rotary Valve, 8-Pitch

TS7000-8HO IMP Rotary Valve, 8-Pitch High Output

TS7000E-32 IMP Rotary Valve, 32-Pitch, Encoder

TS7000E-16 IMP Rotary Valve, 16-Pitch, Encoder

TS7000E-8 IMP Rotary Valve, 8-Pitch, Encoder

TS7000E-8HO IMP Rotary Valve, 8-Pitch High Output, Encoder

Cartridge Assembly:

PART NUMBER DESCRIPTION

7090-9140 Cartridge Assembly, 32-Pitch

7090-9040 Cartridge Assembly, 16-Pitch

7090-9030 Cartridge Assembly, 8-Pitch

7090-9050 Cartridge Assembly, 8-Pitch HO

TS7000

Interchangeable Material Path

(IMP) Rotary Valve

The TS7000 Series IMP Rotary Valves are the latest additions to the

Rotary Microvalve family. The valve uses a feed screw (auger) to

dispense fluid with a rotary displacement action, allowing ultra-precise

control of the dispensing process. The valve’s modular design allows

quick and easy replacement of the feed screw/chamber cartridge

assembly without removing the valve from the machine. In addition, the

valve cartridge can be interchanged to use with TS5000DMP feed screw

inserts.

The TS7000 Series IMP valve is available in 4 choices of feed screw

sizes (32-pitch, 16-pitch, 8-pitch and high output 8-pitch), all made of

precision hardened tool steel. An encoder motor version is available for

applications that require closed-loop motor control with encoder feed

back.

Typical Applications:

Solder Paste, Die Attach, Surface Mount Adhesive (SMA), Chip

Encapsulation, Dam Writing, Thermal Grease.

Recommended Controller:

TS500R Digital Controller

Key Features:

• Accurate and repeatable dispensing output

• Precision and durable feed screw/chamber

• Field replaceable spare parts

• Quick and easy feed screw/chamber cartridge changeover

• Low-maintenance design

• Interchangeable with TS5000DMP valve body

• Flexible syringe mounting position

• Flexible needle installation position

• Flexible encoder position (encoder version)

• Closed-loop motor control with encoder feed back (encoder version)

Specifications:

Length: 6.78" (172.2mm)

Width: 3.70" (94mm)

Depth: 2.23" (56.6mm)

Weight: 0.86 lb. (390 g)

Wetted Parts: Hardened Tool Steel, Stainless Steel,

UHMWPE, Nylon

Mounting: 1.0" (25.4mm) Wide Channel

Recommended Viscosity Range: 30K - 1300K cps

Spray Valve

TS5500 Series Spray Valves

The Spray Valves are designed for precise spray applications of low

viscosity materials. Total control of the spray cycle is provided by

adjustable fluid flow and precise control of pre-spray, atomizing air and

post-spray with the TS500R Valve Controller. Normal maintenance is

simple and downtime is virtually eliminated with only one seal to replace.

The TS5540 Spray Valves come with FDA-Compliant 303 stainless steel

construction in both air cylinder and fluid housing. A field replaceable

Delrin® seat provides positive shut-off and extends life cycles. The

compact design and easy-mount threaded hole allow for easy integration

into automated applications.

Key Features:

• Consistent spray coverage with no overspray

• Positive shut-off

• Adjustable flow control

• Long life cycles

Typical Applications:

To spray fine mist of low viscosity fluids such as: conformal coating,

solvent, oil, etc.

Valve Specifications TS5520 TS5540

ength: 4.2" (107mm) 4.2" (107mm)

iameter: 1.12" (28mm) 1.12" (28mm)

Weight: 0.3 lb. (136 g) 0.74 lb. (336 g)

Wetted Parts: 303 SS, Teflon®, EPR, 303 SS, Teflon®,

Anodized Al, Delrin® Delrin®

Viscosity Range: 1-1k cps 1-5k cps

Max Fluid Pressure 100 psi (6.9 bar)

Activation Pressure: 70 psi (4.8 bar) Minimum

Connections: Inlet: 1/8" NPT

Outlet: Spray nozzle

Mounting: 1/4" 20UNC-2B

Valves with Nozzles:

Opening Diameter Cone Nozzle Fan Nozzle

TS5520 0.046" (1.17mm) Standard Not available

TS5540 0.014" (0.356mm) TS5540-014R TS5540-014F

0.028" (0.711mm) TS5540-028R TS5540-028F

0.046" (1.17mm) TS5540-046R TS5540-046F

Nozzles only:

Opening Diameter Cone Nozzle Fan Nozzle

0.014" (0.356mm) RNC014 FNC014

0.028" (0.711mm) RNC028 FNC028

0.046" (1.17mm) RNC046 FNC046

TS5540

Spray Valve

with Cone Nozzle

TS5540

Spray Valve

with Fan Nozzle

Cone Nozzle

TS5520

Spray Valve

with Cone Nozzle

Fan Nozzle

NEW TS5540-MS

Microshot Spray

Valve

TS5540-MS Microshot Spray Valve

The TS5540-MS spray valve is designed to spray low viscosity materials

through disposable dispensing tips. Spray patterns range from 0.18" -

0.60" (4.6mm-15mm) in diameter.

TS5540-MS - spraying conformal coating.
