17 Sp ray V alve TS 55 00 Se rie s Spr ay V alv es The Spra y V alves are design ed for pre cise spr ay appl icati ons of low vis cosit y materi als. T o tal cont rol of th e spray cy cle is prov ided by adj ustab le flu…

TS7000 (IMP) Rotary Valve

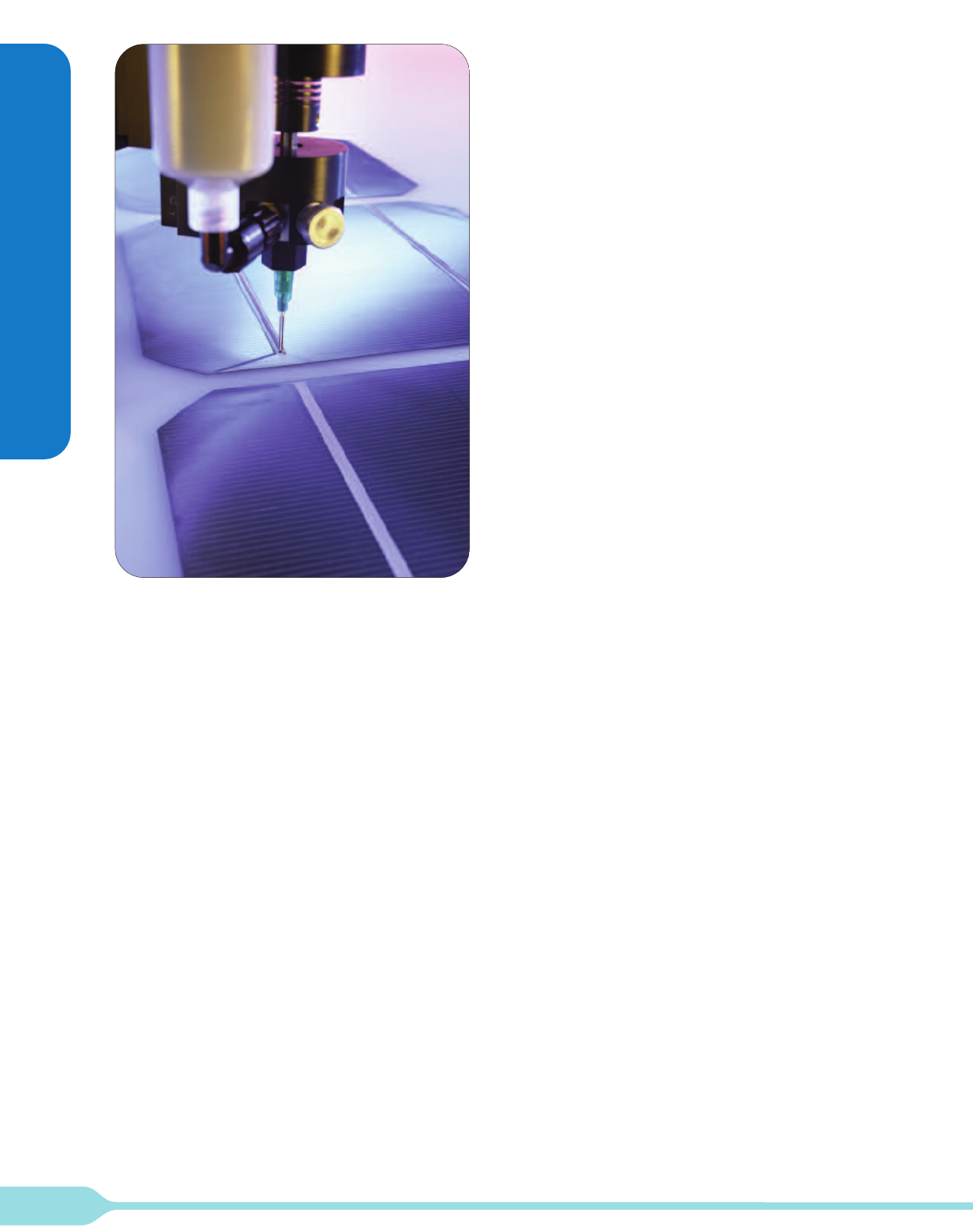

TS7000IMP- solar cell tabbing

Valves:

PART NUMBER DESCRIPTION

TS7000-32 IMP Rotary Valve, 32-Pitch

TS7000-16 IMP Rotary Valve, 16-Pitch

TS7000-8 IMP Rotary Valve, 8-Pitch

TS7000-8HO IMP Rotary Valve, 8-Pitch High Output

TS7000E-32 IMP Rotary Valve, 32-Pitch, Encoder

TS7000E-16 IMP Rotary Valve, 16-Pitch, Encoder

TS7000E-8 IMP Rotary Valve, 8-Pitch, Encoder

TS7000E-8HO IMP Rotary Valve, 8-Pitch High Output, Encoder

Cartridge Assembly:

PART NUMBER DESCRIPTION

7090-9140 Cartridge Assembly, 32-Pitch

7090-9040 Cartridge Assembly, 16-Pitch

7090-9030 Cartridge Assembly, 8-Pitch

7090-9050 Cartridge Assembly, 8-Pitch HO

TS7000

Interchangeable Material Path

(IMP) Rotary Valve

The TS7000 Series IMP Rotary Valves are the latest additions to the

Rotary Microvalve family. The valve uses a feed screw (auger) to

dispense fluid with a rotary displacement action, allowing ultra-precise

control of the dispensing process. The valve’s modular design allows

quick and easy replacement of the feed screw/chamber cartridge

assembly without removing the valve from the machine. In addition, the

valve cartridge can be interchanged to use with TS5000DMP feed screw

inserts.

The TS7000 Series IMP valve is available in 4 choices of feed screw

sizes (32-pitch, 16-pitch, 8-pitch and high output 8-pitch), all made of

precision hardened tool steel. An encoder motor version is available for

applications that require closed-loop motor control with encoder feed

back.

Typical Applications:

Solder Paste, Die Attach, Surface Mount Adhesive (SMA), Chip

Encapsulation, Dam Writing, Thermal Grease.

Recommended Controller:

TS500R Digital Controller

Key Features:

• Accurate and repeatable dispensing output

• Precision and durable feed screw/chamber

• Field replaceable spare parts

• Quick and easy feed screw/chamber cartridge changeover

• Low-maintenance design

• Interchangeable with TS5000DMP valve body

• Flexible syringe mounting position

• Flexible needle installation position

• Flexible encoder position (encoder version)

• Closed-loop motor control with encoder feed back (encoder version)

Specifications:

Length: 6.78" (172.2mm)

Width: 3.70" (94mm)

Depth: 2.23" (56.6mm)

Weight: 0.86 lb. (390 g)

Wetted Parts: Hardened Tool Steel, Stainless Steel,

UHMWPE, Nylon

Mounting: 1.0" (25.4mm) Wide Channel

Recommended Viscosity Range: 30K - 1300K cps

Spray Valve

TS5500 Series Spray Valves

The Spray Valves are designed for precise spray applications of low

viscosity materials. Total control of the spray cycle is provided by

adjustable fluid flow and precise control of pre-spray, atomizing air and

post-spray with the TS500R Valve Controller. Normal maintenance is

simple and downtime is virtually eliminated with only one seal to replace.

The TS5540 Spray Valves come with FDA-Compliant 303 stainless steel

construction in both air cylinder and fluid housing. A field replaceable

Delrin® seat provides positive shut-off and extends life cycles. The

compact design and easy-mount threaded hole allow for easy integration

into automated applications.

Key Features:

• Consistent spray coverage with no overspray

• Positive shut-off

• Adjustable flow control

• Long life cycles

Typical Applications:

To spray fine mist of low viscosity fluids such as: conformal coating,

solvent, oil, etc.

Valve Specifications TS5520 TS5540

ength: 4.2" (107mm) 4.2" (107mm)

iameter: 1.12" (28mm) 1.12" (28mm)

Weight: 0.3 lb. (136 g) 0.74 lb. (336 g)

Wetted Parts: 303 SS, Teflon®, EPR, 303 SS, Teflon®,

Anodized Al, Delrin® Delrin®

Viscosity Range: 1-1k cps 1-5k cps

Max Fluid Pressure 100 psi (6.9 bar)

Activation Pressure: 70 psi (4.8 bar) Minimum

Connections: Inlet: 1/8" NPT

Outlet: Spray nozzle

Mounting: 1/4" 20UNC-2B

Valves with Nozzles:

Opening Diameter Cone Nozzle Fan Nozzle

TS5520 0.046" (1.17mm) Standard Not available

TS5540 0.014" (0.356mm) TS5540-014R TS5540-014F

0.028" (0.711mm) TS5540-028R TS5540-028F

0.046" (1.17mm) TS5540-046R TS5540-046F

Nozzles only:

Opening Diameter Cone Nozzle Fan Nozzle

0.014" (0.356mm) RNC014 FNC014

0.028" (0.711mm) RNC028 FNC028

0.046" (1.17mm) RNC046 FNC046

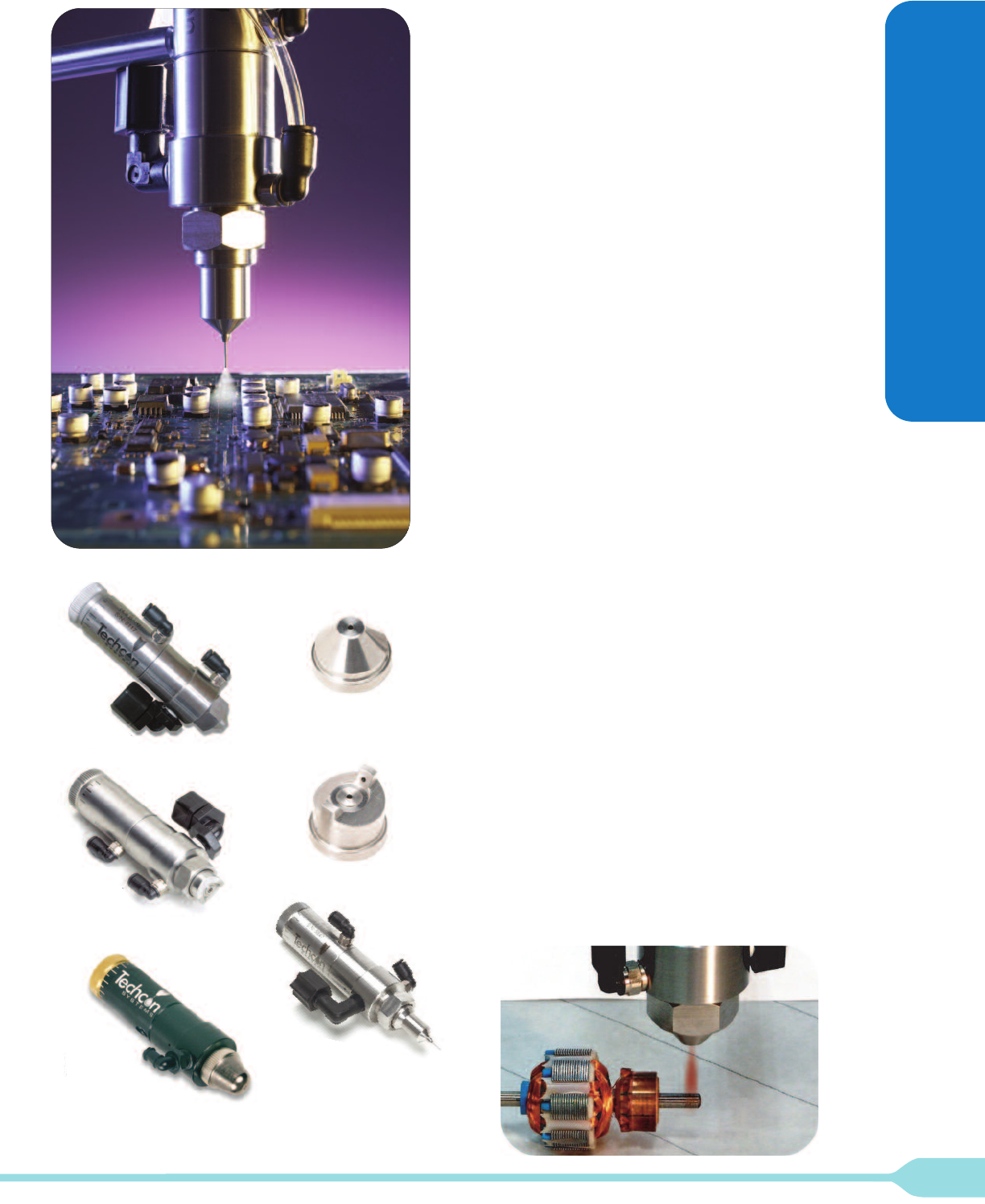

TS5540

Spray Valve

with Cone Nozzle

TS5540

Spray Valve

with Fan Nozzle

Cone Nozzle

TS5520

Spray Valve

with Cone Nozzle

Fan Nozzle

NEW TS5540-MS

Microshot Spray

Valve

TS5540-MS Microshot Spray Valve

The TS5540-MS spray valve is designed to spray low viscosity materials

through disposable dispensing tips. Spray patterns range from 0.18" -

0.60" (4.6mm-15mm) in diameter.

TS5540-MS - spraying conformal coating.

Diaphragm Vavles

TS5620 Series Diaphragm Valves

Diaphragm Valves are designed to dispense low to medium viscosity

materials with precision accuracy over a wide range of shot and bead sizes

down to a fraction of a micro liter. A short opening stroke provides fast,

positive shut-off. An external stroke control adjustment makes it easy to fine-

tune shot sizes. The compact design allows for mounting flexibility and easy

integration into automated applications.

Body available in FDA-compliant Ultra High Molecular Weight Polyethylene

(UHMWPE) for most applications. A Teflon

version for chemical

compatibility, and a Delrin

version for UV-curables are also available.

A stainless steel version with optimized internal fluid route is especially

dedicated to dispense UV-cure adhesives, resins and lacquers used in the

manufacture of DVDs and CDs. A hand-held actuated valve is also available.

The valves are easy to use and maintain with user replaceable spare parts.

Key Features:

• Excellent moisture sensitive resistance

• Adjustable stroke control

• Compact size and weight

• Simple and low maintenance design

• Long life cycles

Typical Applications:

To dispense a wide range of shot sizes of low viscosity fluids such as:

cyanoacrylates, anaerobics, liquid fluxes, solvents, UV-cure adhesives, resins

and lacquers.

Length: 2.4" (61mm) - 3.47" (88mm) (Depending on exact configuration)

Diameter: 0.94" (24mm) - 1.06" (27mm)

Weight: 0.13 lb. (59 g) to 0.26 lb. (118 g)

Wetted Parts: Depending on exact configuration

Viscosity Range: 1-50k cps

Max Fluid Pressure: 70 psi (4.8 bar)

Activation Pressure: 70 psi (4.8 bar) - 90 psi (6.2 bar)

Connections: Depending on exact configuration

Mounting: 10-32 UNF (not available on handheld models)

PART NUMBER DESCRIPTION

TS5620HU Horizontal valve UHMWPE

TS5621HD Horizontal valve Delrin

TS5620HT Horizontal valve Teflon

TS5622VU Vertical Valve UHMWPE

TS5622VD Vertical Valve Delrin

TS5622VT Vertical Valve Teflon

TS5622VU-DVD Vertical Valve, UHMWPE and Stainless Steel

TS5623HU Hand Held Valve UHMWPE

TS5623HD Hand Held Valve Delrin

TS5623HT Hand Held Valve Teflon

TS5621

TS5622VU-DVD

TS5622

TS5622 - dispensing cyanoacrylate.
