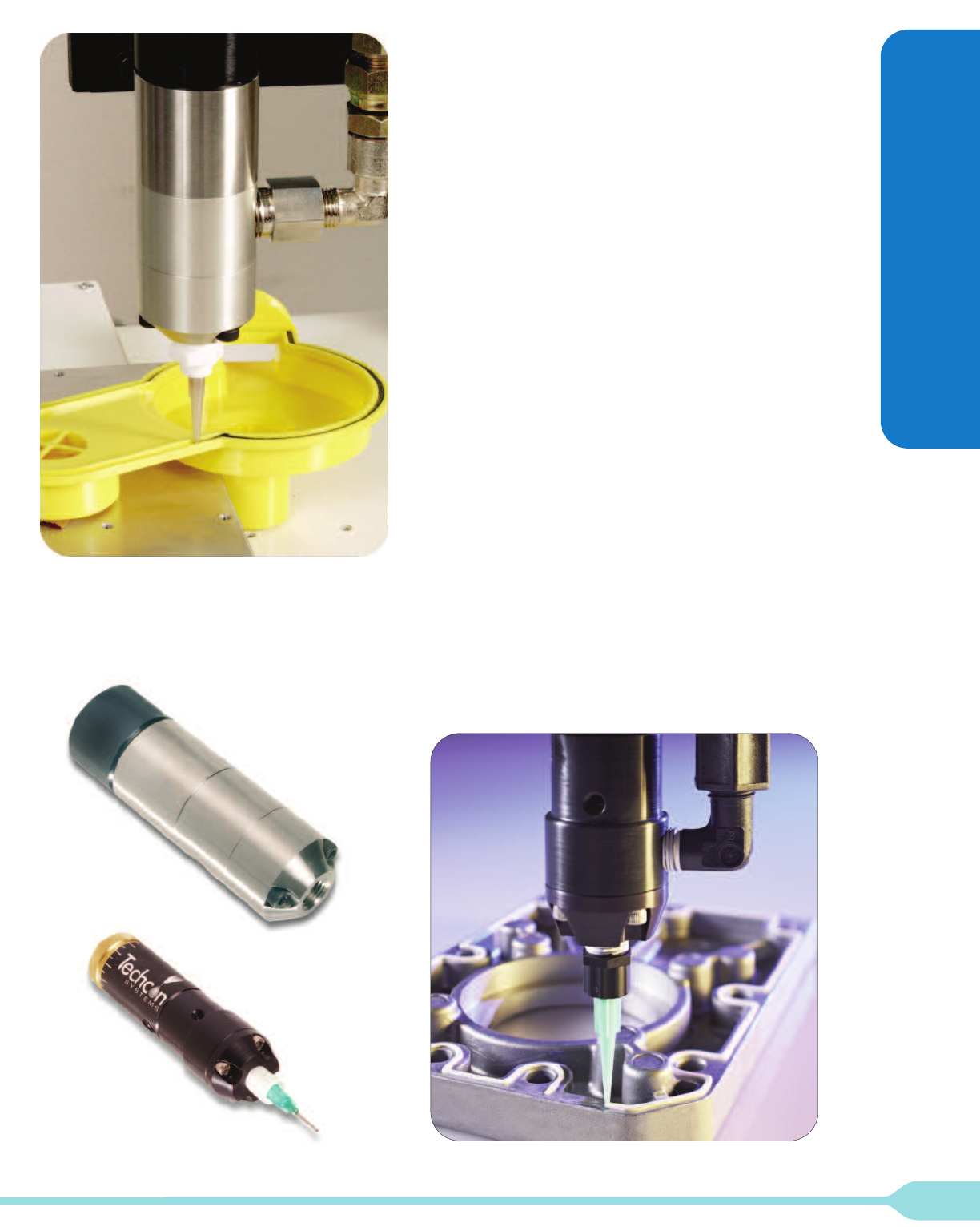

Spool Valves

TS941 High Pressure Spool Valve

The Spool Valves provide precise shot accuracy along with “high volume”

capacity over a range of material viscosities, shot sizes and pressures.

They feature “suck back” anti-drip as well as a fast on/off dispensing

function that is not affected by material input pressure. An optional oil

chamber creates an additional liquid seal to prevent moisture from being

carried on the spool, excellent for moisture sensitive materials.

Pneumatically activated, the valves can be used with an internal spring

close (single acting) or an air-closing connection (double acting).

Output is a

1/4" NPT which allows multiple types of tips to be used.

TS5322 Mini Spool Valve

The Mini Spool Valve Series is designed for better accuracy with lower

pressure. The series operates similar to the TS941, however, it is smaller

in size.

S941 TS5322

ength: 4.7" (119mm) 4.00" (101.6mm)

iameter: 1.5" (38mm) 1" (25mm)

Weight: 1.61 lb. (726 g) 0.31 lb. (141 g)

etted Parts: 303 Stainless Steel, 303 Stainless Steel,

UHMWPE, EPR Anodized Al, Teflon®, EPR

Viscosity Range: 5 - 3000k cps 5 - 1000k cps

ax Fluid Pressure: 2500 psi (172.4 bar) 500 psi (34.5 bar)

Activation Pressure: 70 psi (4.8 bar) 70 psi (4.8 bar)

Material Inlet: 3/8" NPT 1/8" NPT

Material Outlet: 1/4" NPT 1/8" NPT

Mounting: 1.50" Diameter 1/4"-20UNC-2B

TS941

Spool Valve

TS5322

Mini Spool Valve

TS941 - gasketing.

TS5322 - gasketing.

Typical Applications:

Suitable for moisture sensitive adhesive when utilizing supplied oiler. The

Spool Valves can be used in a wide range of applications such as flux

paste, grease, RTV Silicone, UV cure gel, solder mask, gasketing.

Pinch Tube Valves

TS1212

Pneumatic Pinch Tube Valve

Provides control for continuous or micro shot applications of low to

semi-viscous fluids. The “ON/OFF” control is achieved by

automatically opening and closing (pinching) a molded polyethylene

tube assembly. Adjusting the opening size of the pinch tube

assembly determines the shot size or flow rate. In addition, the air

actuated valve can be timed to develop desired shot sizes. Finally, a

wide range of dispensing tips can be used to further refine the amount

of dispensed output. The only part of the valve making contact with

the fluid being dispensed is the disposable pinch tube assembly.

Replacement pinch tube assemblies are sold in packages of 10.

Key Features:

• Disposable fluid path

• Simple to operate

• Compact size and weight

Typical Applications:

Cyanoacrylates, anaerobics, two-part adhesive, etc.

Length: 2.49” (63mm)

Diameter: 1.58" (40mm)

Weight: 0.18 lb. (82 g)

Wetted Parts: Polyethylene (standard), Polyurethane (optional)

Viscosity Range: 1-45k cps

Max Fluid Pressure: 60 psi (4.1 bar)

Material Inlet: Female Luer Lock

Material Outlet: Male Luer Lock

Mounting: 1/4"-20UNC-2B

Activation Pressure: 50 psi (3.4 bar) minimum

Spare Pinch Tube for TS1212

Sold in packs of 10.

Part Number Material I.D. Connection

1212-004-002BPK Black PE 0.1" (2.54mm) Male to Female

1212-004-002PK Natural PE 0.1" (2.54mm) Male to Female

1212-004-000PK Natural PE 0.07" (1.78mm) Male to Female

1212-004-100BPK Black PU 0.125" (3.18mm) Male to Female

1212-004-100PK Natural PU 0.125" (3.18mm) Male to Female

TS1201 Dispense Pen

The TS1201 Dispensing Pen uses a disposable molded tube assembly.

Designed to handle a wide variety of fluids – from adhesives and

lubricants to sealants and masks. Gravity or pressure fed, the pen has

a built-in shot and flow rate for repeatability. Includes pre-assembled

applicator pen, two clear and two black spare pinch tube assemblies,

an assortment of disposable dispensing tips and a 24" (0.61m) hose.

Replacement pinch tube assemblies sold in packs of 10.

Key Features:

• Disposable fluid path

• Simple to operate

• Compact size and weight

Typical Applications:

Cyanoacrylates, anaerobics, two-part adhesive, etc.

Length: 5" (127mm)

Diameter: 1.34" (34mm)

Weight: 0.08 lb. (36 g)

Wetted Parts: Polyethylene (standard), Polyurethane (optional)

Viscosity Range: 1-45k cps

Max Fluid Pressure: 60 psi (4.1 bar)

Material Inlet: Female Luer Lock

Material Outlet: Male Luer Lock

Spare Pinch Tube for TS1201

Sold in packs of 10.

Part Number Material I.D. Connection

1201-000-004BPK Black PE 0.1" (2.54mm) Male to Female

1201-000-004PK Natural PE 0.1" (2.54mm) Male to Female

1201-000-006PK Natural PE 0.07" (1.78mm) Male to Female

1201-006-000PK Natural PU 0.125" (3.18mm) Male to Female

Pressure Pot

Typical Valve Set Up

Pressure Pot

The Pressure Pot is designed to accommodate low to medium viscosity fluid,

including solvents, adhesives, as well as CAs and UVs. The fluid feed line is located in

the center of the unit for direct and continuous feed path from the reservoir to the The

TS1258 is shipped with a 1/4" tubing and the TS1254 is shipped with a 6mm tubing.

For use with the TS1212 or TS1201 valve, a TS1252-4MM Fluid Line kit is needed.

S1258

Size: 10" x 15.1" (254 x 383mm)

hamber: 6.1" I.D. x 11.0" (155 I.D. x 280mm)

Weight: 21 lb. (9.5 kg)

Max Operating Pressure: 100 psi (6.9 bar)

nternal Volume: 5 liters

S1254

ize: 7.5" X 12.5" (190 X 318mm)

Chamber: 4.75" I.D. x 6.5" (121 I.D. x 165mm)

Weight: 10.4 lb. (4.7 kg)

ax Operating Pressure: 70 psi (4.8 bar)

nternal Volume: 1.8 liters

Available Fluid Line Kits: Includes clear and black tubing

FOR THE TS1258 PRESSURE POT

TS1252-4MM 4mm O.D. tube (required for TS1212 and TS1201 connection)

TS1258-250 1/4" O.D. tube

S1258-375 3/8" O.D. tube

OR THE TS1254 PRESSURE POT

TS1252-4MM 4mm O.D. tube (required for TS1212 and TS1201 connection)

1254-250PE 6mm O.D. tube PE

TS918-46 Four-way Manifold

Designed to provide equal flow for up to four fluid paths, the TS918-46 is used

whenever precision fluid flow to multiple stations is required. The Manifold

works with the TS1258 Pressure Pot (TS1258-375 Hose Kit required to use

TS918-46 and TS1258 together). Made from Delrin® and suitable with UV

materials. The manifold can be used with any Techcon Systems Valve.

Size: 2.6" x 2.2" (66 x 56mm)

Inlet Port: 1/4" NPT (3/8" O.D. tube fitting is included)

Outlet Port: 1/8" NPT (4 Luer Lock fittings are included)

Max Operating Pressure: 100 psi (6.9 bar)

Mounting: 1/4"-20UNC-2B (x2)

Typical Valve Set Up

TS1258

NEW TS1254
