27 Ca rtri dge s and Ac cess ori es Ca rt rid ge s and Acc es so rie s The se depen dable , high qua lity pro ducts are desig ned for the ri gors of ma nufac turin g and have unde rgone con tinuo us impro vemen t to keep…

Dispensing Accessories

Luer Lock Fittings

All 931 Series fittings are molded and have good chemical resistance to solvents, acids and resin fluids. The locking end accepts all standard

dispensing tips and molded fitting used on the TSD126 Series hose assemblies. For a complete list, contact your local representative.

Fluid Line Assemblies

Each polyethylene hose assembly is provided with a molded Luer lock fitting on one or both ends. The assembly can be used with other standard

Luer lock connectors and will handle up to 100 psi (6.9 bar) working pressure.

ART NUMBER SIZE CONNECTION MATERIAL

TSD126-118PK 0.100" (2.54mm) x 18" (457mm) Male Luer/open Natural PE

TSD126-124PK 0.100" (2.54mm) x 24" (610mm) Male Luer/open Natural PE

TSD126-136PK 0.100" (2.54mm) x 36" (914mm) Male Luer/open Natural PE

TSD126-218PK 0.100" (2.54mm) x 18" (457mm) Female Luer/open Natural PE

TSD126-224PK 0.100" (2.54mm) x 24" (610mm) Female Luer/open Natural PE

TSD126-236PK 0.100" (2.54mm) x 36" (914mm) Female Luer/open Natural PE

SD126-318PK 0.100" (2.54mm) x 18" (457mm) Male Luer/female Luer Natural PE

TSD126-318BPK 0.100" (2.54mm) x 18" (457mm) Male Luer/female Luer Black PE

TSD126-324PK 0.100" (2.54mm) x 24" (610mm) Male Luer/female Luer Natural PE

TSD126-324BPK 0.100" (2.54mm) x 24" (610mm) Male Luer/female Luer Black PE

TSD126-336PK 0.100" (2.54mm) x 36" (914mm) Male Luer/female Luer Natural PE

TSD126-336BPK 0.100" (2.54mm) x 36" (914mm) Male Luer/female Luer Black PE

SD126-360BPK 0.100" (2.54mm) x 60" (1524mm) Male Luer/female Luer Black PE

TSD126-418PK 0.100" (2.54mm) x 18" (457mm) Female Luer/female Luer Natural PE

TSD126-424PK 0.100" (2.54mm) x 24" (610mm) Female Luer/female Luer Natural PE

SD126-436PK 0.100" (2.54mm) x 36" (914mm) Female Luer/female Luer Natural PE

SD126-524PK 0.100" (2.54mm) x 24" (610mm) Male Luer/male Luer Natural PE

Compression Fittings & Tubes

Compression fittings and tubes provide secure connection and increase fluid flow.

PART NUMBER DESCRIPTION MATERIAL

TSD931-5 Male Luer Lock to 5/16"-28 White Acetal

TSD931-6 Male Luer Lock to 1/8" NPT White Acetal

TSD931-7 Male Luer Lock to 1/4" NPT White Polypropylene

TSD931-8 Male Luer Lock to 1/4"-32 White Acetal

TSD931-9 Female Luer Lock to 1/4"-32 White Acetal

TSD931-13 Female Luer Lock to Hose Barb White Acetal

TSD931-14 Male Luer Lock to 1/4" NPT Black Polypropylene

TSD931-15 Female Luer Lock to 1/4" NPT Black Nylon/Acetal

TSD931-17 Male Luer Lock to Hose Barb White Acetal

TSD931-28 Female Luer Lock to Natural Polypropylene

Female Luer Lock

PART NUMBER DESCRIPTION MATERIAL

TSD1003-16 1/8" NPT to 1/4" O.D. tube, 90º fitting Black Polypropylene

TSD1002-17 1/8" NPT to 3/8" O.D. tube fitting Black Polypropylene

TSD1002-18 1/8" NPT to 1/4" O.D. tube fitting Black Polypropylene

TSD1002-38 1/4" NPT to 1/4" O.D. tube fitting Black Polypropylene

TSD1566-5 1/4" NPT to 3/8" O.D. tube fitting Black Polypropylene

TSD1099-22 3/8" O.D. x 1/4" I.D. tube Black Polyethylene

TSD1099-23 3/8" O.D. x 1/4" I.D. tube Clear Polyethylene

TSD1099-24 1/4" O.D. x 1/8" I.D. tube Clear Polyethylene

TSD1099-25 1/4" O.D. x 1/8" I.D. tube Black Polyethylene

TSD1099-45 6mm O.D. x 4mm I.D. tube Clear Polyethylene

TSD1099-46 6mm O.D. x 4mm I.D. tube Black Polyethylene

Cartridges and Accessories

These dependable, high quality products are designed for the rigors of manufacturing and have undergone

continuous improvement to keep pace with the exacting requirements of this challenging field.

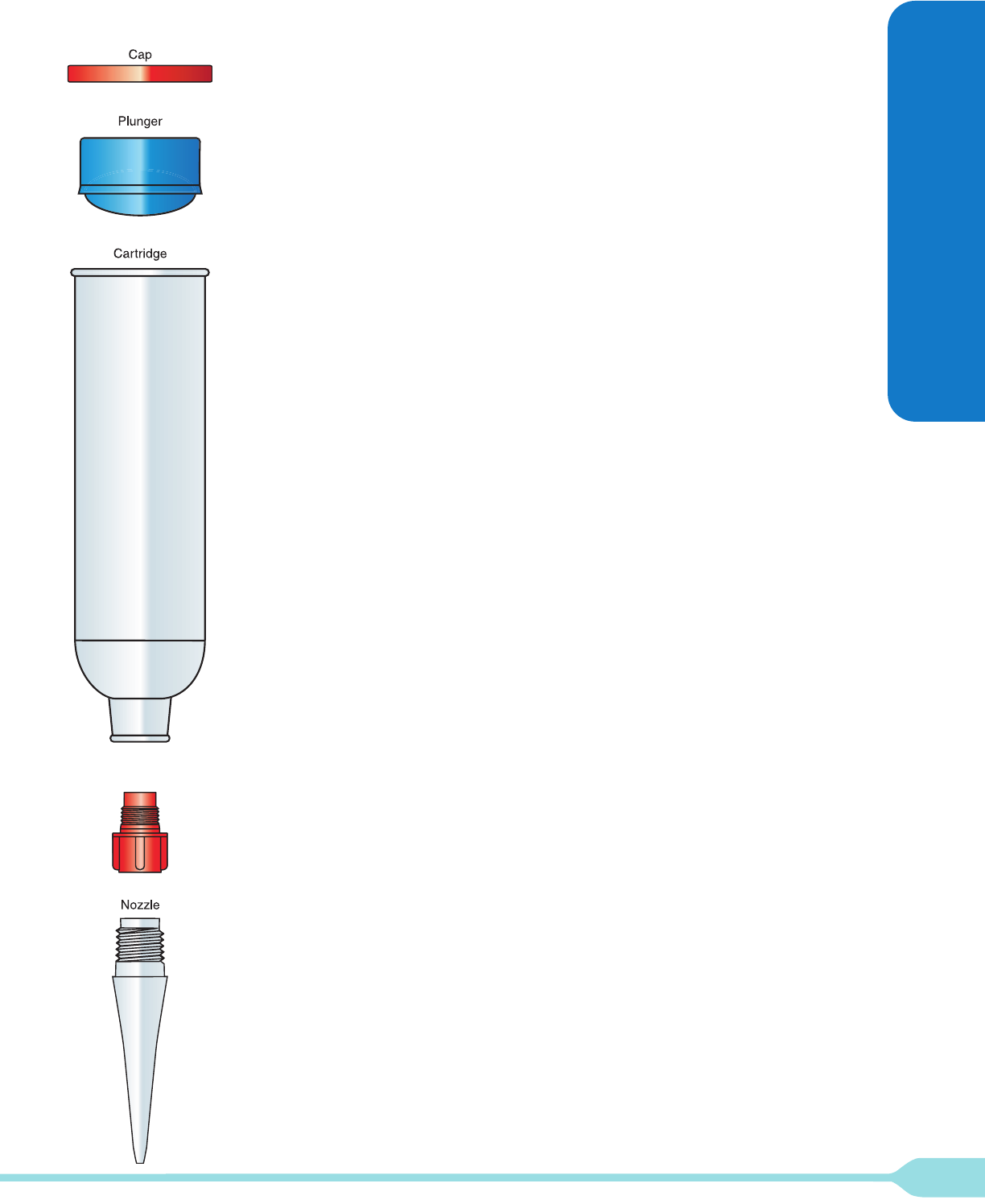

Disposable plastic cartridges and nozzles provide a clean, efficient and low-cost method to meet all types

of production requirements. Plungers with a wiper leading edge clean each cartridge thoroughly. Caps and

plugs for both ends of the cartridge are available, making the system ideal for prepackaged materials as

well as pre-mixed and frozen material handling.

Cartridges

Cartridges are available in 2 1/2, 6, 8, 12, and 20 ounce as well as 1/10 gallon capacities. Each size can

be used with hand or bench mounted air powered dispensing tools or manual dispensing tools. Cartridges

are molded in either standard or low density polyethylene. Custom colors are available. Sold in bulk

packages.

Part Number Description Length Diameter

Inches/mm Inches/mm

TS25C-500 2.5 oz. (74ml) Natural HDPE 4.00/101.6 1.59/40.4

TS25C-LD-500 2.5 oz. (74ml) Natural LDPE 4.00/101.6 1.59/40.4

TS60C-500 6 oz. (177ml) Natural HDPE 7.11/180.6 1.59/40.4

TS60C-BLACK-500 6 oz. (177ml) Black HDPE 7.11/180.6 1.59/40.4

TS60C-LD-500 6 oz. (177ml) Natural LDPE 7.11/180.6 1.59/40.4

TS80C-250 8 oz. (237ml) Natural HDPE 8.92/226.6 1.59/40.4

TS80C-LD-250 8 oz. (237ml) Natural LDPE 8.92/226.6 1.59/40.4

TS120C-250 12 oz. (355ml) Natural HDPE 12.34/313.4 1.59/40.4

TS120C-BLACK-250 12 oz. (355ml) Black HDPE 12.34/313.4 1.59/40.4

TS120C-LD-250 12 oz. (355ml) Natural LDPE 12.34/313.4 1.59/40.4

TS110C-250 1/10 Gallon (325ml) Natural HDPE 8.99/228.3 1.85/47.0

TS110C-LD-250 1/10 Gallon (325ml) Natural LDPE 8.99/228.3 1.85/47.0

TS20C-100 20 oz. (591ml) Natural HDPE 10.3/254.8 2.57/65.3

TS20C-BLACK-100 20 oz. (591ml) Black HDPE 10.3/254.8 2.57/65.3

Plungers

Wiper Plungers incorporate a modified or extended front wiper edge. Sold in bulk packages.

Part Number Description

TS1P-SR-1000 2.5, 6, 8, 12 oz., Blue Wiper LDPE

TS1PB-SR-1000 2.5, 6, 8, 12 oz., Black Wiper LDPE

TS1WP-1000 2.5, 6, 8, 12 oz., Natural Extended Wiper LDPE

TS3WP-MD-1000 2.5, 6, 8, 12 oz., Natural Reduced Wiper MDPE

TS2PW-1000 1/10 Gallon White Extended Wiper LDPE with EVA

TS2P-BLACK-1000 1/10 Gallon Black Wiper LDPE

TS20P-100 20 oz. White Wiper MDPE

TS20PLD-100 20 oz. Natural Wiper LDPE

Caps

Top and bottom Caps provide a choice of methods to seal the neck and base of the cartridge. Sold in bulk

packages.

Part Number Description

TS2C-1000 2.5, 6, 8, 12 oz. Red LDPE Flange Cap

TS4C-1000 1/10 Gallon Red LDPE Flange Cap

TS6C-1000 20 oz. Red LDPE Flange Cap

TS3P-1000 Threaded Tri Seal Red PE Cap

TS4P-1000 Threaded Square Red PE Cap

TS5P-1000 Snap On Tri Seal Red PE Cap

TS6P-BLACK-1000 Threaded Black PE Cap

TS6P-RED-1000 Threaded Red PE Cap

TS9X-1000 Push On Red PE Cap

LD = Low Density HD = High Density EVA = Ethylene Vinyl Acetate

MD = Medium Density PE = Polyethylene

Cap

Disposable Nozzles and Tip Adapters

Disposable Nozzles and

Dispensing Tip Adapters

Nozzles and dispensing tip adapters provide a wide range of application

capabilities. Standard nozzles may be cut back to increase orifice size.

Dispensing Tip Adapters

These tip adapters have standard 1/4" NPT male threads on one end to fit all

Techcon Systems cartridges or equivalent and standard male Luer lock

threads on opposite side to fit all Luer lock dispensing tips.

Part Number Description

TSD931-7 Dispensing Tip Adapter White Polypropylene

TSD931-14 Dispensing Tip Adapter Black Polypropylene

918-006-000 Dispensing Tip Adapter Metal

Standard Nozzles

Standard nozzles are precision molded from natural polyethylene and

have 1/4" NPT male threads to fit all Techcon cartridges or equivalent.

Color nozzles are available upon request. Part numbers below are sold

in bulk package of 1000.

Part Number Description

Bent Nozzles

Below is the list of standard bent nozzles. Special bent nozzles available

upon request. Part numbers below are sold in bulk package of 1000.

Part Number Description

Specialty Nozzles

Specialty nozzles are precision molded from natural polyethylene and

have 1/4" NPT male threads to fit all Techcon cartridges or equivalent.

Part numbers below are sold in bulk package of 1000.

TS416-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)

TS416-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)

TS416-HO-LD-B40/1-1000 Bent 40° at 1" (25.4mm)

TS416-HO-LD-B80/1-1000 Bent 80° at 1" (25.4mm)

TS418-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)

TS618-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)

TS618-HO-LD-B70/2-1000 Bent 70° at 2" (50.8mm)

TS216-1000 2" (50.8mm) X 1/16" (1.6mm), HDPE

TS218-1000 2" (50.8mm) X 1/18" (1.4mm), HDPE

TS218-LD-1000 2" (50.8mm) X 1/18" (1.4mm), LDPE

TS416-HO-HD-1000 4" (101.6mm) X 1/16" (1.6mm), HDPE

TS416-HO-LD-1000 4" (101.6mm) X 1/16" (1.6mm), LDPE

TS418-HO-LD-1000 4" (101.6mm) X 1/18" (1.4mm), LDPE

TS432-HO-HD-1000 4" (101.6mm) X 1/32" (0.8mm), HDPE

TS432-HO-LD-1000 4" (101.6mm) X 1/32" (0.8mm), LDPE

TS490-HO-LD-1000 4" (101.6mm) X 3/32" (2.4mm), LDPE

TS616-HO-LD-1000 6" (152.4mm) X 1/16" (1.6mm), LDPE

TS618-HO-LD-1000 6" (152.4mm) X 1/16" (1.4mm), LDPE
