29 Di spen sin g Guns G Se rie s Dis pe ns ing Gu ns an d Com po ne nts T echc on Syst ems G Seri es guns an d compon ents ar e design ed to acc ommod ate sta ndard 1/10 gall on cart ridge s, such as T echc on’ s TS1 10C…

Disposable Nozzles and Tip Adapters

Disposable Nozzles and

Dispensing Tip Adapters

Nozzles and dispensing tip adapters provide a wide range of application

capabilities. Standard nozzles may be cut back to increase orifice size.

Dispensing Tip Adapters

These tip adapters have standard 1/4" NPT male threads on one end to fit all

Techcon Systems cartridges or equivalent and standard male Luer lock

threads on opposite side to fit all Luer lock dispensing tips.

Part Number Description

TSD931-7 Dispensing Tip Adapter White Polypropylene

TSD931-14 Dispensing Tip Adapter Black Polypropylene

918-006-000 Dispensing Tip Adapter Metal

Standard Nozzles

Standard nozzles are precision molded from natural polyethylene and

have 1/4" NPT male threads to fit all Techcon cartridges or equivalent.

Color nozzles are available upon request. Part numbers below are sold

in bulk package of 1000.

Part Number Description

Bent Nozzles

Below is the list of standard bent nozzles. Special bent nozzles available

upon request. Part numbers below are sold in bulk package of 1000.

Part Number Description

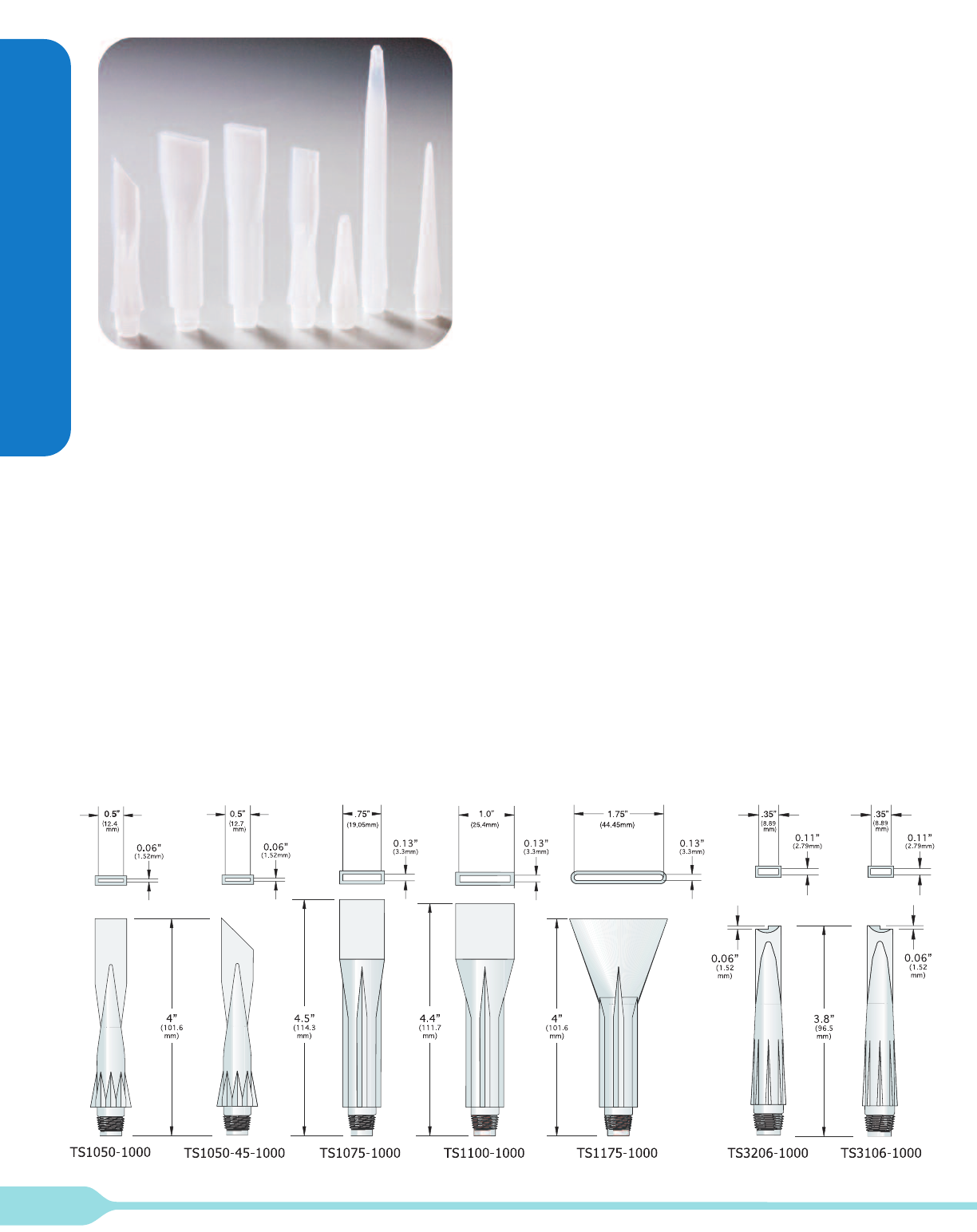

Specialty Nozzles

Specialty nozzles are precision molded from natural polyethylene and

have 1/4" NPT male threads to fit all Techcon cartridges or equivalent.

Part numbers below are sold in bulk package of 1000.

TS416-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)

TS416-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)

TS416-HO-LD-B40/1-1000 Bent 40° at 1" (25.4mm)

TS416-HO-LD-B80/1-1000 Bent 80° at 1" (25.4mm)

TS418-HO-LD-B30/1-1000 Bent 30° at 1" (25.4mm)

TS618-HO-LD-B30/2-1000 Bent 30° at 2" (50.8mm)

TS618-HO-LD-B70/2-1000 Bent 70° at 2" (50.8mm)

TS216-1000 2" (50.8mm) X 1/16" (1.6mm), HDPE

TS218-1000 2" (50.8mm) X 1/18" (1.4mm), HDPE

TS218-LD-1000 2" (50.8mm) X 1/18" (1.4mm), LDPE

TS416-HO-HD-1000 4" (101.6mm) X 1/16" (1.6mm), HDPE

TS416-HO-LD-1000 4" (101.6mm) X 1/16" (1.6mm), LDPE

TS418-HO-LD-1000 4" (101.6mm) X 1/18" (1.4mm), LDPE

TS432-HO-HD-1000 4" (101.6mm) X 1/32" (0.8mm), HDPE

TS432-HO-LD-1000 4" (101.6mm) X 1/32" (0.8mm), LDPE

TS490-HO-LD-1000 4" (101.6mm) X 3/32" (2.4mm), LDPE

TS616-HO-LD-1000 6" (152.4mm) X 1/16" (1.6mm), LDPE

TS618-HO-LD-1000 6" (152.4mm) X 1/16" (1.4mm), LDPE

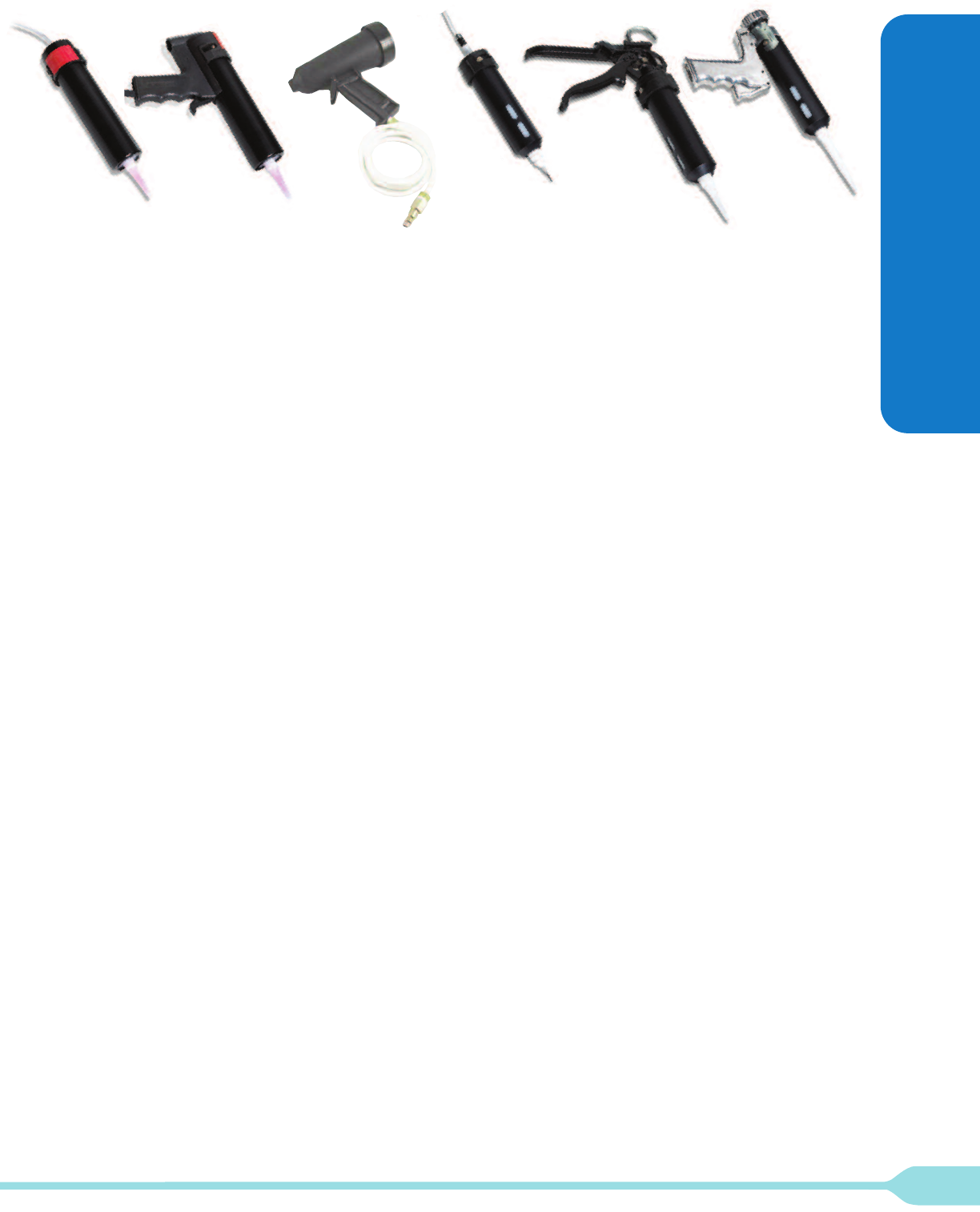

Dispensing Guns

G Series Dispensing Guns

and Components

Techcon Systems G Series guns and components are designed

to accommodate standard 1/10 gallon cartridges, such as

Techcon’s TS110C. Techcon also provides metal retainers that

adapt the G Series handle assemblies for use with the smaller

diameter cartridges. A 20 oz. retainer with adapter is available to

accommodate the 20 oz. cartridge.

G Series Retainer

The G Series retainers provide up to 100 psi (6.9 bar) air

pressure.

Part Number Size

110-2 1/10 gal. (325ml)

101-25R 2.5 oz. (74ml)

101-60R 6 oz. (177ml)

101-120R 12 oz. (355ml)

101-20R* 20 oz. (591ml)

101-20A 20 oz. Adapter (591ml)

*101-20A Adapter is required for 20 oz.

G Series Retainer Cap

The G Series retainer cap provides a leak-proof connection

between the dispenser and G Series retainers. Shipped

complete with air hose assembly, and can withstand up to

70 psi (4.8 bar) pressure.

Part Number Description

918-000-036 G Series Retainer Cap

G Series Gun Assemblies

This pneumatic pistol grip G Series gun provides infinite control

of line or dot dispensing and can withstand up to 100 psi (6.9

bar) pressure. Shipped complete with a 10-foot air hose.

Part Number Size Handle Retainer

G-110 1/10 gal. (325ml) 110-1-10 110-2

G110-25 2.5 oz. (74ml) 110-1-10 101-25R

G110-60 6 oz. (177ml) 110-1-10 101-60R

G110-120 12 oz. (355ml) 110-1-10 101-120R

G110-20* 20 oz. (591ml) 110-1-10 101-20R

*101-20A Adapter included.

TS910 Tube Dispense Gun

The TS910 gun is ideal for dispensing RTV silicones, grease or

other material that contain in collapsible tube. Shipped complete

with 5 foot (1.5 meters) air hose, quick connect fitting, nozzle

and locking nut.

Part Number Size

TS910 3 to 5 fluid oz. (89 -148ml)

TS Series Dispensing Guns

and Components

TS Series dispensing guns and components are designed to

accommodate Techcon Systems extensive line of Cartridges and

Techkits.

TS Retainers

The TS Series retainers are durable, lightweight and can withstand

up to 100 psi (6.9 bar) pressure.

Part Number Size

918-030-000 2.5 oz. (74ml)

918-031-000 6 oz. (177ml)

918-034-000 8 oz. (237ml)

918-032-000 12 oz. (355ml)

TS Retainer Cap

The TS Series retainer cap provides a leak-proof connection

between the dispenser and TS Series retainers. Quick connector

and air hose assembly are available separately and can withstand

up to 100 psi (6.9 bar) pressure.

Part Number Description

918-001-004 TS Series Retainer Cap

918-000-002 Air Hose Assembly

534 Connector with Shut-off

534A Connector without Shut-off

TS16 Manual Gun Assemblies

The lightweight TS16 Series manual gun assembly is ideal for field

applications where compressed air is unavailable.

Gun Size Handle Retainer

TS16-25 2.5 oz. (74ml) TS16 918-030-000

TS16-60 6 oz. (177ml) TS16 918-031-000

TS16-80 8 oz. (237ml) TS16-2 918-032-000

TS16-120 12 oz. (355ml) TS16-2 918-032-000

TS950 Sealant Gun

The TS950 is a versatile, pneumatic sealant gun designed to

accommodate all TS Series retainers. Complete assembly includes

palm grip gun with pistol grip handle attached. Shipped without air

hose, the 1000-12 ten-foot hose assembly can be ordered

separately.

Pistol Grip Size Palm Grip Pistol Grip Retainer

Sealant Gun Assembly Handle

TS950-25-HA 2.5 oz. (74ml) TS950-75 TS950-3 918-030-000

TS950-60-HA 6 oz. (177ml) TS950-75 TS950-3 918-031-000

TS950-80-HA 8 oz. (237ml) TS950-75 TS950-3 918-034-000

TS950-120-HA 12 oz. (355ml) TS950-75 TS950-3 918-032-000

eries

andle

ssemblies

Series

etainer

aps

S16

andle

ssemblies

TS910

Tube Dispense

Gun

TS950

Sealant

Gun

eries

etainer Cap

Techkits

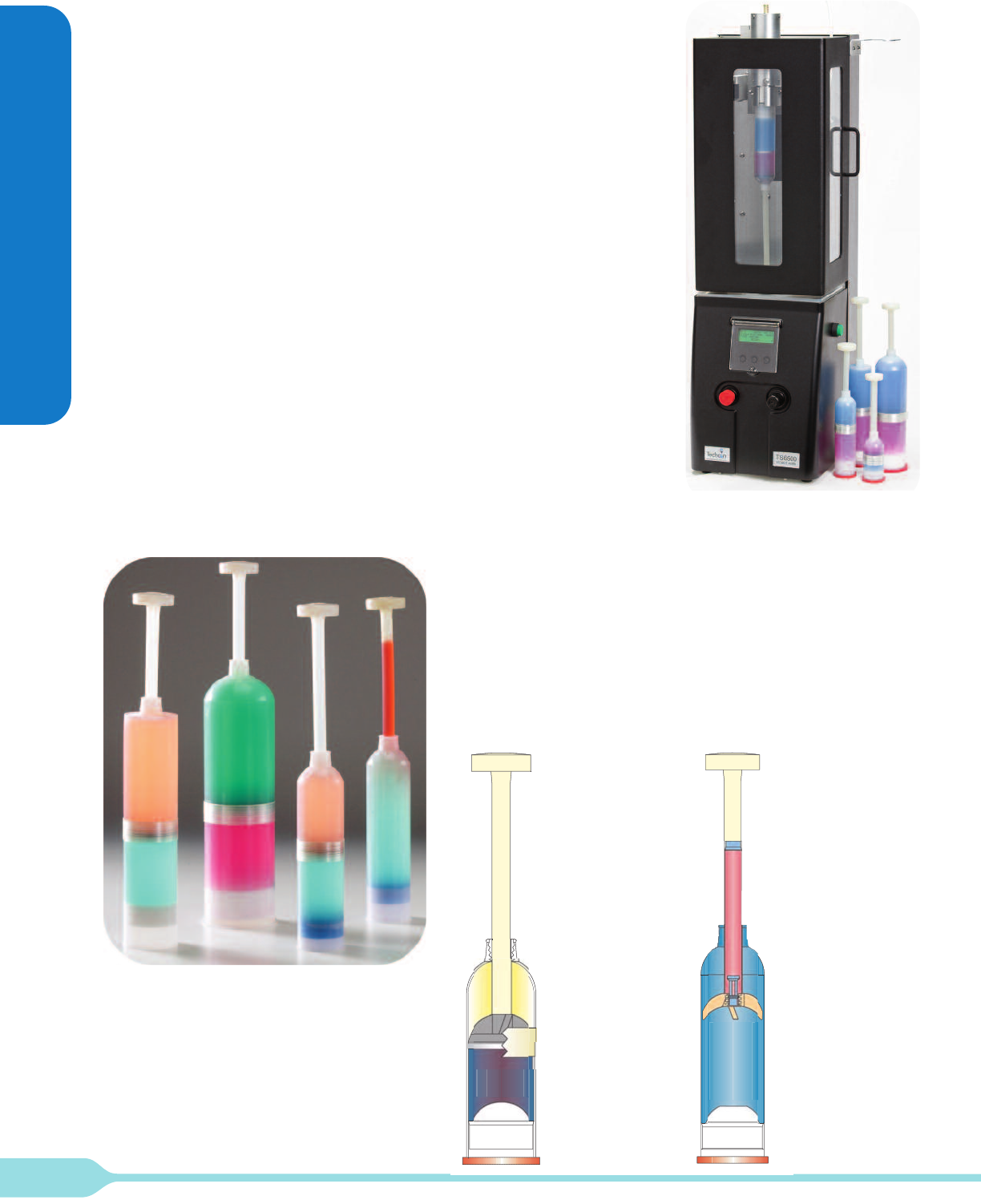

Techkit Cartridge Mixers

TS6500 Series

The TS6500 Series cartridge mixer provides complete automatic mixing of two-component

material filled in a cartridge kit. The feature rich TS6500 Series accommodates all standard

size cartridge kits ranging from 2.5 oz (74ml) to 20 oz. (591ml) and is immediately usable

anywhere in the world with its accompanying tools, accessories and universal power supply.

Key Features:

• Universal power supply for worldwide use

• Automatic fluid level sensing device for all

kit sizes– No need to set stroke length

• Automatically injects hardener into resin to

provide uniform mixed material

• Robust, high torque motor to handle high

viscosity material

• Safety features include safety enclosure,

emergency stop button and two-hand start

• User programmable manual and automatic

mixing cycle settings

• 10 programmable memories for storing and

recalling most frequently used mix cycle

• Quick and easy to replace cartridge holder

and plunger - No tool needed

• User friendly firmware for easy setup

• Robust and sturdy platform for heavy

industrial used

• RoHS, WEEE compliance

Specifications:

Size: 15.7”W x 21.2”D x 40.6”H

398mm x 538mm x 1032mm

eight: 80 lb (36kg)

Internal Voltage: 120-230VAC, 50-60 Hz, 2 Amp

Motor Speed: 139 RPM

ir Inlet: 80 psi (5.5 Bar) Min.

troke Speed: 33 Strokes/minute (fully extended)

Meets or exceeds: CE, cTUV-us

arranty: 1 year

art number Description

S6500CIM-6 Cartridge Mixer for 2.5 (74ml),

oz. (177ml), 8 oz. (237ml) kit

S6500CIM-20 Cartridge Mixer for 20 oz.

(

591ml) kit

CK6500-6 Conversion Kit for 2.5, 6, 8 oz. kit

K6500-10 Conversion kit for 1/10 gal kit

K6500-20 Conversion kit for 20 oz. kit

Techkits

Two Component Cartridge Packaging and Mixing Kits

The Techkit is a compact and simple method of packaging two or three

component resin systems into a 2 1/2, 6, 8, 20 ounce or 1/10 gallon cartridge.

The kit mechanically separates the base and hardener until they are ready to be

used. An internal mixing head provides a thorough blend for all types of

compounds. When the job has been completed, the entire package is disposed

of: no clean up or physical contact with the resin. Reliability is increased with

accurate compound ratios, complete mixing and proper application techniques.

Three types of kits are available:

Barrier Type

For compounds with a

Minimum demand of

23ml Hardener the

catalyst and base

are separated by an

aluminum barrier formed

over the mixing head.

Injection Type

For compounds with a

Maximum demand of

12.5ml or less the

catalyst is contained

inside the valved mixing

rod while the base is in

the cartridge.

Barrier/Injection Type

For three component compounds,

components of both Injection and

Barrier are combined.
