2 Ap pl ic at ion T ab le of Co nte nt s Fin d the ri ght pr oduc ts for you r appl icat ions 1. Bo ndin g Wit h Cyan oac ryla te App lica tio n CA is a ver y frequ ently used adhe sive in the ge neric bond ing appl icat…

Tabl

e of Contents

ppl

ati

abl

e of Contents

. . .

. . . . . . . . . . . . . . .

250/TS

350 Di

pens

/Contr

. . . . . . . . . . . . . . .

700 S

pens

ng Com

ponents

. . . . . . . . . .

pens

. . . . . . . . . .

700 and 400 S

pens

ng Com

ponents

. . .

Dispensing

ips

. . . . . .

. . . . . . . . . .

. . . . . . .10-11

Bench-Top Dispensing Robot

. . . . . . . . . .

. . .12

TS9200D Series Jet

Tech

. . . .

. . . . . . . . . .

. . .13

TS500R Digital Controller

. . . .

. . . . . . . . . .

. . .14

TS5000 Rotary Microvalve

. . . .

. . . . . . . . . .

. . .15

TS7000 (IMP) Rotary V

alve

. . .

. . . . . . . . . .

. . .16

Spray V

alves

. . . . .

. . . . . . . . . .

. . .17

TS5620 Series Diaphragm V

alves

. . . . . . . .

. . . . . . . . . .

. . .18

TS5624DMP Disposable Material Path Diaphragm V

alve

. . .19

Needle V

alves

. . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .20

Spool V

alves

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .21

Pinch

ube V

alves . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .22

Pressure Pot

. . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .23

Valve Ap

plication

ide

. . . . . . . . . . . . . . . . . .

. . . . . . . . .24-25

Disp

ensing

Accesso

ries

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .26

Cartridges and Accesso

ries

. . . . . . . . . . . . . . . . . .

. . . . . . . .27

Disposable Nozzles and Dispensing Tip Adapters

. . . . . . . .28

Dispe

nsing

Gun

. . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .29

kits . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . .30-31

Tutorial

. . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .32

Valve Diagrams . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . .33

Application Table of Contents

Find the right products for your applications

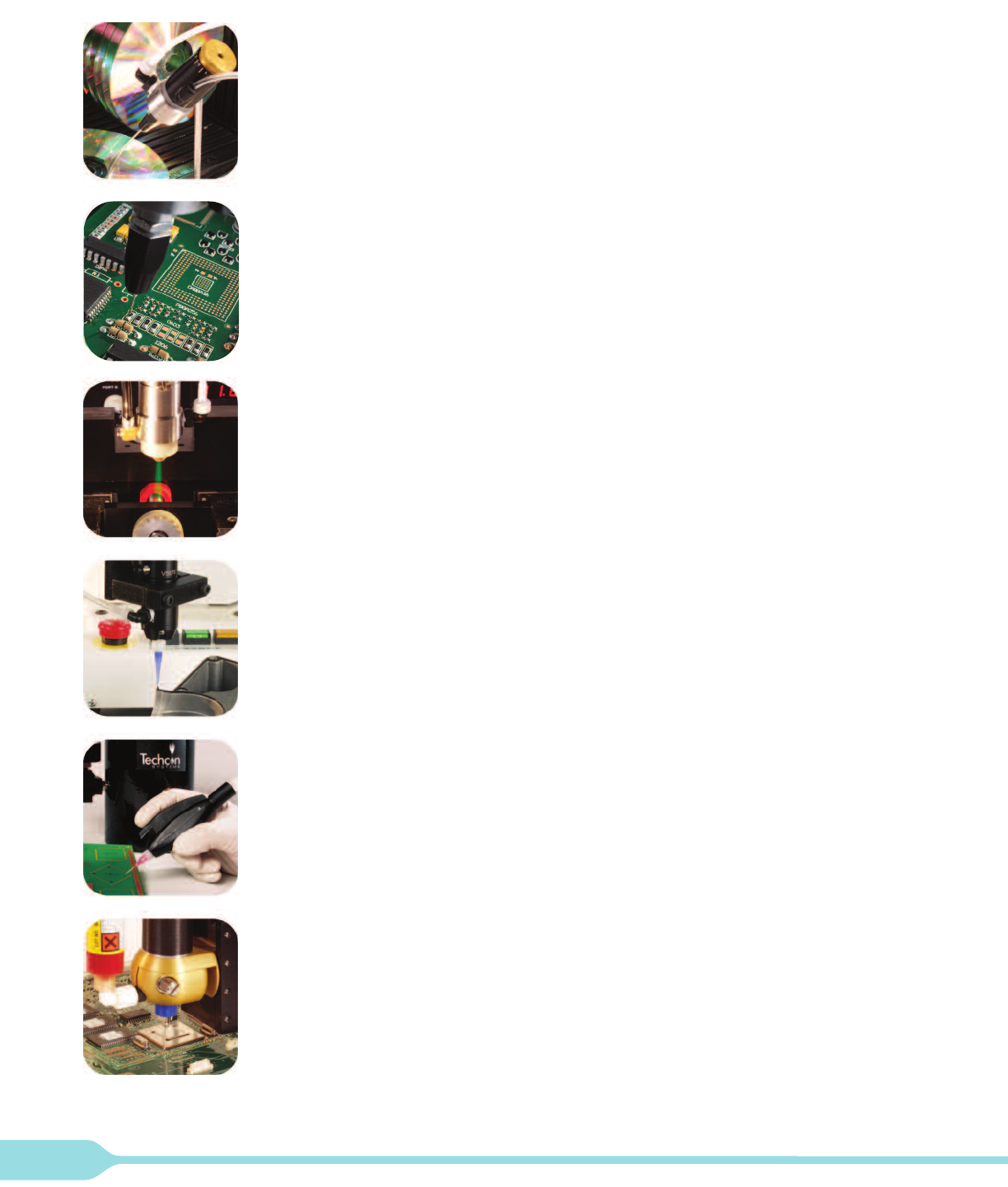

1. Bonding With Cyanoacrylate Application

CA is a very frequently used adhesive in the generic bonding application and it is required in

a moisture resistant dispensing system. The TS5622VU Diaphragm valve along with the

TS500R controller and TS1258 pressure pot is a perfect system for this application.

TS5622VU (page19), TS500R (page 15), TS1258 (page 23)

2. Domed Logo Badges Application (Doming)

Consumer and business products often display the manufacturer’s name on a sticker that is

encapsulated underneath a dome of fluid. This is called “Doming” and is commonly used as

this adds a better “look and feel” to the product. The TS5622VU-DVD with the TS500R

controller and TS1258 pressure pot is a perfect system for this application.

TS5622VU-DVD (page 19), TS500R (page 15), TS1258 pressure pot (page 23)

3. Microdot Adhesive Dispensing

Most medical device manufacturing applications require a dispensing system that can

provide a highly repeatable dispensing of UV adhesives. With the unique needle shut off

design inside the dispensing tip, the TS5440 Microshot needle valve is the perfect choice for

these applications. The TS500R controller is recommended for this valve.

S5440 Microshot needle valve (page 20), TS500R controller (page 15)

4. Spray Conformal Coating Application

The TS5540 Series spray valve along with the TS500R controller and the TS1258 pressure

pot is an ideal system to spray conformal coating material on the surface of an assembled

printed circuit board to provide protection against moisture, dust and corrosion from

extreme environments.

TS5540 Series spray valve (page 18), TS500R controller (page 15), TS1258 pressure pot (page 23)

5. Gasketing Application

When a high throughput or large shot size is required for gasketing or similar “Form-in-

place-gasket” applications, the TS941 Series spool valve along with the TS350 controller is

the recommended system choice. Whether the fluid is fed from a cartridge or pail pump, the

TS941 Series will dispense accurately and consistently through a dispensing nozzle or

dispensing tip.

For finer deposit control of sealing material, the TS5322 Series mini spool valve with the

TS350 controller is recommended.

TS941 Series spool valve (page 21), TS350 controller (page 3),

TS5322 Series mini spool valve (page 21)

6. Dam Writing Application

The TS7000 Series rotary valve along with the TS500R controller is an ideal dispensing

system to dispense the “Dam” around the die of an integrated circuit (i.c.) as an alternative

method to using the pre-form molded design.

TS7000 Series rotary valve (page 17), TS500R controller (page 15)

7. Plural Component Material Dispensing

Plural component material dispensing is no longer a problem when using a Disposable

Material Path valve. When the 2-component material starts to cure, just throw away the

valve wetted parts. It takes less than 1 minute to replace new parts.

For low viscosity material, the TS1212 pinch tube valve along with the TS350 controller is

recommended. For medium to high viscosity material with high repeatability rate

requirement, the TS5000DMP valve with the TS500R controller is suitable.

TS1212 pinch tube valve (page 22), TS350 controller (page 3),

TS5000DMP valve (page 16), TS500R controller (page 15)

8. Solder Paste Dispensing

Solder paste is the most difficult material to dispense. The TS5000 Series rotary valve is

designed specifically to dispense solder paste without clogging and separation. Dot size as

small as 0.010" (0.254mm) can be dispensed consistently. A majority of automated

dispensing systems incorporate the TS5000 Series valve for solder paste dispensing.

TS5000 Series rotary valve (page 16)

TS250/TS350 Dispenser/Controller

TS250 Series

Digital Dispenser/Controller

The TS250 Series Dispenser/Controller dispenses low, medium

and high-viscosity fluids accurately and consistently. These

systems are economical, highly accurate and repeatable micro-air

dispensing systems. These user friendly fluid dispensing systems

include digital timer with rotary control time knob for easy setup,

and a vacuum control for all viscosities of fluids.

Packaged ready to use with a universal power supply, foot switch,

air hose, sample tips, syringe barrel and adapter. Features a small

footprint and is lightweight.

Available in two versions of operating pressure: 0 to 100 psi

(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for

specific low viscosity applications.

Part Number Description

TS250 Dispenser/Controller 0-100 psi (0-6.9 bar)

TS255 Dispenser 0-15 psi (0-1.0 bar)

TS350 Series

Digital Dispenser/Controller

The TS350 Series Dispenser/Controller is equipped with digital

timer, pressure and vacuum read out on a large LCD. The firmware

provides the option of programming up to 10 varied, sequenced or

individual shots. It is intuitive to use, dispenses low, medium and

high-viscosity fluids accurately and consistently.

The TS350/355 Series includes a vacuum-driven “suck-back” to

control material “tailing” and waste and to control drips of fluid

between dispense cycles. These systems have user programmable

manual (purge) and automatic dispense cycle settings (program and

time) and they feature a “Teach Mode” for determining the

dispensing time required when dispensing output is unknown.

Packaged ready to use with a universal power supply, foot switch,

air hose, sample tips, syringe barrel and adapter. Features a small

footprint and is lightweight.

Available in two versions of operating pressure: 0 to 100 psi

(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for

specific low viscosity applications.

Part Number Description

TS350 Dispenser/Controller 0-100 psi (0-6.9 bar)

TS355 Dispenser 0-15 psi (0-1.0 bar)

Specifications TS250 Series TS350 Series

Cabinet Dimensions: 6"W x 6.5"L x 7.0"H 6"W x 6.5"L x 7.0"H

152mm x 165mm x 178mm 152mm x 165mm x 178mm

Weight: 2.6 lb. (1.2 kg) 2.6 lb. (1.2 kg)

Cycle Rate: 600 cycle/minute 1200 cycle/minute

Timing Range: 0.020-60.000 seconds 0.008-60.000 seconds

Timing Repeat Tolerances: +/- 0.001% +/- 0.001%

Input Voltage: 100-240 VAC 100-240 VAC

Input Frequency: 50-60 Hz 50-60 Hz

Cycle Mode: TIMED, PURGE TIMED, INTERRUPT, TEACH, PURGE

Meets or exceeds: CE, TUV-GS and NRTL CE, TUV-GS and NRTL

Warranty: 1 year 1 year
