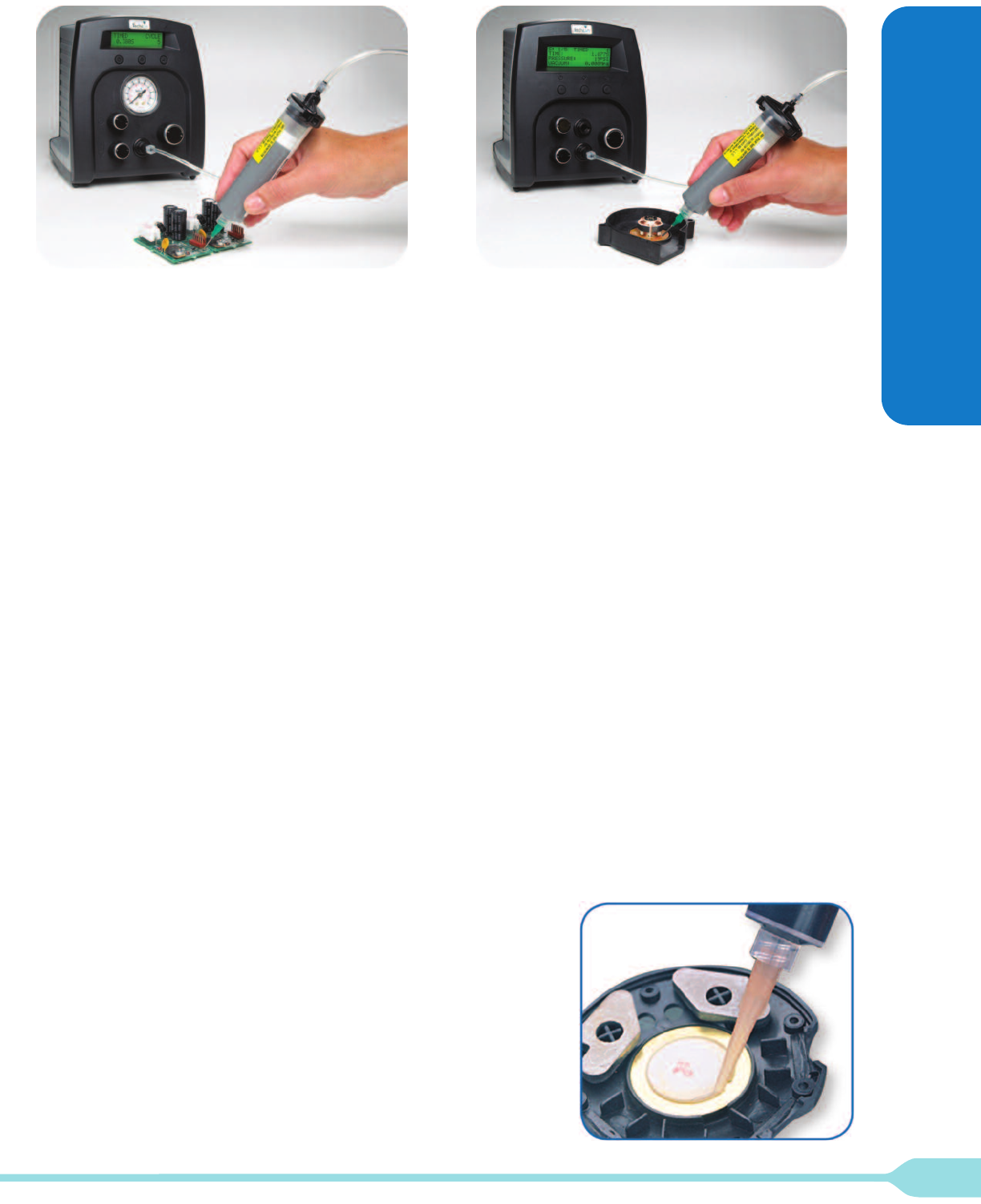

TS250/TS350 Dispenser/Controller
TS250 Series
Digital Dispenser/Controller
The TS250 Series Dispenser/Controller dispenses low, medium
and high-viscosity fluids accurately and consistently. These
systems are economical, highly accurate and repeatable micro-air
dispensing systems. These user friendly fluid dispensing systems
include digital timer with rotary control time knob for easy setup,
and a vacuum control for all viscosities of fluids.
Packaged ready to use with a universal power supply, foot switch,
air hose, sample tips, syringe barrel and adapter. Features a small
footprint and is lightweight.
Available in two versions of operating pressure: 0 to 100 psi
(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for
specific low viscosity applications.
Part Number Description
TS250 Dispenser/Controller 0-100 psi (0-6.9 bar)
TS255 Dispenser 0-15 psi (0-1.0 bar)
TS350 Series
Digital Dispenser/Controller
The TS350 Series Dispenser/Controller is equipped with digital
timer, pressure and vacuum read out on a large LCD. The firmware
provides the option of programming up to 10 varied, sequenced or
individual shots. It is intuitive to use, dispenses low, medium and
high-viscosity fluids accurately and consistently.
The TS350/355 Series includes a vacuum-driven “suck-back” to
control material “tailing” and waste and to control drips of fluid
between dispense cycles. These systems have user programmable
manual (purge) and automatic dispense cycle settings (program and
time) and they feature a “Teach Mode” for determining the
dispensing time required when dispensing output is unknown.
Packaged ready to use with a universal power supply, foot switch,
air hose, sample tips, syringe barrel and adapter. Features a small
footprint and is lightweight.
Available in two versions of operating pressure: 0 to 100 psi
(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for
specific low viscosity applications.
Part Number Description
TS350 Dispenser/Controller 0-100 psi (0-6.9 bar)
TS355 Dispenser 0-15 psi (0-1.0 bar)
Specifications TS250 Series TS350 Series
Cabinet Dimensions: 6"W x 6.5"L x 7.0"H 6"W x 6.5"L x 7.0"H
152mm x 165mm x 178mm 152mm x 165mm x 178mm
Weight: 2.6 lb. (1.2 kg) 2.6 lb. (1.2 kg)
Cycle Rate: 600 cycle/minute 1200 cycle/minute
Timing Range: 0.020-60.000 seconds 0.008-60.000 seconds
Timing Repeat Tolerances: +/- 0.001% +/- 0.001%
Input Voltage: 100-240 VAC 100-240 VAC
Input Frequency: 50-60 Hz 50-60 Hz
Cycle Mode: TIMED, PURGE TIMED, INTERRUPT, TEACH, PURGE
Meets or exceeds: CE, TUV-GS and NRTL CE, TUV-GS and NRTL
Warranty: 1 year 1 year
4
700 Series Dispensing Components
700 Series Dispensing Components
Our 700 Series Premier dispensing components are silicone and chloride free and designed to work with industry
standard equipment. 700 Series dispensing components ensure accuracy, repeatability and productivity.

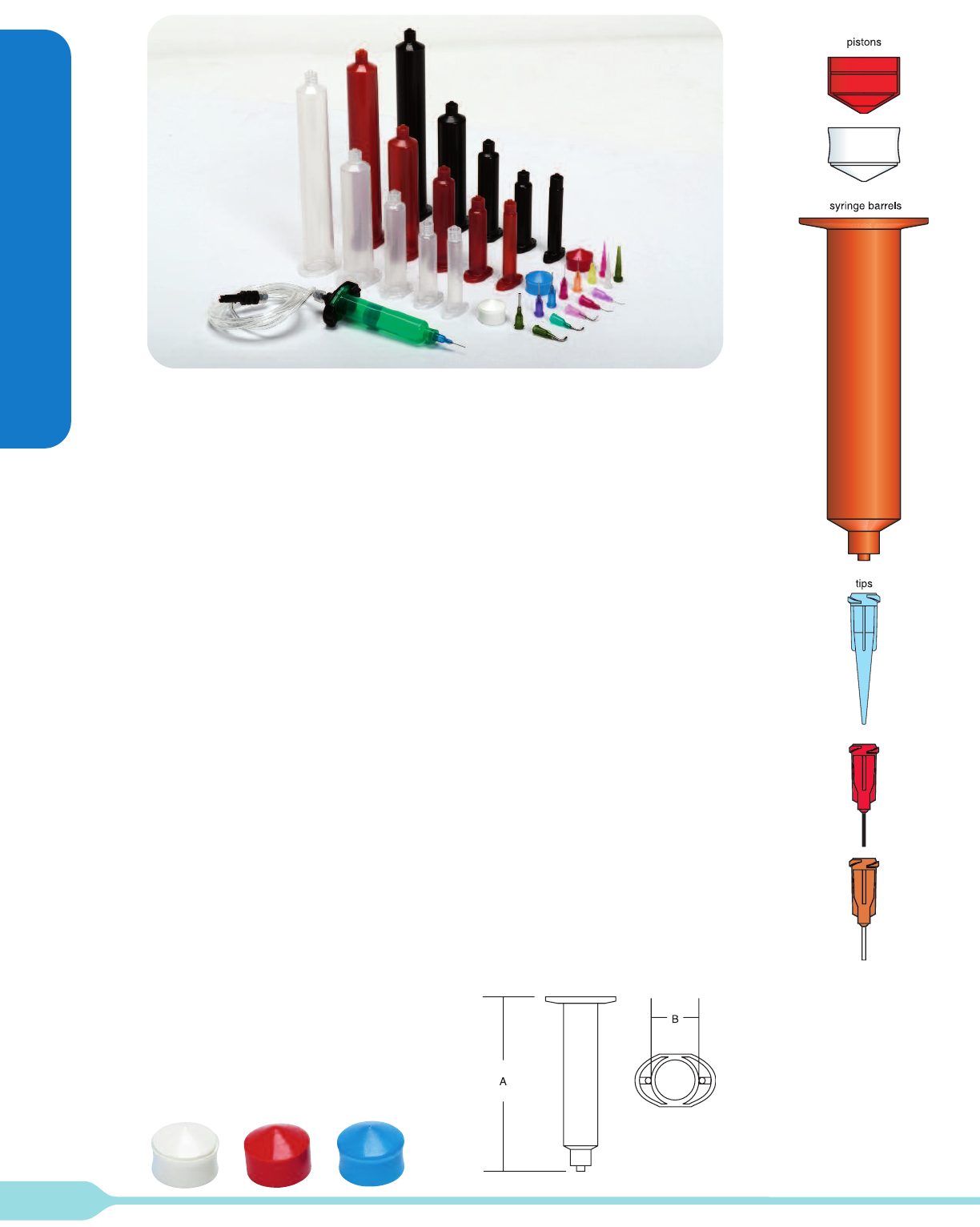

700 Series Syringe Barrels
Unique ultra-low draft construction of inner diameter
yields high accuracy and stability. They are comprised
of industry compliant silicone and chloride free, low
friction polypropylene. Available in three different
colors: Natural for most generic applications, amber
provides protection of UV/visible light block (up to
520nm), but with the ability to see material inside the
barrel; and black for total light block. Sold in bulk and
packs of 50.
SIZE NATURAL AMBER BLACK
3 cc 7030LL1N-1000 7030LL1D-1000 7030LL1B-1000
5 cc 7050LL1N-1000 7050LL1D-1000 7050LL1B-1000
10 cc 7100LL1N-1000 7100LL1D-1000 7100LL1B-1000
30 cc 7300LL1N-500 7300LL1D-500 7300LL1B-500
55 cc 7550LL1N-250 7550LL1D-250 7550LL1B-250
700 Series Air Powered Pistons
Spread the pressure evenly across, using a piston for
consistent dispensing of even high viscosity material.
Easy Flow pistons (blue) require less pressure to
dispense and prevent air from becoming entrapped
during the dispense process. Tight fit Wiper pistons
(white) provide a complete seal for low viscosity fluid.
Loose fit straight wall pistons (red) prevent stringing
and bouncing when dispensing high viscosity material.
Sold in bulk and packs of 50. Made from polyethylene.
SIZE Wiper Piston Straight Wall Easy Flow
(White) Piston (Red) Piston (Blue)
3 cc 7030009W-1000 7030006R-1000 7030007BL-1000
5 cc 7050009W-1000 7050006R-1000 7050007BL-1000
10 cc 7100009W-1000 7100006R-1000 7100007BL-1000
30-55 cc 7300009W-1000 7300006R-1000 7300007BL-1000
700 Series Syringe Barrel Kits
For your convenience these syringe barrels and white wiper
pistons are packaged together without pistons inserted. Kits with
Blue pistons are also available. Sold in bulk and packs of 50.
SYRINGE BARREL KITS WITH WHITE WIPER PISTONS
SIZE NATURAL AMBER BLACK
3 cc 7030LL1NW-1000 7030LL1DW-1000 7030LL1BW-1000
5 cc 7050LL1NW-1000 7050LL1DW-1000 7050LL1BW-1000
10 cc 7100LL1NW-1000 7100LL1DW-1000 7100LL1BW-1000
30 cc 7300LL1NW-500 7300LL1DW-500 7300LL1BW-500
55 cc 7550LL1NW-250 7550LL1DW-250 7550LL1BW-250
SYRINGE BARREL KITS WITH BLUE WIPER PISTONS
SIZE NATURAL
3 cc 7030LL1NBL-1000
5 cc 7050LL1NBL-1000
10 cc 7100LL1NBL-1000
30 cc 7300LL1NBL-500
55 cc 7550LL1NBL-250
700 Series Syringe Barrel Dimensions
CAPACITY Overall Length A Outside Diameter B
inches/mm inches/mm
3 cc 2.96/75.18 0.46/11.56
5 cc 2.83/71.9 0.59/14.99
10 cc 3.58/90.9 0.72/18.29
30 cc 4.66/118.36 0.99/25.15
55 cc 6.91/175.51 1.01/25.65
5
700 Series Dispensing Components

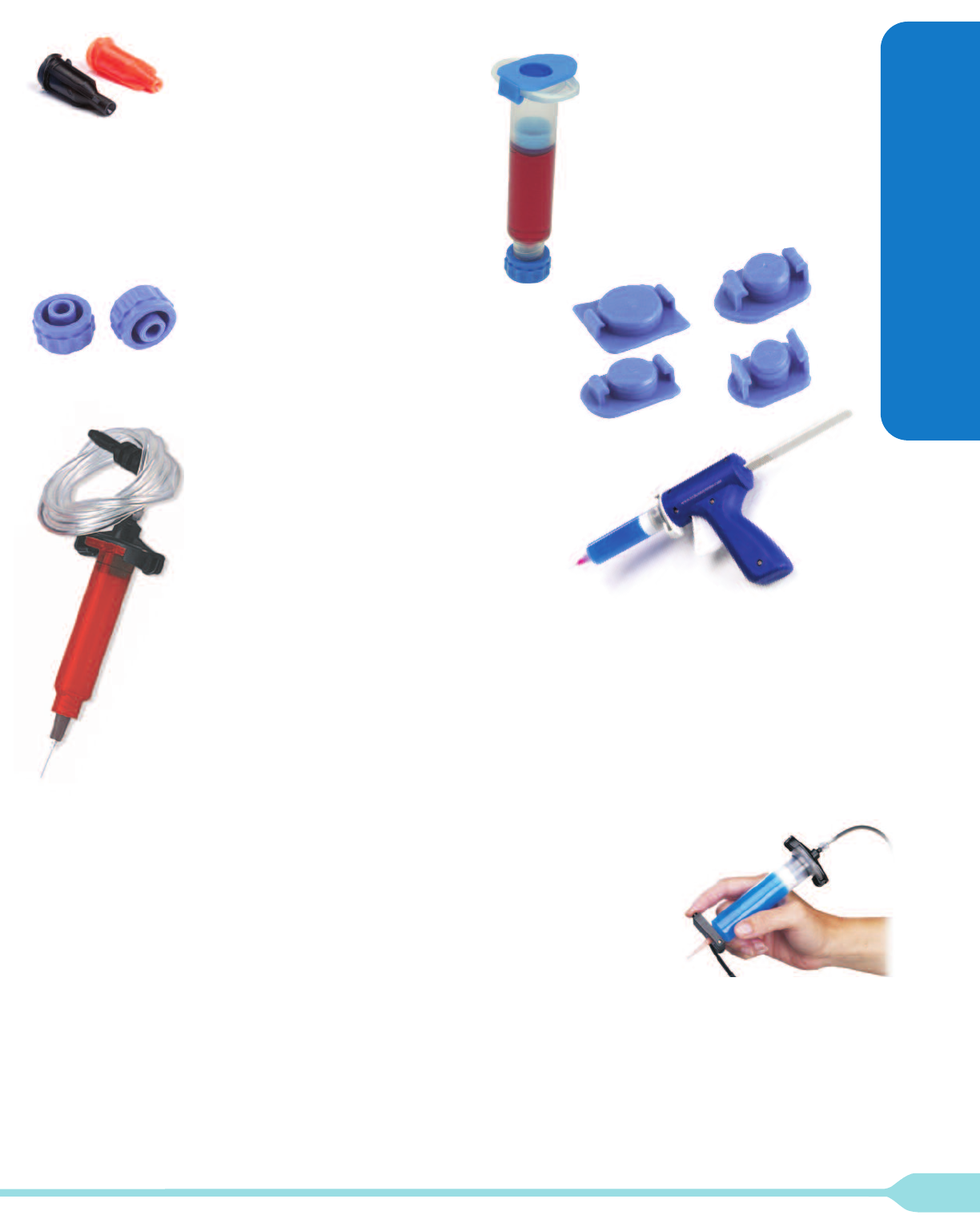

700 Series Tip Cap
Designed to seal the syringe barrel tip during
storage and shipment. Fits all syringe barrel
sizes. Sold in bulk and packs of 50. Made from
polypropylene.
P
art No. Description
7015LL-1000 Tip Cap Double Helix Thread
Orange
T
E7015LB-1000 Tip Cap Double Helix Thread
Black
Stand up Tip Cap Designed for
easy attachment with large flat diameter at the
base to allow for the syringe barrel to stand
upright. Sold in bulk and packs of 50. Made from
Polypropylene.
Part No. Description
7
015STC-1000 Blue Stand up Tip Cap
700 Series
Receiver Head Assembly
Receiver Head Assemblies are the connecting
link between time/pressure controllers and
syringe assemblies. These assemblies provide a
safe connection for accident proof dispensing.
Available with 3 or 6 feet (0.9 - 1.8 meters) of
tubing. Consists of receiver head with Viton
O-ring, tubing and male quick connector. Sold
individually. Made of Delrin
®
.
SIZE 3' HOSE 6' HOSE NO HOSE
(0.9m) (1.8m)
3 cc 70303RHB 70306RHB 70300RHR
5 cc 70503RHB 70506RHB 70500RHR
10 cc 71003RHB 71006RHB 71000RHR
30/55 cc 73003RHB 73006RHB 73000RHR
In-Line Fluid Filter
Attach the fluid filter to the receiver head to
prevent fluid from being pulled back from the
syringe barrel into the dispenser.
Part No. Description
881-000-000 In-line fluid filter kit
TSD800-11 In-line fluid filter only
Housing Material: Polypropylene
Filter Media: 0.2um PTFE
Operating Pressure: 75 psi max.
Replacement O-rings for
Receiver Head
Sold in packs of 10.
Receiver Head
SIZE EPR O-
RING VITON O-RING
3 cc P3015EPK P3019VPK
5 cc P3016EPK P3020VPK
10 cc P3017EPK P3021VPK
30/55 cc P3018EPK P3022VPK
The Receiver Head is installed with Viton O-ring.
700 Series End Caps
Designed to seal large end of the syringe
barrel to ensure no contaminants come in
contact with material during storage and
shipment. Standard color is blue. Made from
Polypropylene. Sold in bulk and packs of 50.
SIZE END CAP
3 cc 703000CB-1000
5 cc 705000CB-1000
10 cc 710000CB-1000
30/55 cc 730000CB-1000
TS700 Series
Manual Syringe Gun
Lightweight syringe barrel applicator gun provides
excellent control for medium/high viscosity
material. Easy to use. No dripping or mess.
SIZE MANUAL SYRINGE GUN
10 cc TS710SG
30 cc TS730SG
55 cc TS755SG
SIZE REPLACEMENT ROD
10 cc 71000ROD
30 cc 73000ROD
55 cc 75500ROD-C
Finger Switch Assembly
Use the Finger Switch with Techcon’s
dispensers and syringes in place of a foot
pedal. Provides control at your finger tip.
Part No. Description
DX9010 Finger Switch Assembly
for TS Series Dispenser
