700 Series Dispensing Components

Our 700 Series Premier dispensing components are silicone and chloride free and designed to work with industry

standard equipment. 700 Series dispensing components ensure accuracy, repeatability and productivity.

700 Series Syringe Barrels

Unique ultra-low draft construction of inner diameter

yields high accuracy and stability. They are comprised

of industry compliant silicone and chloride free, low

friction polypropylene. Available in three different

colors: Natural for most generic applications, amber

provides protection of UV/visible light block (up to

520nm), but with the ability to see material inside the

barrel; and black for total light block. Sold in bulk and

packs of 50.

SIZE NATURAL AMBER BLACK

3 cc 7030LL1N-1000 7030LL1D-1000 7030LL1B-1000

5 cc 7050LL1N-1000 7050LL1D-1000 7050LL1B-1000

10 cc 7100LL1N-1000 7100LL1D-1000 7100LL1B-1000

30 cc 7300LL1N-500 7300LL1D-500 7300LL1B-500

55 cc 7550LL1N-250 7550LL1D-250 7550LL1B-250

700 Series Air Powered Pistons

Spread the pressure evenly across, using a piston for

consistent dispensing of even high viscosity material.

Easy Flow pistons (blue) require less pressure to

dispense and prevent air from becoming entrapped

during the dispense process. Tight fit Wiper pistons

(white) provide a complete seal for low viscosity fluid.

Loose fit straight wall pistons (red) prevent stringing

and bouncing when dispensing high viscosity material.

Sold in bulk and packs of 50. Made from polyethylene.

SIZE Wiper Piston Straight Wall Easy Flow

(White) Piston (Red) Piston (Blue)

3 cc 7030009W-1000 7030006R-1000 7030007BL-1000

5 cc 7050009W-1000 7050006R-1000 7050007BL-1000

10 cc 7100009W-1000 7100006R-1000 7100007BL-1000

30-55 cc 7300009W-1000 7300006R-1000 7300007BL-1000

700 Series Syringe Barrel Kits

For your convenience these syringe barrels and white wiper

pistons are packaged together without pistons inserted. Kits with

Blue pistons are also available. Sold in bulk and packs of 50.

SYRINGE BARREL KITS WITH WHITE WIPER PISTONS

SIZE NATURAL AMBER BLACK

3 cc 7030LL1NW-1000 7030LL1DW-1000 7030LL1BW-1000

5 cc 7050LL1NW-1000 7050LL1DW-1000 7050LL1BW-1000

10 cc 7100LL1NW-1000 7100LL1DW-1000 7100LL1BW-1000

30 cc 7300LL1NW-500 7300LL1DW-500 7300LL1BW-500

55 cc 7550LL1NW-250 7550LL1DW-250 7550LL1BW-250

SYRINGE BARREL KITS WITH BLUE WIPER PISTONS

SIZE NATURAL

3 cc 7030LL1NBL-1000

5 cc 7050LL1NBL-1000

10 cc 7100LL1NBL-1000

30 cc 7300LL1NBL-500

55 cc 7550LL1NBL-250

700 Series Syringe Barrel Dimensions

CAPACITY Overall Length A Outside Diameter B

inches/mm inches/mm

3 cc 2.96/75.18 0.46/11.56

5 cc 2.83/71.9 0.59/14.99

10 cc 3.58/90.9 0.72/18.29

30 cc 4.66/118.36 0.99/25.15

55 cc 6.91/175.51 1.01/25.65

700 Series Dispensing Components

700 Series Tip Cap

Designed to seal the syringe barrel tip during

storage and shipment. Fits all syringe barrel

sizes. Sold in bulk and packs of 50. Made from

polypropylene.

art No. Description

7015LL-1000 Tip Cap Double Helix Thread

Orange

E7015LB-1000 Tip Cap Double Helix Thread

Black

Stand up Tip Cap Designed for

easy attachment with large flat diameter at the

base to allow for the syringe barrel to stand

upright. Sold in bulk and packs of 50. Made from

Polypropylene.

Part No. Description

015STC-1000 Blue Stand up Tip Cap

700 Series

Receiver Head Assembly

Receiver Head Assemblies are the connecting

link between time/pressure controllers and

syringe assemblies. These assemblies provide a

safe connection for accident proof dispensing.

Available with 3 or 6 feet (0.9 - 1.8 meters) of

tubing. Consists of receiver head with Viton

O-ring, tubing and male quick connector. Sold

individually. Made of Delrin

SIZE 3' HOSE 6' HOSE NO HOSE

(0.9m) (1.8m)

3 cc 70303RHB 70306RHB 70300RHR

5 cc 70503RHB 70506RHB 70500RHR

10 cc 71003RHB 71006RHB 71000RHR

30/55 cc 73003RHB 73006RHB 73000RHR

In-Line Fluid Filter

Attach the fluid filter to the receiver head to

prevent fluid from being pulled back from the

syringe barrel into the dispenser.

Part No. Description

881-000-000 In-line fluid filter kit

TSD800-11 In-line fluid filter only

Housing Material: Polypropylene

Filter Media: 0.2um PTFE

Operating Pressure: 75 psi max.

Replacement O-rings for

Receiver Head

Sold in packs of 10.

Receiver Head

SIZE EPR O-

RING VITON O-RING

3 cc P3015EPK P3019VPK

5 cc P3016EPK P3020VPK

10 cc P3017EPK P3021VPK

30/55 cc P3018EPK P3022VPK

The Receiver Head is installed with Viton O-ring.

700 Series End Caps

Designed to seal large end of the syringe

barrel to ensure no contaminants come in

contact with material during storage and

shipment. Standard color is blue. Made from

Polypropylene. Sold in bulk and packs of 50.

SIZE END CAP

3 cc 703000CB-1000

5 cc 705000CB-1000

10 cc 710000CB-1000

30/55 cc 730000CB-1000

TS700 Series

Manual Syringe Gun

Lightweight syringe barrel applicator gun provides

excellent control for medium/high viscosity

material. Easy to use. No dripping or mess.

SIZE MANUAL SYRINGE GUN

10 cc TS710SG

30 cc TS730SG

55 cc TS755SG

SIZE REPLACEMENT ROD

10 cc 71000ROD

30 cc 73000ROD

55 cc 75500ROD-C

Finger Switch Assembly

Use the Finger Switch with Techcon’s

dispensers and syringes in place of a foot

pedal. Provides control at your finger tip.

Part No. Description

DX9010 Finger Switch Assembly

for TS Series Dispenser

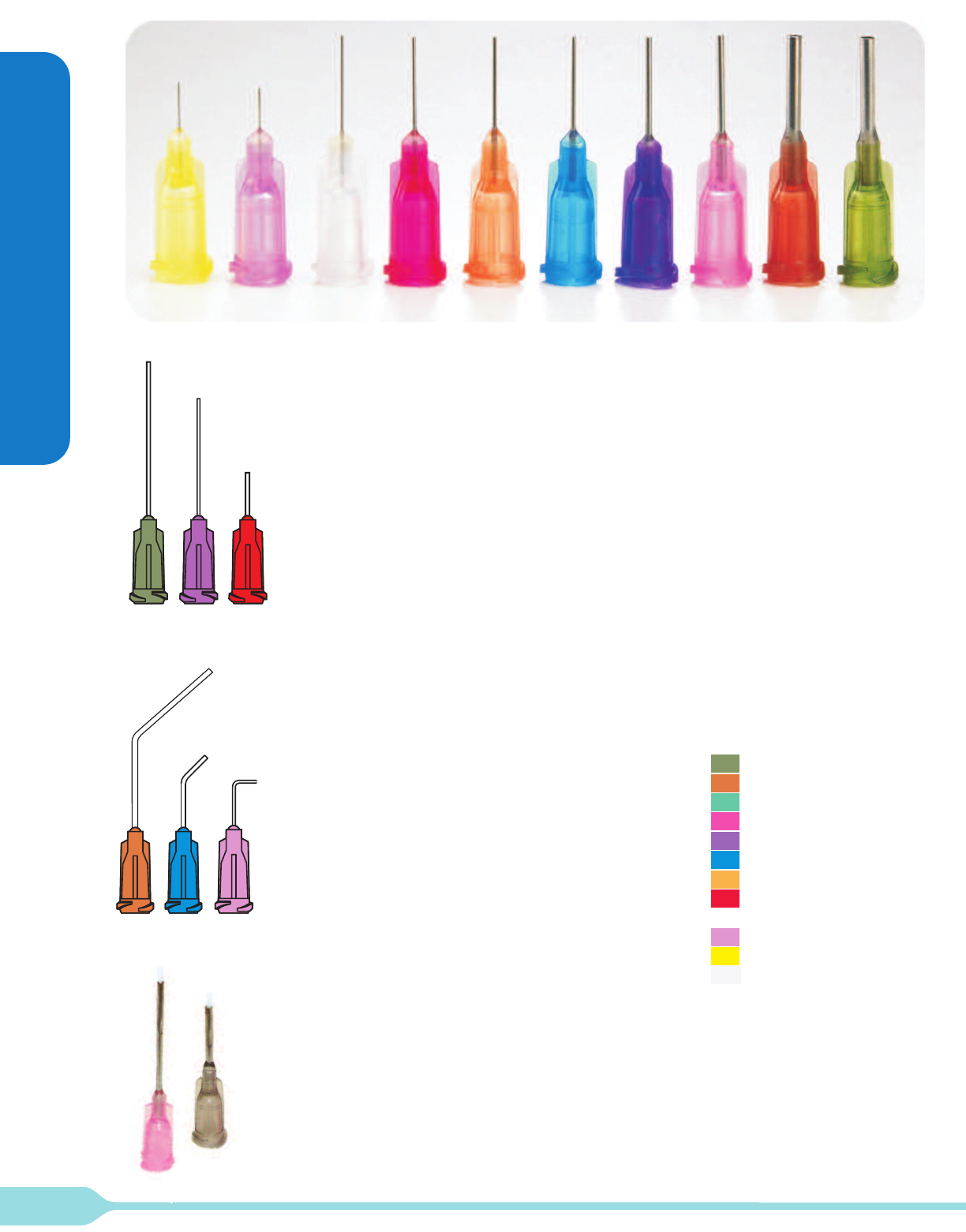

Premium Dispensing Tips

TE Dispensing Tips

The TE series consist of a stainless-steel cannula with a double helix polypropylene hub.

This premium line of dispensing tips is burr-free, and has an electro-polished cannula for

unobstructed and consistent material flow. In addition, they are silicone and chloride free.

Sold in bulk and packs of 50.

1/4" 1/2" 1" 1-1/2"

auge (6.35mm) (12.7mm) (25.4mm) (38.1mm)

4 TE714050-1000 TE714100-1000 TE714150-1000

5 TE715050-1000 TE715100-1000 TE715150-1000

8 TE718025-1000 TE718050-1000 TE718100-1000 TE718150-1000

20 TE720025-1000 TE720050-1000 TE720100-1000 TE720150-1000

21 TE721025-1000 TE721050-1000 TE721100-1000 TE721150-1000

22 TE722025-1000 TE722050-1000 TE722100-1000 TE722150-1000

23 TE723025-1000 TE723050-1000 TE723100-1000 TE723150-1000

25 TE725025-1000 TE725050-1000

27 TE727025-1000 TE727050-1000

30 TE730025-1000 TE730050-1000

32 TE732025-1000

34 TE734025-1000

TE Bent Dispensing Tips

These TE bent tips are precision bent at 45º and 90º

angles. Perfect for dispensing fluid in hard to reach places.

Sold in packs of 50.

1/2" (12.7mm) 1-1/2" (38.1mm)

Gauge 90º 45º 45º

14 TE714050B90PK TE714050B45PK TE714150B45PK

15 TE715050B90PK TE715050B45PK

18 TE718050B90PK TE718050B45PK TE718150B45PK

20 TE720050B90PK TE720050B45PK

21 TE721050B90PK TE721050B45PK TE721150B45PK

22 TE722050B90PK TE722050B45PK

23 TE723050B90PK TE723050B45PK

25 TE725050B90PK TE725050B45PK

27 TE727050B90PK TE727050B45PK

30 TE730050B90PK TE730050B45PK

Color Coding and Gauge

For TE Series and TE Bent Dispensing Tips.

Color Gauge I.D. ('') I.D. (mm)

Olive 14 0.063 1.600

Amber 15 0.054 1.371

Green 18 0.033 0.838

Pink 20 0.024 0.610

Purple 21 0.020 0.508

Blue 22 0.016 0.406

Orange 23 0.013 0.330

Red 25 0.010 0.254

Clear 27 0.008 0.203

Lavender 30 0.006 0.152

Yellow 32 0.004 0.102

Lime Green 34 0.0037 0.095

Teflon

Lined Tips

Teflon

lined tips are ideal for use with low viscosity fluids and cyanoacrylates (super glue) material.

Benefits of using this new tip include resist cyanoacrylate clogging and prevent damage to substrates.

Teflon

lined tips feature a double helix polypropylene color hub and a rigid Teflon

crimped lining that

projects approximately 1/8” (3.17mm) from the inside of a stainless steel tube. Sold in packs of 50.

Hub Color 1/2" (12.7mm) 1" (25.4mm) Tip ID Crimp ID

Gray TF720050PK TF720100PK 0.024" (0.61mm) 0.023"(0.58mm)

Pink TF725050PK TF725100PK 0.011" (0.28mm) 0.006"(0.15mm)
