Page SAMSUNG TECHWIN 21 SM4 3 1 Backup Table Ass’y
Page
SAMSUNG TECHWIN
20
SM4
3
1
Conveyor Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
187 J90832837A PCB_SHUTTLE_SENSOR_CABLE_1-2 1
188 J67021048A SOLENOID_VALVE J67021048A 5
189 J6703007A THROTTLE VALVE(ELBOW) 1
190 J6711001A ELBOW FITTING 4
191 J6709004A REGULATOR 2
192 J90601049A SM431_AXIS_SENSOR_BOARD 1
193 J90832842B PCB_WORK_SENSOR_CABLE_2-1 1
194 J90832843B PCB_WORK_SENSOR_CABLE_2-2 1
195 J90832840B PCB_WORK_SENSOR_CABLE_1-1 1
196 J90832841A PCB_WORK_SENSOR_CABLE_1-2 1
197 J70531029B STOPPER_POST 1
198 J70531448A STOP_TOP_LONG_PLATE1 J70531448A 1
199 J6701018B STOPPER CYLINDER 1
200 J70531445A WORK_STOP_CYLINDER_BKT1 1
201 J6703007A THROTTLE VALVE(ELBOW) 1
202 J90832838A PCB_SHUTTLE_SENSOR_CABLE_2-1 1
203 J90832844A PCB_BOARD_OUT_CABLE 1
Page
SAMSUNG TECHWIN
21
SM4
3
1

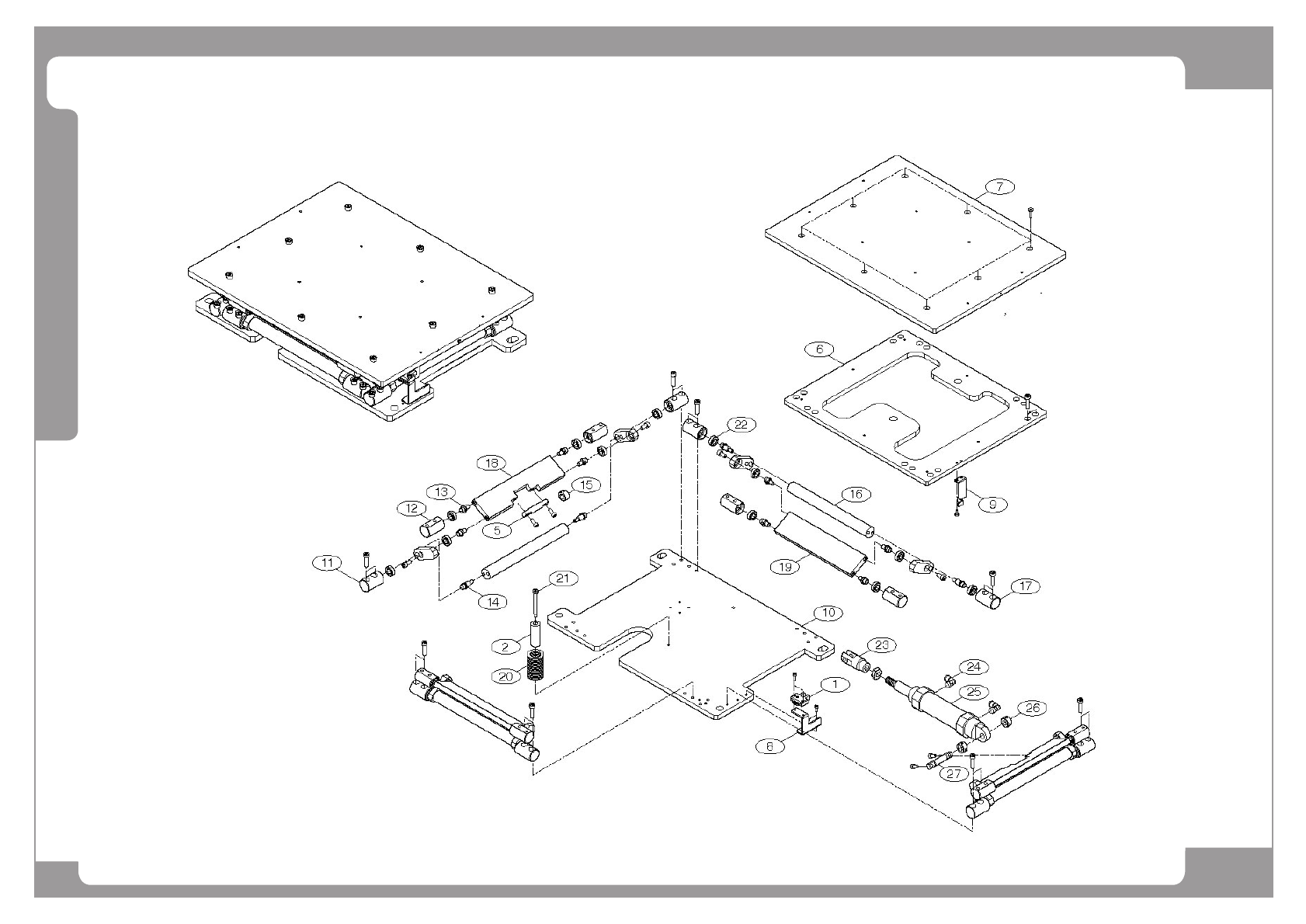

Backup Table Ass’y
Page
SAMSUNG TECHWIN
22
SM4
3
1
Backup Table Ass’y
NO. LEVEL PART NO. PART NAME Q'TY TYPE Old No. Stock Apply Reference
A-1 J90531208A SM431_BUT_ASSY 2
1 J3212002A PHOTO SENSOR 1
2 J6308003A URETHAN CUSHION 1
3 J6619062A CYLINDER JOINT 1
4 J6711028A ELBOW FITTING 2
5 J70530794B CYLINDER JOINT PIN 2
6 J70531053C UPPER_PLATE 1
7 J70531458B BACK_UP_PLATE 1
8 J70531459A BUT_SENSOR_BKT1 1
9 J70531460A BUT_SENSOR_CROSS_PLATE 1
10 J70531475A M-04-BUT_FIX_BKT 2
11 J70531479B LOWER PLATE 1
12 J7053790A LOWER BEARING HOLDER 1
13 J7053791A UPPER BEARING HOLDER 1
14 J7053792A UPPER LINK PIN 4
15 J7053793A LOWER LINK PIN 2
16 J7053795A RING FIXER 3
17 J7053796A LOWER LINK SHAFT 1
18 J70530797B LOWER LINK END 1
19 J71530419B UPPER DRIVING LINK 1
20 J71530418B UPPER FREE LINK J71530418B 2
21 J6107047A SPRING 1
22 J6015064000 SHOULDER SCREW 2
23 J6601005A BALL BEARING 1
24 J6711028A ELBOW FITTING 2
25 J67010088B CYLINDER 1
26 J7053795A RING FIXER 3
